Summary of Contents for Vaya GUNNAR

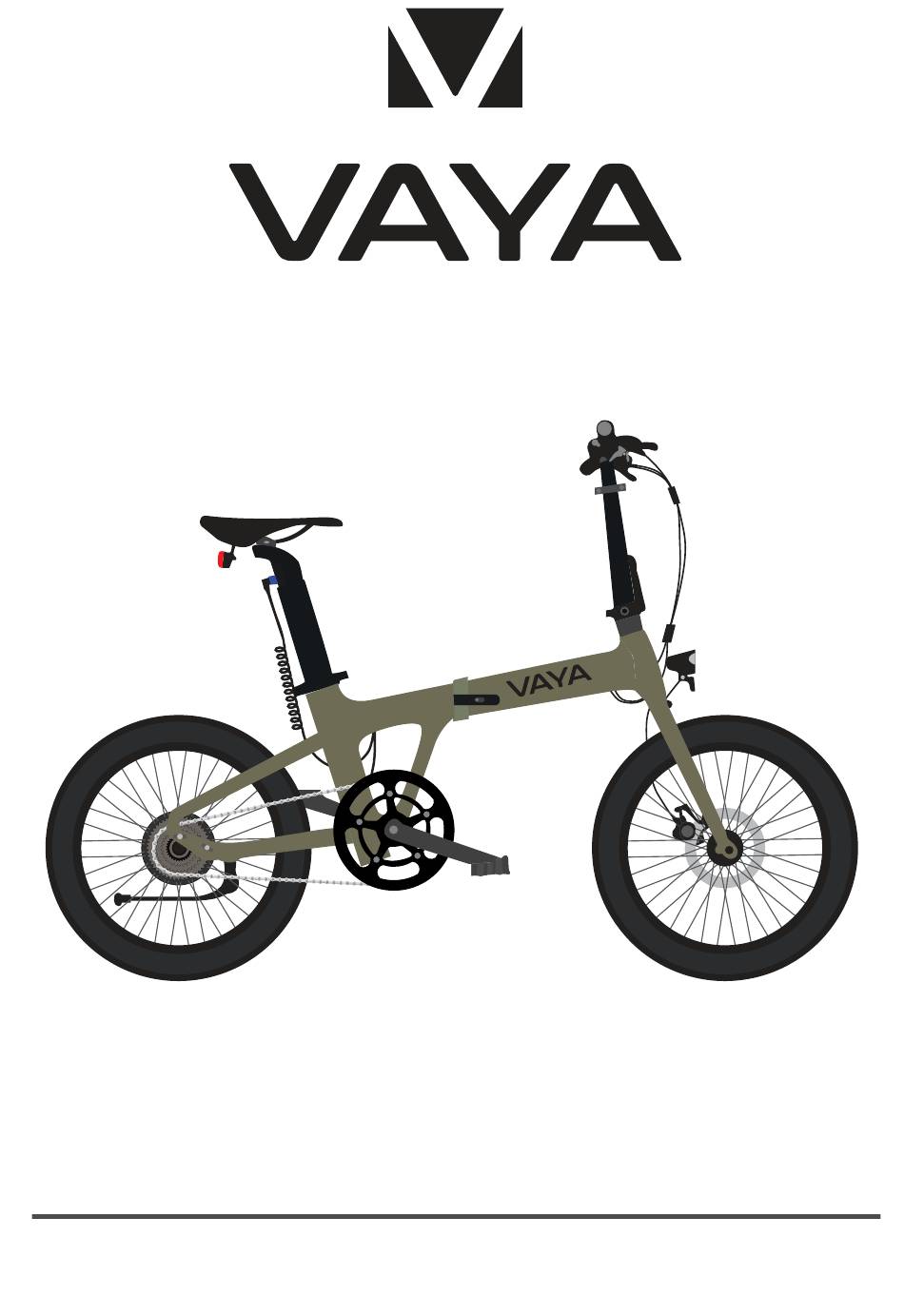

- Page 1 GUNNAR E-BIKE USER GUIDE PO-1718...
- Page 2 VAYA NORDIC: power@vayabike.com...
-
Page 3: Table Of Contents
NOISE FROM BRAKES ............................21 INSPECTING THE WHEEL BEARINGS ....................... 21 REMOVING THE WHEELS ............................ 22 REPLACING BRAKE PADS ........................... 22 E-BIKE SPECIFICATIONS ........................22 RECOMMENDED TIGHTENING INFORMATION ................23 DISPLAY ERRORS ..........................23 DISPOSAL ............................. 24 WARRANTY CARD ..........................25 VAYA NORDIC: power@vayabike.com... -
Page 4: Welcome
Before you use the E-Bike for the first time, please read the USER MANUAL thoroughly and follow the instructions and warnings to ensure your own safety and the safety of others. It is recommended to keep the instruction manual for future reference. For further information and updates, visit www.vayabike.com. VAYA NORDIC: power@vayabike.com... -
Page 5: Important Safety Information
11. Do not abuse your E-Bike, as doing so can damage your unit and cause failure to the operating system which can lead to injury. 12. Do not ride the E-Bike while wearing loose or torn clothing. 13. Safety-critical components should be replaced with genuine replacement parts. VAYA NORDIC: power@vayabike.com... - Page 6 There is also a limited warranty on wearable parts such as tires, battery, motor, chain, cassette, brakes, and handles. These parts are considered wearable parts and can be ordered at www.vayabike.com. See the service folder for more information. VAYA NORDIC: power@vayabike.com...
-
Page 7: Box Content
Key x 2 Tool bag Power adaptor Manual Service folder FOLDING INSTRUCTIONS Folding the Bike Place the crank horizontally with the left crank in front. 2. Fold the pedals. Push them in and fold them up or down. VAYA NORDIC: power@vayabike.com... - Page 8 4. Open the quick release of the stem and move it all the way down. 5. Open the quick release of the handlebar and turn it so the hand brake is facing downward. Lock the handlebar quick release. VAYA NORDIC: power@vayabike.com...
- Page 9 6. Open the folding device of the frame and fold the bike partially. 7. Open the folding device of the head tube and fold it down. 8. Fully fold the device. VAYA NORDIC: power@vayabike.com...
-
Page 10: Unfolding The Bike
Unfolding the Bike Move the two wheels slightly away from each other. 2. Raise the front tube and lock it (1). Remember also to turn the second locking device of the tube lock (2). VAYA NORDIC: power@vayabike.com... - Page 11 5. Adjust the seat, handlebar, and stem to the user’s preference. WARNING: After unfolding the bike, make sure to check all the safety buckles. Please pay extra attention to closing the safety buckle of the frame and the head tube to ensure safety. VAYA NORDIC: power@vayabike.com...
-
Page 12: Lcd Display
P01: Display backlight brightness. Range from 1-3. 3 is highest setting. · P02: Speed display settings. 0 is kilometres. 1 is miles. · P03: No function. · P04: Display dormancy time: 1-60 dormancy time in minutes. 0 is no dormancy. VAYA NORDIC: power@vayabike.com... -
Page 13: Gear Shifter
E-Bike for the first time. PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY Step 1: Getting started – Take your E-Bike out of the box. Step 2: Charge the battery – Make sure the battery is fully charged before you use the VAYA NORDIC: power@vayabike.com... -
Page 14: Setup
Seat post: After tightening the fastener screw, put downward pressure on the seat to check if it is tight enough and attempt to twist the saddle from side to side to ensure it will not move when riding. VAYA NORDIC: power@vayabike.com... -
Page 15: Precautions Before Driving
This section is intended to provide you with basic information about your battery and charger. Please read this section carefully to ensure your safety. For user safety, prolonged battery life, and improved battery performance, follow the instructions as stated. VAYA NORDIC: power@vayabike.com... -
Page 16: Connect Battery
Storage temperature: 0 - 25 °C Storage Humidity: 60 (+/- 25%) % The supplied charger and battery must only be used together and are not suitable for other devices. Charger Specifications Model number: CP4220 Input: 100-240V, 3A, 50/60Hz Output: 42.0V 2.0A VAYA NORDIC: power@vayabike.com... -
Page 17: Charging Your E-Bike
Check the side of the front and rear wheels for correct tyre pressure. Check the brake pads for wear. If the brake pads are worn out, replace them immediately. See the photo below for which screws to check and secure after each ride. VAYA NORDIC: power@vayabike.com... -
Page 18: Cleaning Your E-Bike
Store the battery indoors and in a dry and suitable temperature range. Do not store the battery in direct sunlight or in a car. Overly high temperatures can cause damage to the function and lifecycle of the battery. VAYA NORDIC: power@vayabike.com... -
Page 19: Adjusting The Rear Derailleur
While lifting the rear of the bike and turning the pedals by hand, use the gear shifter to select the highest gear. Use a suitable screwdriver to turn the screw marked with H (high gear) to adjust the rear derailleur until it is vertically aligned below the highest gear. See photo above. VAYA NORDIC: power@vayabike.com... -
Page 20: Disc Brake
If the brakes are too tight or too loose then use the included hex-key on the bolt that holds the brake cable in position. Loosen the bolt. To tighten the cable tension: Decrease the length of the brake cable. To loosen the cable tension: Increase the length of the brake cable. VAYA NORDIC: power@vayabike.com... -
Page 21: Fine-Tune The Brake Cable Tension
Special tools are required for this repair. It is recommended that the wheels are trued by a qualified repair technician. Contact your local retailer for more information on wheel repairs. VAYA NORDIC: power@vayabike.com... -
Page 22: Removing The Wheels
Wheel size: 20 x 2.5 inches Max compatible wheel size: 20 x 3.0 inches Weather resistance: IP54 Bike gear counts: 7 Assistance mode gear counts: 5 Max pedal assistance speed: 0-25 km/h Boost mileage: up to 40-60 km VAYA NORDIC: power@vayabike.com... -
Page 23: Recommended Tightening Information
3: Display error Communication error – receiving 1: Loose connection 2: Display error Communication error Declaration of Conformity: (See provided document). Products marked with this symbol comply with all applicable community regulations of the European Economic Area VAYA NORDIC: power@vayabike.com... -
Page 24: Disposal
Contact your Local Authority Waste Disposal Department, as they will be able to provide details of the recycling options available in your area. Imported by: Accession ApS, Pioner Alle 16D, 9200 Aalborg SV, Denmark. Date of issue: 05/2024 Version: PO-1718 VAYA NORDIC: power@vayabike.com... -
Page 25: Warranty Card
GB: Warning: Does not cover improper use of the product or failure to follow the warnings and operating instructions in this instruction manual. There is also limited coverage on wearing parts such as wheels, battery, brakes and grips. These parts are considered wear parts and can subsequently be ordered at www.vayabike.com VAYA NORDIC: power@vayabike.com...
