Summary of Contents for BZB Gear BG-IPGEAR-LITE

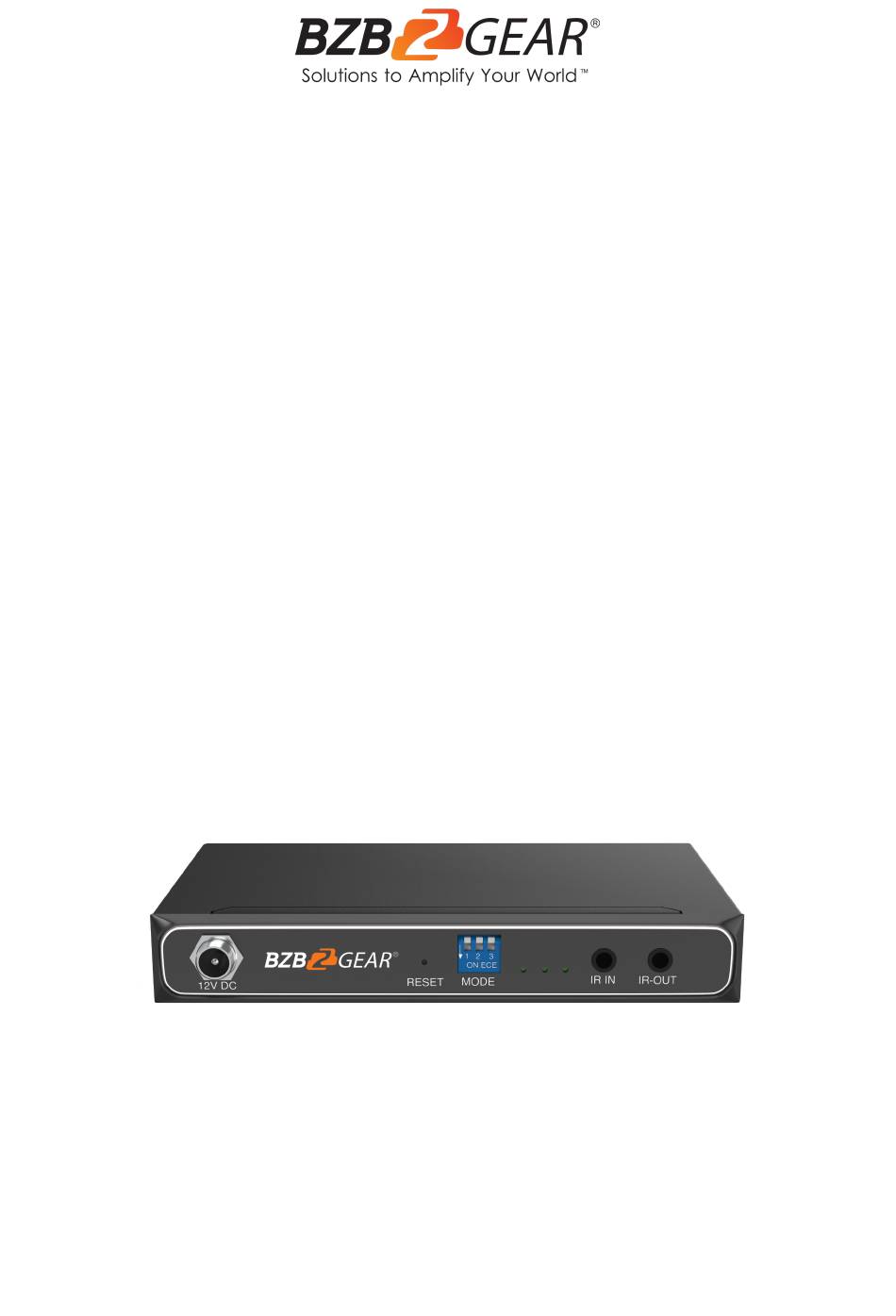

- Page 1 BG-IPGEAR-LITE HDMI 2.1 Over IP Multicast System with Bi-directional IR, RS-232 & USB 3.1 Support User Manual...
-
Page 2: Connection Diagram
BZBGEAR BG-IPGEAR-LITE PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 3: Table Of Contents
BZBGEAR BG-IPGEAR-LITE PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions IR Pass-Through Connection Diagram 1 Connection Diagram 2 Product Dimensions Troubleshooting Tech Support Limited Product Warranty Terms Mission Statement Copyright ·... -
Page 4: Statement
BZBGEAR BG-IPGEAR-LITE PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-IPGEAR-LITE is a high-performance HDMI 2.1 over IP multicast system designed to deliver Ultra-HD 4K@120Hz 4:4:4 video over a Cat.5e network up to 100 meters (330 feet). With support for bi-directional IR, RS-232, and USB 3.1, this versatile solution ensures seamless transmission of high-resolution video and audio while maintaining compatibility with modern AV control systems. -
Page 6: Packing List
BZBGEAR BG-IPGEAR-LITE PRODUCT MANUAL Packing List ● 1x BG-IPGEAR-LITE [TX & RX] ● 1x IR Blaster ● 1x IR Receiver ● 2x DC 12V ● 1x User Manual ● 2x 3-pin Power Terminal Block Connector · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 7: Specifications
BZBGEAR BG-IPGEAR-LITE PRODUCT MANUAL Specifications Technical Role of Usage Transmitter (TX) Receiver (RX) HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth Up to FRL 5 (40G) Video Support Up to 4K@120Hz 4:4:4 HDMI over UTP 4K@120 4:4:4 100m (330ft) [CAT.5E] Audio Support Surround sound [up to 7.1ch) - Page 8 BZBGEAR BG-IPGEAR-LITE PRODUCT MANUAL Power Supply 12V DC Operation Temperature 0~40°C / 32~104°F Storage Temperature -20~60°C / -4~140°F Relative Humidity 20~90% RH [no condensation] · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 9: Operation Controls And Functions
BZBGEAR BG-IPGEAR-LITE PRODUCT MANUAL Operation Controls and Functions Front and Rear Panel 1. +12V DC: Interlocking power jack for a 12V DC power supply. 2. Reset Button: Factory reset function. 3. Mode: Select USB host/device mode or firmware update mode. -
Page 10: Ir Pass-Through
BZBGEAR BG-IPGEAR-LITE PRODUCT MANUAL IR Pass-Through IR Sockets ● IR Blaster: Connect the IR blaster to transmit IR command signals received from the IR receiver, allowing control of compatible devices. ● IR Receiver: Connect the IR receiver to capture IR signals from remote controls, enabling communication with corresponding devices. -
Page 11: Connection Diagram 1
BZBGEAR BG-IPGEAR-LITE PRODUCT MANUAL Connection Diagram 1 · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... - Page 12 BZBGEAR BG-IPGEAR-LITE PRODUCT MANUAL Connection Diagram 2 · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 13: Product Dimensions
BZBGEAR BG-IPGEAR-LITE PRODUCT MANUAL Product Dimensions · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 14: Troubleshooting
BZBGEAR BG-IPGEAR-LITE PRODUCT MANUAL Troubleshooting Problems Causes Solutions No Power / All LED off Power supply not connected, Check if the power supply is connected fully, or wrong power connected correctly and the supply. output voltage value is within recommended specifications. -
Page 15: Tech Support
BZBGEAR BG-IPGEAR-LITE PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 16: Mission Statement
BZBGEAR BG-IPGEAR-LITE PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog.
