Summary of Contents for Herz HDM50

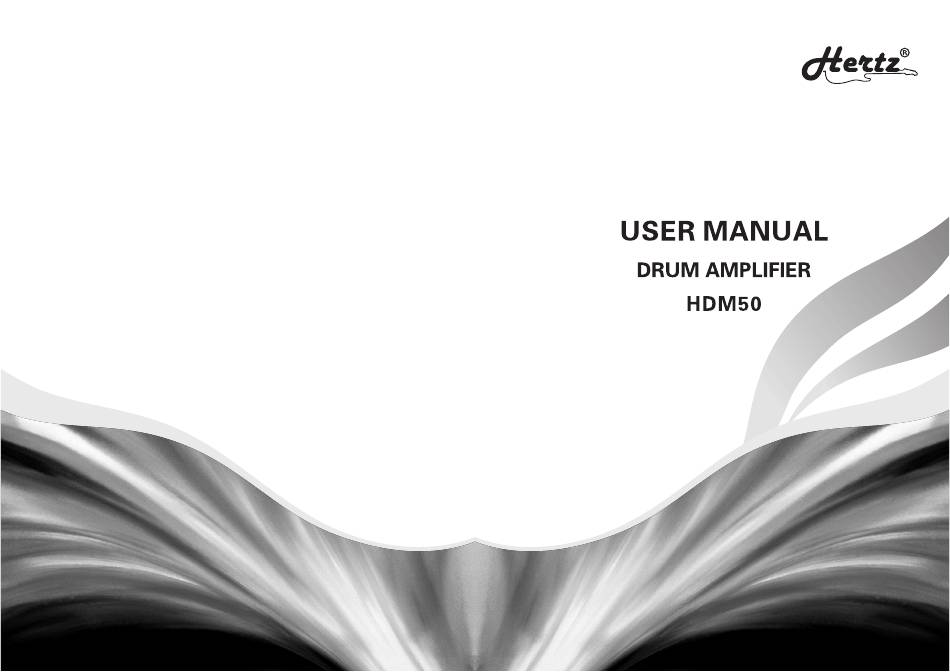

- Page 1 GD202311039 070404722...
- Page 2 IMPORTANT SAFETY SYMBOLS The symbol is used to indicate that some hazardous live terminals are involved within this apparatus, even under the normal operating conditions, which may be sufficient to constitute the risk of electric shock or death. The symbol is used in the service documentation to indicate that specific component shall be replaced only by the component specified in that documentation for safety the component specified in that documentation for safety reasons.
- Page 3 REAR PANEL LINE MAIN INPUT AUX INPUT BASS MIDDLE TREBLE PHONES DRUM INPUTS AUX INPUT INPUT POWER HDM50 LEFT/MONO RIGHT Serial Number: LINE OUTPUT POWER HDM50 DRUM INPUTS: These are " input jacks (left and right).when using a mono signal, plug into the left/mono jack.
