DESCRIPTION
DESCRIPTION
The 2.4 Liter (146 cu. in.) in-line four cylinder engine is a single over head camshaft with mechanical lash
adjusters and four valves per cylinder design. This engine is NOT free-wheeling; meaning that the pistons will
contact the valves in the event of a timing chain failure.
The cylinders are numbered from front of the engine to the rear. The firing order is 1-3-4-2.

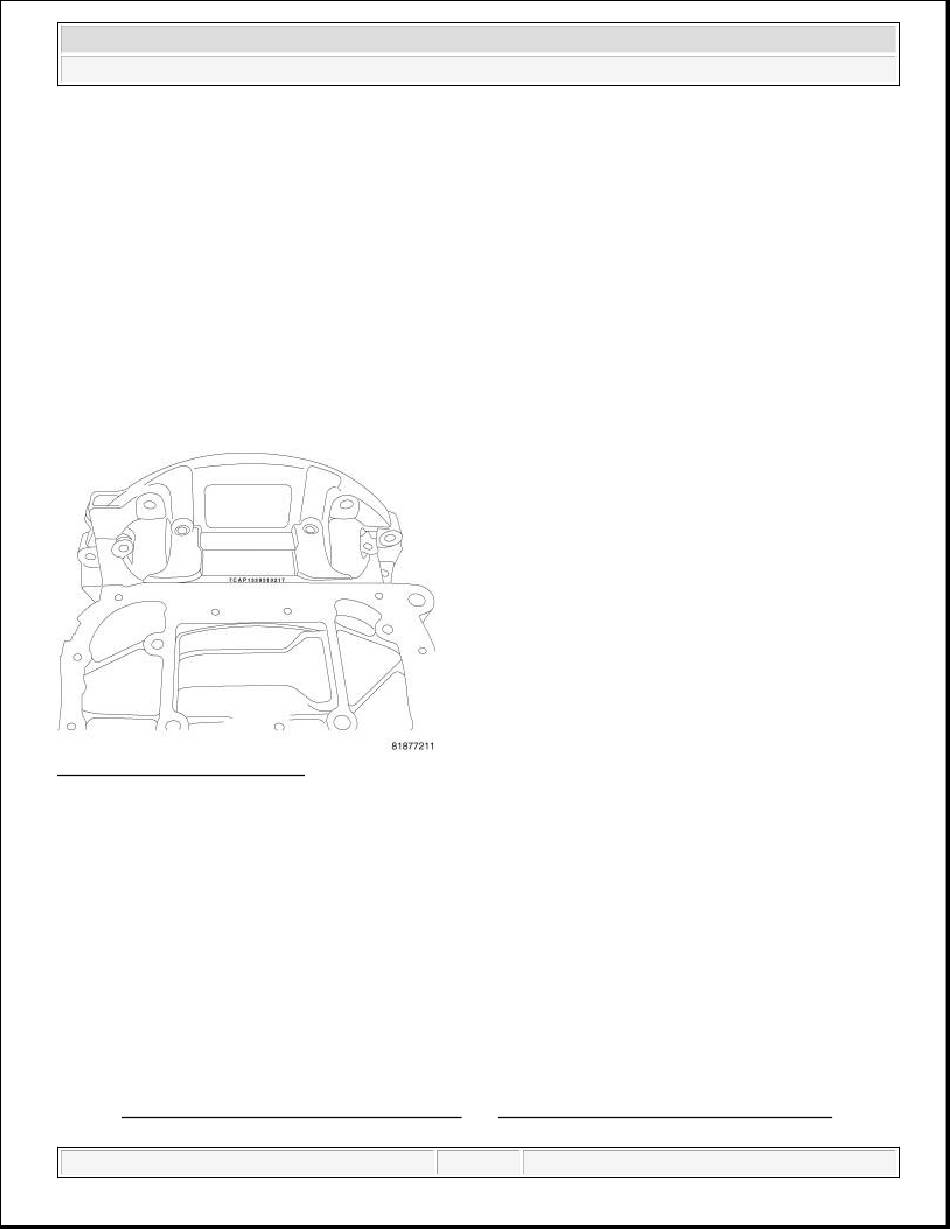

Fig. 1: Serial Number Location
Courtesy of CHRYSLER GROUP, LLC
The engine serial number is located on the rear of the cylinder block. The serial number contains engine build
date information.
DIAGNOSIS AND TESTING
ENGINE DIAGNOSIS - INTRODUCTION
Engine diagnosis is helpful in determining the causes of malfunctions not detected and remedied by routine
maintenance.
These malfunctions may be classified as either performance (e.g. engine idles rough and stalls) or mechanical
(e.g. a strange noise).
Refer to PERFORMANCE DIAGNOSTIC TABLE and ENGINE MECHANICAL DIAGNOSTIC
martes, 5 de mayo de 2020 04:14:49 p. m.
martes, 5 de mayo de 2020 04:14:39 p. m.
2014 Dodge Dart GT
2014 Dodge Dart GT
2014 ENGINE 2.4L - Service Information - Dart
2014 ENGINE 2.4L - Service Information - Dart
2014 ENGINE
2.4L - Service Information - Dart
Page 1
Page 1
© 2011 Mitchell Repair Information Company, LLC.
© 2011 Mitchell Repair Information Company, LLC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dodge Dart GT 2014 and is the answer not in the manual?

Questions and answers

Related Manuals for Chrysler Dodge Dart GT 2014

Summary of Contents for Chrysler Dodge Dart GT 2014

  • Page 1 The cylinders are numbered from front of the engine to the rear. The firing order is 1-3-4-2. Fig. 1: Serial Number Location Courtesy of CHRYSLER GROUP, LLC The engine serial number is located on the rear of the cylinder block. The serial number contains engine build date information.
  • Page 2 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart TABLE for possible causes and corrections of malfunctions. . Refer to the FUEL SYSTEM article for the fuel system diagnosis. Additional tests and diagnostic procedures may be necessary for specific engine malfunctions that can not be isolated with the Service Diagnosis charts.
  • Page 3 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart manifold gasket, and vacuum hoses. 4. Faulty ignition coil(s). 4. Test and replace as necessary. (Refer to Appropriate Diagnostic Information) 5. Contamination in Oil Control 5. Remove OCV and inspect for Valve (OCV).
  • Page 4 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart 4. Contamination in fuel system. 4. Clean system and replace fuel filter. ENGINE MECHANICAL DIAGNOSTIC TABLE CONDITION POSSIBLE CAUSES CORRECTIONS NOISY VALVES 1. High or low oil level in 1.
  • Page 5 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart converter. CYLINDER COMPRESSION PRESSURE LEAKAGE NOTE: The results of a cylinder compression pressure test can be utilized to diagnose several engine malfunctions. NOTE: Ensure the battery is completely charged and the engine starter motor is in good operating condition.
  • Page 6 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Any causes for combustion/compression pressure loss. 1. Check the coolant level and fill as required. DO NOT install the radiator cap. 2. Start and operate the engine until it attains normal operating temperature, then turn the engine OFF. 3.
  • Page 7 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart NOTE: Engine oil consumption may be greater than normal during engine break-in. Repairs should be delayed until vehicle has been driven at least 7, 500 miles. Severe service (high ambient temperature, short trips, heavy loading, trailer towing, taxi, off-road, or law enforcement use) may result in greater oil consumption than normal.
  • Page 8 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart NOTE: Verify the spark plugs are not oil saturated. If the spark plugs are oil saturated and compression is good it can be assumed the valve seals or valve guides are at fault.
  • Page 9 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart pass around behind the rings into the combustion chamber. 5. Worn, Broken or Stuck Piston Rings When piston rings are broken, worn or stuck to such an extent that the correct tension and clearances are not maintained, this will allow oil to be drawn into the combustion chamber on the intake stroke and hot gases of combustion to be blown down the cylinder past the piston on the power stroke.
  • Page 10 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart The use of oil with a viscosity that is too light may result in high oil consumption. Refer to the vehicle Owner's Manual for the proper oil viscosity to be used under specific driving conditions and/or ambient temperatures.
  • Page 11 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart consumption, an extremely dirty air filter would be one example of this situation. 19. Intake Manifold port seals Engines that have a "V" configuration and a "wet valley" (3.3/3.8L) could draw oil into the intake ports due to improper sealing between the intake manifold ports and cylinder head.
  • Page 12 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart PUMP, ENGINE OIL - REMOVAL . 6. Thin or diluted oil. 6. Change oil and filter. Refer to OIL - STANDARD PROCEDURE . 7. Excessive bearing clearance. 7. Replace crankshaft bearings. Refer to BEARING(S), CRANKSHAFT, MAIN - STANDARD PROCEDURE .

  • Page 13: Repair Damaged Or Worn Threads

    2014 ENGINE 2.4L - Service Information - Dart Fig. 2: Covers/Caps Courtesy of CHRYSLER GROUP, LLC Due to the high amounts of failures caused by dust, dirt, moisture and other foreign debris being introduced to the engine during service. Covers or caps are needed to reduce the possible damage that can be caused or created.

  • Page 14: Form-In-Place Gaskets And Sealers

    2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart CAUTION: Be sure that the tapped holes maintain the original center line. Damaged or worn threads can be repaired. Essentially, this repair consists of: Drilling out worn or damaged threads. Tapping the hole with a special Heli-Coil Tap, or equivalent.

  • Page 15: Sealer Application

    ENGINE GASKET SURFACE PREPARATION Fig. 4: Proper Tool Usage For Surface Preparation Courtesy of CHRYSLER GROUP, LLC To ensure engine gasket sealing, proper surface preparation must be performed, especially with the use of aluminum engine components and multi-layer steel cylinder head gaskets.

  • Page 16: Specification

    2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Never use the following to clean gasket surfaces: Metal scraper. Abrasive pad or paper to clean cylinder block and head. High speed power tool with an abrasive pad or a wire brush (1). NOTE: Multi-Layer Steel (MLS) head gaskets require a scratch free sealing surface.
  • Page 17 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart 86.010 - 86.020 mm 3.3862 - 3.3866 in. 86.020 - 86.030 mm 3.3866 - 3.3869 in. Cylinder Bore Out-of-Round (Max.) 0.020 mm 0.0008 in. Cylinder Bore Taper (Max.) 0.028 mm 0.001 in.
  • Page 18 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Ring Width-Oil Ring Pack 2.30 - 2.60 mm 0.0906 - 0.1024 in. Ring Thickness-Top Compression 1.17 - 1.19 mm 0.0461 - 0.0469 in. Ring Ring Thickness-2nd Compression 1.17 - 1.19 mm 0.0461 - 0.0469 in.
  • Page 19 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Journal Out-of-Round (Max.) 0.005 mm 0.0001 in. Journal Taper (Max.) 0.006 mm 0.0002 in. 0.05 - 0.25 mm 0.0019 - 0.0098 in. End Play Wear Limit 0.30 mm 0.0118 in.
  • Page 20 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Gasket Thickness (Compressed) 0.54 mm 0.021 in. Valve Tappet Bore I.D. 32.000 - 32.025 mm 1.2598 - 1.2608 in. Valve Tappet O.D 31.964 - 31.980 mm 1.2584 - 1.2590 in. Flatness (Head Gasket Surface) .05 mm .002 in.
  • Page 21 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart DESCRIPTION SPECIFICATION Metric Standard Intake 0.672 mm 0.0264 in. Exhaust 0.744 mm 0.02929 in. VALVE STEM TIP DESCRIPTION SPECIFICATION Metric Standard Intake 48.04 mm 1.891 in. Exhaust 47.99 mm 1.889 in.

  • Page 22: Crankshaft Installation

    2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Bell Housing-Bolts Camshaft Sprocket-Bolt 10 + 65° 89 + 65° Camshaft Bearing Cap-Bolts Coils Connecting Rod Cap-Bolts 20 + 90° 15 + 90° Coolant Temperature Sender Crankshaft Main Bearing Cap-Bolts Refer to tightening sequence Procedure under CRANKSHAFT - INSTALLATION Crankshaft Damper-Bolt...
  • Page 23 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Timing Chain Tensioner-Bolts Vacuum Pump-Bolts REMOVAL REMOVAL CAUTION: If the original engine has experienced a catastrophic failure or an individual failure with the piston, cylinder bore, engine block, valve or valve seat, the intake manifold MUST be replaced with a new manifold.
  • Page 24 2014 ENGINE 2.4L - Service Information - Dart Fig. 5: Foam Insulator, Fuel Line & Purge Line Courtesy of CHRYSLER GROUP, LLC 16. Disconnect the fuel line (1) and the purge line (2) quick connects. 17. Disconnect the positive and negative battery cables.
  • Page 25 2014 ENGINE 2.4L - Service Information - Dart 18. Remove the three bolts (1) that secure the PDC. Fig. 7: Starter Connector Courtesy of CHRYSLER GROUP, LLC 19. Remove the starter connector (1) at the power block. Fig. 8: Intermediate Connector, Generator Feed Connector & PCM Connector martes, 5 de mayo de 2020 04:14:40 p.
  • Page 26 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Courtesy of CHRYSLER GROUP, LLC 20. Disconnect the intermediate connector (1), the generator feed connector (2) and the PCM connector (3). 21. Remove the battery. Refer to BATTERY, REMOVAL .
  • Page 27 2014 ENGINE 2.4L - Service Information - Dart Fig. 9: Crossmember To Fascia Support Beams Bracket Retaining Bolts Courtesy of CHRYSLER GROUP, LLC 40. Remove the four bracket retaining bolts (1) from the cross member to fascia support beams bracket, then remove the bracket.
  • Page 28 42. Remove the front fascia support beams (1). Fig. 12: Rear Engine Isolator To Engine Mount Bracket Bolt Courtesy of CHRYSLER GROUP, LLC 43. Remove the rear engine mount to bracket through bolt (4) and nut (2). 44. Remove the rear engine mount to crossmember through bolt (1).
  • Page 29 2014 ENGINE 2.4L - Service Information - Dart Fig. 13: Transaxle & Ground Cable Courtesy of CHRYSLER GROUP, LLC 48. Remove the bolt holding the ground cable (2) to transaxle and separate cable from transaxle (1). Fig. 14: Reverse Lamp Sensor Courtesy of CHRYSLER GROUP, LLC 49.
  • Page 30 2014 ENGINE 2.4L - Service Information - Dart Fig. 15: Hose Assembly & Hot Bottle Return Pipe Bolts Courtesy of CHRYSLER GROUP, LLC 51. Remove the hot bottle return pipe bolts (1). 52. Disconnect the fitting at the thermostat housing and position the hose assembly to the side (2).
  • Page 31 2014 ENGINE 2.4L - Service Information - Dart Fig. 17: Gear Shift Selector Cable & Bracket Courtesy of CHRYSLER GROUP, LLC 55. Disconnect the gear shift selector cables (1) at the manual levers (2). Fig. 18: Hydraulic Supply Pipe & Concentric Slave Cylinder Courtesy of CHRYSLER GROUP, LLC 56.

  • Page 32: Installation

    61. Reposition the main wire harness away from the engine. Fig. 19: Adapter, Engine Support Cradle, Power Train Dolly & Safety Straps Courtesy of CHRYSLER GROUP, LLC 62. Raise and position the vehicle height to allow Power Train Dolly (special tool #6135, Dolly, Power Train) (3) and Engine Support Cradle (special tool #6710A, Cradle, Engine Support) (2) to be installed under the engine/transaxle assembly.
  • Page 33 10. Install the exhaust manifold assembly. Refer to MANIFOLD, EXHAUST, INSTALLATION. Fig. 20: Hydraulic Supply Pipe & Concentric Slave Cylinder Courtesy of CHRYSLER GROUP, LLC 11. Connect the hydraulic supply pipe (1) for the concentric slave cylinder (2). Refer to CYLINDER, CLUTCH SLAVE, INSTALLATION .
  • Page 34 2014 ENGINE 2.4L - Service Information - Dart Fig. 21: Gear Shift Selector Cable & Bracket Courtesy of CHRYSLER GROUP, LLC 12. Connect the gear shift selector cables (1) at the manual levers (2). 13. Install the bolt holding the ground strap to left frame rail. Tighten the bolt to 9 N.m (80 in. lbs.).
  • Page 35 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 23: Reverse Lamp Sensor Courtesy of CHRYSLER GROUP, LLC 16. Connect the reverse lamp sensor (1). Fig. 24: Transaxle & Ground Cable Courtesy of CHRYSLER GROUP, LLC 17.
  • Page 36 2014 ENGINE 2.4L - Service Information - Dart Fig. 25: Rear Engine Isolator To Engine Mount Bracket Bolt Courtesy of CHRYSLER GROUP, LLC 20. Reposition the engine forward to allow the mount to be inserted into the pocket past the engine bracket (3).
  • Page 37 24. Install the front fascia beams (1). Fig. 27: Lower Bumper Reinforcements & Fasteners Courtesy of CHRYSLER GROUP, LLC 25. Install the fasteners (2) securing the lower bumper reinforcement (1) to the frame/front end module. Tighten the fasteners to 45 N.m (33 ft. lbs.).
  • Page 38 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart 26. Install the crossmember to fascia support beam bracket and install the four retaining bolts (1) and tighten to 95 N.m (70 ft. lbs.). 27. Insert the lower ball joint into the knuckle and install the pinch bolt and nut and tighten to 70 N.m (52 ft. lbs.).
  • Page 39 2014 ENGINE 2.4L - Service Information - Dart Fig. 29: Intermediate Connector, Generator Feed Connector & PCM Connector Courtesy of CHRYSLER GROUP, LLC 47. Connect the intermediate connector (1), the generator feed connector (2) and the PCM connector (3). Fig. 30: Starter Connector Courtesy of CHRYSLER GROUP, LLC martes, 5 de mayo de 2020 04:14:40 p.
  • Page 40 48. Install the starter connector (1) at the power block. Tighten the nut to 7 N.m (62 in. lbs.). Fig. 31: PDC Bolts Courtesy of CHRYSLER GROUP, LLC 49. Install the three bolts (1) that secure the PDC. Tighten to 9 N.m (80 in. lbs.).

  • Page 41: Special Tools

    2014 ENGINE 2.4L - Service Information - Dart Fig. 32: Foam Insulator, Fuel Line & Purge Line Courtesy of CHRYSLER GROUP, LLC 52. Connect the fuel line (1) and the purge line (2) quick connects. 53. Connect the brake booster vacuum hose to intake manifold fitting.
  • Page 42 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart 10224 - Adapter, Valve Spring (Originally Shipped In Kit Number(s) 10223.) 10368 - Set, Universal Protective Cap 7700-A - Tester, Cooling System martes, 5 de mayo de 2020 04:14:40 p. m. Page 42 ©...
  • Page 43 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart 8189 - Guide Pins (Originally Shipped In Kit Number(s) 8180, 8180CC, 8263, 8263CC.) 9506 - Installer, Oil Seal (Originally Shipped In Kit Number(s) 9610, 9970.) martes, 5 de mayo de 2020 04:14:40 p. m. Page 43 ©...
  • Page 44 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart 9509 - Installer, Oil Seal (Originally Shipped In Kit Number(s) 9610, 9970.) 9703 - Pin, Tensioner (Originally Shipped In Kit Number(s) 9610, 9970.) martes, 5 de mayo de 2020 04:14:40 p. m. Page 44 ©...
  • Page 45 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart 9706 - Installer, Crankshaft Rear Oil Seal (Originally Shipped In Kit Number(s) 9610, 9970.) 9707 - Holder, Vibration Damper (Originally Shipped In Kit Number(s) 9610, 9970.) martes, 5 de mayo de 2020 04:14:40 p. m. Page 45 ©...
  • Page 46 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart 9879 - Adapter, Oil Pressure Test (Originally Shipped In Kit Number(s) 9998.) C-119 - Cylinder Indicator C-3339A - Set, Dial Indicator martes, 5 de mayo de 2020 04:14:40 p. m. Page 46 ©...
  • Page 47 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart (Originally Shipped In Kit Number(s) 9202.) C-3685-A - Bloc-Chek Kit martes, 5 de mayo de 2020 04:14:40 p. m. Page 47 © 2011 Mitchell Repair Information Company, LLC.
  • Page 48 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart C-385 - Compressor, Piston C-4171 - Driver Handle, Universal (Originally Shipped In Kit Number(s) 9202, 9202A-CAN, 9202CC, 9299, 9299CC, 9299CC, 9300A-CAN.) C-4597 - Socket, Oil Pressure martes, 5 de mayo de 2020 04:14:40 p. m. Page 48 ©...
  • Page 49 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart MD998772A - Compressor, Valve Spring (Originally Shipped In Kit Number(s) 8678, 8853, 8854.) martes, 5 de mayo de 2020 04:14:40 p. m. Page 49 © 2011 Mitchell Repair Information Company, LLC.
  • Page 50 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart 10288 - Pliers, Hose Clamp 10259B - Compressor, MultiAir® Spring martes, 5 de mayo de 2020 04:14:40 p. m. Page 50 © 2011 Mitchell Repair Information Company, LLC.

  • Page 51: Air Intake System

    2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart 8534B - Fixture, Driveline Support (Originally Shipped In Kit Number(s) 8534, 8534B, 8849, 9565.) AIR INTAKE SYSTEM AIR CLEANER martes, 5 de mayo de 2020 04:14:40 p. m. Page 51 ©...
  • Page 52 2014 ENGINE 2.4L - Service Information - Dart REMOVAL REMOVAL Fig. 34: Air Cleaner Housing Cover Screws Courtesy of CHRYSLER GROUP, LLC 1. Remove two screws (1) from the air cleaner housing cover. Fig. 35: Air Cleaner Housing Cover & Air Filter Courtesy of CHRYSLER GROUP, LLC 2.
  • Page 53 INSTALLATION Fig. 36: Air Cleaner Housing Cover & Air Filter Courtesy of CHRYSLER GROUP, LLC 1. Install the air filter element (2) into the air cleaner housing. 2. Install the cover (1) so that the rear tabs insert into the lower air box.
  • Page 54 REMOVAL Fig. 38: Air Cleaner Body, Clamp, Make Up Air Hose, Retainer & Bolt Courtesy of CHRYSLER GROUP, LLC 1. Loosen the clamp (2) and disengage the hose from the resonator. 2. Remove the make up air hose (3) from the air cleaner body.
  • Page 55 2014 ENGINE 2.4L - Service Information - Dart Fig. 39: Air Cleaner Body, Clamp, Make Up Air Hose, Retainer & Bolt Courtesy of CHRYSLER GROUP, LLC 1. Install the air cleaner body (1) straight down on the locating pins. 2. Install the retaining bolt (5).
  • Page 56 2014 ENGINE 2.4L - Service Information - Dart Fig. 40: Resonator, Clamp & Connector Courtesy of CHRYSLER GROUP, LLC 2. Disconnect the electrical connector (2) from the Inlet Air Temperature (IAT) sensor. 3. Loosen the clamp (2) that secures the resonator (1) to the throttle body inlet.
  • Page 57 INSTALLATION Fig. 42: Resonator, Bolt & Clamp Courtesy of CHRYSLER GROUP, LLC 1. Position the resonator (3) between the forward edge of the cowl and the cylinder head cover. Align the openings with the throttle body intake and the airbox flex hose.

  • Page 58: Cylinder Head

    2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 43: Resonator, Clamp & Connector Courtesy of CHRYSLER GROUP, LLC 4. Tighten the clamp (2) at the resonator outlet (1). 5. Connect the IAT connector (3). 6. Install the engine cover. Push downward to make sure all four rubber mounts are secure.
  • Page 59 2014 ENGINE 2.4L - Service Information - Dart Fig. 44: Cylinder Head, Valves & Springs Courtesy of CHRYSLER GROUP, LLC The MultiAir, aluminum cylinder head (7) contains an exhaust camshaft and a variable valve actuator assembly (VVAA) with four valves per cylinder. The valves are arranged in two in-line banks. The exhaust valves (6) face toward the front of the vehicle.

  • Page 60: Cylinder-To-Cylinder Leakage Test

    If a large combustion/compression pressure leak exists, bubbles will be visible in the coolant. COOLING SYSTEM TESTER METHOD Fig. 45: Cooling System Pressure Tester - 7700-A Courtesy of CHRYSLER GROUP, LLC WARNING: WITH THE COOLING SYSTEM TESTER IN PLACE, PRESSURE WILL BUILD UP FAST.

  • Page 61: Hydraulic Lash Adjuster

    2014 ENGINE 2.4L - Service Information - Dart Fig. 46: Bloc-Chek-Kit - C-3685-A Courtesy of CHRYSLER GROUP, LLC Combustion leaks into the cooling system can also be checked by using (special tool #C-3685-A, Bloc-Chek Kit) or equivalent. Perform test following the procedures supplied with the tool kit.
  • Page 62 2014 ENGINE 2.4L - Service Information - Dart 3. Remove the engine cover. Fig. 47: Resonator, Bolt & Clamp Courtesy of CHRYSLER GROUP, LLC 4. Remove the resonator (3). Refer to RESONATOR, AIR CLEANER, REMOVAL. 5. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL.
  • Page 63 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 48: Cylinder Head Cover Bolts Courtesy of CHRYSLER GROUP, LLC 8. Remove the cylinder head cover. Refer to COVER(S), CYLINDER HEAD, REMOVAL. Fig. 49: Exhaust Manifold Bolts Courtesy of CHRYSLER GROUP, LLC 9.
  • Page 64 2014 ENGINE 2.4L - Service Information - Dart Fig. 50: Timing Cover Mark & Notch Courtesy of CHRYSLER GROUP, LLC 10. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE . Fig. 51: Intake Manifold Lower Bracket, Nuts & Bolts Courtesy of CHRYSLER GROUP, LLC 11.
  • Page 65 (2) to place the number one cylinder piston at top-dead-center on the compression stroke. Fig. 52: Timing Chain Cover Removal/Installation Courtesy of CHRYSLER GROUP, LLC 15. Remove the engine timing cover (1). Refer to COVER(S), ENGINE TIMING, REMOVAL.
  • Page 66 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Courtesy of CHRYSLER GROUP, LLC 16. Remove the tensioner (6) and timing chain (7). Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL. 17. Remove the timing chain guides (3).
  • Page 67 2014 ENGINE 2.4L - Service Information - Dart Fig. 55: Score Line Courtesy of CHRYSLER GROUP, LLC 20. To remove the foam pad, cut the pad along the score line (1). Make sure care is taken to not make contact with any other components while cutting the pad.
  • Page 68 2014 ENGINE 2.4L - Service Information - Dart Fig. 56: MAP Sensor Connector & Fittings Courtesy of CHRYSLER GROUP, LLC 25. Disconnect the three hoses from the intake manifold fittings (3). 26. Using a permanent ink or paint marker, identify the location and position on each camshaft bearing cap.
  • Page 69 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 57: Front Head Bolt Washers Courtesy of CHRYSLER GROUP, LLC NOTE: All of the cylinder head bolts have captured washers EXCEPT the front two (1). 31. Remove the cylinder head bolts and two uncaptured washers (1).
  • Page 70 2014 ENGINE 2.4L - Service Information - Dart Fig. 58: Fuel Injectors & Rail Courtesy of CHRYSLER GROUP, LLC 33. Disconnect the fuel injector electrical connectors (1). Remove the two bolts at the fuel rail (2). Fig. 59: Intake Manifold Upper Support Bracket, Bolts & Nuts Courtesy of CHRYSLER GROUP, LLC martes, 5 de mayo de 2020 04:14:41 p.
  • Page 71 Fig. 60: Intake Manifold Silencer Pad Screws Courtesy of CHRYSLER GROUP, LLC 35. Remove the four screws that secure the intake manifold silencer to the manifold (1). martes, 5 de mayo de 2020 04:14:41 p. m.
  • Page 72 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 61: MAP Sensor Connector & Fittings Courtesy of CHRYSLER GROUP, LLC 36. Remove wiring harness retainer from the intake manifold eyelets (1) 37. Unplug the MAP sensor connector (2).

  • Page 73: Specifications

    3. Clean out the cylinder head bolt holes in the engine block. INSPECTION INSPECTION Fig. 63: Checking Cylinder Head Flatness Courtesy of CHRYSLER GROUP, LLC NOTE: Typical Cylinder Head shown in illustration. 1. Check for cylinder head warping with a straight edge (2) and feeler gauge (1).
  • Page 74 2014 ENGINE 2.4L - Service Information - Dart Fig. 64: Checking Cylinder Head Bolts For Stretching (Necking) Courtesy of CHRYSLER GROUP, LLC CAUTION: The cylinder head bolts are tightened using a torque plus angle procedure. The bolts must be examined BEFORE reuse. If the threads are necked down the bolts must be replaced.
  • Page 75 2014 ENGINE 2.4L - Service Information - Dart Fig. 65: Intake Manifold Bolts Tightening Sequence Courtesy of CHRYSLER GROUP, LLC 7. Position the intake manifold onto the cylinder head. 8. Install the three bolts and two nuts. Using the torque sequence pattern as a guide, tighten the bolts and nuts to 25 N.m (18 ft.
  • Page 76 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 67: Intake Manifold Silencer Pad Screws Courtesy of CHRYSLER GROUP, LLC 11. Install the intake manifold silencer pad and screws. Tighten the screws to 2.5 N.m (22 in. lbs.). NOTE: When using RTV, components should be assembled within 10 minutes and tighten to specification within 45 minutes.
  • Page 77 Fig. 69: Washers Must Be Installed With Bevel Edge Up Towards Bolt Head Courtesy of CHRYSLER GROUP, LLC NOTE: The front two cylinder head bolts do not have captured washers. The washers must be installed with the bevel edge (1) up towards the bolt head.
  • Page 78 2014 ENGINE 2.4L - Service Information - Dart Fig. 70: Front Head Bolt Washers Courtesy of CHRYSLER GROUP, LLC 16. Install washers (1) for the front two cylinder head bolts with the beveled edge facing up. Fig. 71: Cylinder Head Torque Sequence...
  • Page 79 26. Install timing chain cover, engine mount, pulleys and accessory drive belt. Refer to COVER(S), ENGINE TIMING, INSTALLATION. Fig. 72: Cylinder Head Cover Bolts Courtesy of CHRYSLER GROUP, LLC 27. Install the cylinder head cover and ignition coils. Refer to COVER(S), CYLINDER HEAD, INSTALLATION.
  • Page 80 2014 ENGINE 2.4L - Service Information - Dart Fig. 73: Exhaust Manifold Bolts Tightening Sequence Courtesy of CHRYSLER GROUP, LLC 28. Install the exhaust manifold. Refer to MANIFOLD, EXHAUST, INSTALLATION. 29. Connect the electrical connectors to the ignition coils and fuel injectors.
  • Page 81 34. Connect the knock sensor connector. Fig. 75: Intake Manifold Lower Bracket, Nuts & Bolts Courtesy of CHRYSLER GROUP, LLC 35. Install the intake manifold lower bracket (3). Install the nuts (1) and bolt (2). Tighten to 9 N.m (81 in.
  • Page 82 2014 ENGINE 2.4L - Service Information - Dart Fig. 76: Foam Insulator, Fuel Line & Purge Line Courtesy of CHRYSLER GROUP, LLC 38. Inspect quick connect fittings for damage, replace if necessary. Refer to FITTING, QUICK CONNECT, STANDARD PROCEDURE .
  • Page 83 2014 ENGINE 2.4L - Service Information - Dart Fig. 78: Engine Cover & Air Resonator Clamp Courtesy of CHRYSLER GROUP, LLC 40. If removed, install the oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to OIL - STANDARD PROCEDURE .
  • Page 84 2014 ENGINE 2.4L - Service Information - Dart Fig. 79: Engine Camshaft Courtesy of CHRYSLER GROUP, LLC The 2.4L engine uses a Single Over Head Camshaft (SOHC) to provide valve actuation but the camshaft is in the standard position of an exhaust camshaft in a Dual Over Head Camshaft (DOHC) engine. The camshaft has five bearing journal surfaces and three cam lobes per cylinder.

  • Page 85: Standard Procedure - Camshaft Endplay

    2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 80: Measuring Camshaft End Play Courtesy of CHRYSLER GROUP, LLC STANDARD PROCEDURE - CAMSHAFT ENDPLAY 1. Remove the cylinder head cover. Refer to COVER(S), CYLINDER HEAD, REMOVAL.
  • Page 86 2014 ENGINE 2.4L - Service Information - Dart Fig. 81: Vertical Center Line Of Camshaft, Dowel & Cylinder Head Courtesy of CHRYSLER GROUP, LLC 5. Remove the frame cover portion of the right splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .
  • Page 87 2014 ENGINE 2.4L - Service Information - Dart Fig. 83: Vertical Center Line Of Camshaft, Dowel & Cylinder Head Courtesy of CHRYSLER GROUP, LLC 7. Verify that the camshaft timing is correct as viewed above. The vertical center line of the camshaft (1)
  • Page 88 2014 ENGINE 2.4L - Service Information - Dart Fig. 84: Sprocket Mark & Painted Link Courtesy of CHRYSLER GROUP, LLC 9. Using a paint pen or equivalent, mark both camshaft sprockets and corresponding chain links (1 and 2) to aid in reassembly.
  • Page 89 2014 ENGINE 2.4L - Service Information - Dart Fig. 85: Special Tool, Spring Compressor & Indicators Courtesy of CHRYSLER GROUP, LLC 14. Using special tool 10259A (1), loosen the spring compressors (2) to fit over the valve and spring assemblies. Adjust the tool to align with the 2.4L indicators (3).
  • Page 90 17. Slowly remove the exhaust camshaft bearing cap bolts (1) one turn at a time. Remove the camshaft bearing caps. Fig. 87: Chain Removal Courtesy of CHRYSLER GROUP, LLC 18. Lift the timing chain (2) off of the sprocket (1). 19. Remove the camshaft.
  • Page 91 2. Apply a seam of Anaerobic Loctite® 518 Sealant on the camshaft housing in the contact area of the front and rear camshaft caps. Fig. 89: Camshaft Bearing Cap Tightening Sequence Courtesy of CHRYSLER GROUP, LLC Torque Sequence NOTE: VVAA removed for clarity 3.
  • Page 92 Step 1: All to 5 N.m (44 in. lbs.). Step 2: All to 10 N.m (89 in. lbs.). Fig. 90: Special Tool, Spring Compressor & Indicators Courtesy of CHRYSLER GROUP, LLC 4. Loosen the spring compressors (2), remove the tool (special tool #10259B, Compressor, MultiAir® Spring) (1).

  • Page 93: Installation

    DESCRIPTION Fig. 92: Cylinder Head Cover Courtesy of CHRYSLER GROUP, LLC The cylinder head cover is made of die cast aluminum. The cylinder head cover is sealed with press-in-place gaskets at the cylinder head and spark plug ports. RTV is used to seal the T-joint at the cylinder head cover, front timing cover and cylinder head.
  • Page 94 5. Disconnect and remove the ignition coils. Refer to COIL, IGNITION, REMOVAL . Fig. 93: Cylinder Head Cover Bolts Courtesy of CHRYSLER GROUP, LLC 6. Use compressed air to blow dirt and debris off of the cylinder head cover prior to removal.
  • Page 95 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 94: Cylinder Head Cover Gaskets Courtesy of CHRYSLER GROUP, LLC 10. Remove and discard the cylinder head cover gaskets (1 and 2). Fig. 95: Sealant Application Areas Courtesy of CHRYSLER GROUP, LLC 11.
  • Page 96 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 96: Cylinder Head Cover Gaskets Courtesy of CHRYSLER GROUP, LLC 1. Install new cylinder head cover gaskets (1 and 2). Fig. 97: Sealant Application Areas Courtesy of CHRYSLER GROUP, LLC...
  • Page 97 T-joint (1) and the rear exhaust camshaft bearing cap/cylinder head T-joint (1). Fig. 98: Cylinder Head Cover Bolts Courtesy of CHRYSLER GROUP, LLC 3. Install the cylinder head cover to the cylinder head with twelve bolts and six stud bolts (1). Tighten all eighteen fasteners to 10 N.m (90 in.
  • Page 98 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Refer to the following chart for possible causes and correction of a lash adjuster (tappet) type noise: LASH ADJUSTER (TAPPET) NOISE CHART POSSIBLE CAUSES CORRECTION 1. Engine oil level-too high or too low. This may 1.
  • Page 99 2014 ENGINE 2.4L - Service Information - Dart Fig. 99: Cylinder Head Cover Bolts Courtesy of CHRYSLER GROUP, LLC 2. Remove the cylinder head cover assembly bolts (1) and remove the cover from the cylinder head. Fig. 100: Special Tool, Spring Compressor & Indicators Courtesy of CHRYSLER GROUP, LLC 3.
  • Page 100 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart NOTE: If the rocker arms are to be reused, identify their positions so that they can be reassembled into their original locations. 5. Remove the rocker arm(s). Refer to ROCKER ARM, VALVE, REMOVAL. NOTE: If the hydraulic lifters are to be reused, identify their positions so that they can be reassembled into their original locations.
  • Page 101 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Courtesy of CHRYSLER GROUP, LLC 5. Install the VVAA. Refer to ASSEMBLY, VARIABLE VALVE ACTUATION, INSTALLATION. 6. Install the cylinder head cover. Refer to COVER(S), CYLINDER HEAD, INSTALLATION.

  • Page 102: Seal(S), Valve Guide

    4. Remove the rocker arm(s). INSPECTION INSPECTION Fig. 103: Valve Rocker Arm Courtesy of CHRYSLER GROUP, LLC Inspect the valve rocker arm for wear or damage. Replace as necessary. INSTALLATION INSTALLATION 1. Lubricate the rocker arms with clean engine oil before installation.
  • Page 103 DESCRIPTION DESCRIPTION Fig. 104: Valve Stem Oil Seal, Valve Spring & Valve Guide Courtesy of CHRYSLER GROUP, LLC NOTE: Typical valve configuration shown in illustration. The valve stem oil seals (1) are made of elastomer over-molded steel in a non-integrated type guide mounted configuration.
  • Page 104 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 105: Valve Spring & Retainer Courtesy of CHRYSLER GROUP, LLC NOTE: If the springs are to be reused, identify their positions so that they can be reassembled into their original locations. Number 2 cylinder exhaust valve spring shown in illustration, all other valve springs similar.
  • Page 105 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 107: Valve Spring Seat Courtesy of CHRYSLER GROUP, LLC NOTE: Number 2 cylinder exhaust valve spring seat shown in illustration. Exhaust valve spring seats are marked with the letter "S" and have a thickness of 0.8 mm (0.031 in.).
  • Page 106 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Courtesy of CHRYSLER GROUP, LLC NOTE: Reassemble the valves into their original locations. If the valves or valve seats have been refinished, verify that the valve stem tip height is within specification.

  • Page 107: Spring(S), Valve

    2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 110: Valve Spring & Retainer Courtesy of CHRYSLER GROUP, LLC NOTE: If the valve springs are being reused, reassemble them into their original locations. Number 2 cylinder exhaust valve spring shown in illustration, all other valves similar.
  • Page 108 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Courtesy of CHRYSLER GROUP, LLC The valve springs are a beehive design and made from high strength chrome silicon steel. The springs are common for intake and exhaust applications. Valve guide seals are rubber overmolded on a steel support cylinder with a garter spring at the seal lip.
  • Page 109 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 113: Valve Spring Compressor & Air Hose Courtesy of CHRYSLER GROUP, LLC NOTE: Number 3 cylinder exhaust valve spring compression shown in illustration, all other valves similar.

  • Page 110: Off Vehicle

    7. Using the (special tool #10224, Adapter, Valve Spring) (2), compress valve spring (4) and remove valve retaining locks (3). Fig. 115: Valve Spring & Retainer Courtesy of CHRYSLER GROUP, LLC NOTE: If the springs are to be reused, identify their positions so that they can be reassembled into their original locations.
  • Page 111 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 116: Valve Spring Compressor & Adapter Courtesy of CHRYSLER GROUP, LLC 1. Install the (special tool #10224, Adapter, Valve Spring) (2) on the (special tool #MD998772A, Compressor, Valve Spring) (1).
  • Page 112 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 118: Compressing Valve Spring Courtesy of CHRYSLER GROUP, LLC NOTE: Number 3 cylinder exhaust valve spring compression shown in illustration, all other valves similar. 4. Using the (special tool #10224, Adapter, Valve Spring) (2), compress valve spring (4) and remove valve retaining locks (3).

  • Page 113: Specifications

    INSPECTION INSPECTION Fig. 120: Testing Valve Spring Courtesy of CHRYSLER GROUP, LLC When valves have been removed for inspection, reconditioning or replacement, valve springs should be checked against specifications for free-length, spring force and spring installed height. Refer to ENGINE SPECIFICATIONS .

  • Page 114: Engine Specifications

    2014 ENGINE 2.4L - Service Information - Dart Fig. 121: Checking Valve Spring Installed Height Courtesy of CHRYSLER GROUP, LLC Installed height of the valve spring must be checked with the valve assembled into the cylinder head. Refer to SPRING(S), VALVE, INSTALLATION.
  • Page 115 (2). Number 2 cylinder exhaust valve guide seal shown in illustration, all other valves similar. Fig. 123: Valve Spring & Retainer Courtesy of CHRYSLER GROUP, LLC NOTE: If the valve springs are being reused, reassemble them into their original locations.
  • Page 116 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 124: Compressing Valve Spring Courtesy of CHRYSLER GROUP, LLC NOTE: Number 3 cylinder exhaust valve spring compression shown in illustration, all other valves similar. 3. Using the (special tool #10224, Adapter, Valve Spring) (2) with the (special tool #MD998772A, Compressor, Valve Spring) (1), compress the valve spring (4) only enough to install the valve retaining locks (3).
  • Page 117 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 126: Valve Spring Component Measurements Courtesy of CHRYSLER GROUP, LLC 1. If removed, install the valve(s). Refer to VALVES, INTAKE AND EXHAUST, INSTALLATION. NOTE: Reassemble the valves into their original locations. If the valves or valve seats have been refinished, verify that the valve stem tip height (5) is within specification.
  • Page 118 (2). Number 2 cylinder exhaust valve guide seal shown in illustration, all other valves similar. Fig. 128: Valve Spring & Retainer Courtesy of CHRYSLER GROUP, LLC NOTE: If the valve springs are being reused, reassemble them into their original locations.
  • Page 119 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Compressor, Valve Spring) (1). Fig. 130: Valve Spring Compressor Courtesy of CHRYSLER GROUP, LLC NOTE: Number 3 intake valve spring compression shown in illustration, all other valves similar.
  • Page 120 (3). Fig. 132: Valve Spring Component Measurements Courtesy of CHRYSLER GROUP, LLC 8. If the valves or valve seats have been refinished, verify that the installed height of the valve springs (4) are within specification. Make sure the measurement is taken from the top of spring seat (6) to the bottom surface of spring retainer (1).
  • Page 121 2014 ENGINE 2.4L - Service Information - Dart Fig. 133: Cylinder Head, Valves & Springs Courtesy of CHRYSLER GROUP, LLC Each of the four combustion chambers contains four valves, two intake and two exhaust, for a total of 16 valves.

  • Page 122: Valve Seats

    VALVES Fig. 135: Inspecting Valve Margin Courtesy of CHRYSLER GROUP, LLC Inspect the remaining margin (5) after the valves are refaced. Refer to ENGINE SPECIFICATIONS . VALVE SEATS martes, 5 de mayo de 2020 04:14:42 p. m.

  • Page 123: Valve And Spring Installed Height

    2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 136: Valve Face & Seat Courtesy of CHRYSLER GROUP, LLC 1 - SEAT WIDTH 2 - FACE ANGLE 3 - SEAT ANGLE 4 - SEAT CONTACT AREA...
  • Page 124 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 137: Checking Valve Spring Installed Height Courtesy of CHRYSLER GROUP, LLC 1. Coat the valve stems (2) with clean engine oil and install the valves into the cylinder head. NOTE: If the valves are being reused, reassemble them into their original locations.

  • Page 125: Valve Guide Installation

    (2). Number 2 cylinder exhaust valve guide seal shown in illustration, all other valves similar. Fig. 139: Valve Spring & Retainer Courtesy of CHRYSLER GROUP, LLC NOTE: If the valve springs are being reused, reassemble them into their original locations.
  • Page 126 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 140: Valve Spring Adapter, Valve Spring Compressor, Retaining Locks & Valve Springs Courtesy of CHRYSLER GROUP, LLC NOTE: Number 3 cylinder exhaust valve spring compression shown in illustration, all other valves similar.
  • Page 127 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 142: Valve Spring & Retainer Courtesy of CHRYSLER GROUP, LLC 1. Remove the cylinder head. Refer to CYLINDER HEAD, REMOVAL. NOTE: If the springs are to be reused, identify their positions so that they can be reassembled into their original locations.
  • Page 128 3. Remove the valve(s). Identify each valve to ensure installation in the original location. Fig. 144: Garter Spring, Valve Guide Seal & Spring Seat Courtesy of CHRYSLER GROUP, LLC 4. If required, remove the valve guide seal (2) and spring seat (3). Refer to SEAL(S), VALVE GUIDE, REMOVAL.

  • Page 129: Valve Guides

    2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Courtesy of CHRYSLER GROUP, LLC 1. Clean and inspect the valves thoroughly. Replace burned, warped and cracked valves. 2. Inspect the retainer lock grooves for wear or damage (2).
  • Page 130 2014 ENGINE 2.4L - Service Information - Dart INSTALLATION Fig. 147: Checking Valve Spring Installed Height Courtesy of CHRYSLER GROUP, LLC 1. Coat the valve stems (2) with clean engine oil and install the valves into the cylinder head. NOTE: If the valves are being reused, reassemble them into their original locations.
  • Page 131 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Courtesy of CHRYSLER GROUP, LLC 3. If removed, install the spring seat (3) and valve guide seal (2) over the valve guide. Refer to SEAL(S), VALVE GUIDE, INSTALLATION.
  • Page 132 2014 ENGINE 2.4L - Service Information - Dart Fig. 150: Vacuum Pump Courtesy of CHRYSLER GROUP, LLC The vane-type vacuum pump is mounted to the rear of the cylinder head and is driven by the camshaft. The vacuum pump supplies vacuum to the brake booster.
  • Page 133 2014 ENGINE 2.4L - Service Information - Dart Fig. 151: Vacuum Pump & Bolts Courtesy of CHRYSLER GROUP, LLC 3. Disconnect the vacuum line at the pump (1). 4. Remove the vacuum pump mounting bolts (2) and the vacuum pump.
  • Page 134 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 153: Vacuum Fitting & Screw Courtesy of CHRYSLER GROUP, LLC 6. If required, remove the screw (1) and the vacuum fitting (2). Fig. 154: Vacuum Fitting O-Ring Seal Courtesy of CHRYSLER GROUP, LLC 7.
  • Page 135 2014 ENGINE 2.4L - Service Information - Dart Fig. 155: Vacuum Fitting O-Ring Seal Courtesy of CHRYSLER GROUP, LLC 1. The vacuum fitting O-ring seal (1) can be reused if not damaged. If removed, lightly lubricate the O-ring seal (1) with clean engine oil and install on the vacuum fitting.
  • Page 136 DESCRIPTION Fig. 157: Intake Valve Tips Courtesy of CHRYSLER GROUP, LLC The primary component of variable valve actuation is the variable valve actuation module. The variable valve actuation module is bolted to the top of the camshaft bearing housing above the intake valves, next to the camshaft.
  • Page 137 Fig. 158: Solenoid Valve, Hydraulic Brake Pumping Element/Hydraulic Lash Adjusters, Upper Pumping Element & Oil Accumulator Courtesy of CHRYSLER GROUP, LLC Variable valve actuation controls the operation of the intake valves. By using a hydraulic link between the camshaft and the intake valves, the valve lift and timing can be adjusted infinitely.
  • Page 138 2014 ENGINE 2.4L - Service Information - Dart Fig. 159: Variable Valve Actuation Assembly Operating Description Courtesy of CHRYSLER GROUP, LLC The upper pumping elements (1) in the variable valve actuator are filled with oil from the engine lubrication system. The upper pumping elements (1) are driven by the rocker arms through camshaft motion (9) to create high-pressure oil inside the oil chamber (2).
  • Page 139 The five phases are: Fig. 160: Full Lift Courtesy of CHRYSLER GROUP, LLC Full Lift. When variable valve actuation functions in the full lift phase, all of the camshaft lobe lift is transferred to the intake valves. The intake camshaft lobe is designed with a very aggressive lift and duration profile.
  • Page 140 2014 ENGINE 2.4L - Service Information - Dart Fig. 161: Early Intake Valve Closing (EVIC) Courtesy of CHRYSLER GROUP, LLC Early intake valve closing (EVIC). When variable valve actuation functions in the EVIC phase, the camshaft lobe lift is transferred to the intake valves at the beginning of the lift duration cycle. However, the hydraulic connection between the camshaft lobe and the valves is taken away before the lobe reaches full lift.
  • Page 141 Fig. 163: Multi-Lift Courtesy of CHRYSLER GROUP, LLC Multi-Lift. Multi-Lift is a combination of EVIC and LIVO because the hydraulic connection between the camshaft lobe and the intake valves is closed early and then re-opened later in the cycle. This creates a longer duration valve lift with a smaller amount of lift.

  • Page 142: Cylinder Head Removal

    REMOVAL REMOVAL Fig. 165: Cylinder Head Cover Bolts Courtesy of CHRYSLER GROUP, LLC 1. Remove the cylinder head cover bolts (1). Remove the cylinder head cover. Refer to COVER(S), CYLINDER HEAD, REMOVAL. 2. Unlock and disconnect the four variable valve timing actuator electrical connectors.
  • Page 143 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 166: VVAA Block Removal Sequence (1 Of 2) Courtesy of CHRYSLER GROUP, LLC 3. Remove four bolts from the VVAA block. NOTE: The bolts need to be removed prior to the installation of the compressor tool due to the tool obstructs access to these bolts once the tool is installed.
  • Page 144 2014 ENGINE 2.4L - Service Information - Dart Fig. 167: Special Tool, Spring Compressor & Indicators Courtesy of CHRYSLER GROUP, LLC 4. Using special tool 10259A (1), loosen the spring compressors (2) to fit over the valve and spring assemblies. Adjust the tool to align with the 2.4L indicators (3).
  • Page 145 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 169: VVAA Assembly On Blocks Of Wood Courtesy of CHRYSLER GROUP, LLC 9. Set the assembly (1) onto two blocks of wood (2) to store during repairs. NOTE:...
  • Page 146 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 170: Rocker Arms Courtesy of CHRYSLER GROUP, LLC 11. If required, remove the rocker arms. Refer to ROCKER ARM, VALVE, REMOVAL. INSPECTION INSPECTION Fig. 171: Valve Rocker Arms, Oil Supply O-Ring & Oil Temperature Sensor...
  • Page 147 "A00646217.vid1" into the "Search Channel" box. Fig. 172: Locating Pins Courtesy of CHRYSLER GROUP, LLC 1. If the dowel/locating pins were removed, install two NEW variable valve actuation assembly locating pins (1). martes, 5 de mayo de 2020 04:14:42 p. m.
  • Page 148 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 173: Rocker Arms Courtesy of CHRYSLER GROUP, LLC 2. If removed, install the rocker arms (1). Refer to ROCKER ARM, VALVE, INSTALLATION. Fig. 174: Special Tool, Spring Compressor & Indicators...
  • Page 149 6. Visually inspect the alignment of the VVAA plungers. Fig. 175: Improperly Aligned VVAA Courtesy of CHRYSLER GROUP, LLC 7. This is a visual indication of an IMPROPERLY aligned VVAA. The centerline of the plunger (1) and the centerline of the valve stem (2) are misaligned.
  • Page 150 2014 ENGINE 2.4L - Service Information - Dart Fig. 176: Properly Aligned VVAA Courtesy of CHRYSLER GROUP, LLC 8. This is a visual indication of a PROPERLY aligned VVAA. The centerline (1) of both the plunger and the valve stem are aligned.
  • Page 151 2014 ENGINE 2.4L - Service Information - Dart Fig. 178: Variable Valve Actuation Assembly Tightening Sequence Courtesy of CHRYSLER GROUP, LLC 10. Remove the spring compressor and tighten the ten bolts in three steps following the sequence shown in illustration: Step 1: All to 10 N.m (89 in.
  • Page 152 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 179: Cylinder Head Cover Courtesy of CHRYSLER GROUP, LLC 14. Install the cylinder head cover. Refer to COVER(S), CYLINDER HEAD, INSTALLATION. NOTE: If the VVAA is being replaced (new part), it is recommended that the VVAA be primed with NEW/CLEAN oil after installation.

  • Page 153: Engine Block

    Fig. 181: Serial Number Location Courtesy of CHRYSLER GROUP, LLC The engine serial number is located on the bottom of the ladder frame just behind the oil pan. The date can be seen with the oil pan in place.
  • Page 154 2014 ENGINE 2.4L - Service Information - Dart Fig. 182: Cylinder Bore Crosshatch Pattern Courtesy of CHRYSLER GROUP, LLC Before deglazing, mask the crankcase area to keep abrasive materials from entering the engine lower end. Tape off the water jacket and any openings to the oil circuit to prevent abrasive material from entering the coolant and oil circuits.
  • Page 155 MEASURING BEARING CLEARANCE USING PLASTIGAGE Fig. 183: Plastigage Placed In Lower Shell Courtesy of CHRYSLER GROUP, LLC NOTE: Typical crankshaft journal shown in illustration. Engine crankshaft and connecting rod bearing clearances can be determined by the use of Plastigage or equivalent.
  • Page 156 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 184: Measuring Bearing Clearance With Plastigage Courtesy of CHRYSLER GROUP, LLC NOTE: Typical connecting rod cap shown in illustration. 4. Remove the bearing cap and compare the width of the flattened Plastigage (2) with the scale provided on the package (1).
  • Page 157 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 185: Checking Connecting Rod Bearing Clearance With Plastigage Courtesy of CHRYSLER GROUP, LLC NOTE: Typical connecting rod journal shown in illustration. NOTE: Plastigage is available in a variety of clearance ranges. Use the most appropriate range for the specifications you are checking.
  • Page 158 2014 ENGINE 2.4L - Service Information - Dart Fig. 186: Main Bearing Inserts Courtesy of CHRYSLER GROUP, LLC 1. Wipe the main bearing inserts (1 and 2) clean. 2. Inspect the inserts for abnormal wear patterns, scoring, grooving, fatigue, pitting and for metal or other foreign material imbedded in the lining.
  • Page 159 2014 ENGINE 2.4L - Service Information - Dart Fig. 187: Measuring Cylinder Bore Diameter Courtesy of CHRYSLER GROUP, LLC 9. Use Cylinder Indicator (special tool #C-119, Cylinder Indicator) (2) to correctly measure the inside diameter of the cylinder bore (3). A cylinder bore gauge capable of reading in 0.003 mm (0.0001 in.) INCREMENTS is required.

  • Page 160: Connecting Rod Bearing Selection

    2014 ENGINE 2.4L - Service Information - Dart Fig. 188: Bearing Selection Courtesy of CHRYSLER GROUP, LLC There are three different sizes of rod bearings available. Connecting rod bearing identification (4) can be found on the nose of the crankshaft (3). Use the table below for proper bearing selection.

  • Page 161: Engine Specifications

    2014 ENGINE 2.4L - Service Information - Dart Fig. 189: Connecting Rod Bearing Clearance - Typical Courtesy of CHRYSLER GROUP, LLC 1. For measuring connecting rod bearing clearance procedure and use of Plastigage. Refer to ENGINE - STANDARD PROCEDURE . For bearing clearance. Refer to ENGINE SPECIFICATIONS .
  • Page 162 2014 ENGINE 2.4L - Service Information - Dart Fig. 191: Connecting Rod Bearing Shells & Bearing Size Courtesy of CHRYSLER GROUP, LLC The connecting rod bearings (1) are serviced in-vehicle. They must be replaced one-at-a-time in order to prevent the pistons from contacting the valves. The connecting rod bearings are "select fit" to achieve proper oil clearances.
  • Page 163 2014 ENGINE 2.4L - Service Information - Dart Fig. 193: Connecting Rod To Cylinder Identification Courtesy of CHRYSLER GROUP, LLC CAUTION: DO NOT use a number stamp or a punch to mark connecting rods or caps, as damage to connecting rods could occur...
  • Page 164 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 194: Piston, Connecting Rod Cap, Bolts, Plastic Guide Plates & Guide Pins Courtesy of CHRYSLER GROUP, LLC NOTE: Typical V6 engine configuration shown in illustration. CAUTION: Replace only one connecting rod bearing at a time while all other connecting rod bearing caps remain properly tightened.

  • Page 165: Installation

    2014 ENGINE 2.4L - Service Information - Dart Fig. 195: Checking Cylinder Head Bolts For Stretching (Necking) Courtesy of CHRYSLER GROUP, LLC CAUTION: The main bearing cap bolts are tightened using a torque plus angle procedure. The bolts must be examined BEFORE reuse. If the threads are necked down the bolts must be replaced.
  • Page 166 STANDARD PROCEDURE - CONNECTING ROD - FITTING Fig. 197: Bearing Selection Courtesy of CHRYSLER GROUP, LLC There are three different sizes of rod bearings available. Connecting rod bearing identification (4) can be found on the nose of the crankshaft (3). Use the table below for proper bearing selection.
  • Page 167 2014 ENGINE 2.4L - Service Information - Dart Fig. 198: Connecting Rod Bearing Clearance - Typical Courtesy of CHRYSLER GROUP, LLC 1. For measuring connecting rod bearing clearance procedure and use of Plastigage. Refer to ENGINE - STANDARD PROCEDURE . For bearing clearance. Refer to ENGINE SPECIFICATIONS .
  • Page 168 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 199: Connecting Rod Side Clearance Courtesy of CHRYSLER GROUP, LLC 5. Using a feeler gauge, check connecting rod side clearance. For clearance specifications. Refer to ENGINE SPECIFICATIONS .
  • Page 169 2014 ENGINE 2.4L - Service Information - Dart Fig. 201: Main Bearing Cap Bolts From Windage Tray Removal Sequence Courtesy of CHRYSLER GROUP, LLC 1. Disconnect and isolate the battery negative cable. 2. Remove the spark plugs. Refer to SPARK PLUG, REMOVAL .
  • Page 170 5. Mark connecting rod and bearing cap positions (1) using a permanent ink marker or scribe tool. Fig. 203: Piston, Connecting Rod Cap, Bolts, Plastic Guide Plates & Guide Pins Courtesy of CHRYSLER GROUP, LLC NOTE: Typical V6 engine configuration shown in illustration.
  • Page 171 15. Repeat the previous steps for each connecting rod bearing being replaced. Fig. 204: Checking Cylinder Head Bolts For Stretching (Necking) Courtesy of CHRYSLER GROUP, LLC CAUTION: The main bearing cap bolts are tightened using a torque plus angle procedure. The bolts must be examined BEFORE reuse. If the threads are necked down the bolts must be replaced.
  • Page 172 2014 ENGINE 2.4L - Service Information - Dart Fig. 205: Windage Tray With Main Bearing Cap Bolts Installation Sequence Courtesy of CHRYSLER GROUP, LLC 17. Install the eight main bearing cap bolts. Tighten the bolts in the sequence shown in illustration to 21 N.m (16 ft.

  • Page 173: Standard Procedure - Measuring Crankshaft End Play

    2014 ENGINE 2.4L - Service Information - Dart Fig. 206: Crankshaft Courtesy of CHRYSLER GROUP, LLC The crankshaft is made from induction hardened forged steel. Eight counterweights at 180° balance the crankshaft rotary mass. The main journals are crossed drilled for rod bearing lubrication. The crankshaft is supported by five select fit main bearings with the center bearing serving as the thrust washer location.

  • Page 174: Dial Indicator

    ENGINE SPECIFICATIONS . REMOVAL REMOVAL Fig. 208: Flex Plate Courtesy of CHRYSLER GROUP, LLC NOTE: Crankshaft can not be removed when engine is in vehicle. 1. Remove engine assembly from vehicle. Refer to ENGINE - REMOVAL. 2. Remove flex plate/flywheel (1).
  • Page 175 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 209: Oil Drain Plug & Oil Pan Courtesy of CHRYSLER GROUP, LLC 4. Install engine on suitable stand. 5. Drain engine oil (2). Fig. 210: Oil Filter Courtesy of CHRYSLER GROUP, LLC 6.
  • Page 176 2014 ENGINE 2.4L - Service Information - Dart Fig. 211: Using Putty Knife To Loosen Seal Around Oil Pan Courtesy of CHRYSLER GROUP, LLC 9. Remove the oil pan (2). Refer to PAN, OIL, REMOVAL. 10. Remove timing chain cover. Refer to COVER(S), ENGINE TIMING, REMOVAL.
  • Page 177 2014 ENGINE 2.4L - Service Information - Dart Fig. 213: Crankshaft Position Sensor & Bolt Courtesy of CHRYSLER GROUP, LLC 14. Remove crankshaft position sensor retaining bolt (1) and remove sensor (2). 15. Remove ladder frame. Refer to FRAME, LADDER, REMOVAL.
  • Page 178 17. Remove all connecting rod bolts and caps. Care should be taken not to damage the fracture rod and cap surfaces. Fig. 215: Main Bearing Cap Removal Sequence Courtesy of CHRYSLER GROUP, LLC NOTE: Do not reuse connecting rod bolts.
  • Page 179 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 216: Measuring Crankshaft Journal Courtesy of CHRYSLER GROUP, LLC NOTE: Typical crankshaft journal measurements shown in illustration. 1. Clean the oil off the bearing journals. 2. Determine the maximum diameter of the journals with a micrometer. Measure at two locations 90° apart at each end of the journals.
  • Page 180 2014 ENGINE 2.4L - Service Information - Dart Fig. 217: Bearing Identification Courtesy of CHRYSLER GROUP, LLC The crankshaft is supported in five main bearings. All upper bearing shells (2) in the crankcase have oil grooves and holes. All lower bearing shells (1) are smooth. Crankshaft end play is controlled by a two piece thrust bearing (3) on the number three main bearing journal.
  • Page 181 6. Tighten all mounting screws to 13 N.m (110 in. lbs.) in the sequence shown in illustration. Fig. 219: Installing Thrust Bearing Courtesy of CHRYSLER GROUP, LLC NOTE: Lightly apply trans gel to thrust bearings to hold bearings in block.
  • Page 182 8. Oil the bearings and journals. Install crankshaft in engine block. Fig. 220: Bearing Identification Courtesy of CHRYSLER GROUP, LLC 9. Install lower main bearings (1) into main bearing cap. Make certain the bearing tabs are seated into the bearing cap slots.
  • Page 183 2014 ENGINE 2.4L - Service Information - Dart Fig. 221: Main Bolt Identification Courtesy of CHRYSLER GROUP, LLC 14. If your bolt heads are marked with b (1) or 6 (2), go to step 15. If your bolt heads are marked with M (3) or any other marking, go to step 16.
  • Page 184 22. Install the balance shaft module. Refer to PUMP, ENGINE OIL, INSTALLATION. Fig. 223: Crankshaft Position Sensor & Bolt Courtesy of CHRYSLER GROUP, LLC 23. Install crankshaft position sensor (2) and bolt (1). Tighten the bolt to 9 N.m (80 in. lbs.) 24.
  • Page 185 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 224: Crankshaft Sprocket Courtesy of CHRYSLER GROUP, LLC 25. Install front crankshaft sprocket (1). 26. Install the timing chain. Refer to CHAIN AND SPROCKETS, TIMING, INSTALLATION. 27. Install the timing chain front cover . Refer to COVER(S), ENGINE TIMING, INSTALLATION.
  • Page 186 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 225: Oil Filter Courtesy of CHRYSLER GROUP, LLC 37. Install new oil filter (1) and fill with oil. 38. Fill with coolant. Refer to STANDARD PROCEDURE .
  • Page 187 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Courtesy of CHRYSLER GROUP, LLC 1. Remove accessory drive belts. Refer to BELT, SERPENTINE, REMOVAL . 2. Install Damper holder (special tool #9707, Holder, Vibration Damper) (1). 3. Remove crankshaft damper bolt.
  • Page 188 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 228: Flex Plate Courtesy of CHRYSLER GROUP, LLC 1. Remove transmission. 2. Remove flex plate bolts (3) and discard. 3. Remove washer (2). 4. Remove flex plate (1).
  • Page 189 FRAME, LADDER REMOVAL REMOVAL Fig. 230: Pry Point 1 Courtesy of CHRYSLER GROUP, LLC 1. Remove oil pan. Refer to PAN, OIL, REMOVAL. 2. Remove balance shaft assembly. Refer to PUMP, ENGINE OIL, REMOVAL. 3. Remove ladder frame retaining bolts.
  • Page 190 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 231: Pry Point 2 Courtesy of CHRYSLER GROUP, LLC 5. To assist in removing the ladder frame another (1) pry point cast in the right side of the block. INSTALLATION INSTALLATION Fig.

  • Page 191: Standard Procedure - Piston Ring Fitting

    1. Apply a 2 mm bead of Mopar® engine sealant RTV or equivalent as shown in illustration. Fig. 233: Ladder Frame Bolts Tightening Sequence Courtesy of CHRYSLER GROUP, LLC 2. Install bolts and tighten as shown in illustration following a two step method.
  • Page 192 2014 ENGINE 2.4L - Service Information - Dart Fig. 234: Measuring Piston Ring End Gap Courtesy of CHRYSLER GROUP, LLC 1. Wipe the cylinder bore clean. 2. Using a piston, to ensure that the ring is squared in the cylinder bore, slide the ring downward into the cylinder to a position 12 mm (0.50 in.) from the bottom of the cylinder bore.
  • Page 193 2014 ENGINE 2.4L - Service Information - Dart Fig. 235: Checking Piston Ring Grooves Clearances Courtesy of CHRYSLER GROUP, LLC 4. Clean the piston ring grooves. Remove any nicks or burrs. 5. Measure the ring side clearance as shown in illustration. Make sure the feeler gauge (1) fits snugly between the ring land and the ring.
  • Page 194 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 236: Piston Ring Removal/Installation Sequence Courtesy of CHRYSLER GROUP, LLC NOTE: Typical piston shown in illustration. 1. Remove the piston and connecting rod(s). Refer to ROD, PISTON AND CONNECTING, REMOVAL.
  • Page 195 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 237: Removing/Installing Upper & Intermediate Rings Courtesy of CHRYSLER GROUP, LLC NOTE: Typical piston shown in illustration. 2. Remove the No. 1 (upper) piston ring using a ring expander tool.
  • Page 196 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 239: Piston Ring Removal/Installation Sequence Courtesy of CHRYSLER GROUP, LLC NOTE: Typical piston shown in illustration. 1. If required, fit new rings to the piston. Refer to RING(S), PISTON - STANDARD PROCEDURE .
  • Page 197 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 240: Removing/Installing Piston Ring Side Rail Courtesy of CHRYSLER GROUP, LLC NOTE: Typical piston shown in illustration. Do not use a piston ring expander to install the oil ring side rails.
  • Page 198 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 242: Removing/Installing Upper & Intermediate Rings Courtesy of CHRYSLER GROUP, LLC NOTE: Typical piston shown in illustration. 5. Install the No. 2 (intermediate) piston ring using a ring expander tool.

  • Page 199: Installation

    DESCRIPTION DESCRIPTION Fig. 244: Piston & Connecting Rod Courtesy of CHRYSLER GROUP, LLC CAUTION: Do not use a metal stamp to mark connecting rods as damage may result, instead use ink or a scratch awl. The pistons are a lightweight design with ultra low tension piston rings for improved fuel economy. The pistons are made of a high strength aluminum alloy and the piston skirt has a Moly®...

  • Page 200: Piston Fitting

    PISTON FITTING Fig. 245: Engine Block Cylinder Bore Diameter Grade Markings Courtesy of CHRYSLER GROUP, LLC The pistons are "select fit" to achieve proper oil clearance. Engine block cylinder bore diameter grade markings are stamped into the right side of the engine block. These marks are read from front to rear, corresponding with cylinder number 1, 2, 3, 4.
  • Page 201 2014 ENGINE 2.4L - Service Information - Dart Fig. 246: Piston Size Mark Courtesy of CHRYSLER GROUP, LLC The piston is marked with the piston size (1) on the piston crown. The pistons are available in three different sizes in order to achieve the desired oil clearance. Select the piston size that corresponds to the engine block cylinder bore diameter grade markings for each cylinder.

  • Page 202: Connecting Rod Side Clearance

    DIAL INDICATOR Fig. 248: Measuring Connecting Rod Side Clearance Courtesy of CHRYSLER GROUP, LLC 1. Mount Dial Indicator Set (special tool #C-3339A, Set, Dial Indicator) to a stationary point on the engine. Locate the probe perpendicular to and resting against the connecting rod cap being checked.
  • Page 203 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 249: Connecting Rod Side Clearance Courtesy of CHRYSLER GROUP, LLC NOTE: Typical four cylinder engine shown in illustration. 1. Slide a snug-fitting feeler gauge between the connecting rod and crankshaft journal flange. Compare the measured side clearance to the specification.
  • Page 204 (1). Fig. 251: Connecting Rod To Cylinder Identification Courtesy of CHRYSLER GROUP, LLC 5. If necessary, remove the top ridge of the cylinder bores with a reliable ridge reamer before removing the pistons from the engine block. Be sure to keep the tops of pistons covered during this operation.
  • Page 205 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 252: Piston, Connecting Rod Cap, Bolts, Plastic Guide Plates & Guide Pins Courtesy of CHRYSLER GROUP, LLC NOTE: Typical V6 engine configuration shown in illustration. CAUTION: Care must be taken not to damage the fractured rod and cap joint face surfaces, as engine damage may occur.
  • Page 206 2. Use a wood or plastic scraper to clean the ring land grooves. INSPECTION INSPECTION Fig. 253: Inserts Courtesy of CHRYSLER GROUP, LLC 1. Wipe the inserts (1) clean. 2. Inspect the inserts for abnormal wear patterns, scoring, grooving, fatigue, pitting and for metal or other foreign material imbedded in the lining.
  • Page 207 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 254: Connecting Rod To Cylinder Identification Courtesy of CHRYSLER GROUP, LLC 6. Inspect the connecting rod bearing bores for signs of scoring, nicks and burrs. NOTE: Misaligned or bent connecting rods can cause abnormal wear on pistons, piston rings, cylinder walls, connecting rod bearings and crankshaft connecting rod journals.
  • Page 208 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 255: Coating Material On Piston Courtesy of CHRYSLER GROUP, LLC NOTE: Typical coated piston shown in illustration. 8. Inspect the piston for scoring or scraping marks in the piston skirts. Check the ring lands for cracks and/or deterioration.
  • Page 209 2014 ENGINE 2.4L - Service Information - Dart Fig. 256: Vacuum Fitting O-Ring Seal Courtesy of CHRYSLER GROUP, LLC 1. The vacuum fitting O-ring seal (1) can be reused if not damaged. If removed, lightly lubricate the O-ring seal (1) with clean engine oil and install on the vacuum fitting.
  • Page 210 SEAL, CRANKSHAFT OIL, FRONT REMOVAL REMOVAL Fig. 258: Removing/Installing Crankshaft Damper Courtesy of CHRYSLER GROUP, LLC 1. Remove accessory drive belt. 2. Install Damper Holder (special tool #9707, Holder, Vibration Damper) (1) and remove damper retaining bolt. 3. Pull damper off crankshaft.
  • Page 211 2014 ENGINE 2.4L - Service Information - Dart Fig. 259: Removing Front Crankshaft Oil Seal By Prying Out With Screwdriver Courtesy of CHRYSLER GROUP, LLC 4. Remove front crankshaft oil seal (1) by prying out with a screw driver (2). Be careful not to damage the cover seal surface.
  • Page 212 2014 ENGINE 2.4L - Service Information - Dart Fig. 261: Installing New Seal By Using Seal Installer 9506 & Crankshaft Damper Bolt Courtesy of CHRYSLER GROUP, LLC 2. Install new seal (1) by using Front Crankshaft Seal Installer (special tool #9506, Installer, Oil Seal) (2) and crankshaft damper bolt (3).
  • Page 213 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 263: Installing Damper Holder 9707 Courtesy of CHRYSLER GROUP, LLC 5. Install crankshaft vibration damper. 6. Oil the bolt threads and between the bolt head and washer.
  • Page 214 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Courtesy of CHRYSLER GROUP, LLC 1. Remove transmission and flexplate (1). Refer to FLEXPLATE, REMOVAL. Fig. 265: Rear Crankshaft Oil Seal - Removal Courtesy of CHRYSLER GROUP, LLC 2.
  • Page 215 2014 ENGINE 2.4L - Service Information - Dart Fig. 266: Rear Main Seal Installation Courtesy of CHRYSLER GROUP, LLC CAUTION: If a burr or scratch is present on the crankshaft edge (chamfer), cleanup with 800 emery cloth to prevent seal damage during installation of new seal.

  • Page 216: Engine Mounting

    2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 267: Flex Plate Courtesy of CHRYSLER GROUP, LLC 4. Install the flexplate (1) and transmission. Refer to FLEXPLATE, INSTALLATION. ENGINE MOUNTING INSULATOR, ENGINE MOUNT, LEFT REMOVAL REMOVAL 1.
  • Page 217 2014 ENGINE 2.4L - Service Information - Dart Fig. 268: Coolant Tube Bracket Bolt, Transaxle Bracket Bolts & Frame Rail Bolts Courtesy of CHRYSLER GROUP, LLC 8. Remove the coolant tube bracket bolt (1). 9. Remove the three mount to transaxle bracket bolts (2).
  • Page 218 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Courtesy of CHRYSLER GROUP, LLC 11. Loosen, but do not remove the bolt (2) for the trans mount (3) to strut tower (1) attachment. 12. Remove the mount.
  • Page 219 2014 ENGINE 2.4L - Service Information - Dart Fig. 271: Coolant Tube Bracket Bolt, Transaxle Bracket Bolts & Frame Rail Bolts Courtesy of CHRYSLER GROUP, LLC 3. Tighten the left mount to transaxle bracket bolts (2) finger tight. 4. Tighten the left mount to frame rail bolts (3) finger tight.
  • Page 220 6. Tighten the left mount to frame rail bolts to 87 N.m (64 ft. lbs.). Fig. 273: Coolant Tube Bracket Bolt, Transaxle Bracket Bolts & Frame Rail Bolts Courtesy of CHRYSLER GROUP, LLC 7. Tighten the left mount to transaxle bracket bolts to 105 N.m (77 ft. lbs.).
  • Page 221 2014 ENGINE 2.4L - Service Information - Dart Fig. 274: Rear Engine Isolator To Engine Mount Bracket Bolt Courtesy of CHRYSLER GROUP, LLC 3. Remove the mount to bracket through bolt (4) and nut (2). 4. Remove the mount to crossmember through bolt (1).
  • Page 222 2014 ENGINE 2.4L - Service Information - Dart Fig. 275: Rear Engine Isolator To Engine Mount Bracket Bolt Courtesy of CHRYSLER GROUP, LLC 1. Position rear mount into the crossmember pocket. 2. Install the through bolt (1) into the cradle portion of the mount.
  • Page 223 2014 ENGINE 2.4L - Service Information - Dart Fig. 276: Timing Cover Bolts, Frame Retaining Bolts & Coolant Reservoir Bolts Courtesy of CHRYSLER GROUP, LLC 3. Remove the coolant reservoir bolts (3) and set the reservoir aside. 4. Remove the belly pan. Refer to BELLY PAN, REMOVAL .

  • Page 224: Installation

    2014 ENGINE 2.4L - Service Information - Dart Fig. 278: Strut Tower, Mount & Bolt Courtesy of CHRYSLER GROUP, LLC 8. Loosen, but do not remove the mount (1) to strut tower (3) bolt (2). Fig. 279: Timing Cover Bolts, Frame Retaining Bolts & Coolant Reservoir Bolts Courtesy of CHRYSLER GROUP, LLC 9.
  • Page 225 2014 ENGINE 2.4L - Service Information - Dart INSTALLATION Fig. 280: Timing Cover Bolts, Frame Retaining Bolts & Coolant Reservoir Bolts Courtesy of CHRYSLER GROUP, LLC 1. Set the mount into position. Fig. 281: Strut Tower, Mount & Bolt Courtesy of CHRYSLER GROUP, LLC 2.
  • Page 226 2014 ENGINE 2.4L - Service Information - Dart Fig. 282: Timing Cover Bolts, Frame Retaining Bolts & Coolant Reservoir Bolts Courtesy of CHRYSLER GROUP, LLC 3. Install engine mount to frame retaining bolts (2). Finger tighten the bolts. 4. Install the right mount to timing cover bolts (1). Finger tighten the bolts.
  • Page 227 2014 ENGINE 2.4L - Service Information - Dart Fig. 284: Timing Cover Bolts, Frame Retaining Bolts & Coolant Reservoir Bolts Courtesy of CHRYSLER GROUP, LLC 6. Tighten the right mount to frame rail bolts (2) to 63 N.m (46 ft lbs.).
  • Page 228 4. Raise and support the vehicle. 5. Remove the belly pan. Fig. 286: Converter Outlet Studs Courtesy of CHRYSLER GROUP, LLC 6. Remove the two nuts from the converter outlet. Discard the gasket 7. Lower the vehicle. martes, 5 de mayo de 2020 04:14:44 p. m.
  • Page 229 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 287: Exhaust Manifold Heat Shields Courtesy of CHRYSLER GROUP, LLC 8. Remove the four bolts from the upper shield (2) 9. Remove the upper shield (2). martes, 5 de mayo de 2020 04:14:44 p. m.
  • Page 230 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 288: Exhaust Manifold Bolt Courtesy of CHRYSLER GROUP, LLC 10. Remove the exhaust manifold bolts (1). 11. Remove the manifold out the top of the vehicle. 12. Remove and discard manifold gasket.
  • Page 231 2014 ENGINE 2.4L - Service Information - Dart Fig. 289: Exhaust Manifold Bolts Tightening Sequence Courtesy of CHRYSLER GROUP, LLC 3. Following the torque sequence, tighten the exhaust manifold bolts to 34 N.m (25 ft. lbs.). Fig. 290: Exhaust Manifold Heat Shields Courtesy of CHRYSLER GROUP, LLC 4.

  • Page 232: Manifold, Intake

    4. Using a steering wheel holder, lock the steering wheel in place to keep it from rotating. This keeps the clockspring in the proper orientation. Fig. 291: Lower Coupling Bolt Courtesy of CHRYSLER GROUP, LLC martes, 5 de mayo de 2020 04:14:44 p. m. Page 232...
  • Page 233 (4). Fig. 292: Foam Insulator, Fuel Line & Purge Line Courtesy of CHRYSLER GROUP, LLC 6. Disconnect the vapor line (2) at the purge vapor solenoid end of the line. 7. Remove the NVH foam pad (3) prior to disconnecting the fuel line (1).
  • Page 234 2014 ENGINE 2.4L - Service Information - Dart Fig. 293: Score Line Courtesy of CHRYSLER GROUP, LLC 8. To remove the foam pad, cut the pad along the score line (1). Make sure care is taken to not make contact with any other components while cutting the pad.
  • Page 235 2014 ENGINE 2.4L - Service Information - Dart Fig. 294: Intake Manifold Upper Support Bracket, Bolts & Nuts Courtesy of CHRYSLER GROUP, LLC 11. Remove the throttle body bracket bolts (3), loosen the nuts (2). Allow the throttle body bracket bolts to remain with the intake manifold.
  • Page 236 14. Remove the two bolts at the fuel rail (2). Fig. 296: Throttle Body, Gasket & Bolts Courtesy of CHRYSLER GROUP, LLC 15. Remove the throttle body bolts (1) and nut (2) then remove the throttle body assembly (3). 16. Raise and support the vehicle.
  • Page 237 2014 ENGINE 2.4L - Service Information - Dart Fig. 297: Intake Manifold Silencer Pad Screws Courtesy of CHRYSLER GROUP, LLC 18. Remove the four screws that secure the intake manifold silencer to the manifold (1). 19. Remove the intake manifold silencer assembly.
  • Page 238 20. Remove the two nuts (1), the bolt (2) and the intake manifold lower bracket (3). 21. Remove wiring harness retainer from the intake manifold eyelets (1). Fig. 299: MAP Sensor Connector & Fittings Courtesy of CHRYSLER GROUP, LLC 22. Unplug the three hose connectors (3). 23. Unplug the MAP sensor connector (2).
  • Page 239 2. Clean all sealing surfaces. INSTALLATION INSTALLATION Fig. 301: Intake Manifold Retaining Bolts & Nuts Courtesy of CHRYSLER GROUP, LLC 1. Clean all gasket surfaces. 2. Replace intake manifold gasket seals. 3. Position the foam pad over the coolant transfer tube.
  • Page 240 2014 ENGINE 2.4L - Service Information - Dart Fig. 302: Intake Manifold Lower Bracket, Nuts & Bolts Courtesy of CHRYSLER GROUP, LLC 5. Install the intake manifold silencer cover and screws. Tighten the screws to 2.5 N.m (22 in. lbs.).

  • Page 241: Installation

    2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 303: Foam Insulator, Fuel Line & Purge Line Courtesy of CHRYSLER GROUP, LLC 12. Insert the foam insulator over the fuel rail (3). 13. Connect fuel line (1).
  • Page 242 2014 ENGINE 2.4L - Service Information - Dart Fig. 304: Throttle Body, Gasket & Bolts Courtesy of CHRYSLER GROUP, LLC 21. Install throttle body (3) onto the intake manifold. 22. Install the three throttle body screws (1) and one throttle body bolt (2). Tighten to 8 N.m (71 in. lbs.).
  • Page 243 23. Install the intake manifold upper bracket (1). Install bolts (3) and nuts (2). Tighten to 9 N.m (80 in. lbs.). Fig. 306: Throttle Body Support Bracket, Nut & Bolt Courtesy of CHRYSLER GROUP, LLC 24. Install the throttle body upper support (2). Tighten the bolts to 8 N.m (71 in. lbs.).
  • Page 244 2014 ENGINE 2.4L - Service Information - Dart Fig. 307: Oil Flow Diagram Courtesy of CHRYSLER GROUP, LLC The lubrication system is a full-flow filtration, pressure feed type. The Balance Shaft Module (BSM) is mounted below the ladder frame and chain driven by the crankshaft. The BSM consists of a non-serviceable pump, oil pressure relief valve, and a non-serviceable balance assembly.

  • Page 245: Operation

    2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Courtesy of CHRYSLER GROUP, LLC NOTE: Not all blocks have the bolt on timing chain oil squirter. Engine blocks either have a bolt-on oil squirter or a 1.0 mm hole (1) drilled into the oil gallery passage.

  • Page 246: Checking Engine Oil Pressure

    24 km (15 miles). Inspect the engine for signs of an oil leak by using a black light. CHECKING ENGINE OIL PRESSURE Fig. 309: Oil Temperature Sensor Courtesy of CHRYSLER GROUP, LLC NOTE: Anytime the oil temperature sensor is removed, it should be replaced with a new sensor.
  • Page 247 2014 ENGINE 2.4L - Service Information - Dart Fig. 310: Oil Pressure Adapter 9879 Courtesy of CHRYSLER GROUP, LLC CAUTION: Threads in cylinder head are British Standard Pipe (BSP). Do not install a NPT threaded adapter, this could crack the cylinder block.
  • Page 248 9. If pressure relief valve is ok, replace balance shaft module assembly. Refer to PUMP, ENGINE OIL, REMOVAL. Fig. 312: Oil Pressure Adapter 9879 Courtesy of CHRYSLER GROUP, LLC 10. After test is complete, remove oil pressure gauge (2) and adapter (special tool #9879, Adapter, Oil Pressure Test) (1).
  • Page 249 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 313: Oil Temperature Sensor Courtesy of CHRYSLER GROUP, LLC 11. Install a new oil pressure temperature sensor (1) and connect electrical connector. CHECKING VVT OIL PRESSURE This test can be used to help diagnose VVT faults.
  • Page 250 2014 ENGINE 2.4L - Service Information - Dart Fig. 315: Oil Pressure Gauge Courtesy of CHRYSLER GROUP, LLC CAUTION: Threads in block are 1/8"-28 British Standard Pipe (BSP). Do not install a National Pipe Thread (NPT) threaded adapter, this could crack the cylinder block.
  • Page 251 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 316: Oil Pressure Gauge Courtesy of CHRYSLER GROUP, LLC 9. After test is complete, remove test gauge (1) and fitting (2). Fig. 317: Oil Sender Courtesy of CHRYSLER GROUP, LLC 10.
  • Page 252 The oil cooler can not be cleaned out. In the event that the engine requires rebuilding or replacement, the oil cooler should be replaced. Fig. 318: Identifying Oil Cooler Courtesy of CHRYSLER GROUP, LLC 1. Raise vehicle on hoist. 2. Drain cooling system. Refer to STANDARD PROCEDURE .
  • Page 253 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 319: Oil Cooler Mounting Courtesy of CHRYSLER GROUP, LLC 5. Remove oil cooler connector bolt (2). 6. Remove oil cooler (1). INSTALLATION INSTALLATION Fig. 320: Oil Cooler Mounting Courtesy of CHRYSLER GROUP, LLC 1.
  • Page 254 2. Lubricate seal and position oil cooler to oil filter adapter, aligning notch to tab. 3. Install oil cooler connector bolt (2). Tighten connector bolt to 49 N.m (36 ft. lbs.). Fig. 321: Identifying Oil Cooler Courtesy of CHRYSLER GROUP, LLC 4. Install oil filter (3). 5. Connect oil cooler coolant hose.
  • Page 255 2014 ENGINE 2.4L - Service Information - Dart Fig. 322: Oil Filter Courtesy of CHRYSLER GROUP, LLC CAUTION: When servicing the oil filter, avoid deforming the filter can by installing the remove/install tool band strap against the can to base lock seam. The lock seam joining the can to the base is reinforced by the base plate.

  • Page 256: Engine Oil Level Check

    STANDARD PROCEDURE ENGINE OIL LEVEL CHECK Fig. 324: Oil Level Indicator Courtesy of CHRYSLER GROUP, LLC NOTE: The engine must be HOT when checking oil level. The best time to check engine oil level is after the engine is at operating temperature. Allow the engine to be shut off for at least 5 minutes before checking oil level.

  • Page 257: Engine Oil And Filter Change

    2014 ENGINE 2.4L - Service Information - Dart Fig. 325: Dip Stick Courtesy of CHRYSLER GROUP, LLC Checking the oil while the vehicle is on level ground will improve the accuracy of the oil level reading. Remove dipstick (1), and observe oil level. Add oil only when the level is at or below the SAFE mark. If the oil level is in the safe (2) range, do not add oil.
  • Page 258 2014 ENGINE 2.4L - Service Information - Dart Fig. 326: Oil Drain Plug & Oil Pan Courtesy of CHRYSLER GROUP, LLC 1. Run engine until achieving normal operating temperature. 2. Position the vehicle on a level surface and turn engine off.
  • Page 259 2014 ENGINE 2.4L - Service Information - Dart Fig. 328: Oil Drain Plug & Oil Pan Courtesy of CHRYSLER GROUP, LLC 8. Install oil pan drain plug (2) and tighten drain plug to 40 N.m (30 ft. lbs.). Fig. 329: Oil Filter Courtesy of CHRYSLER GROUP, LLC 9.

  • Page 260: Oil Filter Specification

    PAN, OIL REMOVAL REMOVAL Fig. 330: Oil Drain Plug & Oil Pan Courtesy of CHRYSLER GROUP, LLC 1. Raise vehicle on hoist. 2. Remove oil drain plug (2) and drain the engine oil. 3. Remove accessory drive belt splash shield.
  • Page 261 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 331: Locating A/C Compressor Courtesy of CHRYSLER GROUP, LLC 4. Remove lower A/C compressor mounting bolt (if equipped). 5. Remove A/C mounting bracket (2). Fig. 332: Using Putty Knife To Loosen Seal Around Oil Pan...
  • Page 262 2014 ENGINE 2.4L - Service Information - Dart INSTALLATION INSTALLATION Fig. 333: Sealer Location Courtesy of CHRYSLER GROUP, LLC NOTE: Oil pan sealing surfaces must be free of grease or oil. NOTE: Parts must be assembled within 10 minutes of applying RTV.
  • Page 263 The 2 long bolts must be tightened to 22 N.m (195 in. lbs.). Fig. 335: Oil Drain Plug & Oil Pan Courtesy of CHRYSLER GROUP, LLC 4. Install oil drain plug (2). 5. Lower vehicle and fill engine crankcase with proper oil to correct level.
  • Page 264 2014 ENGINE 2.4L - Service Information - Dart Fig. 336: Tapered Plugs Courtesy of CHRYSLER GROUP, LLC The engine block has three tapered plugs sealing the high pressure oil gallery. These threaded plugs do not have a torque specification but instead are installed to a specific depth. Do not attempt to further tighten these plugs, damage to the engine block could result.
  • Page 265 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 337: Gallery Plug Courtesy of CHRYSLER GROUP, LLC CAUTION: Excessive use of brake parts cleaner to clean threads in block could cause #5 main bearing failure. NOTE: Rear plug shown in illustration, other plugs are similar.

  • Page 266: Pump, Engine Oil

    2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 338: Gallery Plug Courtesy of CHRYSLER GROUP, LLC CAUTION: Excessive use of brake parts cleaner to clean threads in block could cause #5 main bearing failure. NOTE: Rear plug shown in illustration, other plugs are similar.
  • Page 267 1. Remove the oil pan. Refer to PAN, OIL, REMOVAL. Fig. 340: Aligning Balance Shaft/Oil Pump Drive Gear And Housing Indicator Courtesy of CHRYSLER GROUP, LLC 2. Rotate the engine clockwise until the balance shaft/oil pump drive gear and the housing indicator are aligned.
  • Page 268 2014 ENGINE 2.4L - Service Information - Dart Fig. 341: Oil Pump Chain And Sprocket To Module Body Marks Courtesy of CHRYSLER GROUP, LLC 4. If the balance shaft/oil pump assembly is being reused, mark the oil pump chain and the sprocket (1) to the module body (2) for reassembly.
  • Page 269 INSPECTION INSPECTION Fig. 343: Oil Pump Chain Stretch Courtesy of CHRYSLER GROUP, LLC 1. Remove timing chain cover . Refer to COVER(S), ENGINE TIMING, REMOVAL. 2. Remove oil pan. Refer to PAN, OIL, REMOVAL. 3. Measure the distance between the tensioner body and the guide shoe as shown in illustration.
  • Page 270 Fig. 344: Checking Cylinder Head Bolts For Stretching (Necking) Courtesy of CHRYSLER GROUP, LLC 1. The 185 mm (7.283 in.) length bolts must be checked for stretching. Check the bolts with a straight edge for necking (2). If the bolts are necked down, they must be replaced.
  • Page 271 2014 ENGINE 2.4L - Service Information - Dart Fig. 345: Aligning Balance Shaft/Oil Pump Drive Gear And Housing Indicator Courtesy of CHRYSLER GROUP, LLC 4. With the rear of the balance shaft/oil pump assembly on a slight downward angle, position the gear into the chain links.
  • Page 272 3. Rotate bolts an additional 90° in the sequence shown in illustration. Fig. 347: Oil Pump Chain And Sprocket To Module Body Marks Courtesy of CHRYSLER GROUP, LLC 9. Double check the alignment marks to ensure the gear (1) and balance shaft/oil pump assembly indicator (2) is aligned.
  • Page 273 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 348: Positioning Plastic Tie Strap Courtesy of CHRYSLER GROUP, LLC 10. Remove the tie strap (3). 11. Remove the bracket bolt (2). 12. Inspect that the tensioner (1) has fully extended and applied pressure to the guide and chain (4).
  • Page 274 2014 ENGINE 2.4L - Service Information - Dart Fig. 349: Oil Temperature Sensor Courtesy of CHRYSLER GROUP, LLC The oil temperature sensor is a two wire sensor located on the variable valve actuation assembly at the cylinder head. The sensor probe is mounted to the variable valve actuation assembly through an access hole. A compression washer seals the oil temperature sensor to the variable valve actuation assembly.
  • Page 275 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 350: Engine Cover Courtesy of CHRYSLER GROUP, LLC 2. Remove the engine cover (1). Fig. 351: Resonator, Bolt & Clamp Courtesy of CHRYSLER GROUP, LLC Loosen the intake clamp (1), remove the resonator bolt (2) and resonator (3).
  • Page 276 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 352: Oil Temperature Sensor Location Courtesy of CHRYSLER GROUP, LLC 6. Remove sensor (1). INSTALLATION INSTALLATION 1. If re-using the oil temperature sensor, coat the threads with Mopar® thread sealant.
  • Page 277 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 353: Oil Temperature Sensor Location Courtesy of CHRYSLER GROUP, LLC 2. Install oil temperature sensor (1). Tighten to 18 N.m (160 in. lbs.). Fig. 354: Resonator, Bolt & Clamp Courtesy of CHRYSLER GROUP, LLC martes, 5 de mayo de 2020 04:14:45 p.
  • Page 278 3. Install the resonator (3), bolt (2) and clamp (1). Tighten the bolt to 5 N.m (81 in. lbs.). Tighten the clamp. 4. Connect electrical connector. Fig. 355: Engine Cover Courtesy of CHRYSLER GROUP, LLC 5. Install the engine cover (1). SENSOR, OIL PRESSURE...
  • Page 279 1. Raise and support the vehicle. 2. Remove the belly pan. Refer to BELLY PAN, REMOVAL . Fig. 356: Oil Temperature Sensor & Connector Courtesy of CHRYSLER GROUP, LLC 3. Disengage the sensor harness at the block (5). 4. Unlock the connector (3).
  • Page 280 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 357: Oil Temperature Sensor & Connector Courtesy of CHRYSLER GROUP, LLC 1. Screw the sensor (2) into the block. 2. Tighten the sensor to 48 N.m (35 ft. lbs.).
  • Page 281 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 358: Oil Pressure Relief Valve Courtesy of CHRYSLER GROUP, LLC 1. Remove oil pan. Refer to PAN, OIL, REMOVAL. 2. Remove pressure regulating valve cap (2). 3. Remove pressure regulating valve spring (3) and valve (4).

  • Page 282: Standard Procedure - Valve Timing Verification

    INSTALLATION INSTALLATION Fig. 360: Oil Pressure Relief Valve Courtesy of CHRYSLER GROUP, LLC 1. Lightly coat pressure regulating valve with clean engine oil and install valve (4). 2. Install spring (3) and cap (2). 3. Tighten cap to 44 N.m (32 lbs.ft.).
  • Page 283 2014 ENGINE 2.4L - Service Information - Dart Fig. 361: Timing Cover Mark & Notch Courtesy of CHRYSLER GROUP, LLC Correct timing is critical for the NON free-wheeling designed engine. Engine timing can be verified by using the following procedures: 1.

  • Page 284: Timing Chain

    2014 ENGINE 2.4L - Service Information - Dart Fig. 362: Vertical Center Line Of Camshaft, Dowel & Cylinder Head Courtesy of CHRYSLER GROUP, LLC 4. While maintaining this alignment, verify that the dowel window (2) on the camshaft sprocket point toward 12 o'clock.
  • Page 285 2014 ENGINE 2.4L - Service Information - Dart Fig. 363: Chain Link & Crankshaft Timing Mark Courtesy of CHRYSLER GROUP, LLC 3. Mark chain link (2) corresponding to crankshaft timing mark (1). Fig. 364: Vertical Center Line Of Camshaft, Dowel & Cylinder Head Courtesy of CHRYSLER GROUP, LLC martes, 5 de mayo de 2020 04:14:45 p.

  • Page 286: Camshaft Sprocket

    5. Mark the chain links corresponding to camshaft and crankshaft timing marks. Fig. 365: Timing Chain, Sprockets, Tensioner & Guides Courtesy of CHRYSLER GROUP, LLC 6. Remove timing chain tensioner (6). Refer to TENSIONER, ENGINE TIMING, REMOVAL. 7. Rotate the tensioner guide (3) away from the chain.
  • Page 287 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 366: Wrench Flats Courtesy of CHRYSLER GROUP, LLC 2. Remove the timing cover. Refer to COVER(S), ENGINE TIMING, REMOVAL. 3. Hold the camshaft stationary by the wrench flats (1).

  • Page 288: Crankshaft Sprocket

    6. Remove the sprocket from the engine. CRANKSHAFT SPROCKET Fig. 368: BSM Timing Chain Marks Courtesy of CHRYSLER GROUP, LLC 1. Remove the timing chain. Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL. 2. Remove the oil pan. Refer to PAN, OIL, REMOVAL.
  • Page 289 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 369: Crankshaft Sprocket Courtesy of CHRYSLER GROUP, LLC 5. Remove the crankshaft sprocket (1). INSPECTION INSPECTION Fig. 370: Measuring Distance From Tensioner Body To Edge Of Chain Guide Courtesy of CHRYSLER GROUP, LLC Inspect timing chain for stretching prior to removal.
  • Page 290 TIMING CHAIN Fig. 371: Chain Link & Crankshaft Timing Mark Courtesy of CHRYSLER GROUP, LLC 1. Align the timing chain onto the crank sprocket mark (1) using the painted link (2) as a guide. martes, 5 de mayo de 2020 04:14:45 p. m.
  • Page 291 2014 ENGINE 2.4L - Service Information - Dart Fig. 372: Sprocket Mark & Painted Link Courtesy of CHRYSLER GROUP, LLC 2. Align the timing chain onto the camshaft sprocket mark (2) using the painted link (1) as a guide. Fig. 373: Piston, Ratchet Arm & Drill Bit Courtesy of CHRYSLER GROUP, LLC 3.

  • Page 292: Camshaft Sprocket(S)

    2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 374: Timing Chain, Sprockets, Tensioner & Guides Courtesy of CHRYSLER GROUP, LLC NOTE: Keep the slack in the timing chain on the tensioner side. 4. Install timing chain tensioner (6) and tighten bolts to 12 N.m (105 in. lbs.).
  • Page 293 2014 ENGINE 2.4L - Service Information - Dart the camshaft dowel pin and camshaft may occur. Fig. 375: Camshaft Center Bolt & Sprocket Courtesy of CHRYSLER GROUP, LLC 1. Install the chain onto the sprocket (2), insert the bolt (1). Fig. 376: Wrench Flats martes, 5 de mayo de 2020 04:14:45 p.
  • Page 294 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Courtesy of CHRYSLER GROUP, LLC 2. Using a wrench to hold the camshaft flats (1) tighten the sprocket bolt to 10 N.m + 65° (88 in. lbs. + 65°).
  • Page 295 2014 ENGINE 2.4L - Service Information - Dart Fig. 378: BSM Timing Chain Marks Courtesy of CHRYSLER GROUP, LLC 2. Install the oil pump drive chain. Verify that the oil pump is correctly timed (1, 2, 5, 6). Fig. 379: Pushing Tensioner Piston Back Into Tensioner Body Courtesy of CHRYSLER GROUP, LLC 3.
  • Page 296 2014 ENGINE 2.4L - Service Information - Dart Fig. 380: BSM Timing Chain Marks Courtesy of CHRYSLER GROUP, LLC 4. Install the oil pump drive chain tensioner (3) and remove (special tool #9703, Pin, Tensioner) (4). 5. Install the timing chain and timing chain cover. Refer to CHAIN AND SPROCKETS, TIMING, INSTALLATION.
  • Page 297 5. Remove the coolant recovery bottle. Refer to BOTTLE, PRESSURIZED COOLANT, REMOVAL . Fig. 381: Identifying Six Stud Bolts Courtesy of CHRYSLER GROUP, LLC 6. Remove the cylinder head cover. Refer to COVER(S), CYLINDER HEAD, REMOVAL. Fig. 382: Timing Cover Mark & Notch Courtesy of CHRYSLER GROUP, LLC 7.
  • Page 298 (2) to place the number one cylinder piston at top-dead-center on the compression stroke. Fig. 383: Accessory Drive Components & Belt Routing Courtesy of CHRYSLER GROUP, LLC 10. Remove the accessory drive belt (1). Refer to BELT, SERPENTINE, REMOVAL .
  • Page 299 21. Remove one M8 studbolt (1), six M6 bolts (2), two M8 bolts (3) and five M10 bolts (4). Fig. 385: Timing Chain Cover Pry Points Courtesy of CHRYSLER GROUP, LLC 22. Remove the engine timing cover using pry points (1, 2 and 3).
  • Page 300 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 386: Timing Chain Cover Removal/Installation Courtesy of CHRYSLER GROUP, LLC 23. Remove the engine timing cover (1) out through the bottom of the vehicle. INSTALLATION INSTALLATION Fig. 387: Applying Engine Sealant RTV (Or Equivalent) At Cylinder Head To Block Parting Line...
  • Page 301 (1 and 2). Fig. 388: Applying Engine Sealant RTV (Or Equivalent) At Ladder Frame To Block Parting Line Courtesy of CHRYSLER GROUP, LLC 4. Apply Mopar® engine sealant RTV (or equivalent) as shown in illustration at the ladder frame to block parting line (1 and 2).
  • Page 302 2014 ENGINE 2.4L - Service Information - Dart Fig. 389: Engine Block And Cylinder Head To Timing Cover Sealant Application Points Courtesy of CHRYSLER GROUP, LLC 5. Apply 2 mm bead of Mopar® MS-GF-46 (or equivalent) to the engine block and cylinder head to timing cover mating surfaces as shown in illustration.
  • Page 303 9. Install the coolant reservoir bottle. Tighten bolt to 9 N.m (80 in. lbs.). Fig. 391: Accessory Drive Components & Belt Routing Courtesy of CHRYSLER GROUP, LLC 10. Install the water pump pulley (5) and tighten three bolts (6) to 9 N.m (80 in. lbs.).
  • Page 304 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart Fig. 392: Cylinder Head Cover Bolts Courtesy of CHRYSLER GROUP, LLC 17. Install the cylinder head cover and ignition coils . Refer to COVER(S), CYLINDER HEAD, INSTALLATION. 18. Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION.
  • Page 305 REMOVAL REMOVAL 1. Remove the engine timing cover. Refer to COVER(S), ENGINE TIMING, REMOVAL. Fig. 394: Timing Chain Tensioner Retaining Bolts Courtesy of CHRYSLER GROUP, LLC 2. Remove timing chain tensioner retaining bolts (3). 3. Remove the tensioner. INSTALLATION INSTALLATION martes, 5 de mayo de 2020 04:14:46 p.
  • Page 306 2014 ENGINE 2.4L - Service Information - Dart Fig. 395: Piston, Ratchet Arm & Drill Bit Courtesy of CHRYSLER GROUP, LLC 1. Reset the cam chain tensioner. Refer to VALVE TIMING - STANDARD PROCEDURE . Fig. 396: Timing Chain, Sprockets, Tensioner & Guides...
  • Page 307 2014 Dodge Dart GT 2014 ENGINE 2.4L - Service Information - Dart 4. Verify that the valve timing is correct. Refer to VALVE TIMING - STANDARD PROCEDURE . 5. Install the engine timing cover. Refer to COVER(S), ENGINE TIMING, INSTALLATION. 6.
