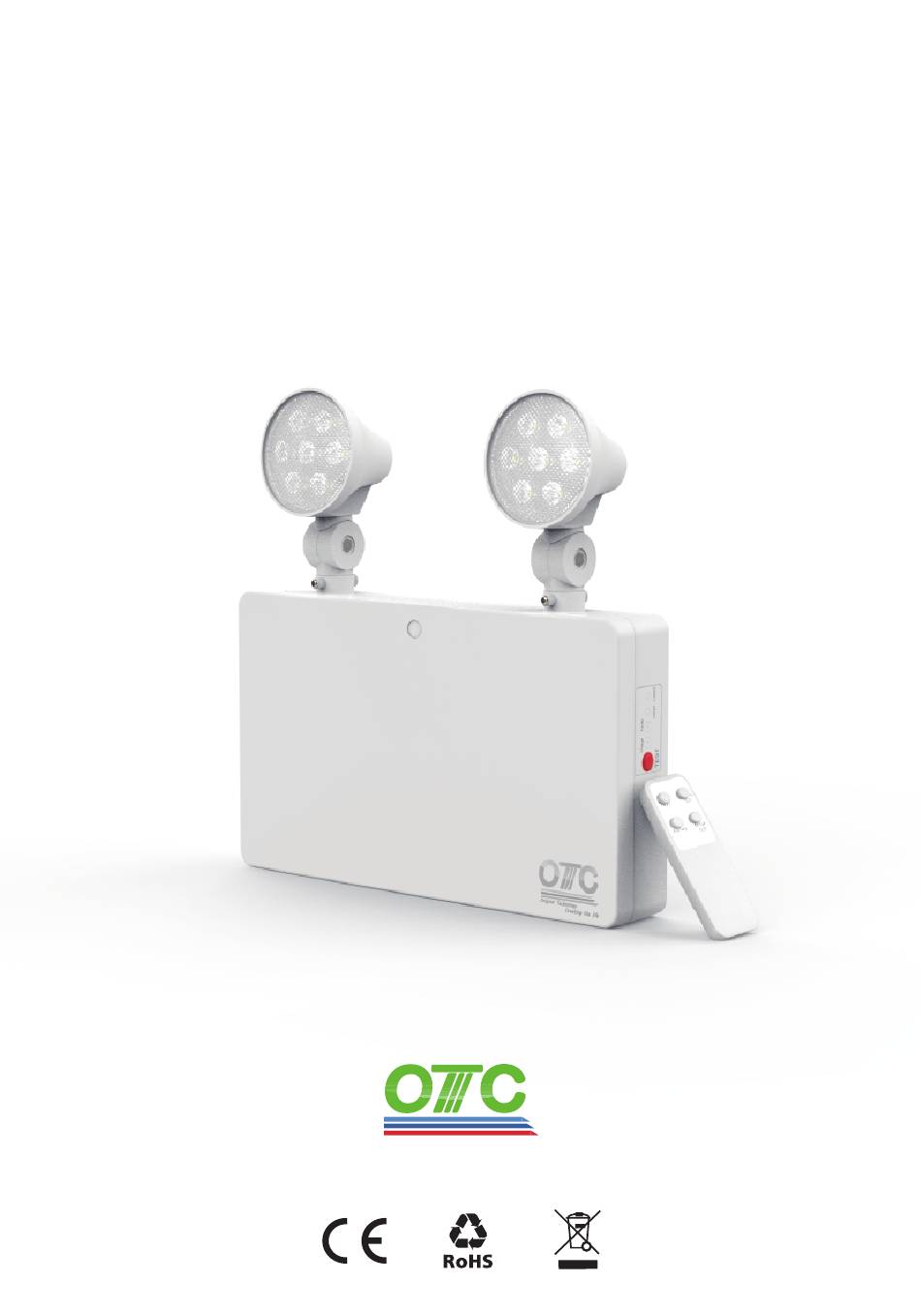

- Page 1 Twin-spot light Data sheet For Series: OT-ECL01 OTC IND CO., LTD TEL: 0086-575-82913009| Website: www.otcenterprise.com | Email: info@otcind.net...
-
Page 2: Table Of Contents
* All the OTC bulkheads with 5 years quality guarantee . If any doubts/ questions, please contact OTC project support team directly by email support@otcind.net . You will get solutions in 7~24 hours rapidly. -
Page 3: Security Realated Information
Original technology Creating the life 1 Security related information • Installation should be carried out in accordance with the latest edition of the I.E.E. Wiring regulations and taking into consideration the latest building regulations. • Ensure that all electrical connections are tight with no loose strands, including factory made connections. -
Page 4: Basic Parameters
Original technology Creating the life 3 Basic Parmeters Art Nr. OT-ECL1 Model Material 100% Polycarbonate body Dimension 274*274*49mm LED Chips 2*7 pcs SMD2835 Color Rendering Index >80 Degree of protection IP20 Input Voltage AC200-240V 50/60HZ Power factor >0.5 LED lifespan 50,000 hrs ↓Next are Emergency parameters↓... -
Page 5: General Construction
4 General construction Original technology Creating the life Horizonal 360° revolve Fastern by front screw 2*7pcs LED chip inside Vertical 270° revolve Fastern by side screw TEST & indicate Panel The polycarbonate Cover Remote test controller - 4 -... -
Page 6: Maintained & Non-Maintained Changeover
Original technology Creating the life 5 Inner construction - 5 -... -
Page 7: Emergency Function
Original technology Creating the life 6 Emergency function Emergency Technical Data Battery Type Ni-Cd 3,6V 1.8Ah Battery Charging 100mA, Charging >90% in 24 hours Discharging 400mA, >3hours autonomy time Test Button Included Self-test Included Charging Indicator Green LED Faulty Indicator RED LED Remote test Included... -
Page 8: Self & Remote Test System
7 Self & remote test system Original technology Creating the life 7.1 Testing (If no failure) 7.1.1. Manual function test. Active the ④ test button. or press “TEST” switch on controller. a) The ② Charging indicator OFF. b) The Emergency function ON. c) The test will cut off... -
Page 9: Emergency Controll Logic
Original technology 7.2 Testing (If any failure) Creating the life 7.2.1 Battery failure: Monitored constantly. The ③ faulty indicator will flash in 1 Hz if the battery failure any time. 7.2.2 LED load failure: ① Lamp one line indicator Monitored constantly. The will turn off... -
Page 10: Installation Guide
9 Installation guide Original technology Creating the life - 9 -... -
Page 11: Em Inspection Record Table
Original technology 10 EM inspection record table Creating the life - 10 -... -
Page 12: Cheap Solution Diy
11 Cheap solution DIY 1. All OTC emergency lights are designed according 60598-1 and 60598-2-22:2014 strictly. There is no trouble if you chose OTC products for bidding projects, including project acceptance, monthly, annual inspection. 2. If you only need sell it online/ install in your home & there is no...
