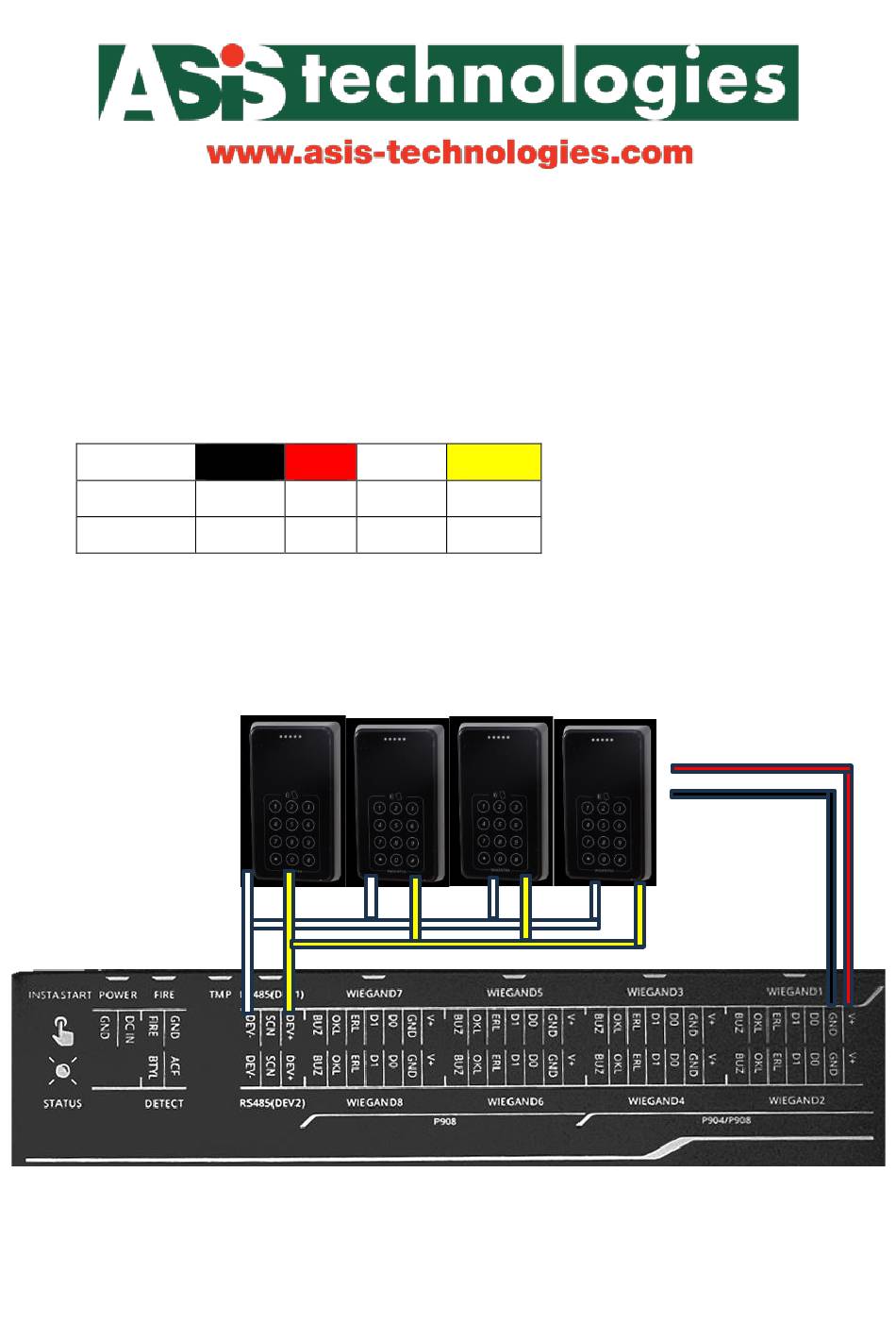

- Page 1 R300 Reader Quick Start Guide 1.1 Wired to Webentra controller RS485(DEV1) Color Black White Yellow Description Ground 12V+ RS485- RS485+...
-
Page 2: Dip Switch Setting
1.2 DIP Switch Setting R300 reader has 8 way DIP switch with function as show in below table. Label Function in RS485 Address bit 0 Address bit 1 Address bit 2 Address bit 3 OFF – Wiegand, ON – RS485 Mode RS485/ Wiegand OFF –... - Page 3 1.4 Installation and Mounting Instruction Remove Bottom Screw Ply open the front cover using flat head screw driver remove the front of the unit. Remove the front of unit Mark out reader base (reader wire pigtail) and (wall mounting hole) drill hole on the wall for mounting reader.
- Page 4 Reinsert reader front to base by set the bottom. Align reader pigtail cable accordingly. Push to front top to snap into the base. Tighten bottom screw...
-
Page 5: Product Specification
1.5 Product Specification Power Supply (Recommend) Regulated linear power supply, +12VDC, 300mA Operating Voltage Range +9VDC - + 24VDC 85mA (average) – 185mA (peak) Operating Current at +12VDC 150meters (500feet) (base on Belden 9538 24AWG 0.6mm, 8 core cable foilshield) (for Maximum Cable Distance wiegand interface) (base on Belden 9534 24AWG 06.mm, 4 core cable foilshield) (for... - Page 6 Mounting Hook On Bracket...
