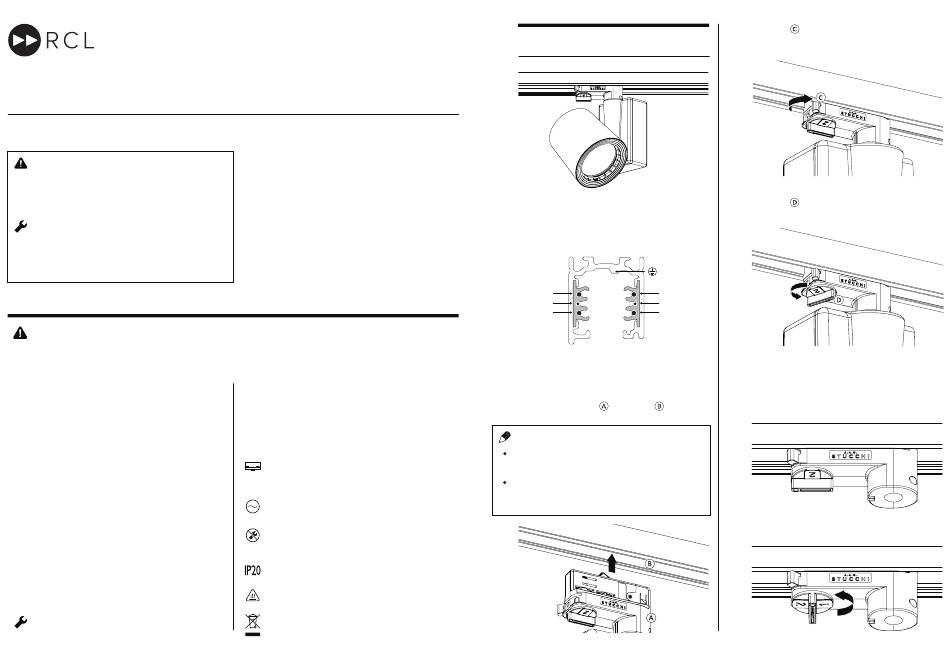

RCL DRX2 Installation Instructions

USA Installation Instructions
Remote Controlled Spotlight Type DRX2
BEFORE YOU START
Read these instructions carefully. For the latest
instructions on all our products see
www.rclighting.com/downloads
These instructions cover the following
installation methods:
A 2-Circuit Installation
B 4" Junction Box Installation
C Accessory Change
IMPORTANT SAFETY INFORMATION
CONSIGNES DE SÉCURITÉ IMPORTANTES
A Read all instructions.
Lire toutes les instructions.
B Do not install any part of a track system less than 5 feet
above the floor.
N'installez aucune partie d'un système de voie à moins
de 5 pieds du sol.
C Do not install any luminaire assembly closer than 6
inches from any curtain, or similar combustible material.
N'installez aucun luminaire à moins de 6 pouces d'un
rideau ou d'un matériau combustible similaire.
SAVE THESE
INSTRUCTIONS
CONSERVEZ CES
INSTRUCTIONS
PRODUCT IS NOT SUITABLE FOR PHASE DIMMING
THIS PRODUCT MUST BE INSTALLED IN
ACCORDANCE WITH THE APPLICABLE INSTALLATION
DOC-316-US-A
CODE BY A PERSON FAMILIAR WITH THE
CONSTRUCTION AND OPERATION OF THE PRODUCT
AND THE HAZARDS INVOLVED.
FOR USE WITH STUCCHI ONETRACK TRACK SYSTEM
À UTILISER AVEC STUCCHI ONETRACK TRACK
SYSTEM
If using a track adaptor, ensure it is compatible with the
track system installed. Failure to do so may result in
danger of electric shock and damage to the product.
Ensure electrical rating shown on product label
conforms to incoming voltage supply.
Do not modify the product in any way. RCL accepts
no responsibility for damage caused by modifying
this product.
Dry locations only.
Caution, product will become hot in use. Allow to cool
before touching.
Dispose of this product in accordance with WEEE or
other national regulations.
A
2-Circuit Track Installation
1
Ensure the track adaptor is compatible with the
2-Circuit track system installed. Unless otherwise
specified, the DRX2 luminaire is supplied with a
Onetrack 2-Circuit track adaptor as standard
(120V 2-circuit track shown for reference).
*note
orientation
L1 L2
D- D+
N1 N2
2
To mount the track adaptor into the track system,
check that both tabs on the adaptor are in the open
position and insert into the track.
Ensure the track adaptor is orientated correctly.
Align the earthing tabs with the slot on
the track.
NOTES
Allow a mounting distance of 15 ¾" (~400mm Min)
between each luminaire's centre of rotation.
If suspending Onetrack, be sure conform with
Eutrac's mechanical load guidelines detailed in their
Installation Details document
3
Rotate tab clockwise 45° to connect the adaptor to
the neutral circuit.
4
Rotate tab to the desired circuit position (see
section 5).
5
With the 2-Circuit track adaptor, you can choose
which circuit the luminaire is connected to:
Unconnected - The luminaire is fixed to the track but
not connected to any circuit.
Circuit 2 - From the starting position, rotate the tab
clockwise 90°.
PAGE 1
