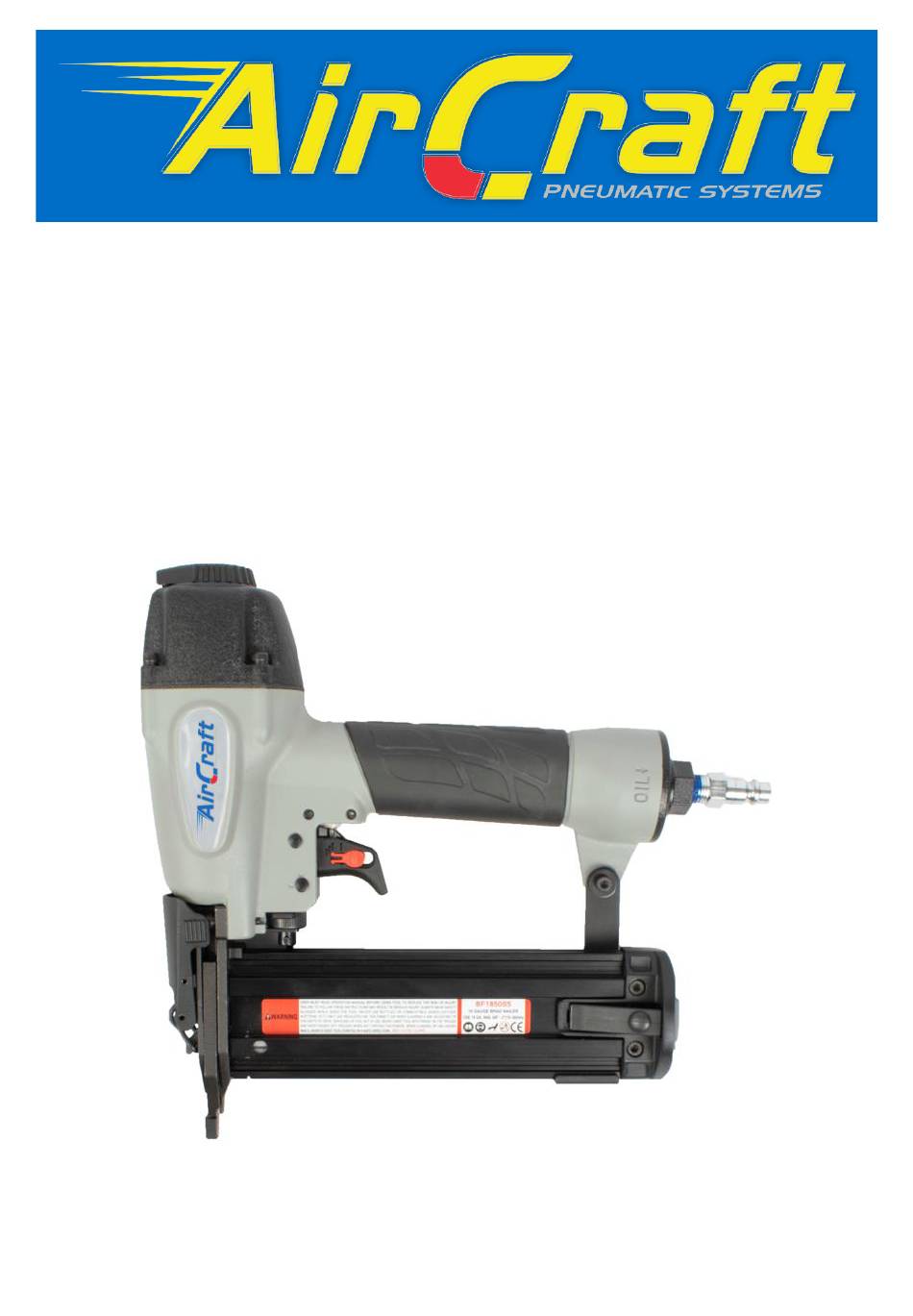

- Page 1 Rev 1 Air Nailer 18G F-Nailer 19mm-50mm Brad Nail Pregador de ar 18G F-Nailer 19mm – 50mm Brad Nail AT0029 Instruction Manual...
-
Page 2: Table Of Contents
Table of Contents 1. PRODUCT SPECIFICATION ..........................2 2. PRODUCT & ACCESSORIES INCLUDED ....................... 2 3. SAFETY ................................3 3.1 PERSONAL SAFETY INSTRUCTIONS....................... 3 3.2 TRIGGER SAFETY MECHANISM ........................4 MAINTENANCE ............................. 4 CORRECT USAGE ............................5 5.1 LOADING THE TOOL ........................... 5 5.2 ADJUSTING DEPTH ............................. -
Page 3: Product Specification
Instructions for the Air Craft 18G Brad Nailer Get to know your tools: 1. PRODUCT SPECIFICATION 360° Exhaust Depth Adjustment Dial Mode Switch (Bump/ Sequential) Magazine Release Latch Handle Magazine ¼” Male Aro Connector (Fitted) No Mar Pad and Safety Trigger 10) Jam Clearing Latch Magazine Load Capacity... -
Page 4: Safety
3. SAFETY Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in serious injury. PERSONAL SAFETY INSTRUCTIONS • Keep fingers AWAY from the trigger when not driving fasteners to avoid accidental firing. •... -
Page 5: Trigger Safety Mechanism
TRIGGER SAFETY MECHANISM • The operator’s fingers need to be off the Trigger (5) and the No Mar Pad (9) of the tool to be placed on the workpiece. • The No Mar Pad (9) is then depressed against the work surface and the Trigger (5) is activated (engaged to drive fastener). -
Page 6: Correct Usage
CORRECT USAGE LOADING THE TOOL • Always ensure air is connected to the tool before the tool can be loaded. • Press the Magazine Release Latch (7) and pull the Magazine (8) to slide the cover open – Fig 1. •... -
Page 7: Adjusting Depth
Fig 3 ADJUSTING DEPTH • Always consider the type of material that the fastener is applied to, some materials are soft and other are hard and therefor the firing depth must be adjusted, accordingly, to avoid damage to the material. Also note the material thickness as too long fasteners may protrude from the back end of the material. -
Page 8: Clearing A Jammed Nail
CLEARING A JAMMED NAIL Should a nail jam occur keep the tool pointed in a safe direction when following the steps below: • Ensure the air supply is disconnected from the tool. • Press the Magazine Release Latch (7) and pull the Magazine (8) to slide the cover open to remove any remaining nails. -
Page 9: Troubleshooting
All quality tools will eventually require servicing or replacement of parts due to wear from normal use. These operations should ONLY be performed by a competent person. Aircraft offers spare service kits for this purpose. Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in serious injury...
