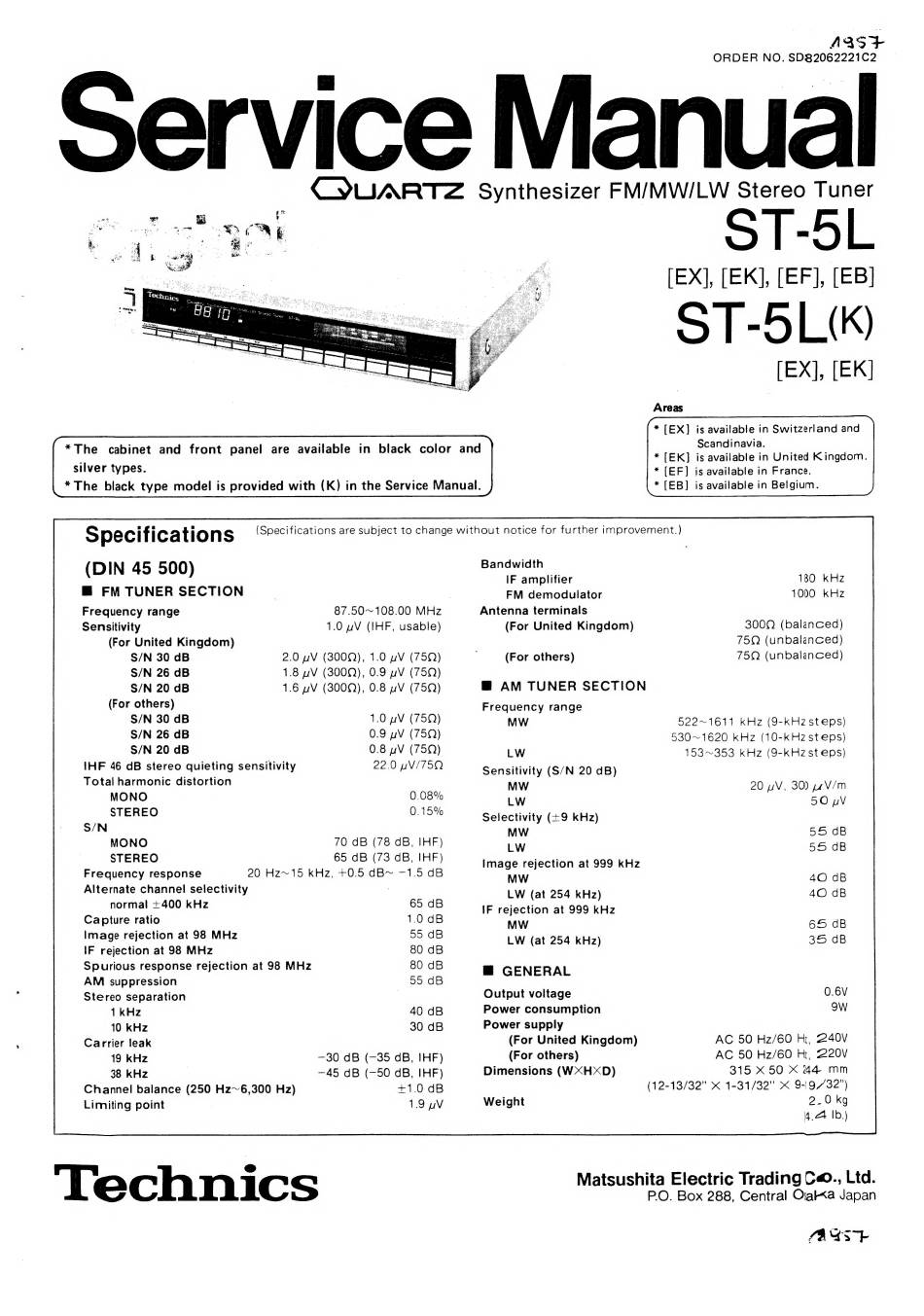

Technics Quartz ST-5L Service Manual

AASt
ORDER NO. SD82062221C2
a ied
t we ee Be a
*The cabinet and front panel are available in black color and
silver types.
* The black type model is provided with (K) in the Service Manual.
Specifications
(DIN 45 500)
M@ FM TUNER SECTION
Frequency range 87.50~108.00 MHz
Sensitivity 1.0 pV (IHF, usable)
(For United Kingdom)
S/N 30 dB 2.0 uV (300), 1.0 uV (75Q)
S/N 26 dB 1.8 uV (300Q), 0.9 wV (75Q)
| S/N 20 dB 1.6 pV (300Q), 0.8 wV (75Q)
(For others)
S/N 30 dB 1.0 pV (75)
S/N 26 dB 0.9 pV (75Q)
S/N 20 dB 0.8 wV (75Q)
IHF 46 dB stereo quieting sensitivity 22.0 upV/75Q
Total harmonic distortion
MONO 0.08%
STEREO 0.15%
S/N
MONO 70:08 (78-08, JAF)
STEREO 65 dB (73 dB, IHF)
Frequency response 20 Hz~15 KHz;-0.5:6B~ —1.5 dB
Alternate channel selectivity
normal +400 kHz 65 dB
Capture ratio 1.0dB
Image rejection at 98 MHz 59 dB
IF rejection at 98 MHz 80 dB
Spurious response rejection at 98 MHz 80 dB
AM suppression 52-08
Stereo separation
1kHz 40 dB
10 kHz 30 dB
Carrier leak
19 kHz -30 dB (—-35 dB, IHF)
38 kHz —45 dB (—-50 dB, IHF)
Channel balance (250 Hz~6,300 Hz) +1.0 dB
Limiting point 1.9 pV
Bandwidth
IF amplifier
FM demodulator
Antenna terminals
(For United Kingdom)
(For others)
M@ AM TUNER SECTION
Frequency range
MW
LW
Sensitivity (S/N 20 dB)
MW
LW
Selectivity (+9 kHz)
MW
LW
Image rejection at 999 kHz
MW
LW (at 254 kHz)
IF rejection at 999 kHz
MW
LW (at 254 kHz)
M@ GENERAL
Output voltage
Power consumption
Power supply
(For United Kingdom)
(For others)
Dimensions (WXHxXD)
Weight
oT- OL
[EX], [EK], [EF], [
SI- BLK
[EX], [
Areas
EK}
* [EX] is available in Switzerland and
Scandinavia.
* [EK] is available in United Kingdom.
* [EF] is available in France.
* [EB] is available in Belgium.
(Specifications are subject to change without notice for further improvement.)
180 kHz
1000 KHz
300Q (balanced)
75Q (unbalanced)
75Q (unbalanced)
522~1611 kHz (9-kHz steps)
530~1620 KHz (10-kKHz steps)
153~353 kHz (9-kHzst eps)
20 uV, 30) pV/m
50 pV
6-d8
55:08
40 dB
40 dB
65 dB
3 d8
0.6V
OW
AC 50 Hz/60 Hi, 240V
AC 50 Hz/60 H, 220V
315 x 50 X 44 mm
(12-13/32" X 1-31/32" 9-932")
2.0kg
4.4 Ib.)
