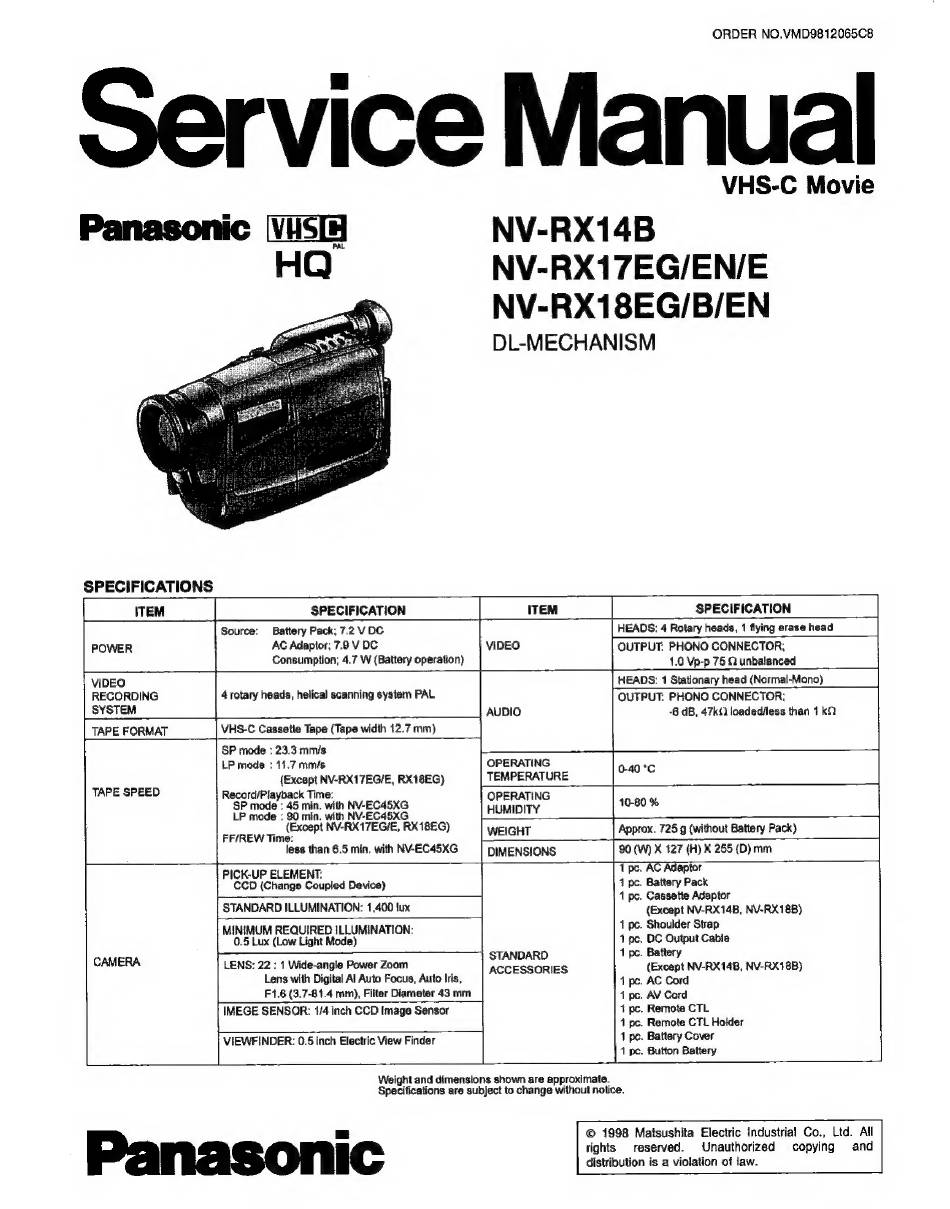

Panasonic NV-RX14B Service Manual

ORDER NO.VMD9812065C8
SPECIFICATIONS
ITEM SPECIFICATION
Source: Battery Pack; 7.2 VDC
VHS-C Movie
NV-RX14B
NV-RX17EG/EN/E
NV-RX18EG/B/EN
DL-MECHANISM
SPECIFICATION
HEADS: 4 Rotary heads, 1 flying erase head
TAPE FORMAT VHS-C Cassette Tape (Tape width 12.7 mm)
SP mode : 23.3 mm/s
POWER AC Adaptor; 7.9 V DC VIDEO QUTPUT. PHONO CONNECTOR,
Consumption; 4.7 W (Battery operation) 1.0 Vp-p 75 © unbalanced
VIDEO
HEADS: 1 Stationary head (Normal-Mono)
RECORDING
4 rotary heads, helical scanning system PAL
OUTPUT. PHONO CONNECTOR;
SYSTEM
AUDIO -6 dB, 47kQ loaded/less than 1 kQ
Weight and dimensions shown are approximate.
Specifications are subject to change without notice.
Panasonic
© 1998 Matsushita Electric industrial Co., Ltd. All
rights reserved. Unauthorized copying and
distribution is a violation of law.
