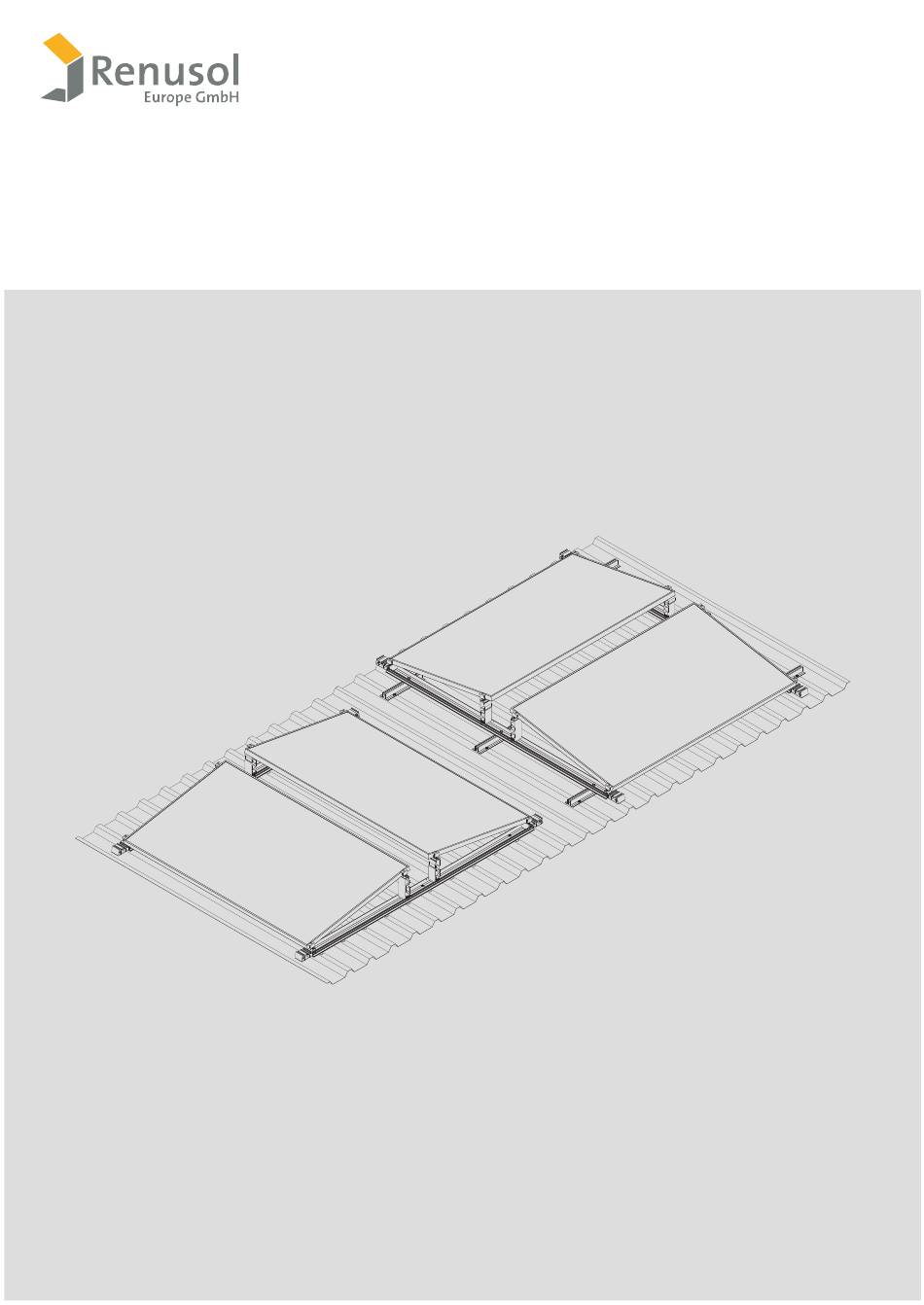

- Page 1 Renusol Pro 10-EW-T EN | Installation Guide V1-18/02/2025...
- Page 2 These documents are available at www.renusol.com. Before Installation Warranty and Guarantee The Renusol FS Pro is mechanically fixed to the roof covering to The Renusol warranty applies only when using the original Re- withstand wind loads. The dimensioning of the fastening de-...
- Page 3 Renusol FS Pro 10-EW-T - parallel to the high rib Renusol FS Pro 10-EW-T - crossing the high rib V1-18/02/2025 Renusol FS Pro 10-EW-T | 3/18...
- Page 4 Renusol FS Pro 10-EW-T - parallel to the high rib Renusol FS Pro 10-EW-T - parallel zur Hochsicke R520243 FS Pro 10-EW Base rail 2300 (Set) IFP R520245 R900001 Hexagon Nut w. serration FS Pro 10-EW Base rail 2380 (Set) IFP...
- Page 5 120 mm ≈ 120 mm ≈ R520243: 910 mm ≈ R520245: 950 mm ≈ R520243: 910 mm ≈ R520245: 950 mm ≈ 300 mm ≈ R520243: 910 mm ≈ R520245: 950 mm ≈ ... V1-18/02/2025 Renusol FS Pro 10-EW-T | 5/18...
- Page 6 V1-18/02/2025 Renusol FS Pro 10-EW-T | 6/18...
- Page 7 Ø 8,5 mm V1-18/02/2025 Renusol FS Pro 10-EW-T | 7/18...
- Page 8 V1-18/02/2025 Renusol FS Pro 10-EW-T | 8/18...
- Page 9 Install an end connection or connect to the next rail according to your layout V1-18/02/2025 Renusol FS Pro 10-EW-T | 9/18...
- Page 10 V1-18/02/2025 Renusol FS Pro 10-EW-T | 10/18...
- Page 11 10 Nm V1-18/02/2025 Renusol FS Pro 10-EW-T | 11/18...
- Page 12 Renusol FS Pro 10-EW-T - crossing the high rib R520243 FS Pro 10-EW Base rail 2300 (Set) IFP R520245 FS Pro 10-EW Base rail 2380 (Set) IFP R400301 R900268 (optional) R420081 / R420081-B R420082 / R420082-B Self drilling screw 5,5 x 25...
- Page 13 ≈ Modullänge + 24 mm ≈ Modullength + 24 mm V1-18/02/2025 Renusol FS Pro 10-EW-T | 13/18...
- Page 14 Install an end connection or connect to the next rail according to your layout. V1-18/02/2025 Renusol FS Pro 10-EW-T | 14/18...
- Page 15 Secure each rail with 6 screws. V1-18/02/2025 Renusol FS Pro 10-EW-T | 15/18...
- Page 16 V1-18/02/2025 Renusol FS Pro 10-EW-T | 16/18...
- Page 17 10 Nm V1-18/02/2025 Renusol FS Pro 10-EW-T | 17/18...
- Page 18 LT | Spausdinami paveikslėliai ir tekstas atitinka naujausią technikos lygį. Pasiliekame teisę į pakeitimus. HU | Az ábrák és a szövegek a nyomtatás időpontjában rendelkezésünkre álló legfrissebb műszaki ismereteknek felelnek meg; a módosítások jogát fenntartjuk. Renusol Europe GmbH Piccoloministr. 2 51063 Köln Deutschland Telefon: +49 221 788707-0 E-Mail: info@renusol.com...
