Summary of Contents for SAFAVIEH COUTURE BARBADOS EUCALYPTUS CPT1057

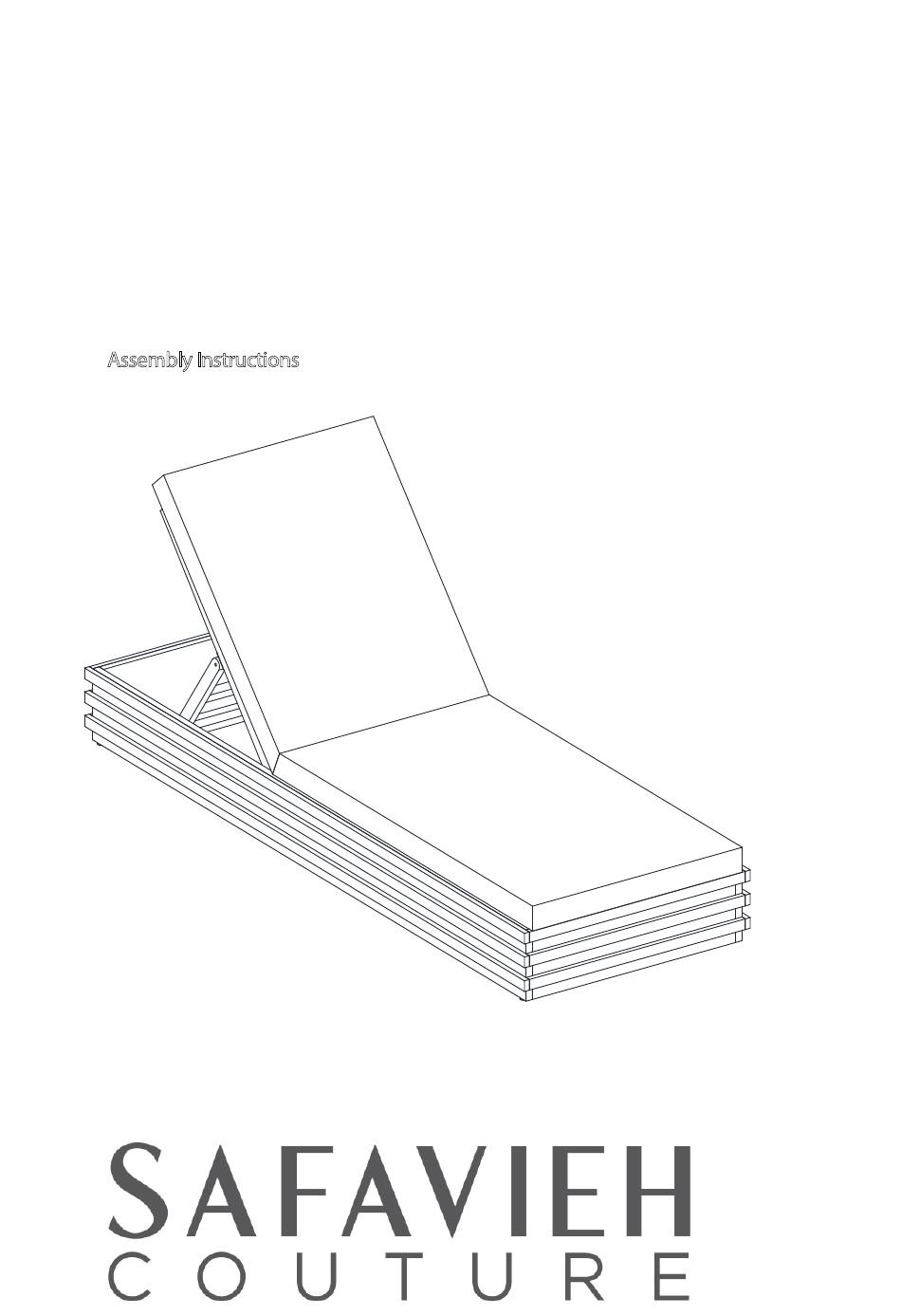

- Page 1 BARBADOS EUCALYPTUS CHAISE LOUNGE DESIGN # CPT1057 Assembly Instructions...
- Page 2 Thanks for bringing Safavieh Couture into your home Everything We make is incredily simole to set up, including your new dinning chair. You won’t need any addi�onal tools. Parts & hardware A x 1 E x 2 Frame back Cross Bar...
- Page 3 Cross Bar (E), to Right Leg Panel (C), use Bolts (HW1) Attach tighten with Allen Key (HW4) Frame Back Attach (A) to Right Leg Panel (C) , use Botts (HW2), washer (HW2) tighten with Allen key (HW4)
- Page 4 Frame Seat Attach (B) to Right Leg Panel (C) , use Botts (HW2), tighten with Allen key (HW4) Attach Left Leg Panel (D) to Frame Back (A), Use Botls (HW2), Washer (HW3) Tighten with Allen key (HW4). Attach Left Leg Panel (D) to Frame Seat (B), Use Botls (HW2) Tighten with Allen key (HW4) Step 4.1 Step 4.2...
- Page 5 Use Bolts (HW1) tighten with Allen Key (HW4) , With Left leg Panel (D) and Cross Bar (E). Attach Ensure all screws, bolts are fully locked into position . Place Seat Cushion (CSH1) The Sunlounger is ready to be used...
- Page 6 Need help? Feel free to contact us via email or call If you have any spec c question! Contact us: CS@safavieh.com 866-422-9070...
