Musicom Lab POWER STATION H8 Owner's Manual

Owner's Manual
Thank you for purchasing the Musicom Lab Power Station H8.
In order to use this product properly and safely, please read this owner's manual carefully.
Main Features
Each output is isolated by hybrid DC transformer.
Ultra-low noise outputs. Vintage pedals based on transistors are also available.
Six of the outputs deliver up to 500mA at 9V.
Two of the outputs are variable voltage.(9V/12V/18V)
Super slim design easily mounts under any pedalboard.
Powers from included AC adapter(12VDC/2A).

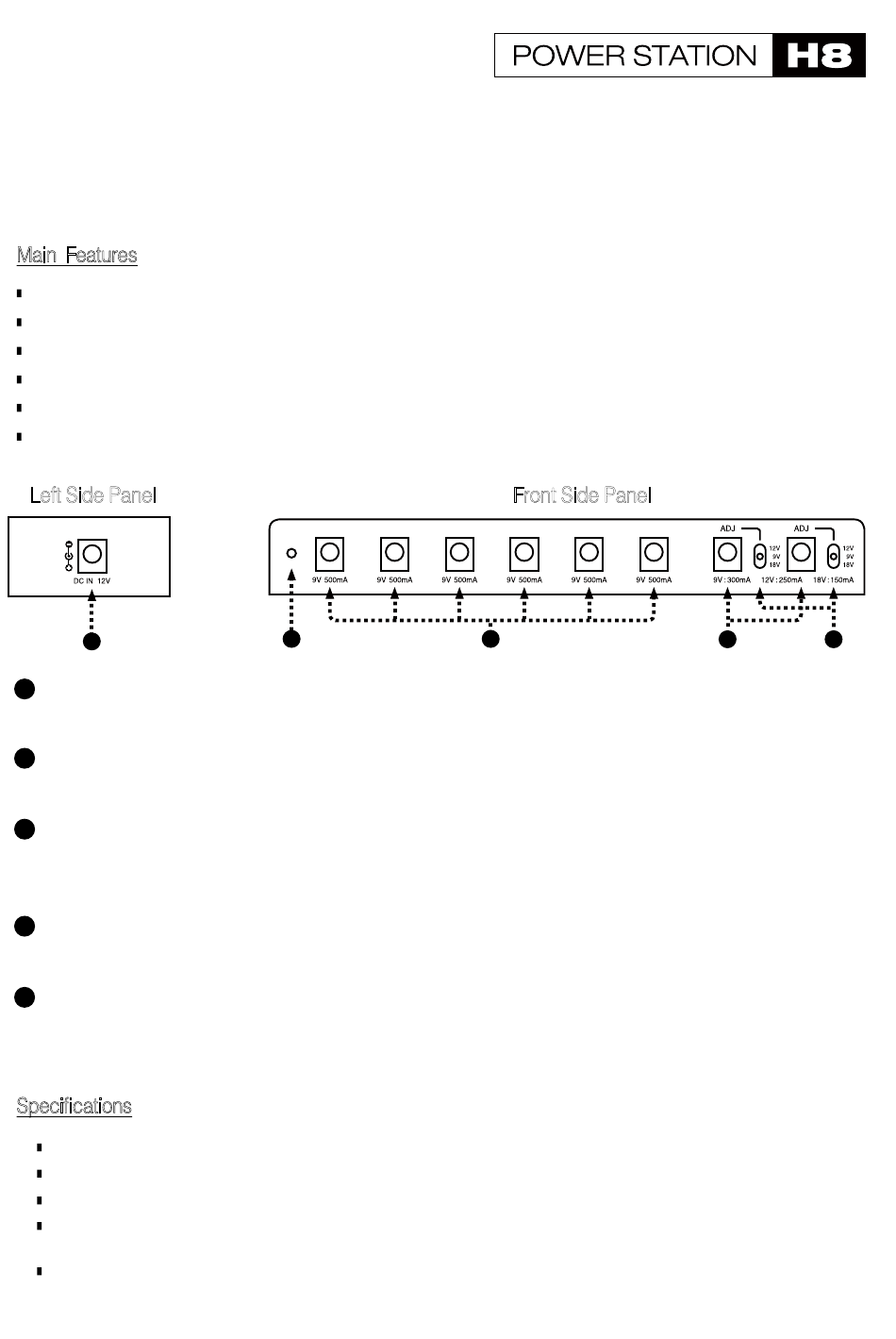

Left Side Panel
1
1 12V DC IN Connector
Plug the included adapter(DC12V 2A) into this connector.
2
9V 500mA Output Connectors
Six outputs provide 9V DC, each with 500mA of available current.
3
9V/12V/18V 300mA/250mA/150mA Adjustable Output Connectors
Two outputs provide selectable 9V, 12V, or 18V DC. Each output provides 300mA of available current at 9V, 250mA at
12V, and 150mA at 18V.
4
9V/12V/18V Selectable Switch
This switch allows you to select the corresponding output to the desired voltage.
5
LED Indicator
Steady ON during normal operation
Specifications
Dimensions 205 x 55 x 27 mm / 8.1 x 2.2 x 1.1 inches
Weight 240 g / 0.53 lb
Input Included AC adapter (100-240VAC / DC12V 2A center negative)
Outputs 6 x 9V DC 500mA center-negative
2 x 9V DC 300mA / 12V DC 250mA / 18V DC 150mA center-negative
DC Cables 4 x 40cm (2.1 x 5.5mm right angle)
4 x 60cm (2.1 x 5.5mm right angle)
5
Front Side Panel
2 3 4
