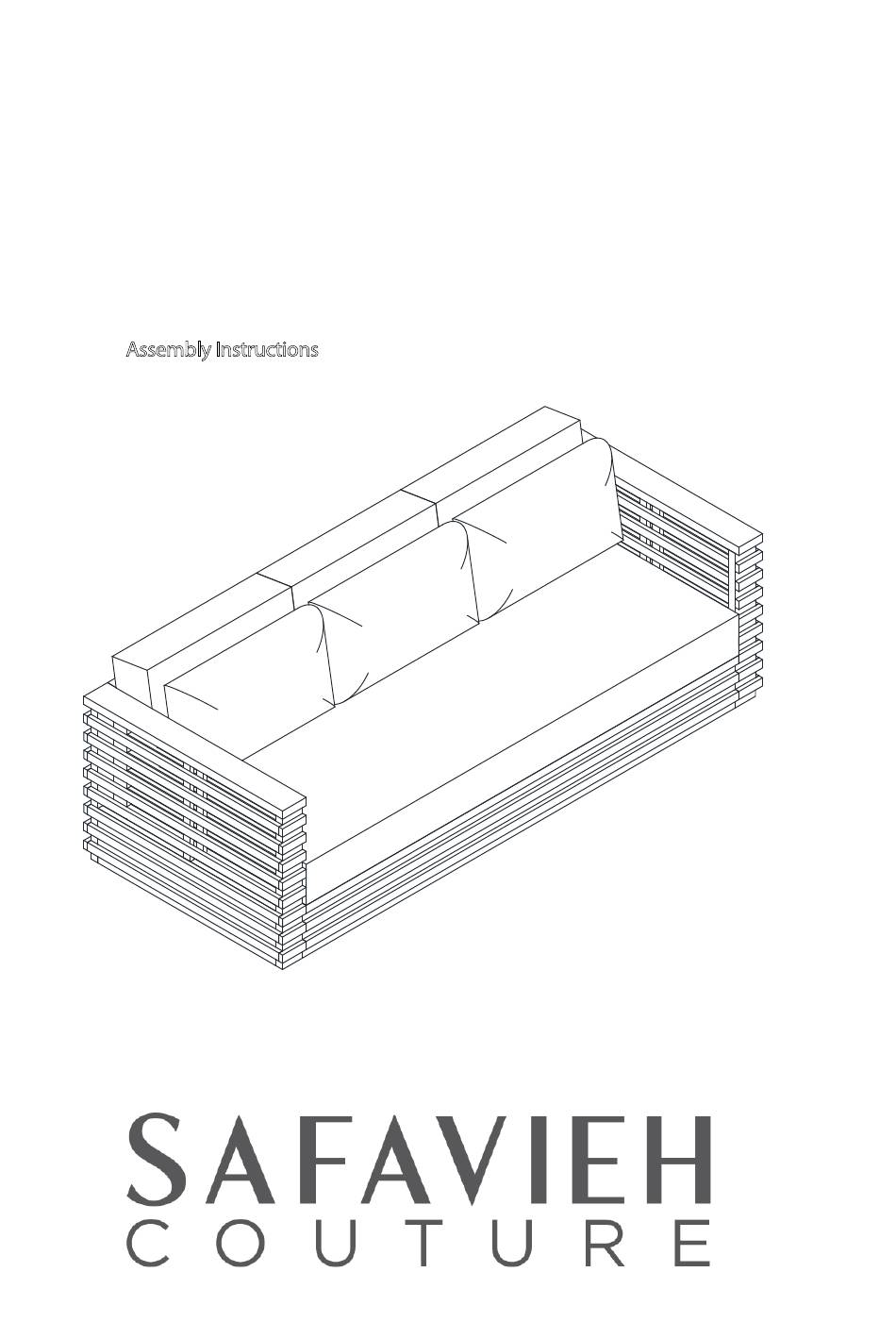

- Page 1 TORTUGA EUCALYPTUS PATIO SOFA DESIGN # CPT1048 Assembly Instructions...
-
Page 2: Parts & Hardware
Thanks for bringing Safavieh Couture into your home Everything We make is incredily simole to set up, including your new dinning chair. You won’t need any addi�onal tools. Parts & hardware A x 1 E x 2 Frame back Leg 3... - Page 3 Attach Frame Leg 1 (C) to Frame Back (A) ,use Bolt (HW1) tighten with allen key (HW4). Use Bolt (HW1) tighten with allen key (HW4).
- Page 4 Attach Frame Front (F) to Frame Leg 1 (C) ,use Bolt (HW2) tighten with allen key (HW4). Attach Frame Leg 2 (D) to Frame Front (F) and Frame Back (A) Use Bolt (HW2),(HW1) tighten with allen key (HW4).
- Page 5 Attach Frame Seat (B) to Frame as shown above Use Screw (HW3) tighten with allen key (HW4). Attach Leg 3 (E) to Frame Seat (B) shown above Use Bolt (HW1) tighten with allen key (HW4).
- Page 6 Attach Seat Cushion (CSH 2) and Back Cushion (CSH1) in Chair. CSH 1 CSH 1 CSH 1 CSH 2 Attach Pillot Cushion (CSH 3) in Chair. CSH 3 CSH 3 CSH 3...
- Page 7 Complete.
- Page 8 Need help? Feel free to contact us via email or call If you have any spec c question! Contact us: CS@safavieh.com 866-422-9070...
