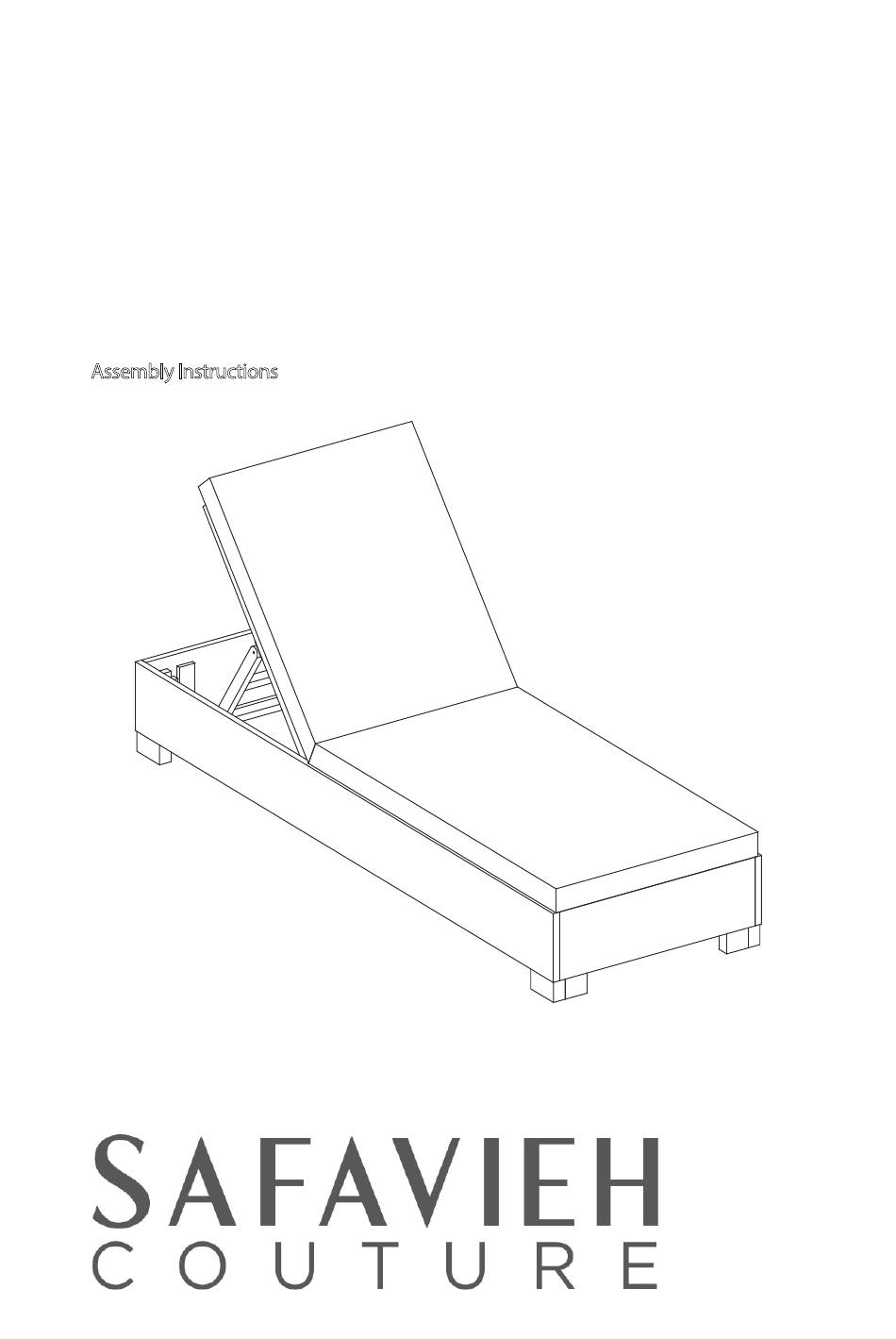

- Page 1 BLANQUILLA EUCALYPTUS CHAISE LOUNGE DESIGN # CPT1056 Assembly Instructions...
- Page 2 Thanks for bringing Safavieh Couture into your home Everything We make is incredily simole to set up, including your new dinning chair. You won’t need any addi�onal tools. Parts & hardware A x 1 E x 2 Frame back Cross Bar...
- Page 3 Attach Cross bar (E) to Right leg Panel (C) as the arrow Attach Legs(F) to Corner With Cross bar (E) anh Right leg panel(C) as the arrow Step 1.1 Step 1.2 Use Bolts (HW1) tighten with Allen Key (HW3) , With Legs(F) and Right leg Panel (C) and Cross Bar (E).
- Page 4 Frame Back Attach (A) to Right Leg Panel (C) , use Botts (HW1), tighten with Allen key (HW3) washer (HW2) Frame Seat Attach (B) to Right Leg Panel (C) , use Botts (HW1), tighten with Allen key (HW3)
- Page 5 Attach Left Leg Panel (D) to Frame Back (A), Use Botls (HW1), Washer (HW2) Tighten with Allen key (HW3). Attach Left Leg Panel (D) to Frame Seat (B), Use Botls (HW1) Tighten with Allen key (HW3) Step 5.2 Step 5.1...
- Page 6 Attach Legs (F) as the arrow. Use Bolts (HW1) tighten with Allen Key (HW3) , With Legs(F) and Left leg Panel (D) and Cross Bar (E). Step 7.1 Step 7.2 Attach Ensure all screws, bolts are fully locked into position . Place Seat Cushion (CSH1) The Sunlounger is ready to be used...
- Page 7 Need help? Feel free to contact us via email or call If you have any spec c question! Contact us: CS@safavieh.com 866-422-9070...
