ENHANCED BACKLIT LED
SINGLE ZONE WALL
THERMOSTAT
MODEL (LIPPERT PN)
FACW10ESSA2-BL (2024031589)
QUICK START GUIDE
COMPATIBLE WITH: FACC10ESSA2-BL
For further support and to download the
air conditioner user manual please scan
the QR code or visit:
https://support.lci1.com/air-conditioning
This quick start guide will help you install and use the
device properly. For further support please visit
www.support.lci1.com

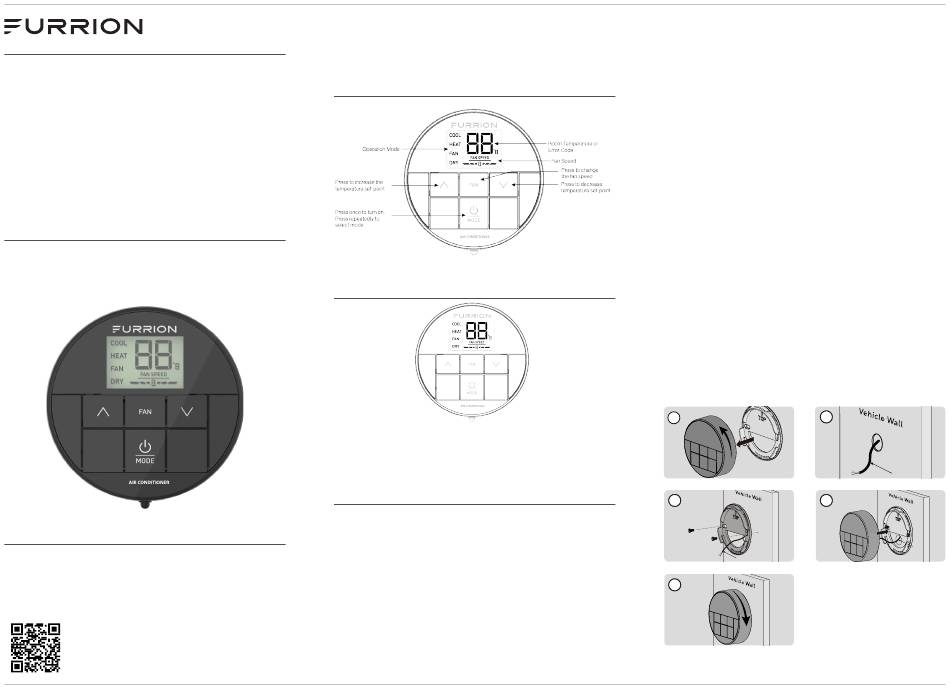

PRODUCT OVERVIEW
WHAT'S IN THE BOX
Thermostat x 1
NOTE: Product design and packaging may change
without notice.
INSTALLATION
WARNING: Risk of electric shock. Always verify that the
electrical power to the circuit has been disconnected
before performing the installation procedures.
Thermostat Location
This thermostat is a regulating device which senses
the room real-time temperature and performs actions
to maintain the temperature near a desired set-point.
For accurate temperature control, the following
considerations should be taken into account:
Rev. 07.30.24
1. Mount the thermostat on an interior wall,
approximately 5 ft. (1.5m) above the floor. Install
in a location with good air circulation and avoid
damp areas.
2. Avoid to install the thermostat in areas that are
exposed to temperature variances, such as direct
sunlight, near windows and doors, above or below
supply vents. Do not install the thermostat in
locations near heat sources like televisions, lamps,
or fireplaces.
Wiring and Mounting the Thermostat
1. Rotate the thermostat cover counterclockwise and
pull out the base plate.
2. Use the base plate as a template and drill a hole on
the vehicle wall. Extend the four wire cables from
the cutout area. Refer to the cable tag label for
each cable definition.
3. Mount the thermostat base on the wall using
screws included with the thermostat.
NOTE: Make sure the base is not covering the hole
and squeezing the thermostat cables. Take care in
case of damaging the temperature sensor.
4. Connect the cables to thermostat.
5. Replace the thermostat to the base and rotate
clockwise until it snaps into place.
2 2
1
3 4 4 3
Thermostat Cables
5 5
Thermostat Cables
Thermostat
cables
