DORLAND

Industrial Intrinsically Safe Tablet PC/Pad

Quick User Manual

Ex NB07S

Table of Contents

Need help?

Do you have a question about the Ex NB07S and is the answer not in the manual?

Questions and answers

Summary of Contents for DORLAND Ex NB07S

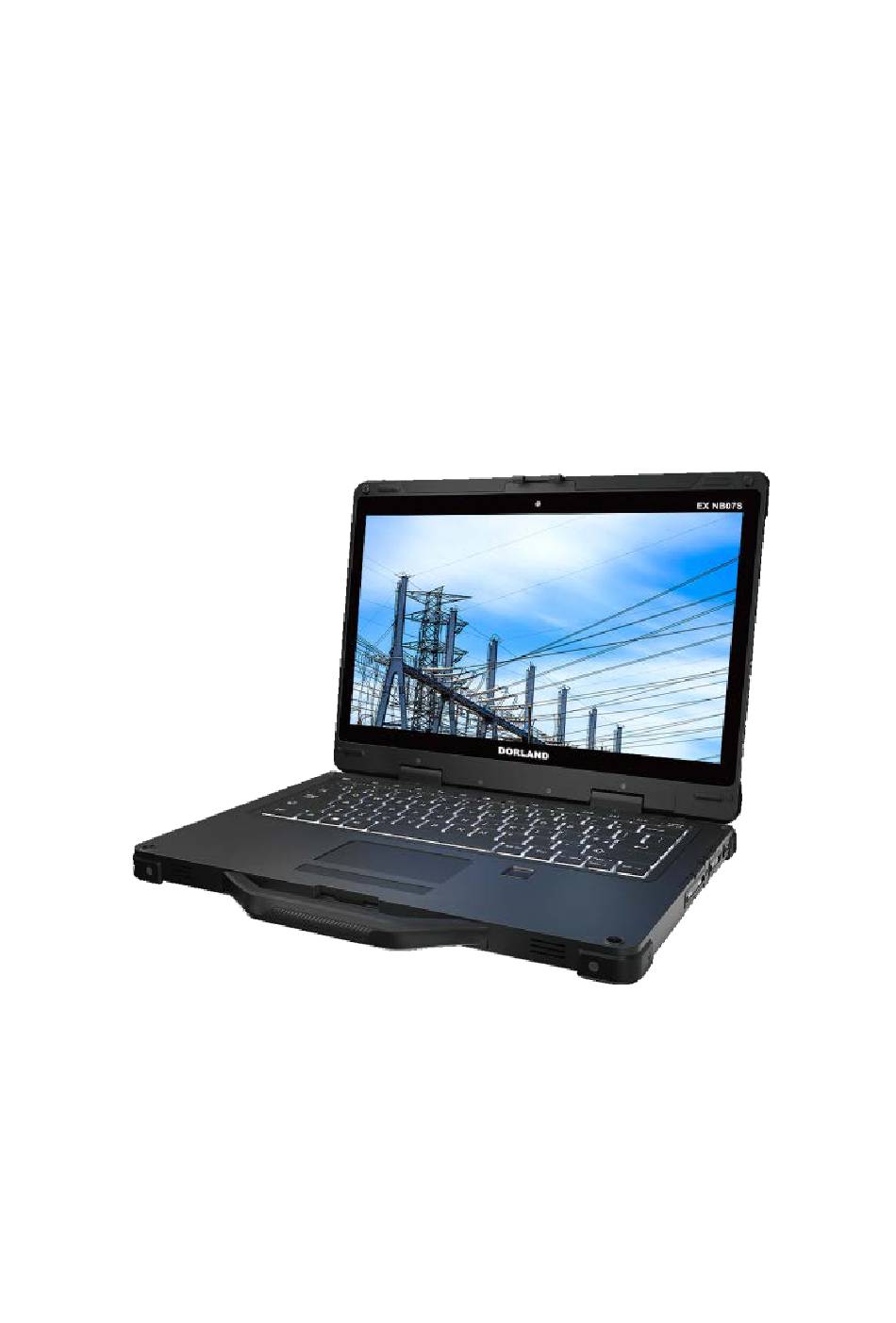

Page 1 DORLAND ® Industrial Intrinsically Safe Tablet PC/Pad Quick User Manual Ex NB07S...
Page 2: Table Of Contents
Catalogue Summary ................5 Items in the box ..............5 Safety instructions ............... 6 1.1 Basic parameters ............7 1.2 Warning for safe use ..........7 1.3 Rules for safe use ............. 9 1.4 Failure and damage handling ........10 1.5 Precautions .............
Page 3 3. Taking a look at the computer ........17 3.1 Front components ........... 17 3.2 Rear components ........... 18 3.3 Right-side components ........... 19 3.4 Left-side components ..........20 3.5 Top-open components ..........21 3.6 Bottom components ..........23 4. Using the keyboard ............24 4.1 Typewriter keys ............
Page 4 6.3 Using the Bluetooth feature ........33 7. Using the Fingerprint Scanner ........35 8. Using the Touch screen (Optional) ......... 37 8.1 Using Multi-touch gestures ........39 Contact us ................. 42...
Page 5: Summary
This document mainly introduces the body interface and system instructions of the Ex NB07S tablet computer, so that users can quickly understand how to use the product through picture instructions. When you encounter problems that cannot be solved in the process of use, please contact the technical personnel of Beijing Dorland to deal with them.
Page 6: Safety Instructions
(such as particles, dust or metal powder) in the air, such as gas stations, oil depots, etc. The Industrial Intrinsically Safe tablet PC/PAD Ex NB07S produced by Beijing Dorland has been certified by the national explosion- proof certification authority, and meets the requirements of GB3836.1-2010 explosive environment Part 1: General...
Page 7: Basic Parameters
1.2 Warning for safe use Only by strictly following the instructions in this section can the safety performance of Ex NB07S, an intrinsically safe industrial explosion-proof tablet PC, be guaranteed. Be sure to carefully read the instructions in this section before use. In case of any doubt or incomprehension, please consult the manufacturer immediately.
Page 8 distance between the product and the pacemaker should be at least 15cm to avoid potential interference of the product to the pacemaker. When carrying the product, it should not be put in the chest bag; The ear on the side different from the one wearing the pacemaker should be used to answer the phone to reduce the potential factors causing interference.
Page 9: Rules For Safe Use
1.3 Rules for safe use The safe use of the intrinsically safe industrial explosion- proof tablet Ex NB07S is based on the user's compliance with the following rules. 1) The battery of this product is specially produced by the manufacturer. Only the original battery meets the intrinsic safety requirements.
Page 10: Failure And Damage Handling
6) It is strictly prohibited to use the vibration function in explosive hazardous areas. 7) Keep away from hot areas when using this product. 1.4 Failure and damage handling The computer may lose its intrinsic safety performance due to any factor. Please stop using it in dangerous places. It is recommended to send the computer back to the manufacturer for inspection.
Page 11: Precautions
1.5 Precautions a) Please keep the product away from the magnetic equipment. The radiation of the product may erase the information stored on the magnetic equipment. b) Please do not place this product, battery and charger in the appliance with strong electromagnetic field, such as electromagnetic cooker and microwave oven, otherwise it may cause circuit failure, fire or explosion.
Page 12 machine to avoid affecting human health. f) To comply with RF leakage regulations, when you wear this product or use its data function, please keep the distance between the antenna and your body at least 1 inch (2.5cm). The signal interference of this product may affect the adjacent TV, radio or computer.
Page 13: Monstrans De Droit
Monstrans de droit a) It is strictly forbidden to copy, transfer, distribute and store any content in this User Manual in any form without the prior written permission of the Company; b) Based on the principle of continuous improvement and development, the Company reserves the right to modify any product described in this manual without prior notice;...
Page 14: Getting The Computer Running
1. Getting the Computer Running Connecting to AC Power You must use AC power when starting up the computer for the very first time 1. Open the DC port waterproof plug (Slide the port switch to the left to unlock)） 2.
Page 15: Turning On And Off The Computer
4. Power is being supplied from the electrical outlet to the AC adapter and onto your computer. Now, you are ready to turn on the computer. 2. Turning On and Off the Computer 2.1 Turning on 1. Open the top cover by pulling the cover latch and lifting up the cover.
Page 16: Turning Off
2.2 Turning off When you finish a working session, you can stop the system by turning off the power or leaving it in Sleep or Hibernation mode: To... Do this... Power off →[ Click Power]→[Shut down]. (Shutdown) Use one of these methods: ...
Page 17: Taking A Look At The Computer
3. Taking a look at the computer 3.1 Front components Component Description  Top Cover Latch Locks the top cover. Sends out sound and voice from  Stereo Speaker the computer. Provides a convenient way to  Handle carry the computer.
Page 18: Rear Components
3.2 Rear components Component Description RS232 Serial Connects a serial mouse or serial ❶ Connector communication device RJ45 ❷ Connects the LAN cable Connector ❸ USB3.0 Port Connects a USB device HDMI ❹ Connects a HDMI monitor or TV set Connector...
Page 19: Right-Side Components
3.3 Right-side components Component Description ❶ USB3.0Port Connects a USB device ❷ USB3.0Port Connects a USB device Connects a Thunderbolt™ or a ❸ Type-cPort Type-c device. 3.5mm ❹ Connects a USB device Connector DCPower ❺ Connects the AC adapter. Connector...
Page 20: Left-Side Components
3.4 Left-side components Component Description A security lock to lock the computer ❶ Security Lock on a fixed object. Reserved ❷ external Connect an external GPS antenna. antenna port...
Page 21: Top-Open Components
3.5 Top-open components Component Description ❶ Camera Used to realize the camera function. Displays the output of the computer. ❷ LCD Screen May include the optional touch screen feature. Serves as the data input device of ❸ Keyboard the computer. Receives sound and voice for the ❹...
Page 22 Serves as the pointing device of the ❺ Touchpad computer. Indicators After the computer is turned on, it shows blue. POWER Lights red when the battery is being ❻ charged.Blinks red when the battery Battery1 is removed. Lights red when the battery is being charged.Blinks red when the battery Battery2 is removed.
Page 23: Bottom Components
3.6 Bottom components Component Description Inside is solid-state drive，which is a computer storage device. ❶ SSD module Note: This is a non-hot-pluggable device. Do not remove the device without shutting down. ❷ Battery Latch Locks the main battery pack in place. ❸...
Page 24: Using The Keyboard
4. Using the keyboard 4.1 Typewriter keys Typewriter keys are similar to the keys on a typewriter. Several keys are added such as the Ctrl, Alt, Esc, and lock keys for special purposes. The Control (Ctrl) / Alternate (Alt) key is normally used in combination with other keys for program-specific functions.
Page 25: Numeric Keypad
4.3 Numeric keypad A 10-key numeric keypad is embedded in the typewriter keys as shown next: 4.4 Function keys On the top row of the keys are the function keys: F1 to F12. Function keys are multi-purpose keys that perform functions defined by individual programs.
Page 26: Hot Keys
4.7 Hot keys Hot keys refer to a combination of keys that can be pressed any time to activate special functions of the computer. Most hot keys operate in a cyclic way. Each time a hot key combination is pressed, it shifts the corresponding function to the other or next choice.
Page 27 Description FN+F7 Open Windows Quick Search. FN+F8 Turn on online voice recognition. Open the computer connection device interface, FN+F9 including wireless displays and audio devices. FN+F10 Open the Windows settings interface. FN+F11 Quick play and pause FN+F12 Windows screen capture FN+space Adjust the brightness of the backlit keyboard.
Page 28: Using The Touchpad
5. Using the touchpad CAUTION: Do not use a sharp object such as a pen on the touchpad. Doing so may damage the touchpad surface. NOTE：  You can pressFn + Escto toggle the touchpad function on or off.  For optimal performance of the touchpad, keep your fingers and the pad clean and dry.
Page 29 The touchpad consists of a rectangular pad (work surface) and a left and right buttons. To use the touchpad, place your forefinger or thumb on the pad. The rectangular pad acts like a miniature duplicate of your display. As you slide your fingertip across the pad, the pointer (also called cursor) on the screen moves accordingly.
Page 30 Finally, release the button (drop) when you finish dragging your selection to the destination. The object will drop into the new location. –or– Gently tap twice on the pad and on the second tap, keep your finger in contact with the pad.
Page 31: Using Network And Wireless Connections
6. Using network and wireless connections 6.1 Using the LAN The internal 10/100/1000Base-T LAN (Local Area Network) module allows you to connect your computer to a network. Plug one end of the network cable into the RJ45 port of the computer, and plug the other end into the network hub.
Page 32 6.21 Turning On/Off the WLAN Radio To turn on the WLAN radio: → [Settings] → [Network & Internet] → [WLAN]， Click Slide the WLAN switch to the [On] position. To turn off the WLAN radio: You can turn off the WLAN radio the same way you turn it on. If you want to quickly turn off all wireless radio, simply switch →...
Page 33: Using The Bluetooth Feature
network administrator or Internet service provider (ISP) for the security key or passphrase. For more information on setting a wireless network connection, refer to Windows online help. 6.3 Using the Bluetooth feature The Bluetooth technology allows short-range wireless communications between devices without requiring a cable connection.
Page 34 If you want to quickly turn off all wireless radio, simply switch on Airplane mode. 6.32 Connecting to another Bluetooth Device 1. Make sure that the Bluetooth function is enabled (as described above). 2. Make sure that the target Bluetooth device is turned on, discoverable and within close range.
Page 35: Using The Fingerprint Scanner
7. Using the fingerprint scanner CAUTION: For optimal performance, both the scanning surface and the finger should be clean and dry. Clean the scanning surface when needed. You can use adhesive tape to remove dirt and oil from the scanner surface. It is not recommended that you use the fingerprint scanner in a belowfreezing temperature.
Page 36 CAUTION： You must create a user account and password in Windows before you can create a fingerprint. The fingerprint login process will take some time, because the system needs to complete the check of the hardware device and security mechanism before starting the fingerprint sensor.
Page 37: Using The Touch Screen (Optional)
8. Using the touch screen (optional) CAUTION: Do not use a sharp object such as a ballpoint pen or pencil on the touch screen. Doing so may damage the touch screen surface. Use your finger or the included stylus. Select models have a capacitive touch screen. This type of touch screen responds to objects that have conductive properties, such as fingertips and a capacitive-tipped stylus.
Page 38 The following table shows how you use the touch screen to obtain equivalent mouse functions. Equivalent Term/Action Mouse Function Tap: Touch the screen once. Click/Point Double-tap: Touch the screen twice Double-click rapidly Tap and hold: Tap and hold until a Right-click popup menu appears Drag: Hold the finger on the screen...
Page 39: Using Multi-Touch Gestures
8.1 Using multi-touch gestures You can interact with your computer by placing two fingers on the screen. The movement of the fingers across the screen creates “gestures,” which send commands to the computer. Here are the multi-touch gestures that you can use: Actions Gestures Descriptions...
Page 40 applications that support mouse wheel zooming. Use rotating to move a picture or other item on the screen in a circular direction (clockwise or Rotate counter clockwise). The gesture works in Move two fingers in opposing directions. applications that -or Use one finger to pivot support the around another.
Page 41 The actual functionality is Double determined by finger click the application Tap with two fingers at the that supports same time (the target should this gesture. be located in the middle of both fingers). Moving left or back can move forward or backward in a browser or other...
Page 42: Contact Us
Contact us Enterprise official website Beijing Dorland System Control Technology Co., Ltd. Add: Room1107, Tower B, Tsinghua Tongfang Technology Square, No.1 Wangzhuang Road, Haidian District, Beijing, P.R.China Sales Hotline: +86-10-62164681 / 62198496 Service Hotline: +86-10-62985217 Mobliephone: +8613910650041 Website: www.dorland-tech.cn E-mail: tian@dorland.com.cn...
