Rowley R-TEC AUTOMATION RTMLW25 Installation Instructions

Roller Shade Installation Instructions
Using a Battery Motor & Attached Wand Control in a Cassette Mount
INTRODUCTION:
The Roller Shade Motorized System
is used to electronically control the
shade using a motor and attached wand
control. By using the attached wand
control, the operator can raise and
lower the shade smoothly and precisely.

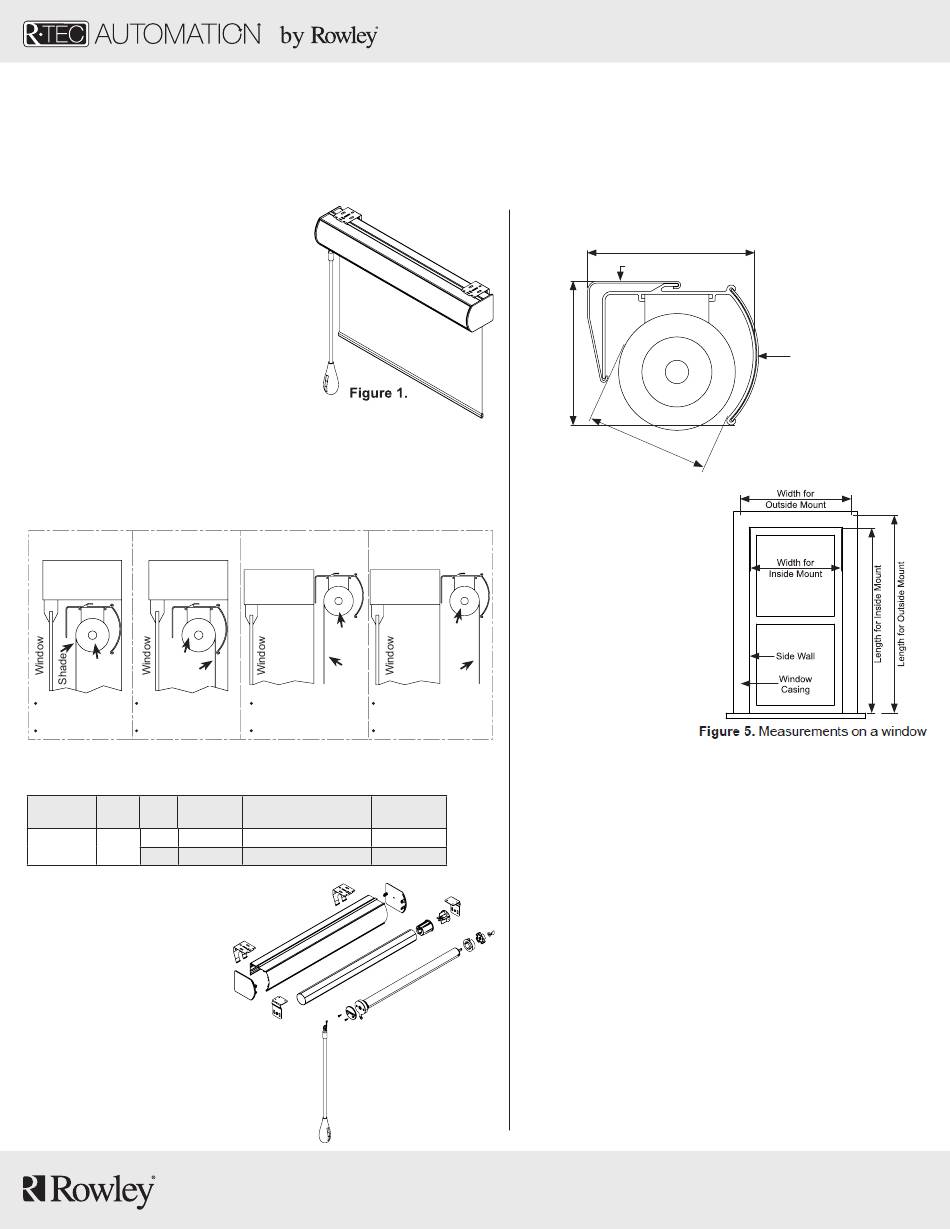

Figure 1 shows an assembled roller
shade battery motor and wand control in
a cassette mount.
The Roller Shade can be mounted either inside or outside the
window casing. Use the smallest diameter roller tube for your
application to ensure you have space inside the cassette when the
shade fabric is completely rolled up. The shade can be regular wind
or reverse wind as shown below in Figure 2.
Inside Mount Inside Mount
Regular Wind Reverse Wind
Window Window
Casing Casing
Roller
Roller
Shade
Shade lining is Shade fabric is
visible when rolled up visible when rolled up
Smaller Light Gap Larger Light Gap
Figure 2. Side view on the top portion of the window
ALLOWABLE SHADE SIZES & WEIGHTS:
Tubular Motor Tube Maximum
Motor Item # Type Dia. Shade Size
1 1/4" 84" x 84"
RTMLW25 Battery
1 1/2" 84" x 84"
PARTS LIST.
See Figure 3.
1. Tubular Motor
2. Aluminum Roller
3. End Plug
4. Wall Brackets
5. Cassette Brackets
6. Crown and Drive Set
7. Motor Mount Plate
with Screws
8. Tube Adapter (as required)
9. Control Wand
10. Cassette
11. Cassette End Caps
TM
Please read all instructions before starting
Outside Mount Outside Mount
Regular Wind Reverse Wind
Window
Window Window
Casing
Casing Casing
Roller
Roller
Shade
Shade
Shade lining is Shade fabric is
visible when rolled up visible when rolled up
Smaller Light Gap Larger Light Gap
Minimum Shade Cloth Maximum
Width/Roller Tube Length Shade Weight
21 ½" 15.5 pounds
21 ½" 13.0 pounds
4
10
4
2
11
5
7
Figure 3.
9
Basic
Components
CASSETTE DIMENSIONS.
3 ¼"
MEASUREMENT:
Step 1. See Figure 5.
A. Inside Mount:
Window
Measure the Width
Casing
inside the casing
Roller
(jam-to-jam, or
Roller
casing-to-casing),
Shade
where the cassette
Shade
will be installed;
and the Length
from the top of the
cassette to the
bottom of the window. Mark your location.
B. Outside Mount: Measure the Width outside between
the outer edges of the window trim where the cassette
will be installed; and the Length from the top of the
cassette to the bottom of the window. Mark your location.
11
NOTE: Measure all windows for accuracy even though
5
3 they may look the same.
8
6
FABRICATION:
Step 2. Use a fine tooth hacksaw to cut the cassette to
1
the proper length. The length of the cassette should be the
overall width you measured in Step 1 minus ¼" to allow for
the cassette end caps.
NOTE: Be sure to mark and cut the cassette straight
and not at an angle as it will not allow the end caps to
fit properly.
See Figure 4.
3 ⅝"
Wall Bracket
2 ½" Maximum
Fabric Diameter
www.RowleyCompany.com | updated 07/19/2019
I-1BBWANDCAS
Fabric Insert Optional
Figure 4.
Cassette Dimensions
1
