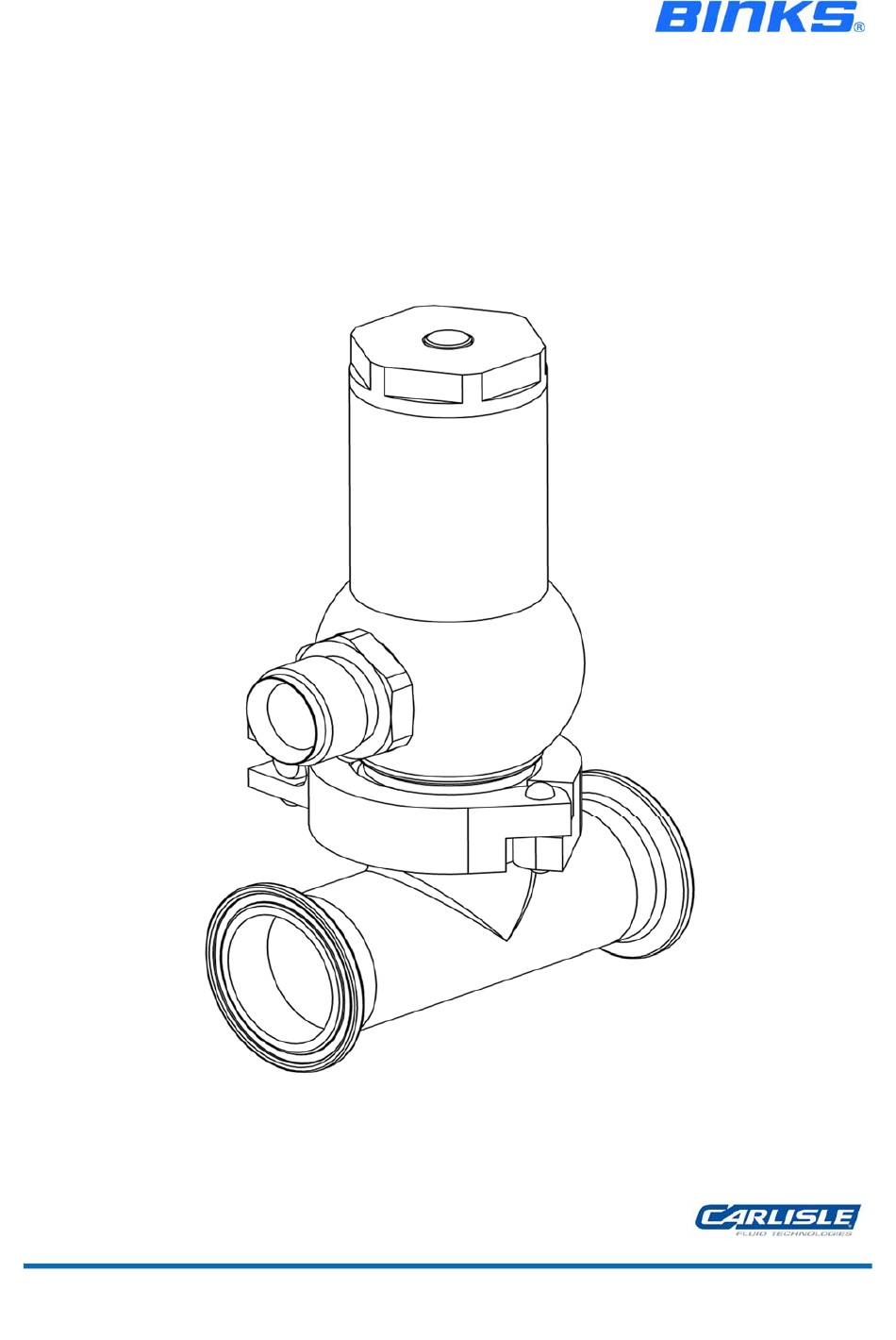

- Page 1 Service Manual Pressure Relief Valve PRV16 & PRV22 (All Models) 77-3257-R5.1 www.carlisleft.com...
-
Page 2: Eu Declaration Of Conformity
Product Description / Object of BPR - 107757, 107758, 107748, 107749, 107750, 107754, 107755, PRV22, 107906, 107908 Declaration: This Product is designed for use with: Solvent and Water based materials Suitable for use in hazardous area: Zone 1 Protection Level: II 2 G c X IIB T4 Notified body details and role: Element Materials Technology (0891) - Page 3 In this part sheet, the words WARNING, CAUTION and NOTE are used to emphasize important safety information as follows: WARNING CAUTION NOTE Hazards or unsafe practices which could result Hazards or unsafe practices which could result in Important installation, operation or in minor personal injury, product or property severe personal injury, death or substantial maintenance information.
-
Page 4: General Description
General Description The Binks mechanical Pressure Relief Valve offers a practical solution for the prevention of Smart Pump and paint system overpressure. An electrical detection system is usually installed (pressure switch or pressure sensor) to detect and stop the pump when a potentially damaging high paint pressure is reached. - Page 5 General Description ¾” NPS/BSP, 1” Sanitary or ¾” NPT(female) Relief P options Stem – Seat design eliminate valve ‘Chatter’ Minimum branch volum eliminates ‘dead zone’ 77-3257-R5.1 www.carlisleft.com 5/16...
-
Page 6: Installation
Installation The Pressure relief valve should be directly mounted on the outlet of the pump using suitable sanitary gaskets and clamps. The relief port should be connected to the mix tank with suitable clear hose, length as short as possible (No more 3m long) Clear hose is recommended as this will indicate the valve has operated Smart Pump... - Page 7 Mechanical Pressure Relief Valve Inlet / Outlet Cracking Full Flow Wetted Part No. Sanitary Relief Port Connection Pressure Pressure Parts Connection PRV16-U-10 1" ¾" BSPP / NPS PRV16-U-15 1½" PRV16-U-20 2" PRV16-S-10 1" PRV16-16 PRV16-18 1" Sanitary PRV16-S-15 1½" bar [231 psi]...
-
Page 8: Valve Assembly
Valve Assembly Model Shown PRV22-U-15 Note: 1 off Clamp and Gasket are included for assembly to the Pump Outlet Manifold 77-3257-R5.1 www.carlisleft.com 8/16... -
Page 9: Important Note
PRV16 & 22 Main valve assembly Important note The pressure relief valve is not a serviceable product, if components are damaged the VALVE must be replaced. If valve shaft or seat is worn please check functionality of high pressure limit switch. Wear on these components signifies the pressure switch is not functioning correctly. -
Page 10: Parts List
Parts List PRV22-U-10 Pressure Relief Valve Item Part No. Description Quantity Remarks PRV22 Main valve assembly 193202 ¾" Outlet nipple 193204 1" Sanitary Tee 192008 1½" Sanitary Gasket 192009 1½" Sanitary Clamp 192206 1" Sanitary Gasket PRV22-U-15 Pressure Relief Valve Item Part No. - Page 11 Parts List PRV22-S-10 Pressure Relief Valve Item Part No. Description Quantity Remarks PRV22 Main valve assembly 193614 1" Sanitary outlet nipple 193204 1" Sanitary Tee 192008 1½" Sanitary Gasket 192009 1½" Sanitary Clamp 192206 1" Sanitary Gasket PRV22-S-15 Pressure Relief Valve Item Part No.
- Page 12 Parts List PRV22-N-10 Pressure Relief Valve Item Part No. Description Quantity Remarks PRV22 Main valve assembly 193736 ¾" NPT Outlet nipple 193204 1" Sanitary Tee 192008 1½" Sanitary Gasket 192009 1½" Sanitary Clamp 192206 1" Sanitary Gasket PRV22-N-15 Pressure Relief Valve Item Part No.
- Page 13 Parts List PRV16-U-10 Pressure Relief Valve Item Part No. Description Quantity Remarks PRV16 Main valve assembly 193202 ¾" Outlet nipple 193204 1" Sanitary Tee 192008 1½" Sanitary Gasket 192009 1½" Sanitary Clamp 192206 1" Sanitary Gasket PRV16-U-15 Pressure Relief Valve Item Part No.
- Page 14 Parts List PRV16-S-10 Pressure Relief Valve Item Part No. Description Quantity Remarks PRV16 Main valve assembly 193614 1" Sanitary outlet nipple 193204 1" Sanitary Tee 192008 1½" Sanitary Gasket 192009 1½" Sanitary Clamp 192206 1" Sanitary Gasket PRV16-S-15 Pressure Relief Valve Item Part No.
- Page 15 Parts List PRV16-N-10 Pressure Relief Valve Item Part No. Description Quantity Remarks PRV16 Main valve assembly 193736 ¾" NPT Outlet nipple 193204 1" Sanitary Tee 192008 1½" Sanitary Gasket 192009 1½" Sanitary Clamp 192206 1" Sanitary Gasket PRV16-N-15 Pressure Relief Valve Item Part No.
- Page 16 DeVilbiss®, Ransburg®, MS®, BGK® and Binks® are registered trademarks of Carlisle Fluid Technologies, Inc. © 2017 Carlisle Fluid Technologies, Inc. All rights reserved. Binks is part of Carlisle Fluid Technologies, a global leader in innovative finishing technologies. For technical assistance or to locate an authorized distributer, contact one of our international sales and customer support locations below. USA/Canada Mexico Brazil www.binks.com...
