Q-SYS MD-110 Installation Manual

MD-1 10 Installation Guide
WARNING!: The instructions in this document are to be
performed only by the product distributor's trained and qualified
technician. These instructions are not provided for the end-user
of the equipment.
IMPORTANT!: This document provides the procedure to
install the MD-1 10 Media Drive into a Core 1 10f advanced
DSP appliance. The MD-1 10 is an mSATA solid state drive
specifically formatted, partitioned, and pre-configured for use in
Q-SYS Core 1 10f.
CAUTION!: Solid state drives are delicate electronic
assemblies and are highly susceptible to ESD (Electrostatic
Discharge). Make sure that proper grounding and handling
procedures are followed.
Back Up Your Files!
Be sure to back up all media and design files before installing the MD-1 10
into your Core 1 10f. Visit www.qsys.com or contact your AET representative
if you need additional information regarding file backup procedures.
Required Tools
• Anti-static wrist strap - properly grounded
• Anti-static work mat
• Phillips #1 screwdriver
• Phillips #0 screwdriver
Safety Procedure
1. Make sure that the AC Mains power cord is unplugged from the AC
receptacle on the rear panel of the Core 1 10f.
2. Connect, and put on, the ESD grounded wrist strap.
Installation Procedure
1. Use the #1 Phillips screwdriver to remove the 12 screws securing the top cover to the Core 1 10f chassis. Set aside for later use.
2. Remove the cover.

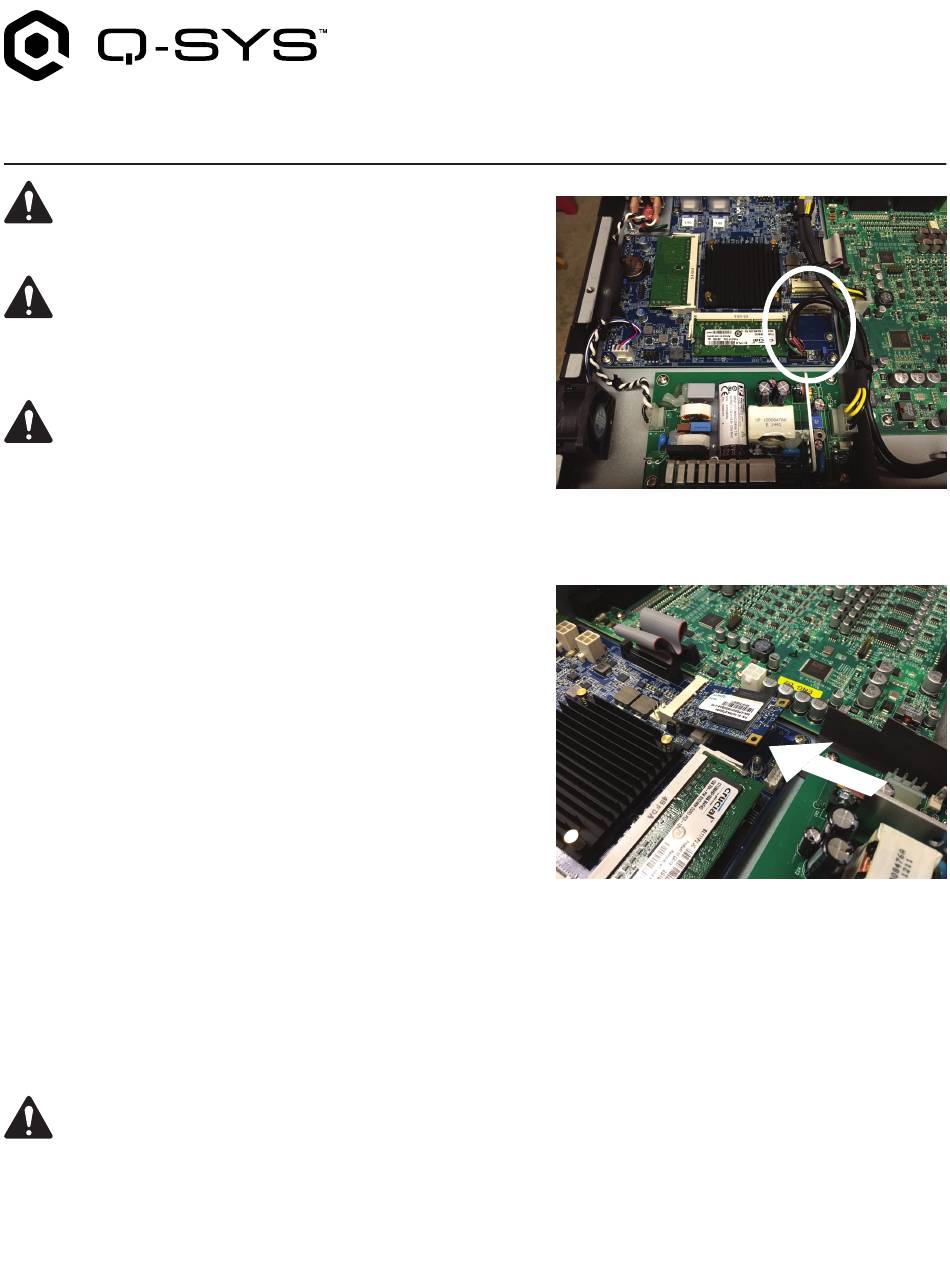

3. Locate the MD-1 10 mounting socket (white) on the blue motherboard. Refer to Figure 1.
4. Carefully remove the MD-1 10 from its packaging.
NOTE: The cables have been removed in Figures 2 and 3 for clarity. You do not have to remove any cables to complete this
procedure.
5. Insert the MD-1 10 electrical contacts into the receptacle. The contacts are keyed so they cannot be installed incorrectly. Refer to
Figure 2.
TD-000518-00-B
*TD-000518-00*
— Figure 1 —
— Figure 2 —
