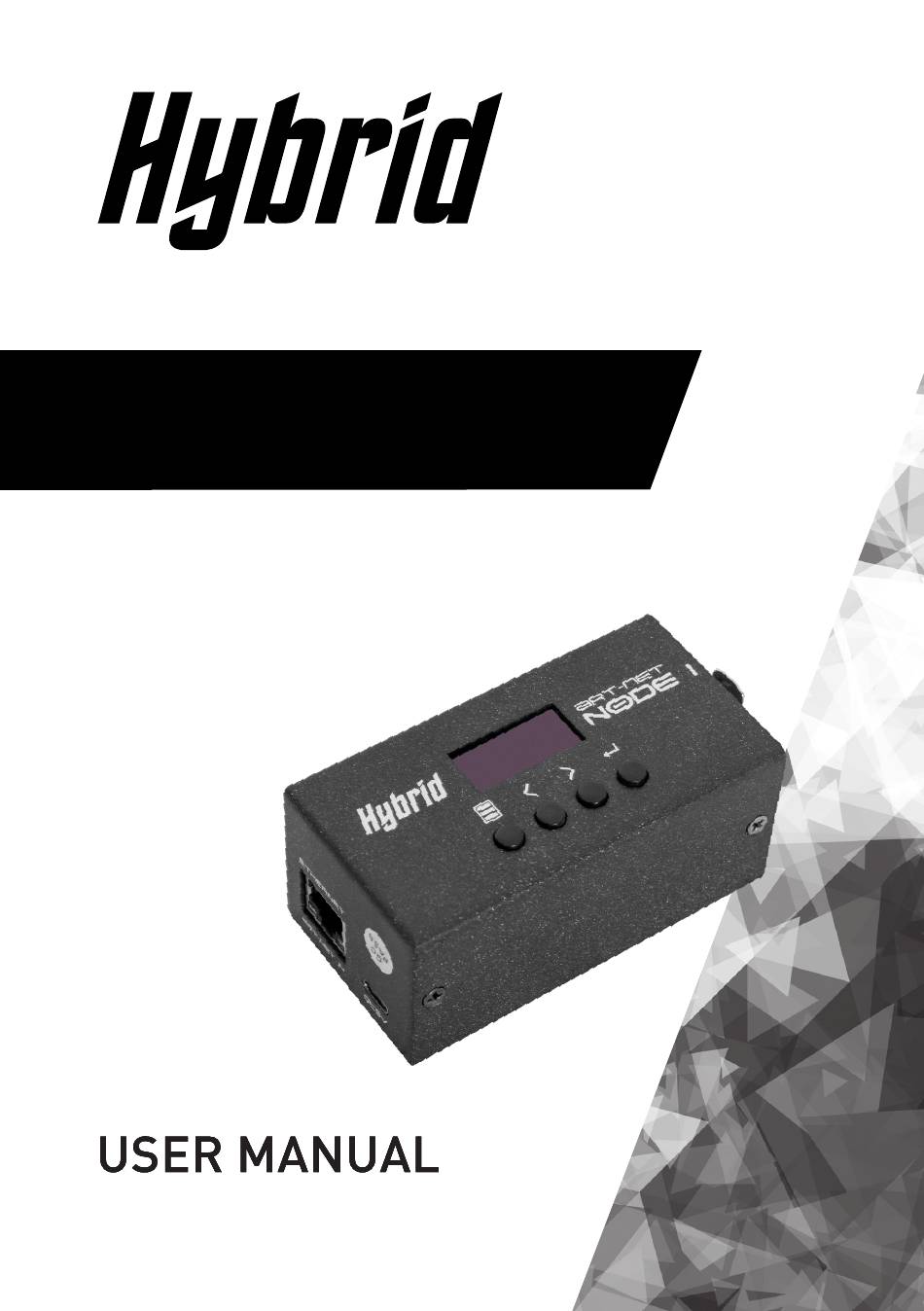

- Page 1 ALTIUM 15/12 ART-NET NODE 1 NETWORK CONVERTER REV Z0 07-10-2023...
- Page 2 WELCOME Thank you very much for choosing our product, for your safety, please read the safety instruction and this manual carefully before operating. CONTENTS Please check that the packaging contains all the following items: 1 x Art net - NODE 1 1 x Type C USB Cable QR Code - Downloadable...
-
Page 3: Device Parameters
USER MANUAL - HYBRID ART-NET NODE 1 - NETWORK CONVERTER DEVICE PARAMETERS Type Parameter Network Device Name CR011R Default IP Address 10.201.6.100 Network Broadcast Address 10.255.255.255 Subnet Mask 255.0.0.0 MAC Address d-4d-48-c9-06-64 Support Network Protocols Art-NetI, Art-NetII, Art-NetIII DMX512 Port Address... -
Page 4: Panel Introduction
PANEL INTRODUCTION Type Function Menu Enter settings and set item selection. Minus Enter Key Parameter value input. Plus Enter Key Parameter value input. Enter Parameter switching (short press) and save (long press) Manually set system parameters through LCD menu. LCD Display The backlight of the LCD will automatically turn off after 5 minutes if there is no key operation. -
Page 5: Configure System Parameters
USER MANUAL - HYBRID ART-NET NODE 1 - NETWORK CONVERTER CONFIGURE SYSTEM PARAMETERS Button icon descriptions: Button Icon Button Icon [MENU] [DOWN] [UP] [ENTER] Function Menu (Cancel) Reduce OK (save), Short Description Press to Switch, Long Press to Save OPERATION STEPS OF KEYS DURING PARAMETER SETTING... - Page 6 TOUTPUT MODE MENU DISPLAY INFORMATION (THE CONTENT IN THE TABLE IS THE FACTORY DEFAULT VALUE) Menu DMX output mode Defaults IP address 010. 201. 006. 100 Subnet Mask 255. 000. 000. 000 Output Port OUT01: 00 Address Output Port Net: 000 Network Address Output Port Sub-Net: 00...
- Page 7 USER MANUAL - HYBRID ART-NET NODE 1 - NETWORK CONVERTER SETTING ERROR MESSAGE TABLE Menu Item LCD Liquid Crystal Display Error Message Description Error Message Set Local IP and Subnet !!Localip:Hostedcan’tis0!! The Host Number of The Mask Local IP Cannot be 0 !Localip:Hostedcan’tallis1!
- Page 8 POINTS TO NOTE WHEN SETTING PARAMETERS Set parameter menu Points to note when setting up item Set IP address Each network setup must have a unique IP address (not occupied by other network devices) and the same subnet mask, otherwise the network will not work properly.
-
Page 9: Application Examples
USER MANUAL - HYBRID ART-NET NODE 1 - NETWORK CONVERTER APPLICATION EXAMPLES: 1) LED light strip control application PC computer Art net (Artnet toDMX512) LED decoder LED light strip - NODE 1 2) Lighting simulation software application: Lighting console Control the lighting simulation software on... - Page 10 NOTES: PAGE 10 PAGE 10...
- Page 11 USER MANUAL - HYBRID ART-NET NODE 1 - NETWORK CONVERTER PAGE 11 PAGE 11...
-
Page 12: Specifications
SPECIFICATIONS Weight 0.26kg Dimensions of 120mm x 70mm x 60mm (W x H x D) Packaging WxHxD Power Requirements DC5V/500Ma ww w.v iva af r i ka.co.za PAGE 12 PAGE 12...
