Summary of Contents for Feider FLP335

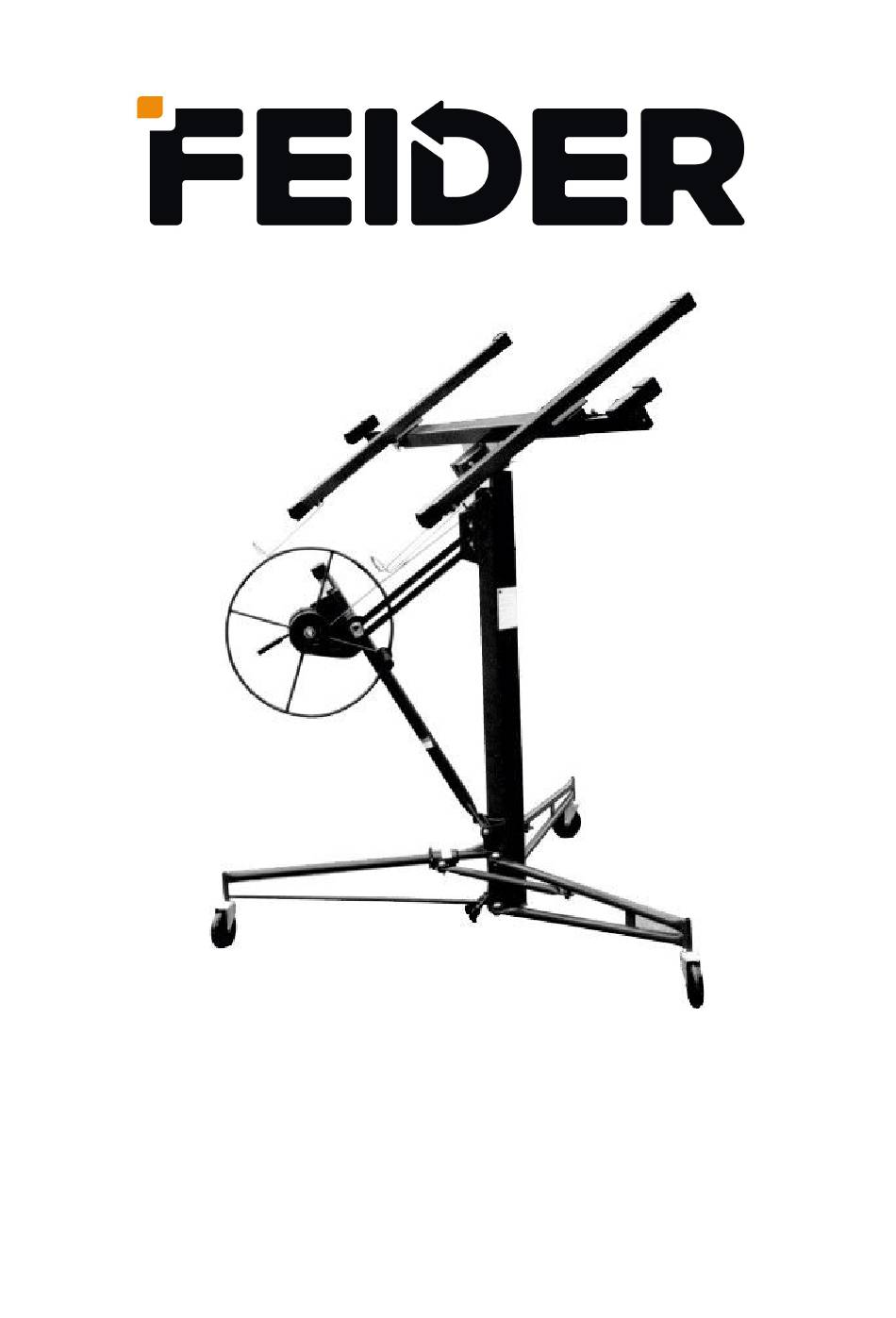

- Page 1 ORIGINAL INSTRUCTIONS TECHNICAL SPECIFICATIONS DRYWALL AND PANEL LIFTER F LP335 U S E R G U ID E CAUTION : Read the instructions before using the machine !
-
Page 2: Table Of Contents
Contents Assembly ............................3 Operator Controls ..........................6 Operating Procedure .......................... 8 Disassembly ............................10 Maintenance ............................1 1 Extension Accessory ...........................1 1 Parts Diagram .............................1 3 Parts List .............................1 4 DECLARATION OF CONFORMITY........................16 WARRANTY ................................17 PRODUCT FAILURE ............................18 WARRANTY EXCLUSIONS ...........................19 Introduction The Drywall Lift allows one person to lift a drywall panel that is up to 122 x487CM in size, without... -
Page 3: Assembly
Assembly Components The Drywall Lift is shipped as several components that must be assembled before use: Tripod base assembly. Frame assembly, which includes a winch assembly and standard (122-cm) telescoping lift sections Cradle assembly, without its detachable crossarms ... - Page 4 Assembly Procedure (continued) 3. Attach the handle to the winch wheel. Tighten the nut, then back it off slightly so the handle turns freely. 4. Move the winch assembly into its working position: a. Hold the winch wheel and brake arm as shown in Figure 2.
- Page 5 Assembly Procedure (continued) 6. Attach the cradle to the frame (Figure 6): a. Insert the cradle's post into the opening on top of the frame. b. Secure the cradle to the frame by snapping the tilt latch upward so it hooks over the stud on the cradle. 7.
-
Page 6: Operator Controls
Operator Controls Slide Yoke Ring Press down on the slide yoke ring to unlatch the two forward legs so they can be rotated out to the Lift's working position or in to its storage position. A spring-loaded pin snaps into a hole on the bottom of the slide tube, to lock the folding legs position. - Page 7 Operator Controls (continued) Tilt Latch To allow the cradle to tilt (for loading a dry wall panel, or for raising the pane! to a side wall or sloped ceiling); or to remove the cradle from the frame, pivot the tilt latch out and down.
-
Page 8: Operating Procedure
Operating Procedure IMPORTANT: Read the "Important Precautions" on page 3 WARNING before you operate the Lift. To avoid serious injury, follow Safety Check Before Operation all "Important Precautions," Before you begin operating the Lift each day: page 3. Inspect the unit carefully for wear or damage. Pay special attention to the cable. - Page 9 Operating Procedure To Raise the Panel IMPORTANT: Always lower the backstop before raising the panel to a sloped ceiling or a side wall. Crank the winch wheel in the direction shown (hold the post for leverage) until the panel is at the desired height. The brake is spring-loaded to automatically hold the cradle at the selected height when you stop cranking.
-
Page 10: Disassembly
Disassembly To disassemble the Drywall Lift for transport or compact storage; 1. Crank the cradle all the way down. 2. Slide the cradle outriggers all the way in until they latch. Close the panel support hooks. 3. Remove the crossarms by pressing the spring tab on the bottom and sliding the crossarm out of the tapered socket. -
Page 11: Maintenance
Maintenance Inspect the cable before each work day. Replace it at the first sign of wear (refer to the instructions supplied with the replacement cable). Occasionally oil the cable pulleys. Crank up the telescoping sections for access to the internal cable pulley. Never allow oil or grease to contact the surface of the winch brake drum. - Page 12 Extension Accessory (Continued) Install the Longer Telescoping Sections 1. Feed the free (crimped) end of the Accessory's cable down into the pocket near the top the frame housing. IMPORTANT: The cable must be routed over the top of the pulley. 2.
-
Page 13: Parts Diagram
Parts Diagram... -
Page 14: Parts List
Parts List Seriol NO. Description Specification Quality supporting rod of the main bracket hex-nut M6 x 1 supportting rod spring press plate tube cap 2 spring press plate flat washer hex-bolt M6 x 35 tube cap 2 washer reset spring T-pin adjusting spring hex-bolt... - Page 15 supporting braket assistant bracket inner pillar middle pillar guide wheel shaft pin flat washer 10 N hex-bolt M10X35 outer pillar wire rope lock wire rope...
-
Page 16: Declaration Of Conformity
BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France, declares that， Product: DRYWALL AND PANEL LIFTER Model: FLP335 Serial number: 20250100001 -20250101230 Is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. -
Page 17: Warranty
WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 5 years from the date of the original purchase. It can be extended by one year if the user subscribes to website of myswap. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. -
Page 18: Product Failure
PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 19: Warranty Exclusions
WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 20 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Made in PRC...
