PeopleLink PPL-PVC-PCS-FHD-TT-20X Quick Start Manual

Lecture tracking camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

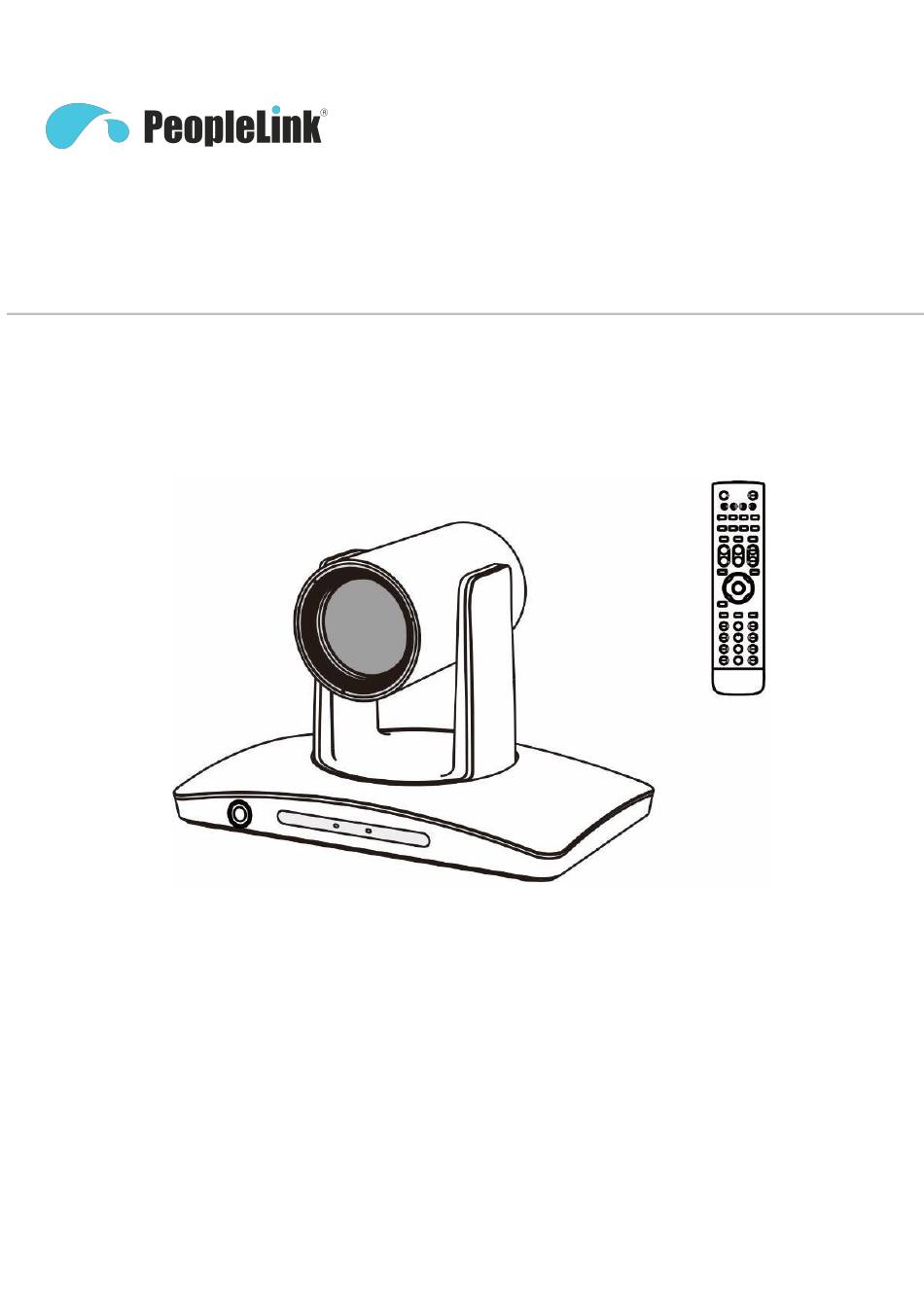

Quick Start Guide
Lecture Tracking Camera
|
|
|
Product Manual
Edition
Release 112022
PPL-PVC-PCS-FHD-TT-20X
Lecture Tracking Camera Quick Start Guide
(English Version)
Please read this Manual before setting up Lecture Track Camera and stick to its
requirements strictly for Safety reason. Suggest you save this manual for further
inquiries reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPL-PVC-PCS-FHD-TT-20X and is the answer not in the manual?

Questions and answers

Related Manuals for PeopleLink PPL-PVC-PCS-FHD-TT-20X

Summary of Contents for PeopleLink PPL-PVC-PCS-FHD-TT-20X

  • Page 1 Lecture Tracking Camera Product Manual Edition Release 112022 PPL-PVC-PCS-FHD-TT-20X Lecture Tracking Camera Quick Start Guide (English Version) Please read this Manual before setting up Lecture Track Camera and stick to its requirements strictly for Safety reason. Suggest you save this manual for further...
  • Page 2 PeopleLink Under the law, reproducing includes translating into another language or format. As between the parties, PeopleLink, retains title to and ownership of all proprietary rights with respect to the software contained within its products. Therefore, you must treat the software like any other copyrighted material (e.g., a book or sound recording).
  • Page 3 SAFETY NOTICE-IMPORTANT!!!  The following important notes must be followed carefully to run the camera and respective accessories in total safety. The camera and relative accessories are called video system in this section.  Before installing the camera, please read this manual carefully. Please follow installation instructions indicated in this manual during installation.
  • Page 4 Attention If you need to extend the power cable, please extend the power cable from the part 1 on below picture (220V/110V), do not extend from part 2 on below picture (DC12V), otherwise it will cause unexpected damage to the device.

  • Page 5: Table Of Contents

    CONTENTS ABOUT THE PRODUCT......................1 FEATURES..........................2 CHARACTERSTICS & FUNCTIONS..............2 LIST OF PARTS& ACCESSORIES.................3 MAIN PARTS & INTERFACES................3 REMOTE CONTROLLER..................4 INSTALLATION INSTRUCTIONS..................6 DESKTOP MOUNT INSTALLATION..............6 WALL MOUNT INSTALLATION................6 SOFTWARE CONNECTION....................7 PARAMETERS......................8 SETTING PROCESS....................9 BLS..........................10 CAMERA CMS APPLICATION SOFTWARE GUIDE..........
  • Page 6 MENU SETTINGS.......................27 MENU CONFIGURATION..................27 MENU EXPLANATION....................29 VIDEO........................30 EXPOSURE......................31 WHITE BALANCE....................32 PAN/TILT/ZOOM......................32 SYSTEM........................33 STATUS........................33 RESTORE DEFAULTS................... 33 ANNEX 1 TECHNICAL SPECIFICATIONS..............35 ANNEX 2 SIZE AND DIMENSION...................37 TROUBLE SHOOTING......................38...

  • Page 7: About The Product

    as EST0, and input rtmp server IP (default port is1935); ABOUT THE PRODUCT Open VLC and input the following: rtmp://IP/live/TEST0. Quick Guide Internet Explorer LTC can be accessed and controlled via the Make sure PC and LTC in the same LAN; following ways: Open Internet Explorer and Enter Internet Options for Security Setting;...

  • Page 8: Features

    Precisely and stably track a specific target,  FEATURES free from any light & moving interference; Smart AE: keeps the same exposure with  The lecturer tracking camera adopts the considerable lighting variability; most advanced face and motion detection technology, it can lock and track moving Intelligent Tracking target;...

  • Page 9: List Of Parts& Accessories

    Main Parts & Interfaces List Of Parts & Accessories Camera When you open the box, check all accessories Front View According to the packing list Camera (1) 1 Camera Module 2 Remote Controller Indicator 3 Power Indicator 4 Communication Indicator Power Adapter (1) 5 Full-view camera Rear View...

  • Page 10: Remote Controller

    2 Camera Selection Button Remote Controller Used to switch among 4 cameras, press 1-4 number buttons to control cameras with 1-4 addresses respectively. For example, press button 1 to control the camera with address 3 Focus Press “AUTO” button to switch to Auto Focus, press “MANU”...
  • Page 11 8 Cancel In None-menu status, press these four buttons to pan left/right and tilt up/down. To cancel numbers input In Menu status: button to select 9 Power among menu options, to change After the camera has been connected to option / value. power source, in none-menu status, press this button to turn on / off the camera.

  • Page 12: Installation Instructions

    Note INSTALLATION  Take effective measures to avoid camera from dropping.  Do not grab the camera head INSTRUCTIONS when carrying.  Do not rotate the camera head with hand. cause malfunction to the camera. The camera has 2 installation types: desktop, wall (optional) installations.

  • Page 13: Software Connection

    SETTINGS camera is tightly fixed onto the bracket before your hands leave the camera. Software Connection Take out Disc from the camera package, install “Camera CMS” from the disc on your PC, turn on “Camera CMS” , connect and add camera to the management device list, and enter into the main interface.

  • Page 14: Parameter Setting

    Parameter Setting PARAMETERS SETTING Setting Process Preset 0 and Preset 1 are set as presets of full view image, or as presets of any zoom or position. When there is no target, camera will return to preset 0 or preset 1. Please refer to Basic Setting.

  • Page 16: Basic Parameters Setting

    The tracking zone is an area where the targets are. Basic Parameters Setting Track Area: The area that meeting attendees will move within. The factory default setting of the camera is 1 Blocking zones: There are 8 blocking (address), 9600bps, VISCA protocol, zones shown in green rectangle, they can be 1080p30 resolution for tracking camera and configured independently.
  • Page 17 communicate with recorder, choose “Server” to await to be communicated from recorder. Director IP and Port: Once “Network” is chosen as “Mode”, configure recorder’s IP address and Port at these two frames. Target Lost Action: Used to define the action to be performed if the camera loses the tracked object for a period of time.

  • Page 18: Camera Cms Application Software Guide

    Camera CMS Application Software Guide Network Connection Connect the camera to network with an Ethernet cable, power on the camera. LAN Connection Please refer to the above diagram, user1 and user 2 are in the same router, they are considered as in the same LAN, connect the camera to the same LAN as where the PC is, and refer to below instructions as how to use the application software, then the camera can be found and connected from the online device list.
  • Page 19 Please refer to the above diagram, user and the camera are in different routers, they are considered as in a WAN; in this condition, application software CameraCMS can not search and find the camera automatically. User can still connect after below conditions are satisfied: (1) Set camera’s IP address as static IP address (2) Router of the LAN where camera is connected supports Port Mapping.
  • Page 20 Access from external network: Router 1's public IP address is 115.200.31.100, for example, go through the above steps one and two, WAN users under router 2 can access camera 1 through IP address 115.200.31.100 + port 10200. Then, in WAN, the mapping of camera 1 and (IP 115.200.31.100 + port 10200) is established.

  • Page 21: Client Software Instruction

    Client Software Instruction Search And List The Camera Install and open the client software in PC, enter the main interface: If the camera and PC are in the same LAN, click “Start Search”, then searching starts and all online devices will be listed, as the picture shown below:...
  • Page 22 To modify the device IP address, input the IP address, mask, gateway in the “Modify Network” column. To control and preview a camera, first choose the device, modify its IP address as the IP address of the same LAN, then click “Add to Client” as the picture shown below.

  • Page 23: Remote Configuration

    Remote Configuration Choose the camera in the device list, click “Remote Configuration” in the column to upgrade or configure the camera. Streaming Stream type: Set the parameters of main stream, sub stream, third  stream, fourth stream. Resolution: Set among 1080P (1920*1080), HD720P (1280*720), D1 ...

  • Page 24: Network

    Network Connect with: Please choose from Static IP or dynamic IP address.  IP address: Input IP address for the camera.  Mask: Input mask address for the camera.  Gateway: Input gateway IP address.  DNS 1: Server-prior, input DNS address for the device. ...

  • Page 25: Rtmp

    RTMP In RTMP1 and RTMP2, main stream, sub stream can be chosen to stream.

  • Page 26: Protocol

    Protocol ● Enable / Disable: Enable / disable transparent transmission. ● Protocol: Choose TCP or UDP protocols. ● Camera as: Choose Client or Server. ● IP: When the camera is set as client, the IP address of the transmitted camera is needed. When the camera is set as server, the IP address can be left as black.

  • Page 27: Up Pm

    UP PM After selecting the same model of the device to be synchronized that is currently managed and unchecked, tick any or more of the video parameters, audio parameters, and trace parameters, and when you click the sync parameters, the device that you are currently synchronizing will synchronize with the source device parameters.

  • Page 28: Upgrade

    Upgrade Click “Upgrade” menu to enter the main interface, as the picture shown above. Click … to search and load the updating firmware, then click “Upgrade” to start upgrading. Do not power off the camera during upgrading. After upgrading is completed, camera will reboot.

  • Page 29: Up/Pw

    UP/PW ● Password setting: When a password is required, the camera can be accessed only after a correct password is input. Reboot: Reboot the camera. ...

  • Page 30: Preview

    Preview Click “Main View” to get into camera control and preview part as below. This interface includes three main parts: Device List, Device Control, Video Preview ●Device: It displays all online cameras added to “Device Management”.
  • Page 31  Device Control: Get control of the selected camera (camera name in blue).  Video Preview: Double click the camera in the list, main camera stream will be displayed in the preview window; or right click the selected camera from the left column to get its main or substream video.

  • Page 32: Menu Settings

    MENU SETTINGS...

  • Page 33: Menu Configuration

    Menu Configuration <VIDEO> SHARPNESS 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 Refer BRIGHTNESS 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14 Page30 CONTRAST 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14 GAMMA MODE 0, 1, 2, 3, 4, 2DNR LEVEL...
  • Page 34 +2, +3, +4, +5, +6, +7 ANTI –FLICKER OFF, 50HZ, 60HZ < COLOR > WB MODE AUTO, ATW, ONE PUSH, INDOOR, OUTDOOR, Refer to Page 32 MANUAL, SODIUM LAMP, FLUO LAMP, COLOR TEMP SATURATION 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14 <PAN TILT ZOOM>...

  • Page 35: Menu Explanation

    ❸ Prompt Message Menu Explanation “ SELECT” indicates it is possible to press or button Main Menu to select menu options. “[OK]NEXT” indicates it is Press button to enter / exit MENU possible to press button to menu. enter next level menu. ❶...

  • Page 36: Video

    SHARPNESS: 1, 2, 3, 4, 5, 6, 7, among menu options, once font of options turned from 8, 9, 10, 11, 12, 13, 14, 15. white color to yellow color, it BRIGHTNESS: 1, 2, 3, 4, 5, 6, 7, indicates the menu has been 8, 9, 10, 11, 12, 13, 14.
  • Page 37 MODE: 1/2500, 1/3500, 1/6000, 1/10000s. FULL AUTO: Gain, Shutter Speed and Iris value are IRIS PRI: Gain and shutter adjusted automatically speed value are adjusted accordingly to working automatically according to environment. working environment; Iris value is adjustable manually. MANUAL: Manually adjust Gain, IRIS: F14, F11, F9.6, F8, F6.8, Shutter Speed and Iris.

  • Page 38: White Balance

    60Hz): To avoid video flicker at “AUTO” mode: R.GAIN, power systems of different G.GAIN and B.Gain can be frequency. chosen from -7~+7. “MANUAL” mode: R.GAIN Color and B. GAIN value can be chosen from 0~255. COLOR menu is used to adjust color related values.

  • Page 39: System

    zoom time. When it’s on, PTZ < STATUS> speed will be faster when zoom ADDRESS time is bigger. PROTOCOL VISCA System BAUD RATE 9600 <SYSTEM> FIRMWARE VER.F ADDRESS 1.0.1016BETA PROTOCOL VISCA Restore Defaults BAUD RATE 9600 ADDRESS: 1, 2, 3, 4, 5, 6. <...

  • Page 40: List Of Special Preset Commands

    List Of Special Preset Commands Preset Function Turn on tracking Turn off tracking Turn on/off OSD Clear all presets(0-64) Reboot system SDI or HDMI output tracking view 1 SDI or HDMI output tracking view 2 SDI or HDMI output tracking dual screen Camera calibration...

  • Page 41: Annex 1 Technical Specifications

    ANNEX 1 TECHNICAL SPECIFICATIONS LENS Tracking Camera Image Sensor 1/2.8” CMOS, 2.14MP Lens f=4.7mm～94mm Iris F1.6-F3.5 Optical Zoom Digital Zoom Field of view Horizontal 59.5°- 2.9° Focus Auto, Manual, PTZ Trigger, One Push Min. Illumination 0.5 lux (Color), 0.1lux (B/W) Shutter 1/1 ~ 1/10,000 sec Gain...
  • Page 42 Video Compression H.265/ H.264/MJPEG Audio Compresssion Ethernet RJ45, 100M (optional POE) Network Protocol HTTP, RTSP, RTMP, RTP, TCP, UDP, ONVIF Dual Stream Local storage TF Card Pan Range -170°~+170° Tilt Range -30°~+90° Pan Speed 0.1°~120°/s Tilt Speed 0.1°~90°/s Preset Number Comm.

  • Page 43: Annex 2 Size And Dimension

    ANNEX 2 SIZE AND DIMENSION Front Rear Side Bottom...

  • Page 44: Troubleshooting

    TROUBLESHOOTING Problem Possible Cause Solution Power supply failure Check power supply No action or image Power adapter damaged Replace power adapter after powered on Power cable connection got loosen Check & reconnect Check & reconnect power cable Not enough power supply No self-testing after connection powered on, or with...
