VigilLink VLDT-WP44AB User Manual

4x4 dante wall plate with analog and bluetooth inputs and outputs
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VLDT-WP44AB
4x4 Dante Wall Plate with Analog
and Bluetooth Inputs and Outputs
VER 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VLDT-WP44AB and is the answer not in the manual?

Questions and answers

Summary of Contents for VigilLink VLDT-WP44AB

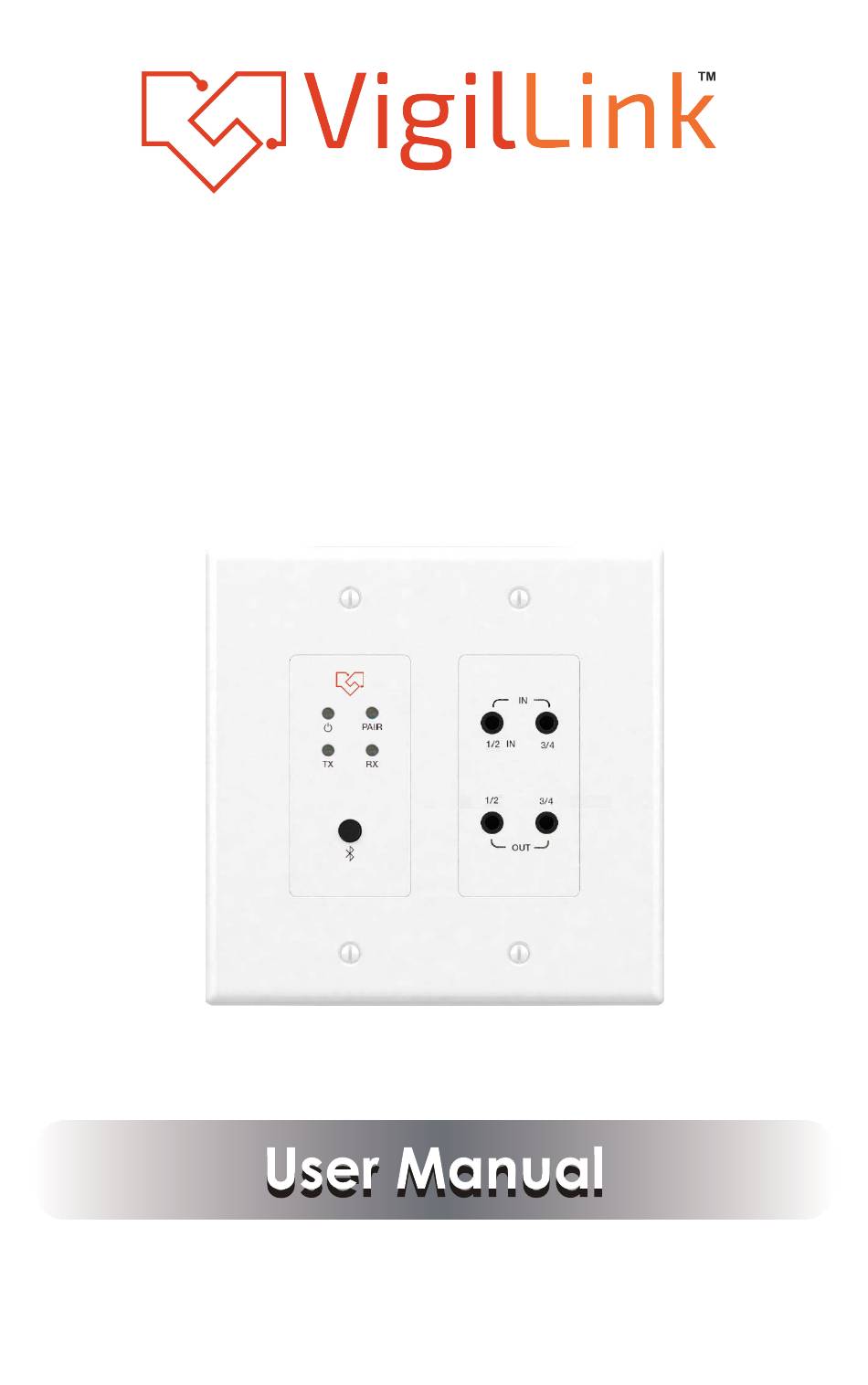

  • Page 1 VLDT-WP44AB 4x4 Dante Wall Plate with Analog and Bluetooth Inputs and Outputs VER 1.0...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

  • Page 3: Introduction

    1. Introduction The Dante 4x4 wall plate is a standard US decora 2-Gang size with multi-input / output to bridge Bluetooth audio and analog audio to or from a digital Dante® networked audio system. It features 2 channels Bluetooth inputs and 4 channels unbalanced audio inputs total 4 channels convert to Dante®...

  • Page 4: Specifications

    4. Specifications Technical 100Mbps Network Bandwidth Configurable Dante device latency Audio Latency (Supports 1, 2 or 5ms configurable using Dante Controller) Bluetooth IN: v5.0, SBC/MP3/AAC/APT-X/APTX-LL/APTX -HD, 2CH, 44.1K-48KHz 16/24Bit LINE IN: Unbalanced analog audio 2CH, Max input level 10dBu Audio Formats DANTE IN/OUT: Digital audio 4CH, 44.1K-96KHz 16/24Bit Bluetooth OUT: v5.0, LPCM 2CH, 48KHz 16/24Bit LINE OUT: Unbalanced analog audio 2CH, Max output...

  • Page 5: Operation Controls And Functions

    Mechanical Front panel: Plastic Housing Rear case: Metal Enclosure Front panel: White Color Rear case: Black 91.8mm [W] x 43.1mm [D] x 104.8mm [H] Dimensions Weight 230g 1) PoE/PD (compatible with IEEE 802.3af and IEEE 802.3at) Power Supply 2) DC 12V (for the case that Switch does not support PoE) Power Consumption 4.92W (Max) Operating Temperature...
  • Page 6 Name Function Description (1) Short press this button to reboot the unit. RESET button (2) Hold down this button for 3 seconds to restore to factory default settings. Bluetooth pairing/connection indicator light, the blue LED is always on after successful pairing: In Bluetooth RX mode, if the PAIR LED keeps flashing, it indicates PAIR LED that the device is not connected;...

  • Page 7: Web Gui User Guide

    6. Web GUI User Guide The wall plate can be controlled by Web GUI. The operation method is shown as below: Step 1: Get the current IP Address. The default IP address is 192.168.0.200 (when the system is not connected to a router). You can get the current switch IP address via API commands control.
  • Page 8 ■ User Page You can do the following operations on the User page: ① Preset: Recall the preset scenes. ② Input: Set the audio input gain for analog input, Dante input and Bluetooth input respectively. ③ Output: Set the audio output volume or mute/unmute the audio for analog output, Dante output and Bluetooth output respectively.
  • Page 9 ■ Control Page On the Control page, you can configure the audio matrix switching. Select the corresponding audio input and output channels to perform matrix switching by clicking on the squares as required. In Bluetooth RX mode, the audio matrix mode with 10CH inputs and 8CH outputs is available. In Bluetooth TX mode, the audio matrix mode with 8CH inputs and 10CH outputs is available.
  • Page 10 ■ Input Page Analog Input: You can respectively set the input gain (range: -12db~12db) for each analog audio channel, or set the input gain of multiple analog audio channels simultaneously by checking the CH1/CH2/CH3/CH4. Dante Input: You can respectively set the input gain (range: -12db~12db) for each Dante audio channel, or set the input gain of multiple Dante audio channels simultaneously by checking the CH1/CH2/CH3/CH4.
  • Page 11 CH3/CH4, Dante CH1/CH2, Dante CH3/CH4 and Bluetooth Left/Right can be combined to set EQ synchronously. ② Equalizer: Click the drop-down menu to set the equalizer. Flat: Set all EQ to 0db. Custom1: Set EQ for custom 1. Custom2: Set EQ for custom 2. Custom3: Set EQ for custom 3.
  • Page 12 ■ Bluetooth Page Bluetooth ① Bluetooth Mode: Click to select the Bluetooth mode (Off/TX/RX). ② Bluetooth Name: The default name is VLDT-WP44AB-XXXX (last 4 digits of the MAC address). You can modify the name with up to 30 characters. 10 / 22...
  • Page 13 “PAIR” LED will stop flashing and solid on. To disconnect a Bluetooth source from the VLDT-WP44AB, press and hold the front panel button for 3 seconds and then release it. The “PAIR” LED will turn off, and the connection will be reset. Now another device can be connected by repeating the pairing process.
  • Page 14 “Save” to take effect. When DHCP is selected, the system will search and fill the IP Address with the one assigned by the router automatically. Note: The Domain Name “VLDT-WP44AB.local” can be used to login the Web GUI. ■ System Page Account Passwords: You can modify the login password for User and Admin.

  • Page 15: Api Commands Control

    Version 2.0 Command Code Function Description Example Feedback Default Setting System Setting =================== VLDT-WP44AB Help Info MCU 1.1.0 Web 1.1.0 BT 1.4.8 ============= System Setting Command List all API Get the list of all commands commands Get the list of all commands...
  • Page 16 Command Code Function Description Example Feedback Default Setting Reset system and network Sure to Reset System and settings to default Network Settings To s reset all s reset all Default? Type "Yes" after (Should type "Yes" to confirm, next prompt to confirm… "No"...
  • Page 17 Function Description Example Feedback Command Code Default Setting Set input group (x=1-3) includes y x=1: Analog input group x=2: Dante input group x=3: Bluetooth input group (When x=1: Analog input group) y[3]: Analog input CH1 y[2]: Analog input CH2 Set analog input group s input group 1 y[1]: Analog input CH3 1111...
  • Page 18 Function Description Example Feedback Command Code Default Setting Set output (x=0-10) volume to y x=0: all outputs x=1: Analog output CH1 x=2: Analog output CH2 x=3: Analog output CH3 x=4: Analog output CH4 Set analog output CH1 s output 1 vol 50 s output x vol y x=5: Dante output CH1 volume: 50...
  • Page 19 TX mode x=2: RX mode Get Bluetooth mode Bluetooth RX mode. r bt mode r bt mode VLDT-WP44AB- Set Bluetooth name to z Set Bluetooth name s bt name VLDT- aabb (aabb is the z: Bluetooth name, max 16 s bt name z VLDT-WP44AB-aabb.
  • Page 20 Function Description Example Feedback Command Code Default Setting Set Bluetooth RX pairing mode (x=1-3) Set Bluetooth RX pairing Manual x=1: Manual s bt rx pair mode 1 s bt rx pair mode x mode: Manual x=2: Reconnect x=3: Exclusive Bluetooth RX pairing Get Bluetooth RX pairing mode r bt rx pair mode r bt rx pair mode...
  • Page 21 Function Description Example Feedback Command Code Default Setting Set preset:x name to y x=[1-5]: Preset 1 - Preset 5 Set preset 1 name: s preset 1 name s preset x name y y: Preset name, max 16 MeetingRoom 1 MeetingRoom 1 characters Get preset:x name Preset 1 name:...
  • Page 22 Get user login password user password: user r user password r user password Note: The feedback of the command of “r status” is as following. ========================================================================================== VLDT-WP44AB Status MCU 1.1.0 Web 1.1.0 BT 1.4.8 Input Gain(dB) Analog_CH1 Analog_CH2 Analog_CH3...

  • Page 23: Connection Diagram

    8. Connection Diagram Mode 1: Bluetooth TX mode DVD or Blu-ray Player Cellphone UTP Cable Ethernet Switch PAIR DANTE (PoE) POWER STATUS 16×16 DIGITAL MATRIX PROCESSOR WITH DANTE Audio Processor with DANTE Speaker 1 Speaker 2 Mode 2: Bluetooth RX mode DVD or Blu-ray Player Bluetooth Headset...
  • Page 24 Mode 3: Bluetooth off mode DVD or Blu-ray Player UTP Cable Ethernet Switch PAIR DANTE (PoE) POWER STATUS 16×16 DIGITAL MATRIX PROCESSOR WITH DANTE Audio Processor with DANTE Speaker 1 Speaker 2 22 / 22...
