Summary of Contents for B-LED DE55-4K-4+32-V2

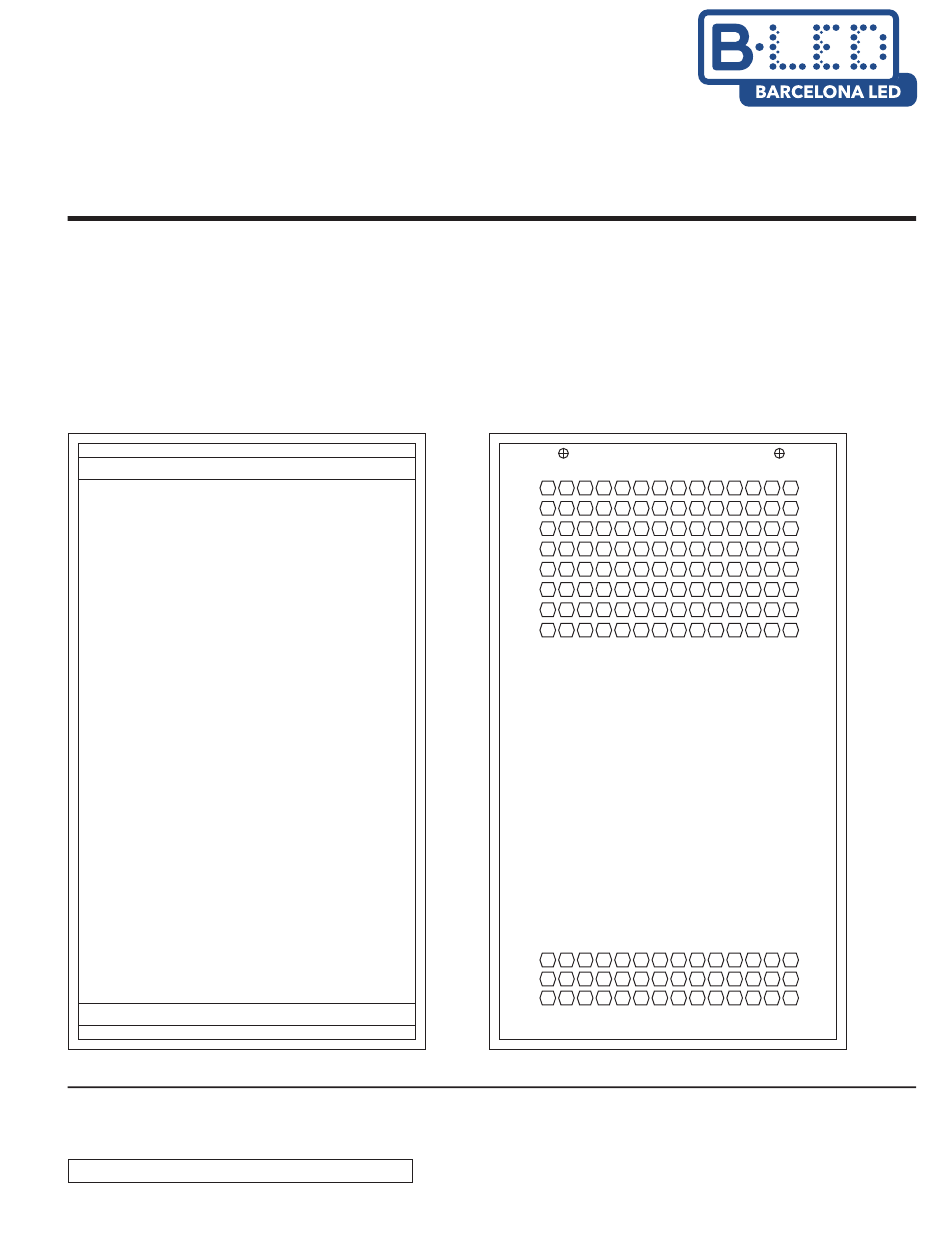

- Page 1 DE55-4K-4+32-V2 PARTS THAT MAKE UP THE DISPLAY Metal structure for the screen. 1 UNIT Front Panel Back Panel Metal structure support for the screen. 1 UNIT...
- Page 2 DE55-4K-4+32-V2 Metal floor base. 1 UNIT Front Panel Back Panel 4K Screen with Android Operating System. 1 UNIT Front Panel Back Panel...
- Page 3 DE55-4K-4+32-V2 Power cable. 1 UNIT RJ45 data cable. 1 UNIT HDMI Cable 1 UNIT WiFi antenna. 1 UNIT Floor anchoring screws. 8 UNITS Support anchoring screws to the floor base. 8 UNITS Screws for anchoring the screen structure to the base. 8 UNITS Floor anchoring plugs.
-
Page 4: Installation Steps
DE55-4K-4+32-V2 INSTALLATION STEPS 1. Before installing the totem, ensure that the electrical and data cable connections are prepared in the designated area. 2. Anchor the base to the floor using the 8 expansion screws provided. The floor must be solid and level. - Page 5 DE55-4K-4+32-V2 4. Remove the rear cover of the metal structure where the screen will be placed. Unscrew the two screws located at the top, then slide the cover upwards to detach it. 5. After removing the cover from the structure where the screen will be...
- Page 6 DE55-4K-4+32-V2 6. Once the entire structure is anchored, proceed to mount the screen. First, remove the two screws from the bottom. Then, with the help of two people, position the screen and secure it by anchoring the top with the two screws into the holes at the top of the structure, as shown in the image.
- Page 7 DE55-4K-4+32-V2 9. Finally, attach the rear cover and tighten the two screws at the top. Then, place the plugs on the structure and the base. Front Panel Back Panel Plugs Plugs Plugs Plugs Plugs Plugs...
