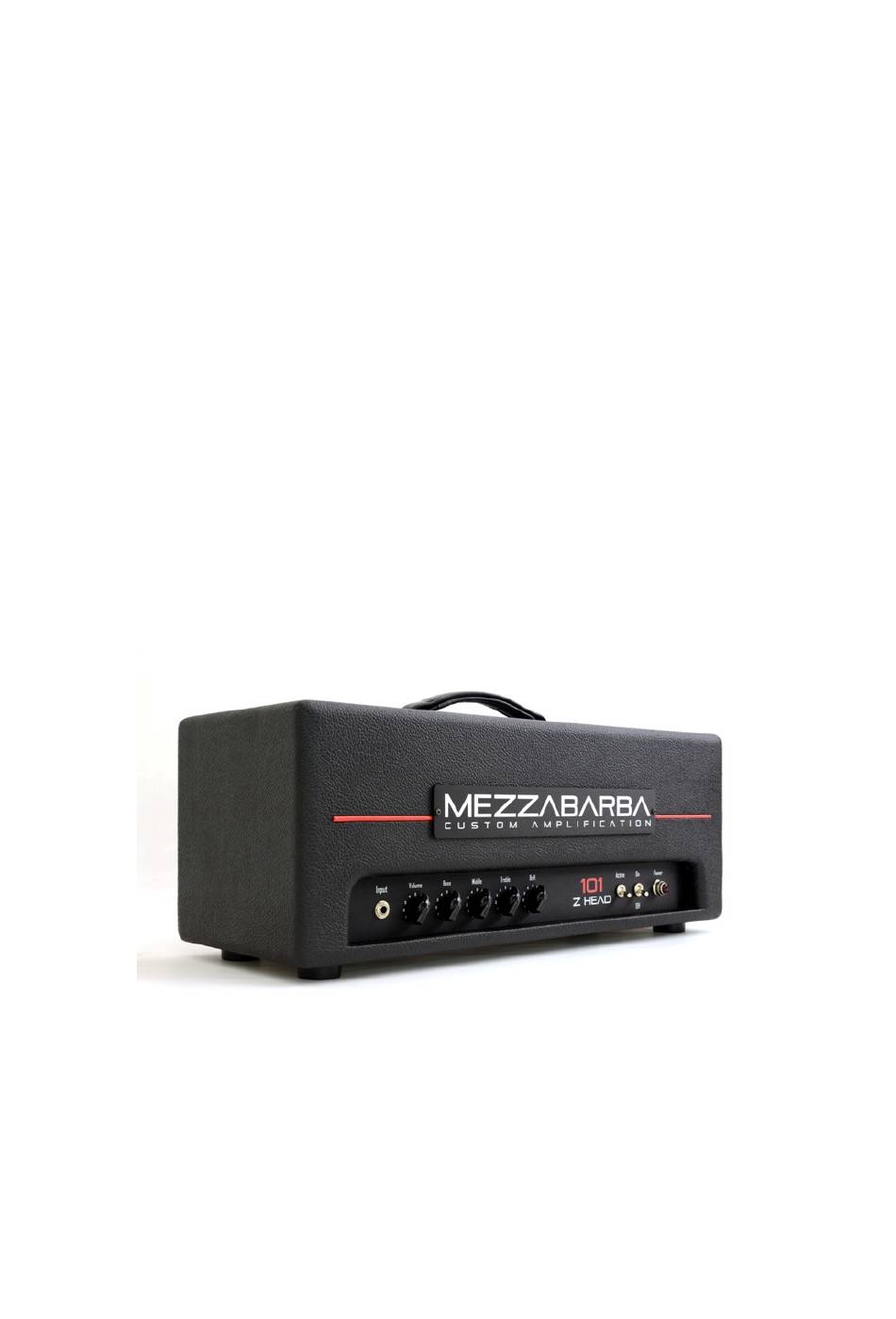

  • Page 1 101 z-Head User Manual 101 z-Head v2.0 ENG Mezzabarba c u s t o m m p l i f i c a t i o n 101 z-Head User manual...

  • Page 2: Front Panel

    101 z-Head User Manual 101 z-Head v2.0 ENG Front panel From left to right: a) Guitar input jack. b) Volume control -these allow for gain management in the preamp section. c) Equalizer section: Bass, Mid, Treble. d) Brill control (Presence).
  • Page 3 101 z-Head User Manual 101 z-Head v2.0 ENG Whenever connecting only one speaker, the maximum input power must be equal to or greater than 100W Rms. Whenever connecting two speakers, the maximum input power of each speaker must be equal to or greater than 50W Rms.

  • Page 4: Usage And Periodical Maintenance

    101 z-Head User Manual 101 z-Head v2.0 ENG When switching off the amp, turn the Standby switch to STANDBY, wait 15-20 seconds, and turn the main power switch to OFF. Usage and periodical maintenance The 101 does not require any more precautions and maintenance than any other tube amp. Make sure you do not obstruct the air cooling grids located on the top, front, and back of the amp, in order to allow for optimal cooling.

  • Page 5: Troubleshooting

    101 z-Head User Manual 101 z-Head v2.0 ENG The life expectancy of the four E34L power tubes depends on the average volume the amp works at, and can range from about 12 to 48 months. It is crucially important to replace them all at the same time, with high quality brand tubes.

  • Page 6: Warranty

    All shipping costs to/from Mezzabarba shall be borne by the owner, after 90 days of purchase. Mezzabarba will be responsible for the factory-to-customer return shipping cost to the original owner for only the first 90 days of ownership.

  • Page 7: Important Safety Information

    101 z-Head User Manual 101 z-Head v2.0 ENG Important safety information Your 101 was engineered and built according to the strictest electrical safety standards as per international norm, EU IEC- 62368 and according to the electromagnetic compatibility requirements specified by international norms EN 55032. It thus fully complies to EU standards and therefore carries the CE marking on the rear panel.

  • Page 8: Technical Specifications

    101 z-Head User Manual 101 z-Head v2.0 ENG Technical specifications Power supply: 230V±10% 50Hz Power consumption: 345VA Input impedance: 1MΩ. Output power: nominal 100W rms Output impedance: 4-8-16 ohm Tubes: 3 x ECC83/12AX7, 4x E34L/EL34 Environmental operating parameters: 10-40°C, 30-90% humidity without condensation Dimensions: 59 x 23 x 23h cm.
