Page 20
=
|
Ge gHEaTHKIT®

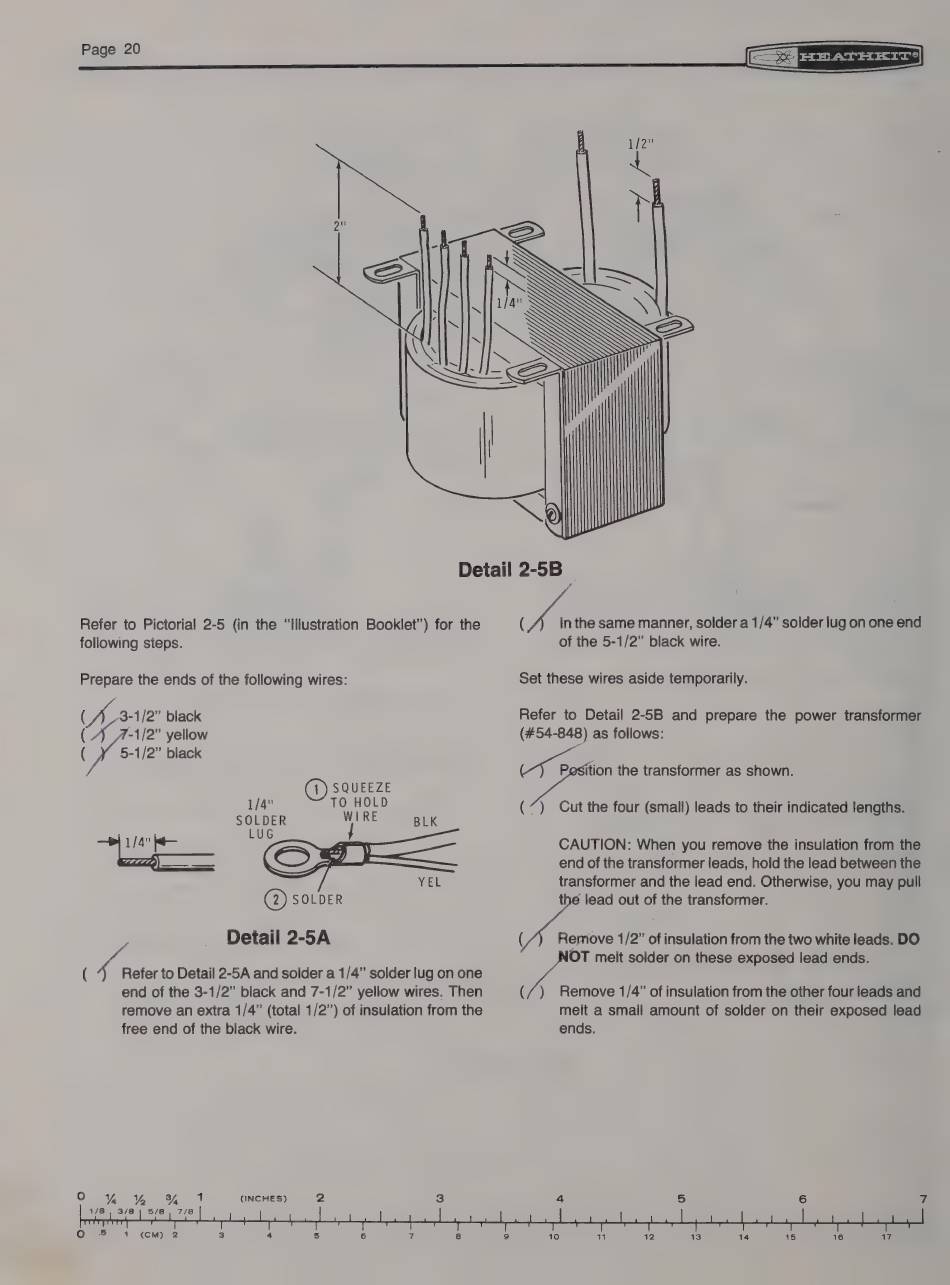

Detail 2-5B |
Refer to Pictorial 2-5 (in the "Illustration Booklet') for the
following steps.
i igh the ends of the following wires:
3-1/2" black
XG 1/2" yellow
( a4 5-1/2" black
SQUEEZE
1/4" TO HOLD
SOLDER WIRE BLK
Detail 2-5A
( Ha Refer to Detail 2-5A and solder a 1/4" solider lug on one
end of the 3-1/2" black and 7-1/2" yellow wires. Then
remove an extra 1/4" (total 1/2') of insulation from the
free end of the black wire.
OF aan o/ at (INCHES) 2 3
1/8 , 3/8 | 5/8, 7/8
Omer?) ecm) 2 3 4 5 6 7 8
( ve the same manner, solder a 1/4" solder lug on one end
of the 5-1/2" black wire.
Set these wires aside temporarily.
Refer to Detail 2-5B and prepare the power transformer
(#54-848) as follows:
"pt the transformer as shown.
Cut the four (small) leads to their indicated lengths.
CAUTION: When you remove the insulation from the
end of the transformer leads, hold the lead between the
transformer and the lead end. Otherwise, you may pull
ee lead out of the transformer.
Sate 1/2" of insulation from the two white leads. DO
fens melt solder on these exposed lead ends.
Remove 1/4" of insulation from the other four leads and
melt a small amount of solder on their exposed lead
ends.
