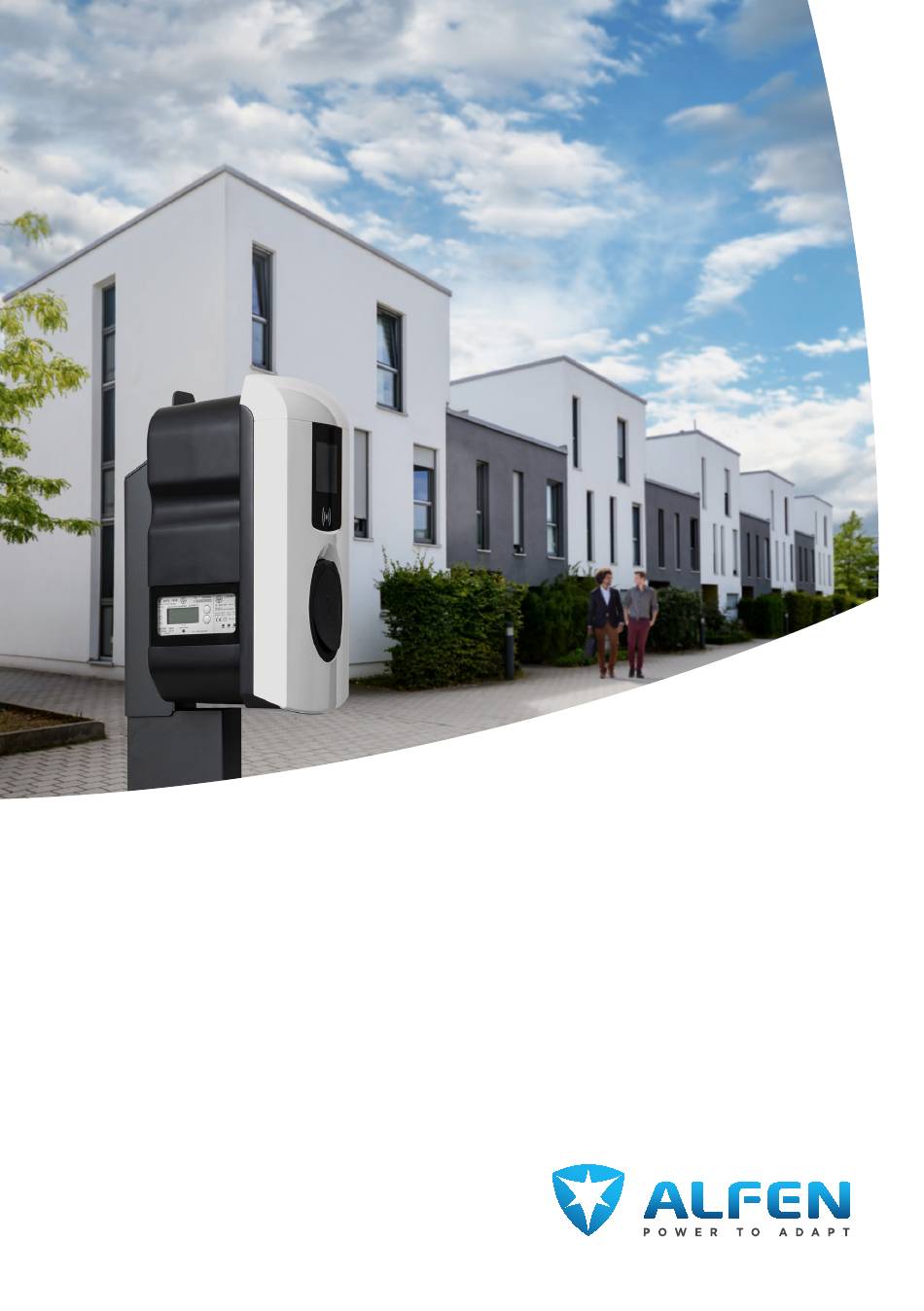

- Page 1 – Eve Single Pro-line DE I nstallation - User Manual Installations - und Benutzerhandbuch Pro-line DE...
- Page 2 EVE SINGLE PRO-LINE DE EXTERIOR VIEW/ AUSSENANSICHT MODEL WITH CHARGING CABLE/ MODEL WITH SOCKET/ MODELL MIT LADEKABEL MODELL MIT STECKDOSE BOTTOM VIEW/ INTERIOR VIEW/ INNENANSICHT UNTERANSICHT...
- Page 3 While we have done our utmost to provide you with a complete and comprehensive manual, it may occasionally be subject to updates and content improvement. The latest version will always be available for download at www.alfen.com. Eve Single Pro-line DE Manual | Version 2.4 | September 2021...
-
Page 4: Table Of Contents
Almere, The Netherlands, 3 februari 2020. 4.3.2 Using the Service Installer application 4.3.3 Changing language settings 4.4 Activate functionality with the Service Installer application Ir. M. Roeleveld 5. Connectivity 5.1 Management systems Eve Single Pro-line DE Manual | Version 2.4 | September 2021... -
Page 5: Safety And Usage Instructions
Alfen ICU B.V. (“Alfen”) shall not be liable in any way, for any kind of damage, and all warranties on both the product and accessories shall become void where: •... -
Page 6: Product
2.1 The charging station On page 3 of this manual, you will find the images of the Eve Single Pro-line DE product line. In this chapter, you will find more information on the contents of these charging stations and how they can be used to charge your vehicle. -
Page 7: User Interface
2. PRODUCT 2.2 User interface The Eve Single Pro-line DE has a display which informs the user on the progress of the charging by using status indications. 2.2.1 Status indications on Eve Single Pro-line DE models General information on charging station... -
Page 8: Operation
Specific user actions are presented in a sequence that clearly shows the progress and corresponding status indications. The first steps can be conducted in any sequence. Upon detecting a charging cable or charge pass, all Eve Single Pro-line DE products will show the green check mark symbol. The light blue (cyan) hourglass symbol will only be displayed if and when a connection between the vehicle and charging station is established. -
Page 9: Eichrecht
2.4 Eichrecht The Eve Single Pro-line DE charging stations are Mess- and Eichrecht compliant. The charging stations are equipped with measuring equipment to ensure the meter values can be verified and validated by the end user. According to the Eichrecht law and regulation the operator must provide the correct value on the energy meter at the time of Invoicing. -
Page 10: Access Control For Local Authorisation (Rfid)
2.5 Access control for local authorisation (RFID) To control local user access to an Alfen Eve Single Pro-line DE charging station, you need to install an RFID pass as the 'Master key' . With this Master Key, you can determine who can use your charging station. -
Page 11: Technical Specifications
OCPP 1.5 (JSON), OCPP 1.6 (JSON), OCPP 2.0.1 (SJON) OCPP Supported RJ45 protocols TCP/IP DSMR 4.0-4.2 and SMR5.0 (P1 port) Supported RJ11 protocols I/O for supporting external relay Modbus (Master/slave) TCP/IP Eve Single Pro-line DE Manual | Version 2.4 | September 2021... -
Page 12: Communications Security
RJ11 (active load balancing) NOTICE! Alfen Eve Single Pro-line DE charging stations contain a 6mA DC detector that protects the earth leakage circuit breaker against DC leakage currents. The DC detector prevents type A earth leakage circuit breakers from becoming 'blind' to dangerous leakage currents. -
Page 13: Available Memory
If temperatures exceed the maximum values, the charging start below the maximum ambient temperature. station will automatically decrease the charging current Eve Single Pro-line DE Manual | Version 2.4 | September 2021... -
Page 14: Casing
TN system: PE cable TT system: separately installed grounding electrode < 100 Ohm spreading resistance IT system: connected to a shared reference (common earth) with other metal parts Connection method Permanently connected Eve Single Pro-line DE Manual | Version 2.4 | September 2021... -
Page 15: External Protection According To Ev/Ze-Ready
Choice of management system Stand alone, ICU Connect*, other options* Communication through * GPRS, UTP/LAN, Autodetect * Settings may incur additional costs. The default settings are always displayed first. Eve Single Pro-line DE Manual | Version 2.4 | September 2021... -
Page 16: Accessories
Dimensions (H x B x D) 598 x 204 x 300 Weight 7.8 kg Packaging (H x W x D) 50 x 295 x 620 Extra RFID card Art. 203120010-ICU Eve Single Pro-line DE Manual | Version 2.4 | September 2021... -
Page 17: Package Contents
3. ASSEMBLY AND CONNECTING Package contents Contents of the charging station package: Alfen Eve Single Pro-line DE installation manual, wall-mounting frame, installation supplies and RFID charge passes (depending on options selected) Eve Single Pro-line DE Wall-mounting This manual Quick Installation M25 x 1.5... -
Page 18: Installing And Connecting
• Ambient temperature of -25 °C - 40 °C. • A temperature difference within 24 hours < 35 °C. • The recommended installation height is 80 - 120 cm Eve Single Pro-line DE Manual | Version 2.4 | September 2021... -
Page 19: Preparation Prior To Installation
Keep 300 mm space clear around the charging station. • Choose a suitable and ergonomic height. • Use a pencil and a level to mark the top and bottom of the charging station. Eve Single Pro-line DE Manual | Version 2.4 | September 2021... -
Page 20: Electrical Installation
Attach the Eve Single Pro-line DE to the pole with the M8 nuts included in the package. Place the yellow/ green earth wire under the head of the nut on the bottom right before fixing the nut into place. -
Page 21: Commissioning The Charging Station
The display will show the start screen, recognisable by the logo on the screen. The Eve Single Pro-line DE is now ready for use. If the charging station is set to connect with the management system, it will do so directly and automatically. -
Page 22: Using The Service Installer Application
Via the Service Installer application; proceed from General Settings to 'Localisation' . Where, you can edit the language settings. Via a connected management system; Go to the language settings screen on the management platform. Every Alfen charging station has the 'Language' setting item. The table below provides an overview of the languages supported. -
Page 23: Connectivity
SIM card yourself. Figure 8 shows the wss://icuconnect.nl:9089 (TLS) location of the SIM card holder. wss://icuconnect.nl:9088 (TLS + client certificates) Eve Single Pro-line DE Manual | Version 2.4 | September 2021... -
Page 24: Register Your Icu Ez Account
• Connectivity • Smart Charging Network You can only register as a user once you own an Alfen • Overview of activated options (see paragraph 2.7) and Charging Station configured for ICU EZ. In order to register, possibility to change (license code) you will need the information for your first charging station. -
Page 25: Appendix A: Error Codes And Problem-Solving
This appendix provides a description of, and advice related to, the error codes that can be generated by the Eve Single Pro- line DE charging station. If you are not able to find a working solution, please contact the seller of the charging station, or contact Alfen Support using the contact information displayed on the back of this manual. Code... - Page 26 Issues with other Please check your to IEC norm values) charging stations. charging cable All cables. No issues Contact with other charging the service stations. department of your charging station supplier. Eve Single Pro-line DE Manual | Version 2.4 | September 2021...
-
Page 27: Default Selections For Optional Factory Settings
Alfen ICU B.V. is not liable for continuous and correct oper- ation of the connection to the P1 meter and the quality of the transferred signals. Eve Single Pro-line DE Manual | Version 2.4 | September 2021... -
Page 28: Appendix B: Default Selections For Optional Factory Settings
The total number of active charging stations will be limited not to exceed the SCN-TotalSafeCurrent. This characteristic is automatically synchronised between charging stations within an SCN. Eve Single Pro-line DE Manual | Version 2.4 | September 2021... - Page 29 B.2 Smart Charging Network The Smart Charging Network (SCN) is the smart charging functionality that makes connected Alfen charging stations form a single charging plaza. For every outlet used, the network decides how fast it can charge, taking the total load into account.
- Page 30 APPENDIX B: DEFAULT SELECTIONS FOR OPTIONAL FACTORY SETTINGS Figure 9: Smart Charging Network with Eve Single Pro-line DE models To ensure the correct operation of an SCN, it is important • An (existing) switch or router with a sufficient amount that all settings are correctly configured.
- Page 31 If the functionality was purchased. The charging station will not be part of the SCN if you have not purchased this functionality. After you receive confirmation for your purchase of this functionality by Alfen, the new functionality can be downloaded using the Service Installer application.
-
Page 32: Appendix C: Giro-E
Hold the charge card in front of the Hold the charge card in front of the Enjoy your ride! Plug in charge cable Please wait reader to start reader to stop Eve Single Pro-line DE Manual | Version 2.4 | September 2021... - Page 33 ‘enabled’ using the check box in the Authorization tab. The Service Installer application is divided into the following categories: Figure 12: Service installer General tab/Giro-e card payment. Figure 13: Service installer Authorization tab With Giro-e check box. Eve Single Pro-line DE Manual | Version 2.4 | September 2021...
-
Page 34: Waste Electrical And Electronic Equipment
Eve Single Pro-line DE Manual | Version 2.4 | September 2021... -
Page 35: Alfen Icu B.v
Contact Contact – – Alfen ICU B.V. Alfen ICU B.V. Hefbrugweg 28 Hefbrugweg 28 1332 AP Almere 1332 AP Almere The Netherlands The Netherlands P.O. Box 1042 P.O. box 1042 1300 BA Almere 1300 BA Almere The Netherlands The Netherlands Tel.
