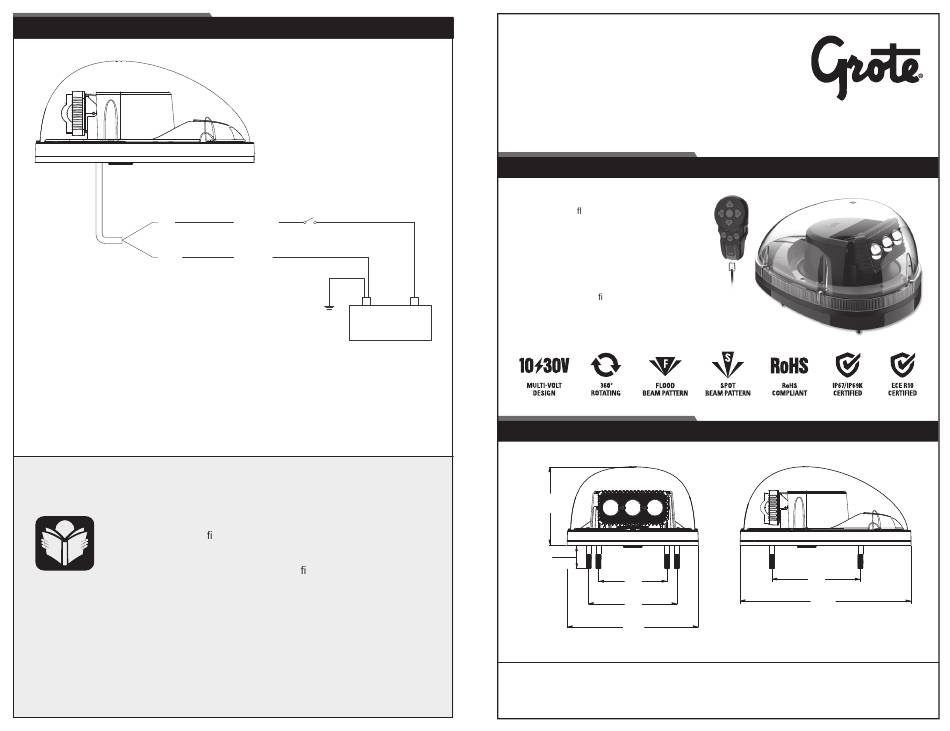

Grote 63H91-5 Operation Instructions

WIRING MOUNTING INSTRUCTIONS
WIRE COLOR
Red
Black
FLASH PATTERN SELECTION
Black (Ground)
Recommended to extend to Chassis Ground.
Red (Main Power)
Extend wire to an SP/ST switch and then to the POSITIVE battery terminal. Fuse at 5 amps.
• Proper installation of this product requires the installer to have a good
understanding of automotive electronics, systems and procedures
• Failure to use speci ed installation parts or hardware will void the
product warranty
• For this product to operate at optimum ef ciency, a good electrical
connection to chassis ground must be made
• It is recommend that these instructions be stored in a safe place
and referred to when performing maintenance or re-installation
of this product
• Do not install and/or operate this safety product unless you have read
and understand the safety information contained in this manual
FUNCTION
12/24VDC ( + )
Ground (-)
(-) (+)
BATTERY
63H91 - 5
LED REMOTE
WORK LIGHT
OPERATION INSTRUCTIONS
FEATURES AND SPECIFICATIONS
• Easily adjust the output beam from a focused
spot to a wide ood at the touch of a button
• The waterproof and dust proof design makes
it perfect for utility and construction work
• Automatically returns to home position when
powered off
• Provides reverse polarity and short-circuit
protection for simpli ed installation
• Remote control can be wireless or wired for
battery-free installation
DIMENSIONS
4.92"
(125 mm)
1.42"
(36 mm)
4.3"
(109 mm)
5.5"
(140 mm)
8.19"
(208 mm)
This document provides all necessary information to allow your product to be properly and safely installed.
Before beginning the installation and operation of your new product, the installation technician and operator
must read this manual completely.
5.5"
(140 mm)
10.67"
(271 mm)
