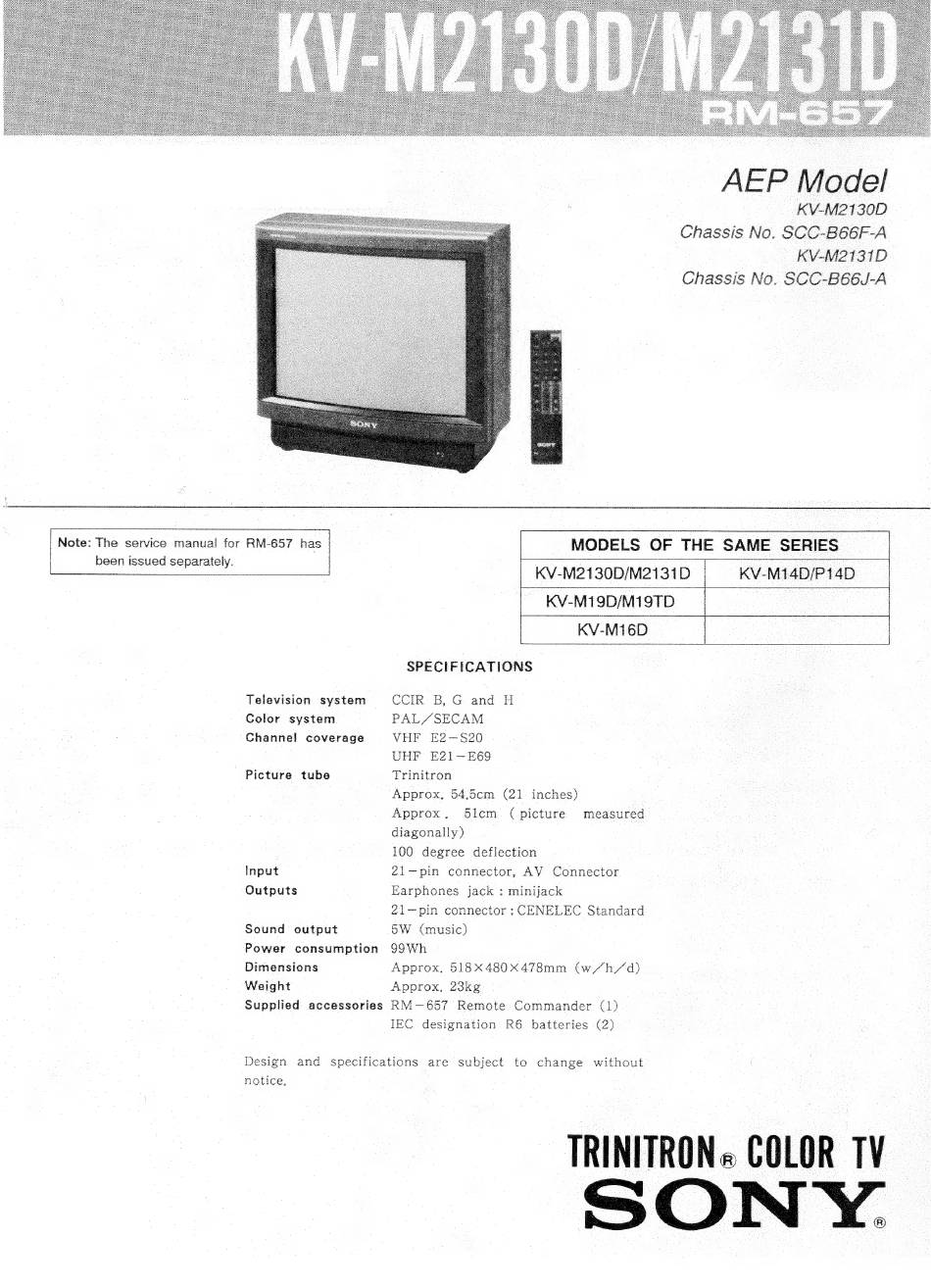

Sony TRINITRON KV-M2130D Manual

Note: The service manual for RM-657 has
been issued separately.
Television system
Color system
Channel coverage
Picture tube
Input
Outputs
Sound output
Power consumption
Dimensions
Weight
Supplied accessories
AEP Model
KV-M2130D
Chassis No. SCC-B66F-A
KV-M2131D
Chassis No. SCC-B66J-A
MODELS OF THE SAME SERIES
KV-M2130D/M2131D KV-M14D/P14D
KV-M19D/M19TD
KV-M16D
SPECIFICATIONS
CCIR B, G and H
PAL/SECAM
VHF E2—S20
UHF E21—E69
Trinitron
Approx, 54.5cm (21 inches)
Approx. 5lcm (picture measured
diagonally)
100 degree deflection
21—pin connector, AV Connector
Earphones jack : minijack
21—pin connector: CENELEC Standard
5W (music)
99Wh
Approx, 518X480*478mm (w/h/d)
Approx, 23kg
RM-—657 Remote Commander (1)
IEC designation R6 batteries (2)
Design and specifications are subject to change without
notice,
TRINITRON» COLOR TV
SONY.
