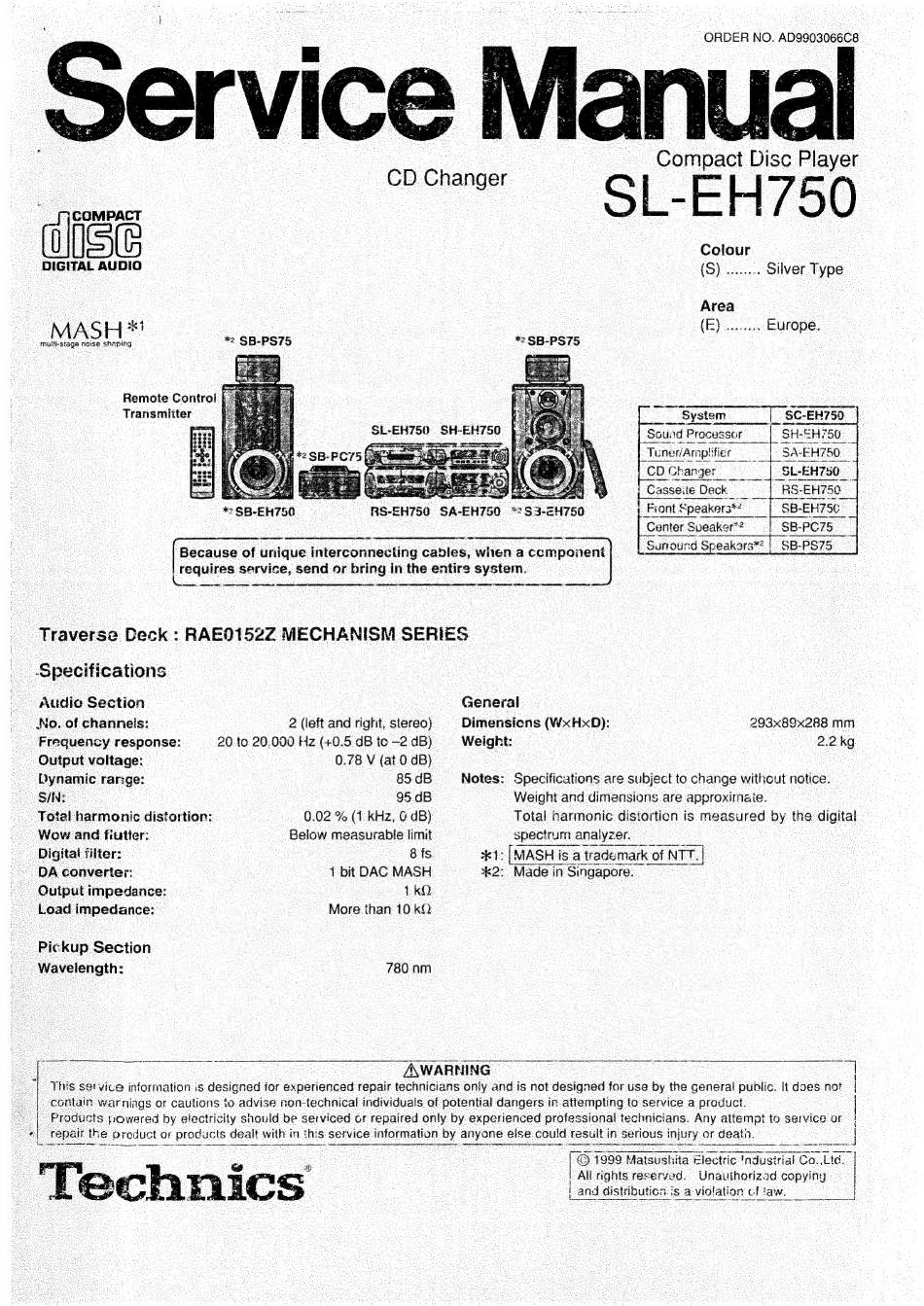

ORDER NO. AD9903066C8
Compact Disc Player
requires service, send or bring in the entire system.
ari emi
an
eae
Traverse Deck : RAE0152Z MECHANISM SERIES
_ Specifications
Audio Section
General
No. of channeis:
2 (left and righit, stereo)
Dimensicns (WxHxD):
293x89x288 mm
Frequency response:
20 to. 20:000 Hz (+0.5 dB te ~2.dB)
Weight:
2.2 kg
Output voltage:
0.78: V (at-0 dB)
Dynamic rarige:
85.dB
Notes:
Specifications are subject to change without notice.
SIN:
95.dB
Weight and dimensions are approxitnaie.
- Total harmonic distortion:
0.02 % (1 kHz, G dB)
Total harmonic distortion is measured by the digital
Wow and fiutter:
Below measurable limit
spectrum analyzer. —
Digital filter:
8 fs
1: [MASH is a
is a trademark of NTT. |
DA converter:
1-bit DAC MASH
+2:
Made in Singapore.
Quiput impedance:
1kQ
Load impedance:
More than 10 kQ
Pickup Section
_ Wavelength:
780.nm
Z\WARNING
| This service information is designed for experienced repair technicians only and is not designed for use by the General public..lt doesnot.
|
contain warnings or cautions to.advise. non-technical individuals of potential dangers in attempting to service a product.
_ Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to setvice or
|
| repair the Product oF products: dealt with i in-th: s service information. by anyone else could: result i in Serious injury or deain.
2
(© 1999 Matsushita Electric 'ndusirial Co. .Lte.
All rights reserved.
Unauthorizad.copyiny
| and distribution is a violation cf taw.
;
Technics
