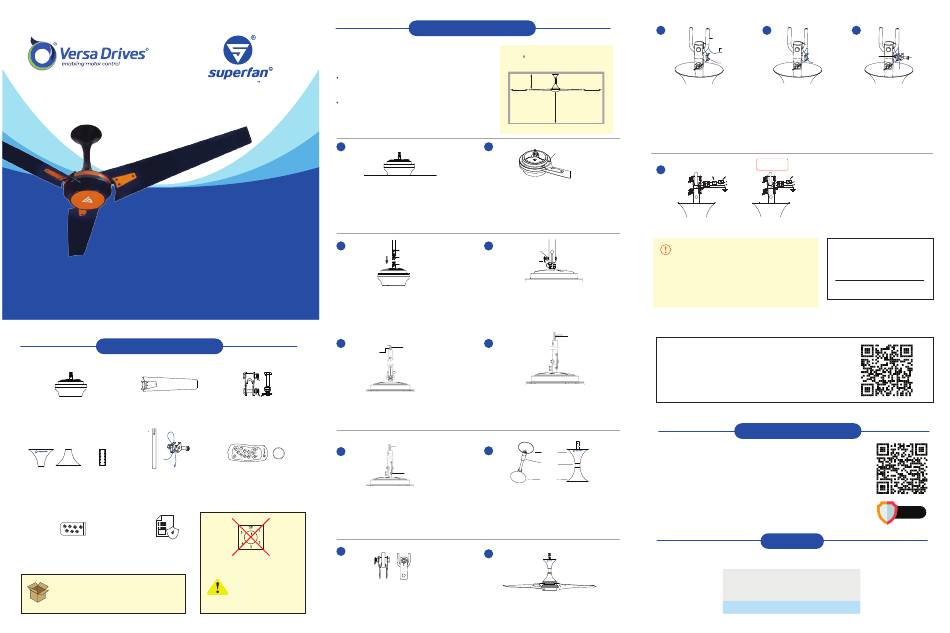

Versa Drives superfan User Manual

USER MANUAL
Thank you for choosing Superfan!
You are now a part of Superfan's mission
to reduce 10000 MW of electricity
INDIA'S FIRST SUPER ENERGY
demand due to ceiling fans!
EFFICIENT CEILING FAN
VERSA DRIVES PRIVATE LIMITED
D20UM1005-Rev C- April-2024
LIST OF ITEMS IN THE BOX
Fan Motor Blade - 3 Nos.
(Based on the model) (Based on the model)
Top Bottom Canopy Down Rod &
Holder
Canopy Canopy Safety Rope
(Only for
(Based on the Model)
Super Q)
Screws & Washers
Warranty Card
(Each 7 Nos.)
& User Manual
Before opening the carton box of your Superfan,
please match the model number printed on the fan
motor box and the blade box. Please do not
interchange the blade and the fan motor of one
model with other models.
Please read these instructions carefully before handling
your Superfan:
Always ensure that the power to the fan/fan terminal is
FAN REINVENTED OFF and is safe to work. Take precautionary steps to the
avoid power being restored to the terminal accidentally.
Electrical wiring to the terminal must be done by a
qualified electrician only.
1
Remove all the items from the box and gently
place them on a clean, soft surface. The blades
must be carefully handled to avoid deformation
resulting in less-than-optimal performance. Hold
the motor in a stable position with the shaft
pointing upwards.
3
Fix the slit end of the downrod tightly onto the
shaft using the bolt, washers, spring washers,
and nuts.
5
Phase & Neutral
wires
Insert the phase wire (usually red) and the
Shackle Kit
neutral wire (usually black) through top of the
downrod. Pull them out of the slit and connect
them to the terminal block.
7
CR2032
Battery
3V
Remote
(Only for Remote Model)
(Based on the Model)
Unscrew the M4 screw & screw it once again,
CR2032 Battery included
along with the lug in the safety rope.
9
Don't connect the regulator
Please bypass the regulator
Side
connections while installing
View
the Superfan (except for
Caution
Fix the shackle kit in the ceiling hook. Ensure the
regulator model).
tightness of the shackle nut so that the rubber
support holds the clamp in the ceiling firmly.
INSTALLATION INSTRUCTIONS
Please install the fan with the minimum clearances given
in the gure below to avoid performance loss.
1 ft
Min
2 ft Min
8 ft
Min
*assuming ideal conditions
2
Tighten
the screws
Mount the blades to the motor using the screws
and spring washers. Tighten the
sufficiently. Do not let the fan rest on the blades
to avoid deformation.
Note: 60 inch may need the motor to be rested
on raised platform to avoid the fan resting on
the blade.
4 Washer
Down rod and nut
Slit end
Cotter pin
Shaft
Insert the cotter pin through the bolt hole and
bend its ends to fasten it.
Safety Rope
6
Safety Rope
Insert the free end of the safety rope through the
hole in the downrod that is free from wires. Push
the dafety rope through the downrod and pull it
out from downrod at the top.
Top
8
canopy
Canopy
Holder
Screw
Bottom
canopy
Insert the bottom canopy (one without the logo)
through the downrod. Place the canopy holder on
top of the bottom canopy such that it rests on the
inner step of the canopy. Now insert the top canopy
(one with the logo) through the downrod and pull it
down through the canopy holder until it is obstruct-
ed by the bottom canopy. The top of the downrod
must be visible as shown in the figure.
10
Ceiling
hook
Front
View
Fix the fan assembly onto the shackle using bolt,
washer, spring washer, nuts and ensure tightness.
Put the cotter pin into the bolt hole and bend its
two ends apart to lock.
11 12
Hook
Safety rope
Metal
clamp
2 ft Min After the fan is secured by the Loop through the ceiling hook
shackle kit, pass the safety rope and pass the free end through
through one pair of holes in one the other pair of holes in the
piece of the metal clamp as shown same piece of the metal
in the figure. clamp. Leave a slack on the
loop so the fan is not support-
ed by the safety rope alone.
Don't connect
Regulator
Compatible
14
ON/OFF
Regulator
Switch
screws
Regulator Models Other Models
Note:
Adjust the canopies such that the top canopy
covers the shackle assembly near the ceiling and the
bottom canopy covers the terminal block connector of
the fan. Canopy touching the fan motor will lead to
rubbing noise. Safety rope holds the fan temporarily to
the ceiling hook during the primary suspension system's
failure. The failure may occur due to improper
installation, material failure, improper ceiling, etc. In
case of primary suspension system failure, turn OFF the
fan and secure the ceiling fan.
Scan the QR code for additional information,
remote functions, installation procedure, trouble
shooting and maintenance procedures.
www.superfan.in/usermanual
WARRANTY CONDITIONS
VDPL guarantees to the purchaser that this product carries a limited warranty
for three years, commencing from the date of purchase. In case of product
registration, two years extended warranty will be provided in addition to three
years (hence a total of five years warranty). Register the product online at
www.superfan.in or scan the QR code given or send SMS to +91 94890 78737
with the serial numbers & bill date of the products purchased.
If you require assistance, please contact us.
Toll free No :
E-mail
13
Nut
Screw
Fasten the other piece of the
metal clamp onto the looped
piece using the screw and nut
to secure the safety rope. Fold
the free end of the safety rope
back into the downrod from
the top and raise the canopy to
the ceiling.
ON/OFF
Switch
Connect the Phase and Neutral wires coming
out from the downrod to the ceiling rose.
Connect (Green/Yellow) mains earth wire to
the screw marked as on the Shackle kit.
All models:
Rated Input Voltage (VAC) : 230, 1 Ph
Input Voltage Range (VAC) : 160 to 265
Rated Frequency (Hz) : 48 to 52
Power Factor : >0.9
Remote Battery: Lithium Coin Battery
3V (CR2032) or Equivalent
5
YEARS
WARRANTY
CONTACT US
1800 425 78737
superfan@superfan.in
:
www.superfan.in
