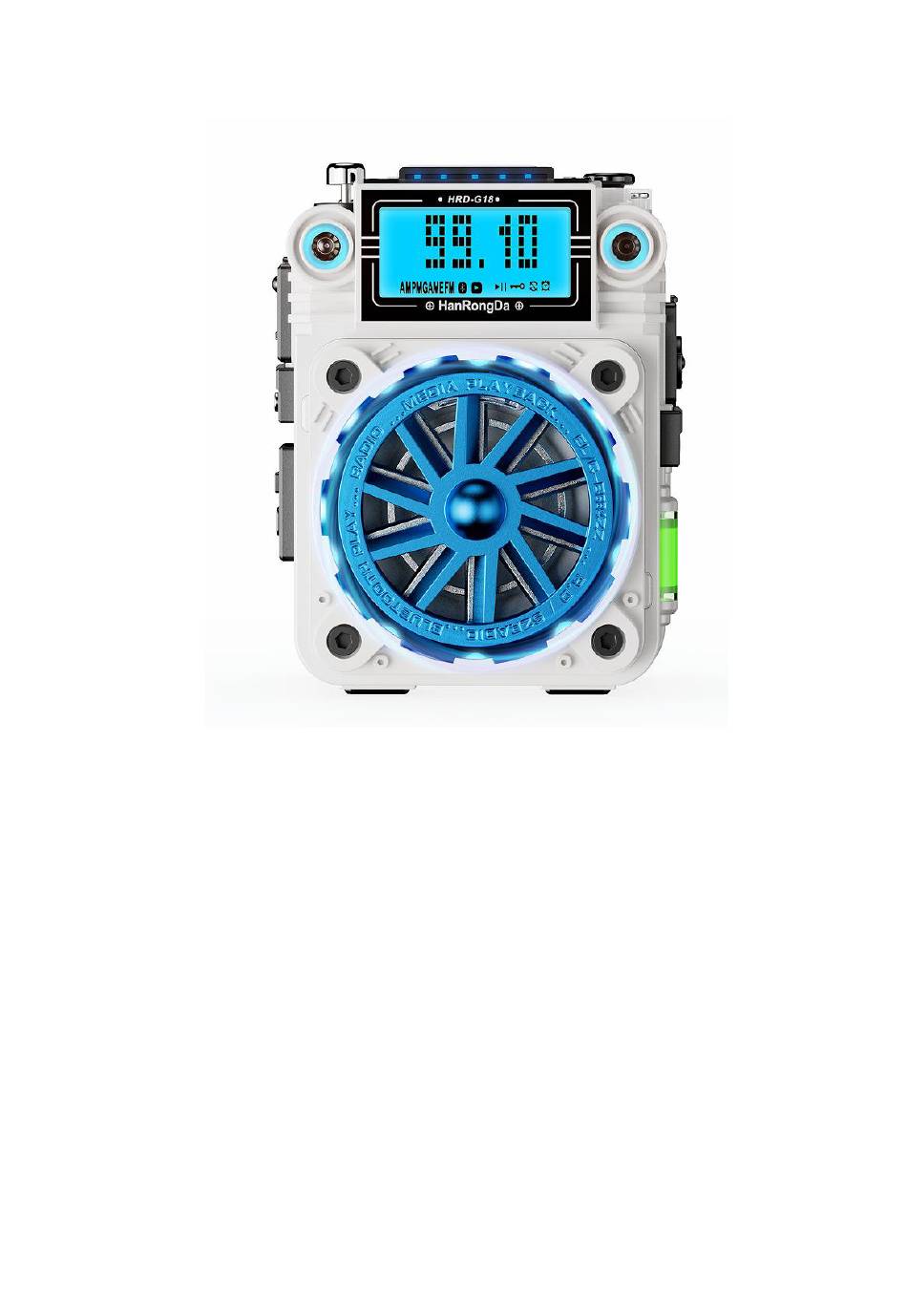

Fidget Spinner. Colorful Multifunctional Mini Speaker
Radio, Bluetooth, Game, SD Card Playback, APP Smart Control
Operation Instructions
Model: HRD-G18
Our company has always adhered to the principle of continuous product innovation to meet the diverse needs of
Our users.
This product is a pure metal shell, mini-sized, and a multifunctional fun gadget!
We hope that this little gadget can accompany you in your free time, help you relieve stress, and add joy to your life.
Before using it, please read these operation instructions carefully.
Thank you for your purchase. Please keep this operation instruction manual properly.
Advertisement
Summary of Contents for HanRongDa HRD-G18
- Page 1 Fidget Spinner. Colorful Multifunctional Mini Speaker Radio, Bluetooth, Game, SD Card Playback, APP Smart Control Operation Instructions Model: HRD-G18 Our company has always adhered to the principle of continuous product innovation to meet the diverse needs of Our users. This product is a pure metal shell, mini-sized, and a multifunctional fun gadget! We hope that this little gadget can accompany you in your free time, help you relieve stress, and add joy to your life.
- Page 2 1: Appearance diagram and function indication 1-1: Front function schematic diagram:...
- Page 3 1-2: Rear Function Indication Diagram:...
- Page 4 1-3: Brief Description of Top Button Functions: 1: Clock Display State: Long press to enter lighting settings (Refer to details in Operation Introduction, Point 6) 2: Radio Operating Mode: Light press to enter station search mode. Light press again to exit station search mode (Refer to details in Operation Introduction, Point 12.1.3).
- Page 5 1: Clock Display State: In the position, push forward once to display the alarm clock symbol. Then, ▲ while still in the position, push forward and hold for a longer duration to enter the ▲ alarm clock/automatic power-on settings (Refer to details in Operation Introduction, Point 16). ▲...
-
Page 6: Power On/Off
T→000 game. 2: Power On/Off This product is equipped with a built-in lithium battery. Upon first use, please charge the radio. The device is defaulted to the locked state upon factory shipment. Prior to first use, please unlock it. Gently press the [ ] and [SOS] buttons on the left side to illuminate the screen and enter the time display mode. - Page 7 5: Explanation of LCD Display Symbols Hi ! Activate the display screen to show the time status BYE ! Turn off the screen to enter power-saving standby mode FM radio working mode Bluetooth working mode TF card working mode Connect to a computer as a card reader/audio input GAME Game working mode FM reception mode...
- Page 8 F - Function Keys Lighting, Base Lighting, Z - Level Indicator Lighting on the Right Side of the Machine. The setting procedure is as follows: Lightly press the [ ] button on the left to activate the time display. Then, long press the top button [ ] to enter the lighting settings menu.
- Page 9 ◀▶ Push left or right [ ] to select between A00-A22/ A OFF (to turn off the gyro glitter light). Push up or down [▲▼] to select the rotation speed of the lighting fixture (at the A00 position, it selects among 7 colors). Introduction to the Operation of A-Gyro Glitter Light Settings: Details are provided in the following table: Push up or down [▲▼] button to select...
- Page 10 faster the lights turn. 2 Purple Lights, Rotating Clockwise Select from 1 to 9. The lower the grade, the faster the lights turn. 2 Sky Blue Lights, Rotating Clockwise Select from 1 to 9. The lower the grade, the faster the lights turn. 2 White Lights, Rotating Clockwise Select from 1 to 9.
- Page 11 6-2: Selection of B - Top Lighting for Machine After adjusting the A gyro glitter light, press the Light button, and the LCD will display the character B. ◀▶ Push left and right [ ] to select B00-B10/ B OFF (turn off the top color-changing lights). Push up and down [▲▼] to select the rotation speed of the lighting (at B00, select from 7 colors).
- Page 12 faster the decorative lighting turns. Select from 1 to 9. The lower the grade, the 1 blue light, from left to right faster the decorative lighting turns. Select from 1 to 9. The lower the grade, the 1 yellow-green light, from left to right faster the decorative lighting turns.
- Page 13 Push and Slide Use the up and down buttons [▲▼] to Left and Right Select Lighting and Transition Mode select the backlight color [◀▶] to Select In solid color mode, the backlight remains in 0 to 6 selectable for 7 different color a constant display state during operation.
- Page 14 ◀▶ Use the left and right buttons [ ] to select D00-D02/D OFF (to turn off the decorative lights on the left and right of the display). Use the up and down buttons [▲▼] to select the rotation speed of the lights (in the D00 setting, this allows you to choose from 7 colors).
- Page 15 6-5: Selection of Lighting Fixtures for the Two Buttons on the Left Side of the E-Machine: During Setup: After adjusting the lighting color and flashing mode at locations A/B/C/D, press the Light button lightly, and the LCD will display the character E. ◀▶...
- Page 16 6-6: Selection of F-Function Key for Base Lighting Setup: After adjusting the lighting color and flashing mode at locations A/B/C/D/E, press the Light button lightly, and the LCD will display the character F, ◀▶ ] or the up and down push buttons [▲▼] to make your Use the left and right push buttons [ selection.
- Page 17 and flashing speed of the lighting fixtures. Push and Slide Use the up and down buttons [▲▼] to Left and Right Select Lighting and Transition Mode select the backlight color [◀▶] to Select Z BAT Battery Level Indication: Battery Level ≤ 30%: Red light is on. Battery Level >...
- Page 18 Press the Light button for the third time to stop the third digit from changing. If all three digits stop with the same number, it represents a victory in the game, and the LCD will display the “WIN !” message. If the three stopped digits are not the same, the LCD will display the “FAIL!”...
- Page 19 9: Enable/Disable SOS Alarm Function: Power for Emergency Function: Maximum output of SOS alarm > 3W; Flashlight power: 1W. To enable SOS alarm: Long press [LOCK/SOS] for 2 seconds to activate the SOS alarm. To cancel SOS alarm: Lightly press [LOCK/SOS] to deactivate the SOS alarm. *Note: The device can still be used normally even when locked.
- Page 20 (Connecting the Device to a Computer using a USB Cable) 12: Operating Modes of This Product: After powering on, continuously double-click [ ] to switch between the various operating modes. Note: For SD card playback, a TF card must be inserted into the device. For PC connection, the device must be connected to a computer using a USB cable (as described in 11.2/11.3 above).
- Page 21 *If “NULL” is displayed after lightly pressing [ ], it indicates that no stations have been pre-saved. 13: Bluetooth Operating Mode: The Bluetooth name of this product is “HRD-G18”. ] to switch to “BT” While the device is powered on and operational, continuously double-click [...
- Page 22 The LCD will display the flashing “Bluetooth” character, indicating that it is waiting to connect to a Bluetooth device. Once successfully connected to a mobile phone, the “Bluetooth” character will remain constantly displayed. Both the mobile phone and the device can be used for controls such as adjusting volume, playing the previous song, or playing the next song.
- Page 23 14: Introduction to TF Card Playback: 打开机器左侧 TF 卡防尘塞 TF 卡轻压进槽 TF 卡槽 After correctly inserting the TF card, close the dust cover. When a TF card is inserted, the device will prioritize playing music from the TF card. (To switch to other operating modes, continuously double-click [ ].
- Page 24 E1: NORMAL E2: POP E3: ROCK E4: JAZZ E5: CLASSIC E6: COUNTRY Long-press [ ] for 2 seconds to quickly access lighting settings, with the LCD displaying ]. Push the [ ] button left or right to adjust between 7 lighting modes.
- Page 25 Reminder: In the “12Hr” time format, the LCD displays “AM” to represent morning hours and “PM” to represent afternoon hours. In the time display state, you can push [ ] back to switch between time display and happy face 1/happy face 2 display, changing the interface accordingly.
- Page 26 17: Key Technical Specifications: 7 types (Red/Green/Blue/Yellow-Green/Purple/Sky Color Variants of Decorative Lights Blue/White) Lighting Rotation/Flashing Speed Levels 1-9 levels selectable Relaxation Game Types 2 options Bluetooth Version V 5.2 TF Card Playback Formats Supports MP3/WMA/WAV/APE/FLAC formats Maximum TF Card Capacity 256G FM Reception Range 76-108MHz...
- Page 27 Step 2: Install the APP software Step 3: Successful installation on the mobile home screen Step 4: Click to enter APP mode, then select “HRD-G18-BLE” and click to connect. Exiting APP Connection Operation: In clock display mode, double-click [ ] continuously. The LCD will display “BLE OFF,”...
- Page 28 For Android and HarmonyOS phones, please scan this QR code to install the APP. Apple Devices: You can search for “Radio-CT” in the App Store to download and install. Alternatively, you can scan the QR code above to access the App Store for downloading. 19.2.1: After enabling the browser to scan the installation QR code for C919, follow the prompts: click “Download,”...
- Page 29 19.3: Entering APP Mode for Use: Click the APP icon on the mobile home screen to access it. Tap the symbol in the bottom right corner of the APP interface, select “Allow,” then click the symbol again. Choose HRD-G18-BLE to establish a successful connection.
- Page 32 19.5: Bluetooth Working Mode Key Function Introduction in the APP...
- Page 33 19.6: TF Card Working Mode Key Function Introduction in the APP...
- Page 34 19.7: PC Working Mode Key Function Introduction in the APP...
