Lenovo Local Console Manager Quick Installation Manual

Local Console Manager
Quick Installation Guide
NOTE: Before installing this product, turn off
all servers that will be part of your switching
system.
Connecting the local port
1
Connect your VGA, SVGA, SGA, or SXGA
monitor, USB keyboard and mouse cables into
the appropriately labeled LCM switch ports.
2 Connecting a Conversion Option
cable to the switch
Connect one end of a CAT 5 cable (4-pair, up
to 150 ft/45 m) into an available numbered
port on the rear of your switch. Connect the
other end into the RJ-45 connector of the
Conversion Option cable.
Connecting a target server to a
3
Conversion Option cable
Connect a Conversion Option cable into the
appropriate port on the back of a target
server. Repeat steps 2 and 3 for all target
servers you want to connect.
4 Connecting local area network users
Connect a CAT 5 cable from your Ethernet
network into the LAN connector on the rear
of the switch.
5 Connecting local virtual media or
smart cards (optional)
Connect virtual media or smart card readers
to any of the USB ports on the switch. To open
a virtual media session with a target server,
the target server must first be connected to
the switch using a virtual media capable VCO
or Virtual Media Conversion Option G2 cable.
To map a smart card with a target server, the
target server must first be connected to the
switch using a smart card capable Virtual
Media Conversion Option G2 cable.
First Edition, July 2015. Copyright © Lenovo 2016. All rights reserved. LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant a General Services Adminis-
tration "GSA" contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925. Lenovo and the Lenovo logo are trademarks of Lenovo in the
United States, other countries, or both.
Printed in

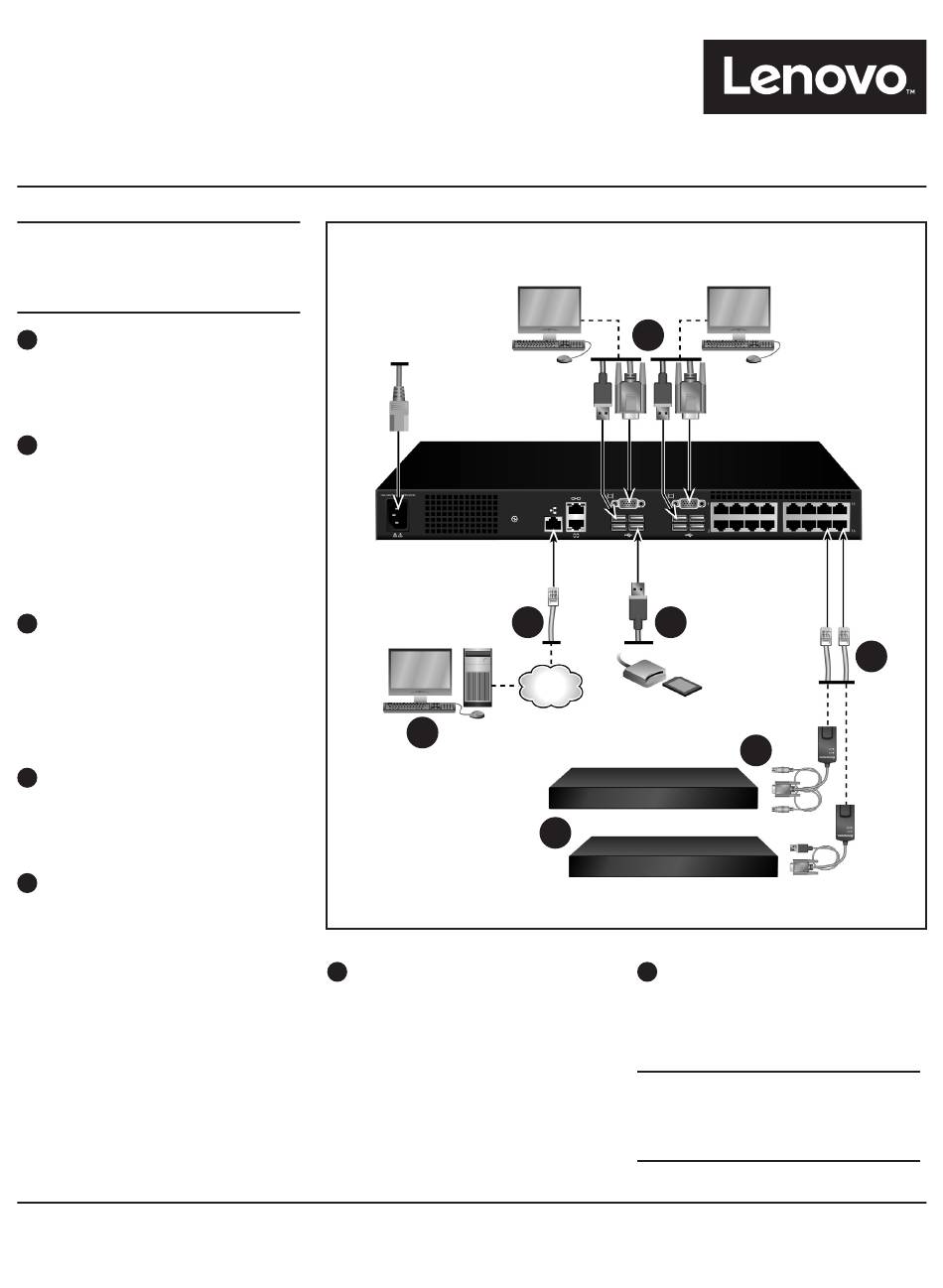

LCM Configuration (LCM16 Switch Shown)
7
6 Turning on target servers and
connecting power to the switch
Locate the power cord that came with the
switch and connect the appropriate end into
the power connector on the rear panel of
the switch. Connect the other end into an
appropriate AC wall outlet and then turn on
each target server.
1
4 5
Ethernet
6
7 Accessing your switch remotely
To access the switch remotely, go to
http://192.168.1.1 and enter Admin in the
Username field. No password is necessary.
NOTE: For important rack mounting safety
information, see the safety sheet provided
with this product.
2
3
1
590-1266-501B
