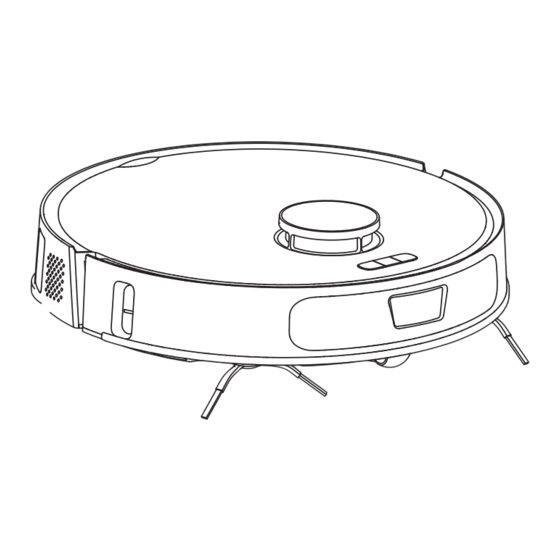

- Page 1 RV3 Ultra User Manual V1.0.0 Robot Vacuum Cleaner with Omni Station U0009640...
-
Page 3: Safety Precautions
Safety Precautions Usage Restrictions Plastic bags can be dangerous. Keep them away from infants and children to avoid the risk of suffocation. This robot is only meant to clean floors in a home environment. Do not use it outdoors (such as in an open balcony), on other non-floor surfaces (such as sofas), or in commercial or industrial settings. - Page 4 Battery and Charging Do not place the product near heat sources, such as radiators. Do not wipe or clean the charging contacts on the product with a damp cloth or wet hands. Do not dispose of batteries with your regular trash. Batteries should be disposed of by professional recycling agencies. If the power cord is damaged, it must be replaced by professionals from the manufacturer, the manufacturer’s service department, or a similar department to avoid danger.
-
Page 5: Package Contents
Package Contents Diagrams of products, accessories, user interfaces, and other items in the manual are schematic diagrams and are for reference only. The actual product may differ slightly from diagrams in the manual due to product updates and upgrades. The actual product shall prevail in case of any discrepancies. Robot ×1 Washable Mop Module ×2 Side Brush ×2... - Page 6 Overview Robot Top View Laser Radar Charging Contacts Water Inlet Cover Latch Upper Cover Dust Box Latch Dust Box Power Button / Indicator Light Wall Sensor Speaker Spot Clean Button / Collision Buffer Board Air Outlet Indicator Light Line Laser Obstacle Avoidance Sensor Air Inlet Recharge Button / Indicator Light...
- Page 7 Overview Robot Bottom View Dust Box Dust Box Latch Hepa Filter Filter Cartridge Washable Mop Module Mop Pads Cliff Sensor Main Wheel Carpet Sensor Brush Guard Clips Mop Pads Plate Omni-directional Wheel Mop Pad Plate Mounting Holes Side Brush Mop Extend Unit Main Brush Guard Dust Collection Inlet Main Brush...
- Page 8 Robot LED Indicator Patterns LED Status Device Status Solid on Standby / cleaning / fully charged / under remote control Flashes slowly Cleaning paused Loop flashing Turning on / charging Flashes fast to off Power off Flashes fast Device malfunction Solid on Return to recharge Flashes slowly...
- Page 9 Overview Omni Station Front View Charging Contacts Water Outlet Upper Cover Dust Bag Handle Infrared Lens Clean Water Outlet Water Tank Handle Dust Collection Inlet & Fan Hot Air Outlet Dust Collection Inlet Clean Water Inlet Cap LED Indicator Waste Water Outlet Dust Collection Air Outlet Dirty Water Outlet Cap Washboard...
- Page 10 Overview Omni Station Back View Dust Bag Dust Bag Handle Dust Bag Lifting Handle Power Cable Slot EN | 08...
-
Page 11: Led Status
Omni Station LED Indicator Patterns LED Status Device Status Lit for 5" to off The robot is on the station but not starts charging Flashes slowly The robot is on the station Loop flashing Auto emptying started Flashes fast to off Adding water into the robot Flashes fast Auto cleaning mop pads... -
Page 12: Notes Before Use
Ensure that the Wi-Fi password does not include "" or spaces. Scan the QR code below or search for the “Imou Life” app in the App Store to download and install the app. After completing the app installation, please open the app, click on “+”... - Page 13 Installation and Use/Preparation Connect the power cable to an electrical outlet Place the Omni Station Place the station on flat ground against the wall. Keep the area around the station clear of objects. ( 1 ,6 f t ) > 0 ,5 m ( 1 ,6 f t ) >...
- Page 14 Installation and Use/Preparation Add Water to the clean water tank Remove protective strips The consumption of the clean water is affected by the preset cleaning Place the robot on a level ground and remove the protective frequency of mop pad in the app. materials.
- Page 15 Installation and Use/Preparation Install the mop unit Fully charge the robot Press to recall the robot to the station for charging. Click Click Power on Press and hold for 3 seconds to start the robot. EN | 13...
-
Page 16: Installation And Use/Instructions
Installation and Use/Instructions On/Off Automatic recharge/Manual recharge The robot will automatically return to the station to charge after cleaning Press and hold for 3 seconds to turn on or turn off the robot. is completed or if its battery is insufficient while cleaning. When the robot is cleaning, double press to recall the robot to station for charging. -
Page 17: Regular Maintenance
Regular Maintenance To keep the device at best performance, please refer to the following maintenance frequencies. Please use a soft and clean cloth to wipe the parts, and avoid using any detergents or cleaning sprays. Parts Maintenance Frequency Replacement Frequency Collision Buffer Board Once per month Line Laser Obstacle Avoidance Sensor... - Page 18 Clean Mopping Pads Clean the Dust Box and Filter 24 h EN | 16...
-
Page 19: Clean The Main Brush
Clean the Main Brush Clean/Replace the Side Brush Press two catch simultaneously on the cover Unscrew side brushes. of the main brush. Then, remove the main brush cover and the main brush. Cut entangled hairs and fur on the main Clean side brushes. - Page 20 Maintain Water Tank Ensure that the robot is not docked at the station before cleaning the station. Completely dry the components before reinstalling them. Take out the water tank. Open the dirty water tank cap to pour out Open the top lid by grasping the lid knob. Then, hold the handle to lift the used water.
-
Page 21: Replace Dust Bag
Replace Dust Bag Clean Washboard When the dust bag is full, the indicator light on the station will flashing red like breathe and there will be a notification in the app. Replace the dust bag in a timely manner. Take out the washboard. Pull up the dust bag handle and remove the dust bag Install new dust bag Close the top cover... - Page 22 Maintain Other Components Use a soft and clean cloth to wipe all sensors and some components in the robot, and avoid using any detergents or cleaning sprays. EN | 20...
-
Page 23: Battery Maintenance
Maintain Other Components Battery Maintenance The robot has an internal high-performance lithium-ion battery pack. Keep the device charged on a day-to-day basis to maintain battery performance. If you are not using the device for a while, turn it off before storing it. Charge the device at least once every three months to avoid damage to the battery. -
Page 24: Troubleshooting
Troubleshooting When an abnormality occurs while the device is running, the power indicator light will flash red quickly. There will be voice prompts for some abnormalities. Refer to the table below for possible solutions. Voice Prompts/Fault Description Possible Reason Solutions •... - Page 25 Troubleshooting Voice Prompts/Fault Description Possible Reason Solutions • Please keep the robot within the range of the Wi-Fi network. The fan malfunctions The fan malfunctions. • The fan channel, filter, dust box are dry and clear of obstructions. • Restart the device. •...
- Page 26 Troubleshooting Voice Prompts/Fault Description Possible Reason Solutions • The robot is set to Do Not Disturb mode. The device will regenerate the map after spot cleaning The robot does not return to the station after spot • The distance between the robot and the station is or being removed for a distance.
- Page 27 Troubleshooting Voice Prompts/Fault Description Possible Reason Solutions • The robot’s charging contacts are not connected to Please make sure that the station is connected to the The robot is onto the Omni station while the voice the station pins. power. Place the robot onto the station and ensure prompt says “Carpet is detected”.
- Page 28 Troubleshooting Voice Prompts/Fault Description Possible Reason Solutions • The robot’s charging contacts are not connected to Please make sure that the station is connected to the The robot is onto the Omni station while the voice the station pins. power. Place the robot onto the station and ensure prompt says “Carpet is detected”...
