Summary of Contents for HDTV Supply WolfPack HDTV-TVW110

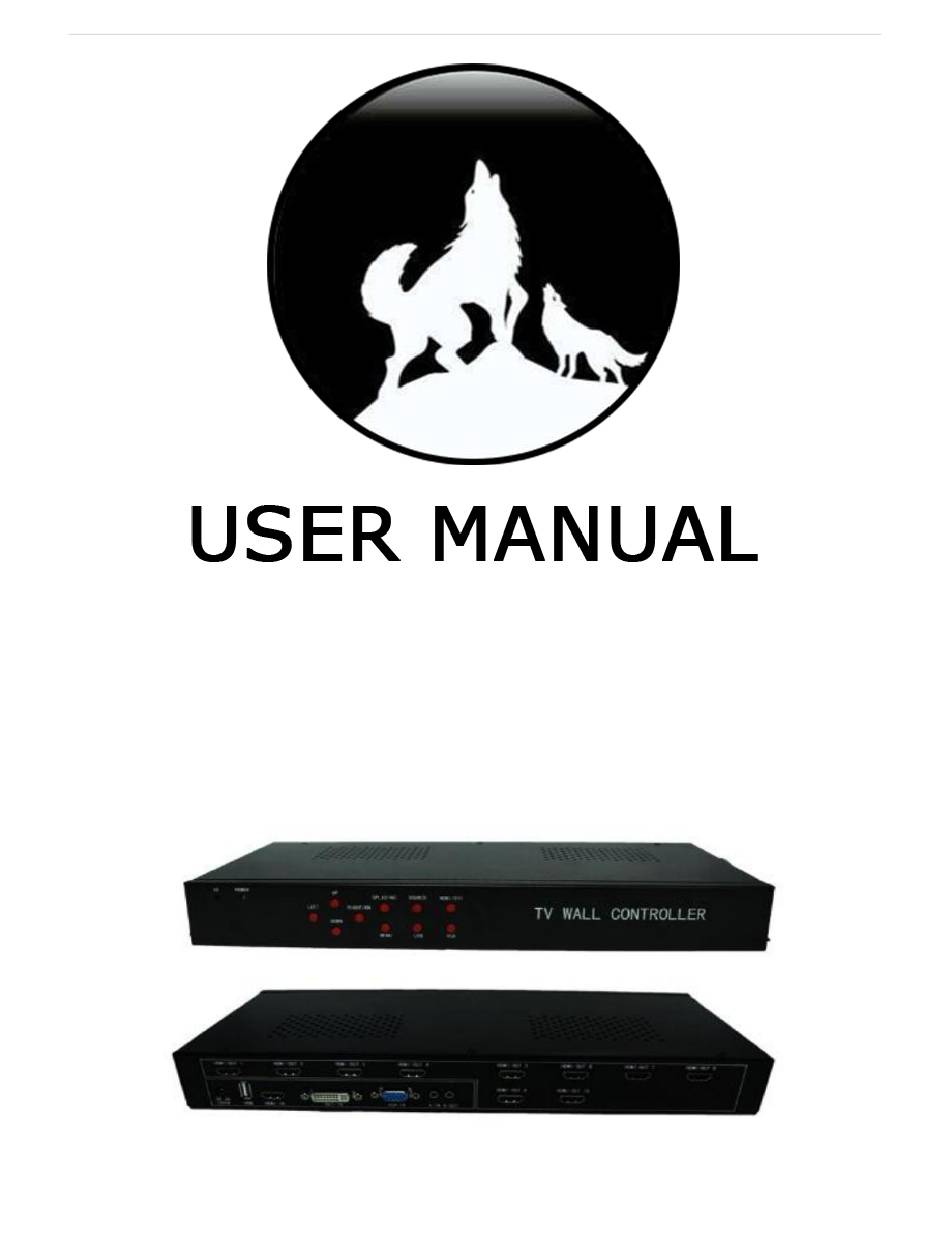

- Page 1 P a g e WolfPack Video Wall Processor That Can Create Multiple Video Walls Part Number: HDTV-TVW110 HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com...
- Page 2 Ambient operation temperature: 0 ~ 45 degrees. Caution Changes or modifications not expressly approved by the manufacturer could void the user’ s authority, which is granted by the Federal Communications Commission, to operate this equipment. HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com...
- Page 3 Front buttons, remote control Input 1* HDMI, 1*DVI, 1*VGA, 1*USB Output 10*HDMI OUTPUTS Resolution 800*600 to 1920*1080@60Hz Display splice mode 3x3, 1x4, 4x1, etc... Power Supply DC 12V3A Power Consumption Dimension (WxHxD) 360x170x45mm Weight HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com...
- Page 4 OK: It’s the right direction or confirm button SPLICING: One-key to splice SUBTILE: To add the subtitle for the video wall HDMI/DVI: Input sources selection MENU: to set up the video wall USB: USB input VGA: VGA input Back Panel HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com...
- Page 5 OUTPUT: 10 HDMI outputs to connect to displays INPUT: USB, HDMI, DVI, VGA inputs(only able to have one source to show at a time) A-IN: Audio input A-OUT: Audio output DC 12V: Power supply Operation Diagram Connection Diagram IR Remote Control HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com...
- Page 6 P a g e Menu Operations HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com...
- Page 7 Company or its authorized agent, the company will not have to bear additional obligations. Except using the product properly in the proper application or normal usage. HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com...
- Page 8 We are committed to providing you with the highest level of service. Contact Details: • Phone: 833-WOLFPACK (833-965-3722) • Email: customerservice@hdtvsupply.com | support@hdtvsupply.com • Website: www.hdtvsupply.com Our team is ready to assist with any questions or concerns you may have. HDTV Supply, Inc TEL: 833-965-3722 support@hdtvsupply.com...
