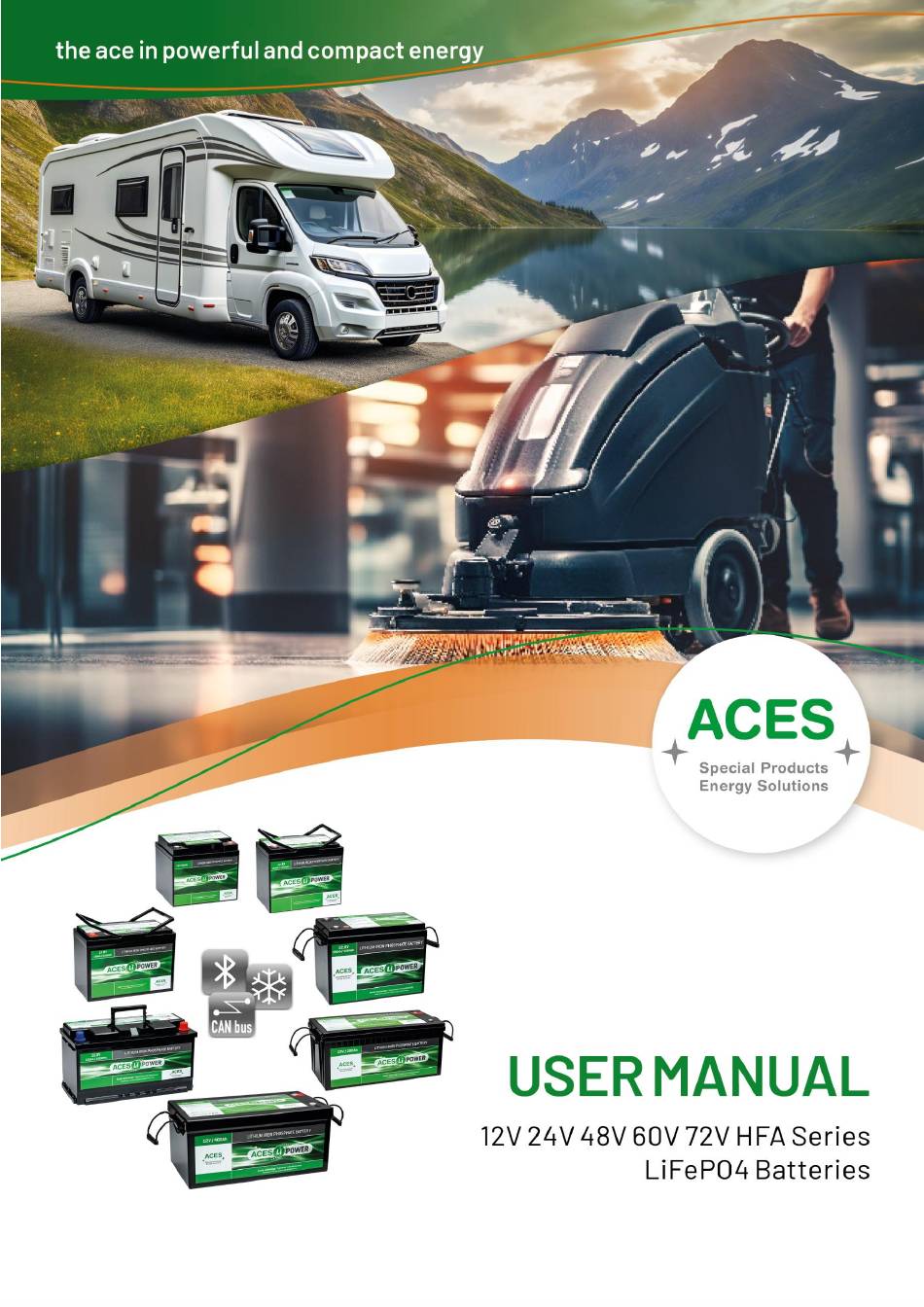

Summary of Contents for ACES 12V HFA Series
-
Page 2: Table Of Contents
Product description 1.1 Introduction HFA series Batteries 1.4 Technical specifications 12V <100AH 1.5 Technical specifications 12V HFA series batteries (>= 100Ah) 1.6 Technical specifications 24V HFA series batteries 1.7 Technical specifications 24, 36 & 48V HFA series batteries 1.8 Technical specifications 48V HFA series batteries (<=100AH) 1.9 Technical specifications 60V and 72V HFA series batteries... -
Page 3: Product Description
This manual provides clear instructions on the correct usage of ACES lithium batteries. 1.2 General ACES Lithium batteries are designed in the Netherlands and are built with LiFePo4 or LFP cells. These cells have a nominal voltage of 3.2V. In contrast with Lithium NMC, LMO and LCO cells these LiFePo4 cells are inherently safe, since NMC, LMO and LCO cells become unstable at high temperatures. -
Page 4: Technical Specifications 12V <100Ah
-20˚C – +60 ˚C Temperature range charge 0˚C – +50 ˚C Temperature storage <1 month -20˚C – +50 ˚C Temperature storage >1 month 5 ˚C – +30 ˚C Warranty 5 years © ACES Energy Special Products page 4 of 24 V2.5... -
Page 5: Technical Specifications 12V Hfa Series Batteries (>= 100Ah)
1.5 Technical specifications 12V HFA series batteries (>= 100Ah) Description 12.8V 100AH 12.8V 100AH 12.8V 120AH 12.8V 150AH 12.8V 150AH Model name AL12V100HFA-BT AL12V100HFAS-BT AL12V120HFA-BT AL12V150HFA-BT AL12V150HFAS-BTH EAN / GTIN 4738475950945 4738477545552 4738476073223 4738479950491 4738475083575 Rated Capacity 100Ah / 1280WH... - Page 6 -20˚C – +60 ˚C Temp. charge -20˚C – +45 ˚C Temp. storage <1 month -20˚C – +50 ˚C Temp. storage >1 month 5 ˚C – +30 ˚C Warranty 5 Years © ACES Energy Special Products page 6 of 24 V2.5...
-
Page 7: Technical Specifications 24V Hfa Series Batteries
-20˚C – +60 ˚C Temp. range charge 0˚C – +45 ˚C Temp. storage <1 month -20˚C – +50 ˚C Temp. storage >1 month 5 ˚C – +30 ˚C Warranty 5 years © ACES Energy Special Products page 7 of 24 V2.5... - Page 8 0˚C – +45 ˚C -20˚C – +45 ˚C 0˚C – +45 ˚C Temp. storage <1 month -20˚C – +50 ˚C Temp. storage >1 month 5 ˚C – +30 ˚C Warranty 5 years © ACES Energy Special Products page 8 of 24 V2.5...
-
Page 9: Technical Specifications 24, 36 & 48V Hfa Series Batteries
-20˚C – +60 ˚C discharge Temperature range charge 0˚C – +45 ˚C Temperature storage <1 -20˚C – +50 ˚C month Temperature storage >1 5 ˚C – +30 ˚C month Warranty 5 years © ACES Energy Special Products page 9 of 24 V2.5... -
Page 10: Technical Specifications 48V Hfa Series Batteries (<=100Ah)
-20˚C – +60 ˚C discharge Temperature range charge 0˚C – +45 ˚C Temperature storage <1 -20˚C – +50 ˚C month Temperature storage >1 5 ˚C – +30 ˚C month Warranty 5 years © ACES Energy Special Products page 10 of 24 V2.5... -
Page 11: Technical Specifications 60V And 72V Hfa Series Batteries
Temperature range discharge 0˚C – +45 ˚C Temperature range charge Temperature storage <1 -20˚C – +50 ˚C month Temperature storage >1 5 ˚C – +30 ˚C month 5 years Warranty © ACES Energy Special Products page 11 of 24 V2.5... -
Page 12: Battery Management System (Bms)
Under Temperature Discharge protection 1.11 ACES APP installation and connection Step 1. Install the ACES App ACES LI POWER via Google Play or Apple store on your Smart phone or you scan the QR code via our website Step 2. Make sure the Bluetooth on your smartphone is activated Open the App on your smartphone Step 3. -
Page 13: Aces Android And Ios App Example Screens
1.12 ACES Android and iOS App example screens © ACES Energy Special Products page 13 of 24 V2.5... -
Page 14: Aces Lithium In Comparison With Lead-Acid Battery For 24V
1.13 ACES Lithium in comparison with Lead-acid battery for 24V Characteristic ACES LiFePO4 2xVMF140AH 2 x 4PZS110 Benefits or drawbacks of lithium 12V-140AH 12V-155AH ACES LiFePO4 24V-84AH Weight 18 kg 83kg 81kg < 20% of the weight Life Cycles@80% DOD 4000 n.a. -
Page 15: Safety Guidelines
2.4 End of Life and disposal ACES LiFePO4 batteries are considered EOL (End Of Life) when the usable capacity drops below 70% of the initial capacity. EOL or defect lithium batteries are not allowed to put in private or industrial waste. -
Page 16: Installation
For example, with N batteries in parallel, the maximum current (ImaxN) is calculated as: ImaxN = Imax × (N - 1). For batteries connected via CAN-bus with Victron or ACES, the formula changes to: ImaxN = 0.9 × Imax × N. In this case, the master battery determines the maximum current based on the connected slaves and their settings. -
Page 17: Practical Can Guide
1. Supplying 12V power 2. Enabling data transfer When connecting more than 1 battery in parallel on the CAN bus network, the ACES batteries will automatically be recognized and will set their own master/slave for sending out the data. The send out data by the master is a recalculated package of data from the master and slaves. - Page 18 When using splitters this means that some ports may need to be left unpopulated ACES Battery Tips ▪ Both CAN connectors on ACES batteries are identical, so either one can be used for connection or termination. ▪ At the ends of the bus, connect a CAN bus cable and termination resistor.
-
Page 19: Use Of The Battery
Solution: charge the battery to 100% full before long period of not use and disconnect the poles. Check by the APP the SOC condition of the battery regularly. Important!! The battery shall be fully charged at least every 3 months to prevent deep discharge!! © ACES Energy Special Products page 19 of 24 V2.5... -
Page 20: Four Guidelines To Prolong Lifepo4
Ensure the battery charge rate settings match ACES specifications (maximum C rate). To reduce thermal stress, LFP batteries should be charged at a rate of 0.5C or below. In basic terms, this means it should take approximately two hours to charge a low battery. -
Page 21: Technical Support
Repair by ACES service center *Not for batteries with built-in heater, these can be charged below zero. If the suggested solution doesn’t help it is recommended to send the battery to ACES service Center. Contact details ACES service Center: ACES Energy... -
Page 22: Warranty And Liability
In this case, the guarantee period does not start again. This warranty does not limit legal provisions of the customer and are valid for all ACES lithium batteries with a purchase date from 01/01/2018. Accessories, consumables and other accessories are excluded. -
Page 23: No Warranty Charges
All damages at delivery must be reported to ACES ENERGY within 24 hours after delivery. ACES ENERGY is not liable for eventual direct or indirect damages to people or things by the damage of the product or caused by the improper use or transport of the product itself. -
Page 24: Ce Declaration
Declares that the following products: PRODUCT : Lithium Ion LiFePO4 Battery – ABS Casing BRAND : Brand name ACES Li POWER MODEL NAME: - AL12V24HFA / AL12V45HFA-BT / AL12V60HFA-BT / AL12V80HFA-BT / AL12V100HFA-BT / AL12V100HFAS-BT / AL12V120HFA-BT / AL12V150HFA-BT/AL12V150HFAS-BT /...
