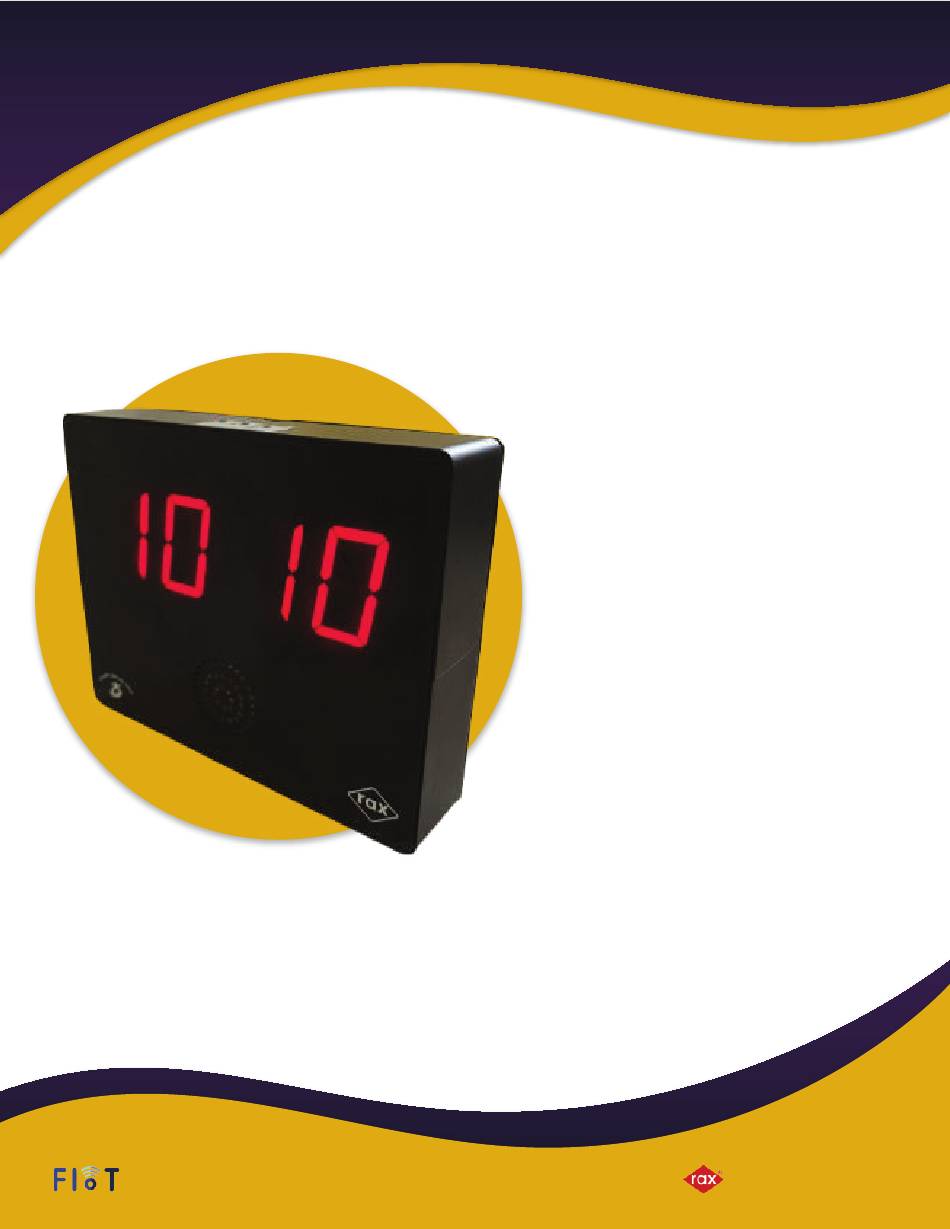

Page 1 WiFi Audio Clock RT-WAC-W-G0 User Manual RUM-WACG0-R1 www.rax-tech.com...
Page 2: Table Of Contents
WiFi Audio Clock User Manual Table of Contents 1. Unboxing and Setup 2. Device Management 3. Audio File Management 4. Schedule Management 5. Time Management www.rax-tech.com RUM-WACG0-R1...
Page 3: Unboxing And Setup
• Mounting Screws and Fishers – 2 pieces (for secure installation on walls or surfaces). • USB Type-A to Type-C Charger Cable – 1-meter length (for power supply ). • Wi Audio clock device - 1 No. Figure : 1.1 www.rax-tech.com RUM-WACG0-R1...
Page 4: Device Dimension
WiFi Audio Clock User Manual Device Dimension Length - 166 mm Breadth - 36 mm Height - 131 mm www.rax-tech.com RUM-WACG0-R1...
Page 5 SEL - Press to adjust numbers while in SET mode. SET - Press and hold for 3 seconds to enter SET mode. Press to Change between hours and minutes. CONFIG - Press to enter WiFi configuration mode Top View www.rax-tech.com RUM-WACG0-R1...
Page 6: Device Installation
• Note that the welcome audio will be disabled between 10 PM and 6 AM to reduce nighttime disturbances. When the device is powered on, a firmware update may occur, and once the update is complete, the welcome audio will be played. www.rax-tech.com RUM-WACG0-R1...
Page 7 • Tools required for mounting : Drill, Drill bits, Screw driver, Measuring tape, Hammer 118 mm Figure : 1.3 • Fix the fishers and Screws properly to mount the device Onto the wall • Ensure the USB-C cable can be easily connected to the device during the mounting process. www.rax-tech.com RUM-WACG0-R1...
Page 8 WiFi Audio Clock User Manual Figure : 1.4 Note: The device will function only when connected to a power supply www.rax-tech.com RUM-WACG0-R1...
Page 9: Device Management
Figure : 2.2 Figure : 2.1 • Use your mobile phone to scan the QR code displayed in the box or on the features card. • Search “WiFi-Clock” in the Playstore for android or in Appstore for IOS. www.rax-tech.com RUM-WACG0-R1...
Page 10 • Click the ‘+’ button to configure the device with Wi-Fi using one of two options • Smart Config - Connect via Wi-Fi. • Add Device - Connect using the MAC ID and IP address. (For devices already configured with Wi-Fi) www.rax-tech.com RUM-WACG0-R1...
Page 11 • Select Smart Config and press the CONFIG button on the device. Press Config Note: • The configuration mode on the device will stay active for 180 seconds timing out automatically. • In mobile, the configuration mode remains active for 60 seconds. www.rax-tech.com RUM-WACG0-R1...
Page 12 WiFi Audio Clock User Manual Figure : 2.5 During Wi-Fi configuration, once the device connects to the network, its time settings are updated. Additionally, the mobile app screen will display as shown in the figure 2.5. www.rax-tech.com RUM-WACG0-R1...
Page 13 If you face any issues while configuring with WiFi, ensure all the requirements are satisfied and repeat the procedure. Post-Configuration Recommendation: Reserve the device's assigned IP address in the router to prevent automatic changes to the IP address in the future. www.rax-tech.com RUM-WACG0-R1...
Page 14 For manual addition of the device which is already configured • Click ‘+’ • Click Add Device Click Figure : 2.8 Add Device Figure : 2.9 Enter the IP address, MAC address, port (e.g., 5000) and location of the device to be connected. www.rax-tech.com RUM-WACG0-R1...
Page 15 Device 1 Device 2 IP Address 192.168.1.0 Device 3 Mac Address a6r75df6bef Port Number 3000 Location Conference Room Figure : 2.10 Figure : 2.11 After entering the credentials click add device to connect Refer figure 2.6 for further features www.rax-tech.com RUM-WACG0-R1...
Page 16 To add another/New device Test Figure : 2.12 Figure : 2.13 Number of devices added Device 1 Name of the device added Device 2 To add another device repeat the steps mentioned in Page 13 Figure : 2.14 www.rax-tech.com RUM-WACG0-R1...
Page 17: Audio File Management
Figure : 3.1 • You can add an audio file using one of the following methods: • Text to Audio: Convert text into an audio file. • Internal Audio: Upload an audio file (.mp3) from your mobile device. www.rax-tech.com RUM-WACG0-R1...
Page 18 You can select the language in which the audio should be played, such as English, Arabic, or Hindi, Kannada, Malayalam, Tamil, Telugu. You can also choose the voice option: male or female. Note: Audio file size should be 100kb to 1mb www.rax-tech.com RUM-WACG0-R1...
Page 19 WiFi Audio Clock User Manual Test Audio file already present in the location No audio file is present in the location Figure : 3.3 After doing all these steps, Click on upload to upload the selected audio to the device. www.rax-tech.com RUM-WACG0-R1...
Page 20 To delete audio file Swipe left the audio file that need to be deleted and click the delete icon Swipe left Figure : 3.5 Figure : 3.4 Figure : 3.6 Note: An audio file added to the schedule cannot be deleted www.rax-tech.com RUM-WACG0-R1...
Page 21: Schedule Management
Test Number of schedules added Type Schedule name to search e.g. 9 am Repetition type Schedule time Audio file number for the schedule To play the audio Figure : 4.1 www.rax-tech.com RUM-WACG0-R1...
Page 22 Click to add schedule Figure : 4.2 Note: The "Once" option in the schedule is for a one-time alarm, which will automatically be deleted after the scheduled time has passed. www.rax-tech.com RUM-WACG0-R1...
Page 23 WiFi Audio Clock User Manual To edit/delete the schedule : • Swipe left from the schedule box Test Swipe left to access the edit option and update the schedule Swipe delete Figure : 4.3 Figure : 4.4 www.rax-tech.com RUM-WACG0-R1...
Page 24: Time Management
• You can change the device's time zone by following these steps: - Go to Settings and Select Time Zone. - Use the drop-down menu to search for and select the desired time zone. - Additionally, you can manually update the time by customizing the device's time settings. www.rax-tech.com RUM-WACG0-R1...
Page 25 WiFi Audio Clock User Manual Date Time Click to update Click to update time manually manual time Manual time setting Figure : 5.3 Figure : 5.4 www.rax-tech.com RUM-WACG0-R1...
Page 26 WiFi Audio Clock User Manual Test App version Click on about for support contact and app details Figure : 5.5 Figure : 5.6 Note: The time will always be displayed in a 24-hour format. www.rax-tech.com RUM-WACG0-R1...
Page 27 WiFi Audio Clock User Manual Thank you Contact Us : Whatsapp support number 9884481398 www.rax-tech.com RUM-WACG0-R1...
