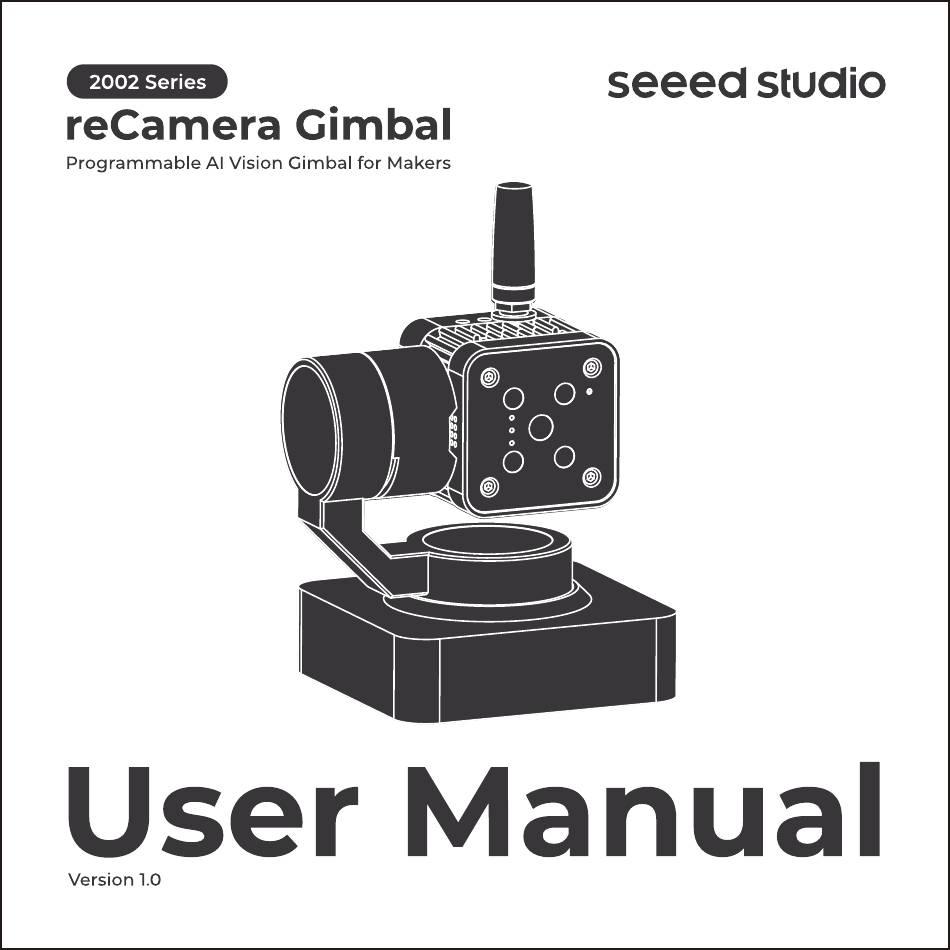

Summary of Contents for seeed studio reCamera Gimbal 2002 Series
-
Page 5: Specification
Specification Processing System SG2002 C906@1GHz + C906@700MHz AI Performance 1 Tops @ Int8 8051 @ 8KB SRAM Linux Operating System 256 MB Memory 5MP @ 30Fps Video Encoder Basic Camera Sensor OV5647 eMMC 8GB / 64GB Power Supply 12V DC Jack to XT30 connector Power Consumption(static) 12V,185mA;... - Page 10 Step 6 Step 7 Connect the signal wire of Motor Make sure the power cable connector is MS3506 to the power supply board. facing outward in the hollow frame of the Place the power supply board inside base cover (where there are marks for the the gimbal base cover.
- Page 11 Step 10 Step 11 Connect the other end of the signal Install the 5-cm antenna onto the wire to the reCamera 2002w and use antenna RF cable Screw C to attact the reCamera to the Antenna gimbal head properly. Screw C reCamera Yaw 180°...
