PAC SRK-RAM13HX Manual

Radio replacement kit for stinger heigh10 for 2013-2018 ram trucks and 2019-2024 ram classic

Advertisement

Stinger HEIGH10
Introduction and Features
The SRK-RAM13HX is a complete radio replacement kit with integrated climate control retention for select RAM trucks.
All modules and cables are included to retain important features of the factory system, including: steering wheel-mounted
radio controls, factory reverse camera, USB ports, and AM/FM reception.
Data integration with the vehicle and the Stinger HEIGH10 radio (sold separately) allows for the retention and addition of the
following features: vehicle performance gauges and information, climate controls, vehicle settings, factory amplifier control,
and forced camera activation. Simplified installation and setup menus allow direct programming of camera triggers, steering
wheel controls, and other settings of the radio and CH4A-SRK interface.
Important Notes
We recommend reading this manual thoroughly to familiarize yourself with
1.   D oes Not Retain:
Cluster Display Features
Compass (when equipped with 7" or 8.4" screen)
Clock
Phone pop-ups
Navigation pop-ups
Factory Amplifier Features
Speed Controlled Volume
2. Ensure that the CH4A-SRK and PL1 modules have been updated to the latest version of firmware before installing into
the vehicle. Refer to the Updating Firmware section at the end of the manual for firmware update instructions.
3. The vehicle should be OFF and key removed during entire disassembly and installation. Turning on the vehicle during
the installation may cause error codes / check engine light.
4. To retain SiriusXM Radio, a SXV300 Tuner is required and sold separately.
5. This guide is for UN1810 (HEIGH10) radios. For ix210 radios, see the HORIZON10 / HEIGH10+ Installation Guide.
Recommended Tools
Plastic Panel Tool
7mm Socket
Ratchet

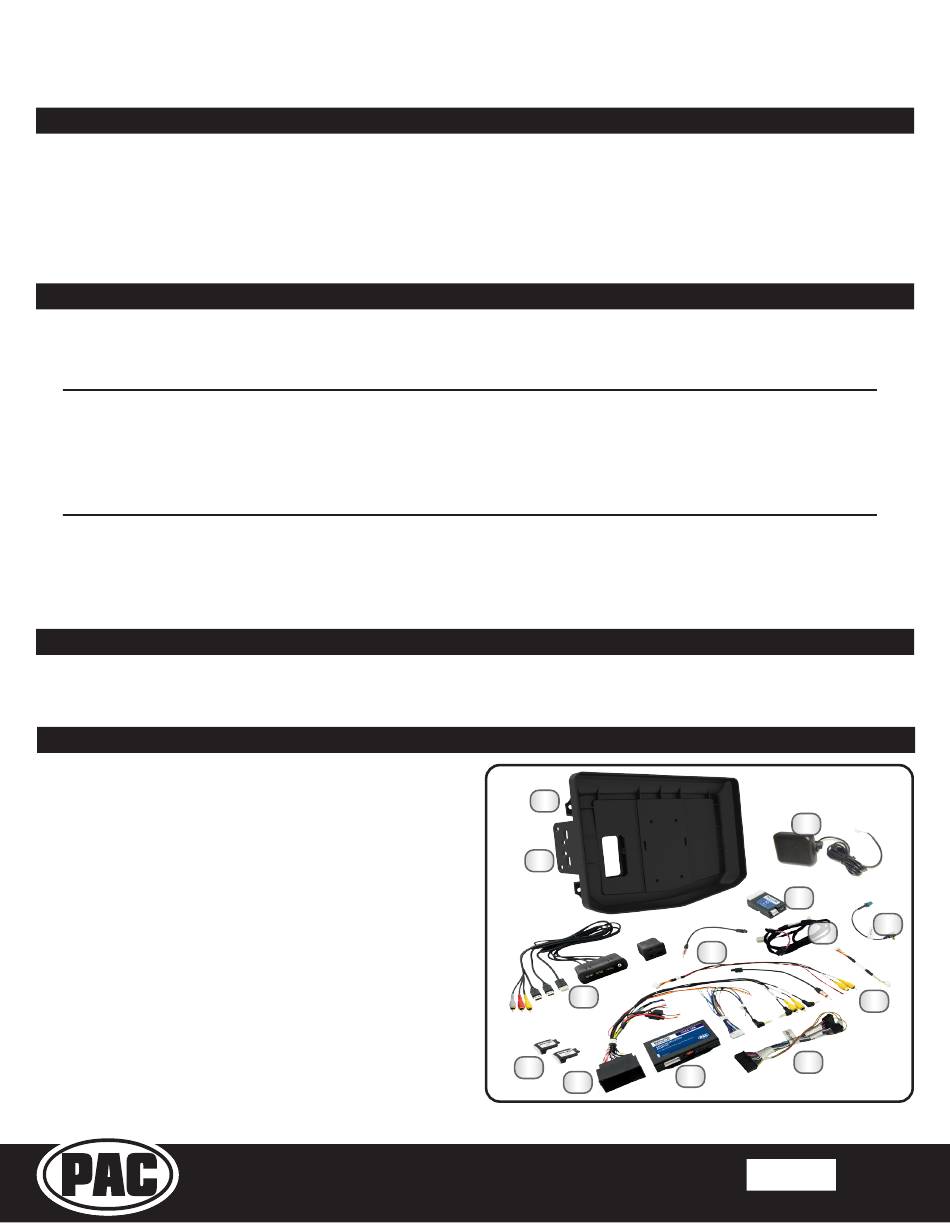

Included Components
1. HEIGH10 Display Mounting Panel (RAM13H_BUCKET)
2. Radio Module Mounting Brackets (CDJBRK1_BRACKET)
3. Mounting Plates (RAM13H-8.4 & RAM13H-B)
4. External Chime Speaker (RPA-SPK)
5. Media Hub (USBCHUB-CH1-RCA-108)
6. AM / FM Antenna Adapter (BAA22)
7. PAC-LINK Interface Module (PL1)
8. CAN-Bus Connection Harness (MQS4PT-CANC)
9. Differential Video Adapter (RPA-VA1) x2
10. Main Wiring Harness (SRK-RAM13-HAR)
11. RadioPRO Replacement Interface Module (CH4A-SRK)
12. 6" Data Harness (10P-2-10P-6-HAR)
13. Satellite Antenna Adapter (SAT-01)
14. Radio Harness Adapter (SR-SRK-ADAPT-UN1810)
NOTE: Along with the SRK-RAM13HX components,
additional hardware and wire harnesses from the
HEIGH10 (UN1810) kit will also be used in the
installation. There is a component list, hardware
guide, wire harness descriptions and illustrations
in the UN1810 Installation Guide for reference.
®
Pacific Accessory Corporation
the entire process prior to beginning the installation.
Phillips Screwdriver
T20 Torx
Flush Cutters
*Not Pictured
© 2025 Stinger. All rights reserved. PAC is a Power Brand of Stinger Solutions.
PAC-Audio.com / StingerSolutions.com
Uconnect Features
Uconnect Access Remote Start / Lock / Unlock
SOS / Assist
Vehicle Location Service
WiFi-Hotspot
SiriusXM Guardian Services
SiriusXM Radio
1
2
5
9
10
*Images may vary from final production items*
SRK-RAM13HX
Radio Replacement Kit
for 2013-2018 RAM Trucks
and 2019-2024 RAM Classic
4
7
8
6
14
11
Rev: V1
Page 1
Date: 020725
13
12
