Operation and Installation Manual
BD425

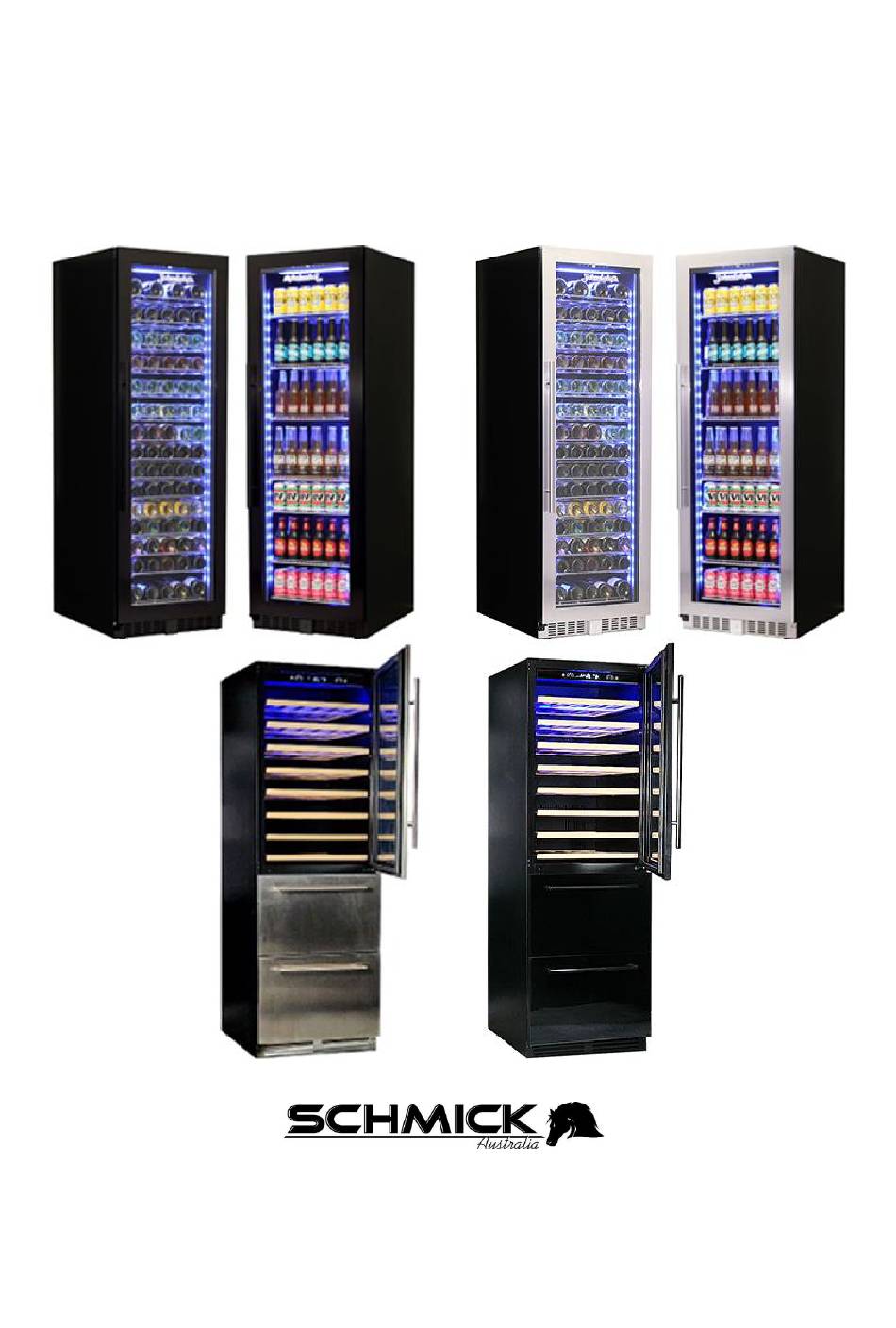

WINE AND BEVERAGE FRIDGE Range
Includes
BD425W / BD425B
BD425W-B / BD425B-B
BD425D / BD425D-B (Dual Zone)
BD425D-X & BD425D-BX (Dual Zone / Drawer)
This appliance is intended to be used in household and similar applications including use in commercial
settings. Such as staff kitchen areas in shops, offices and other working enviroments; by clients in hotels,
motels and other residential type enviroments, such as bed and breakfasts, catering and similar non-retail
applications.
Advertisement
Table of Contents
Related Manuals for Schmick BD425 Series
Summary of Contents for Schmick BD425 Series
- Page 1 Operation and Installation Manual BD425 WINE AND BEVERAGE FRIDGE Range Includes BD425W / BD425B BD425W-B / BD425B-B BD425D / BD425D-B (Dual Zone) BD425D-X & BD425D-BX (Dual Zone / Drawer) This appliance is intended to be used in household and similar applications including use in commercial settings.
- Page 2 Congratulations on the purchase of your new SCHMICK beveridge fridge. Before using your new appliance, please read this manual thoroughly to ensure that you know how to operate and install your new appliance safely and efficiently. Warnings and general safety Instructions in this manual do not cover all possible conditions and situations that may occur.
-
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. -
Page 4: Electrical Safety
ELECTRICAL SAFETY VOLTAGE Plug the appliance in a 220-240V, 50Hz, properly earthed power outlet, which must be in good working order. Make sure your outlet voltage and circuit frequency correspond to the voltage stated on the appliance rating label FLUCTUATIONS If voltage fluctuates in your area, especially Perth and WA which is more common, you are best to invest in a voltage regulator, this can be purchased on our website, model AVS-1000. - Page 5 USAGE CONDITIONS AND RESTRICTIONS (Con’t) CHILDREN Supervise children to ensure they do not play with the appliance. Close supervision is necessary when any appliance is used by or near children. Never allow children to operate, play with or crawl inside the appliance. NO USE FOR LONG PERIODS If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould, condensation and/or odors developing within the...
-
Page 6: Cleaning And Maintenance
CLEANING AND MAINTENANCE WARNING! Do not use sharp objects or metal instruments to remove frost or clean the appliance. Do not use mechanical devices or other means to accelerate the defrosting process. Do not use hairdryers or any electrical heaters to accelerate the defrosting process. Do not use high pressure water to clean the appliance. -
Page 7: Installation Basics
INSTALLATION BASICS HEAVY This appliance is heavy, take care when moving it. To avoid back or other injury, consider a two person lift or mechanical aid when installing it. Failure to do so can result in back or other injury. BUILT-IN DESIGN This appliance can be ‘built into’... - Page 8 SUNLIGHT, HEAT SOURCES and EXTREME COLD The fridge must not be exposed to direct sunlight. Heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. POWER FAILURE If the unit is unplugged, power is lost, or turned off, you must wait at least 3 to 5 minutes before restarting the unit.
-
Page 9: Installation Of Door Handle
SETTING UP YOUR NEW BD425 (BASICS) REMOVE PACKAGING Unbox your unit, and remove all packaging materials, including the foam base, and any adhesive films and/or tapes from the fridge. Remove any/all protective films, to ensure the thermal dissipation from the appliance. CHECK YOUR PARTS Check the parts and accessories inside the packaging, against the components list (see below). -
Page 10: Reversing The Door Hinge
REVERSING THE DOOR HINGE (RIGHT HINGE TO LEFT HINGE) Directions and diagrams are based on a right hand hinged door, being swapped to a left hand hinged unit. If swapping from left to right, simply mirror the instructions) If you require the door swing to be changed, you can do this at home with some basic tools, but we also recommend upto 2 other people to assist, as the door is very heavy an awkward to manouver. - Page 11 REVERSING THE DOOR HINGE (Cont) STEP 2 When the upper and lower hinge pins have been removed, grab a friend and carefully lift the door Up and Off the fridge. Place the door, glass side down, ideally onto an empty table with a blanket, to avoid marking the door whilst you continue to work.
- Page 12 CHANGING THE DOOR ALARM PARTS AND DOOR LOCK 1. Door 2. Lock 3. Door alarm magnet 4. Magnet fix hole 5. Lock fix hole STEP After changing the door, first unscrew② lock and ③magnet like pic1； STEP Then fix the②lock to the position of ⑤ lock fix hole STEP Change the ③...
- Page 13 INSTALLATION OF YOUR BD425 WINE/BEVERAGE FRIDGE Important information This appliance is designed to be used in a free standing installation or built-in (fully recessed) This appliance must be placed into position in accordance with these instructions. The applicance must be installed on a smooth flat surface. ...
-
Page 14: Temperature Settings
TEMPERATURE SETTINGS Directions on how to change these default set temperatures can be found on the next 3 pages. Make sure you study the correct operating instructions for your particular model. FACTORY DEFAULT TEMPERATURE SETTINGS BD425 - Single Zone models Once connected to a power supply, the Fridge will take some time to reach its default preset temperature of 12°C. - Page 15 OPERATION AND TEMPERATURE CONTROL – SINGLE ZONE ONLY There is one(1) central display window, with a 2-digit LED display . This can display the set temperature or actual interior temperature. Powering On/Off To switch the unit ON or OFF, press and hold the Power switch for 3 seconds.
- Page 16 OPERATION AND TEMPERATURE CONTROL – DUAL ZONE ONLY There are 2 Display windows, each with a 2-digit LED display for each compartment. These can display the set temperature or actual interior temperature. Powering On/Off To switch the unit ON or OFF, press and hold the Power switch for 3 seconds.
- Page 17 OPERATION AND TEMPERATURE CONTROL – X DRAWER MODELS There are 2 Display windows, each with a 2-digit LED display for each compartment. These can display the set temperature or actual interior temperature. Powering On/Off Power switch is on on left hand side of the control panel Press and hold together for 3 seconds to turn on or off the unit.
- Page 18 VERSATILE SHELVING BD425 use’s heavy-duty chromed ball-bearing slide-out shelves. This versatile shelving allows you to; Adjust shelving height up or down Swap flat beer shelving with special wine shelving, which has low-vibration rubber saddles that “cradle” the bottles, stopping them from rolling on the shelves. ...
- Page 19 HOW TO ADJUST / CHANGE SHELF CONFIGURATION TO REMOVE A SHELF Shelving is unique with the beer and wine matching units, you can interchange beer for wine and wine for beer. Please refer to the following directions to replace a shelf with a different option.
- Page 20 BD425 SHELF HEIGHT ADJUSTMENT Shelf heights can be easily adjusted across all different models. With the centre section of the shelving removed (by following steps above) - , grab the front half of the support rail and pull it up and towards the middle of the fridge. ...
- Page 21 REMOVING THE DRAWERS (BD425D-X Models) Pull the drawer out all the way, to the end of their rails. Use one hand to press the right plastic notch downwards, as shown in Figure A. At the same time lift the left plastic notch upwards with your other hand, as shown in Figure B.
-
Page 22: Charcoal Filtration System
CHARCOAL FILTRATION SYSTEM Your wine is a living object that breathes through the cork of its bottle. In order to preserve the quality and taste of your fine wines, they must be stored at the ideal temperature and ambient conditions. This unit is equipped with an active charcoal filtration system to ensure air purity, cooling efficiency, and to maintain an odor free cabinet for the storage of your fine wines. -
Page 23: Knowledge Base
PROBLEMS WITH YOUR BD425 WINE/BEVERAGE FRIDGE TROUBLE SHOOTING / BASIC INFO There are basic things you need to look and check before trying to initiate a technician call out for warranty circumstances. KNOWLEDGE BASE This link to our Knowledge Base may be able to assist you with troubleshooting. https://www.bar-fridges-australia.com.au/knowledgebase NOISE If your unit has become noisy, please check the following;... - Page 24 BD425 TROUBLESHOOTING GUIDE You can solve many common Wine/Beverage fridge problems easily, saving you the cost of a possible service call. If you can, try the following suggestions to see if you solve the problem before calling. PROBLEM POSSIBLE CAUSE REMEDY Wine/Beverage Connect the appliance.
-
Page 25: Error Codes
ERROR CODES SINGLE ZONE MODELS Error Code Error Temp Sensor open circuit Temp Sensor short circuit Evaporator sensor open circuit Evaporator sensor short circuit Temp is too high (outside parameters) Temp is too low (outside parameters) DUAL ZONE MODELS Error Code Error Upper Zone Temp Sensor open circuit Upper Zone Temp Sensor short circuit...
