ALLWIN 1.8m hybrid User Manual
Catalogue
Chapter 1 Prepare of installation..................................................................... 2
1.1 AC Power requirement of machine.....................................................2
1.2 Min Computer configuration.............................................................. 2
1.3 Environment Requirement.................................................................. 3
1.4 Machine Operator requirement........................................................... 3
1.5 Inks and Spare parts notice................................................................. 3
Chapter 2 Hardware installation......................................................................4
2.1 Unload& Open machine non-fumigation wooden box...................... 4
2.2 Machine put to right place and leveling..............................................5
2.3 AC power connection..........................................................................5
2.4 Install Machine parts........................................................................... 6
2.5 Machine Main parts annotations......................................................... 8
2.5 How to take down the media..............................................................9
Chapter 3 Software install............................................................................. 11
3.1 Photoprint RIP software....................................................................11
3.2 Printing software: print manger........................................................ 13
Chapter 4 Trouble shooting........................................................................... 14
4.1 Ink keep drop from heads when machine power on.........................14
4.2 Nozzle Spray Effect.......................................................................... 14
4.3 Ink not dry, looks glossy................................................................... 15
4.4 Machine can not initial......................................................................15
4.5 Software error list info...................................................................... 16
1/16
Advertisement
Table of Contents
Summary of Contents for Allwin 1.8m hybrid
-
Page 1: Table Of Contents
ALLWIN 1.8m hybrid User Manual Catalogue Chapter 1 Prepare of installation..............2 1.1 AC Power requirement of machine.............2 1.2 Min Computer configuration.............. 2 1.3 Environment Requirement..............3 1.4 Machine Operator requirement............3 1.5 Inks and Spare parts notice..............3 Chapter 2 Hardware installation..............4 2.1 Unload&... -
Page 2: Chapter 1 Prepare Of Installation
Chapter 1 Prepare of installation 1.1 AC Power requirement of machine A. Machine need 2 separately AC power, one for machine main power system, another for LED UV lamp system. Machine main power: Single-phase electricity 220V AC 2KW/ 10A LED UV lamp power: Single-phase electricity 220V AC 2KW/10A Tips: AC electricity need good PE which resistance less than 50 ohm B. -
Page 3: Environment Requirement
Operator must carefully use machine and responsibility for machine maintenance 1.5 Inks and Spare parts notice Machine must use ALLWIN official UV inks and Spare parts, these can ensure machine print quality and print head lifetime. For machine repair or unknowing issues, please contact ALLWIN local distributor engineer or send email to ALLWIN factory. -
Page 4: Chapter 2 Hardware Installation
Chapter 2 Hardware installation 2.1 Unload& Open machine non-fumigation wooden box A. Please check the machine non-fumigation wooden box broken or not before open it. If meet cargo damaged issue please contact your local forwarder person, they will help deal it and apply insurance compensation. B. -
Page 5: Machine Put To Right Place And Leveling
2.2 Machine put to right place and leveling Move machine to right place, adjust machine leveling with professional device, such as: spirit level, Laser horizontal instrument.etc Notice: Please ensure the leveling again after 8 hours. (This will help ensure machine body 100% well leveling) 2.3 AC power connection AC power cables which already with machine, Please ensure right connect order of the connector: L: RED N: Blue PE: Yellow&... -
Page 6: Install Machine Parts
2.4 Install Machine parts part1: install machine main parts Part2: install feeding parts Part3: install collecting media parts 6/16... - Page 7 Part3: install LED lamp and chiller system (It is recommended to mix 30-40% antifreeze with 60-70% purified water and pour it into the water tank). Connect the water pipes in place according to the line markings. Water outlet: UV lamp cooling water pipe outlet, Water inlet: UV lamp cooling water pipe inlet, External Dimming: Connect an external dimming light UV Lamp: Connect the UV lamps to the left and right lamps respectively...
-
Page 8: Machine Main Parts Annotations

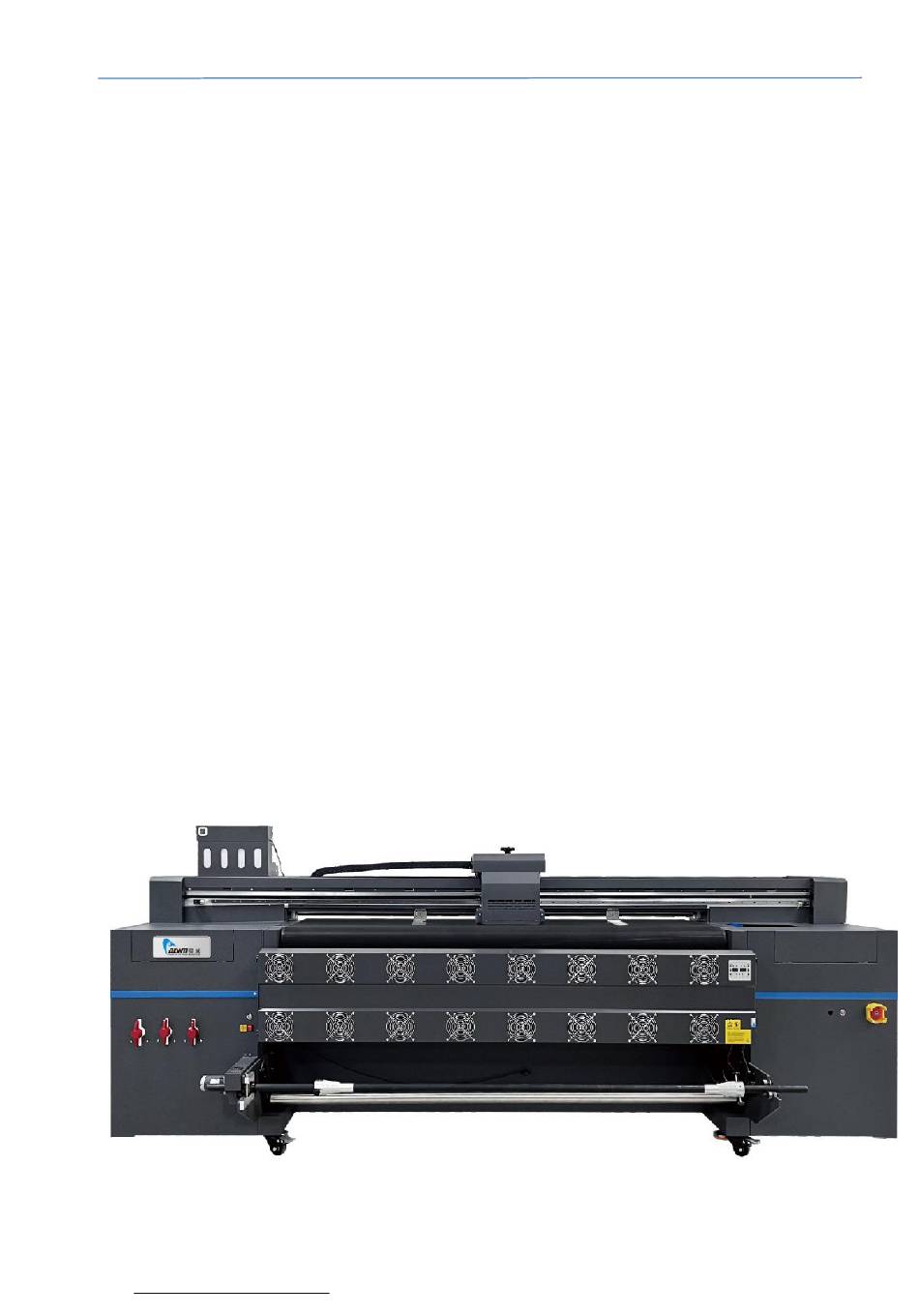

2.5 Machine Main parts annotations Side 1: machine Front side VIII I. Table Vcuum pump II. Table vacuum area III. Media collecting control button IV. Machine collecting media parts V. LED lamp VI. Z movement step motor VII. Emergency stop button VIII. -
Page 9: How To Take Down The Media
I. Main board II. LED lamp chiller III. 220V AC input IV. Machine feeding media system V. Table vacuum button, feeding media controller VI. Sub ink tank VII. Main ink tank Side 3: Carriage side I. Z step driver II.Carriage board III. - Page 10 (2) turn off the vacuum motor (3) lift the lever (4) Remove the feeding system (5) Remove the media 10/16...
-
Page 11: Chapter 3 Software Install
Chapter 3 Software install 3.1 Photoprint RIP software Sai Photoprint software used to process designed images to PRT format file,which will load by printing software. Sai Photoprint support file format: PDF (recommend), JPEG, PNG, EPS, BMP.etc 11/16... - Page 12 Install Photoprint software Input your software package KEY password Warning: backup your key passwords, it need when install the software again 12/16...
-
Page 13: Printing Software: Print Manger
3.2 Printing software: print manger When open the software and disconnect the machine the main interface showing as following: After connect the machine will show as following picture Print setting Maintain Advance Error list Head Flash Spray, testing paper, pinch temperature roller, lack paper 1 Left corner connection shows TCP network... -
Page 14: Chapter 4 Trouble Shooting
Chapter 4 Trouble shooting This chapter only list some trouble you will meet, if not clear what to do for fixing machine, please contact ALLWIN local distributor engineer or ALLWIN factory engineer 4.1 Ink keep drop from heads when machine power on I. -
Page 15: Ink Not Dry, Looks Glossy
Initial DSP: basic electronic boards communication initial, if shows initial DPS fail: need enter hardware factory setting error or need update FW. (this need professional engineer to setting, please contact local agent engineer or ALLWIN factory) X slow move to left and right few distance: If stuck, check X movement, X servo... -
Page 16: Software Error List Info
4.5 Software error list info Please check the error list info analysis and solution. Notice: If your machine get error in software, take photo and consult ALLWIN local distributor engineer or ALLWIN factory engineer. This will help you faster fix machine...
