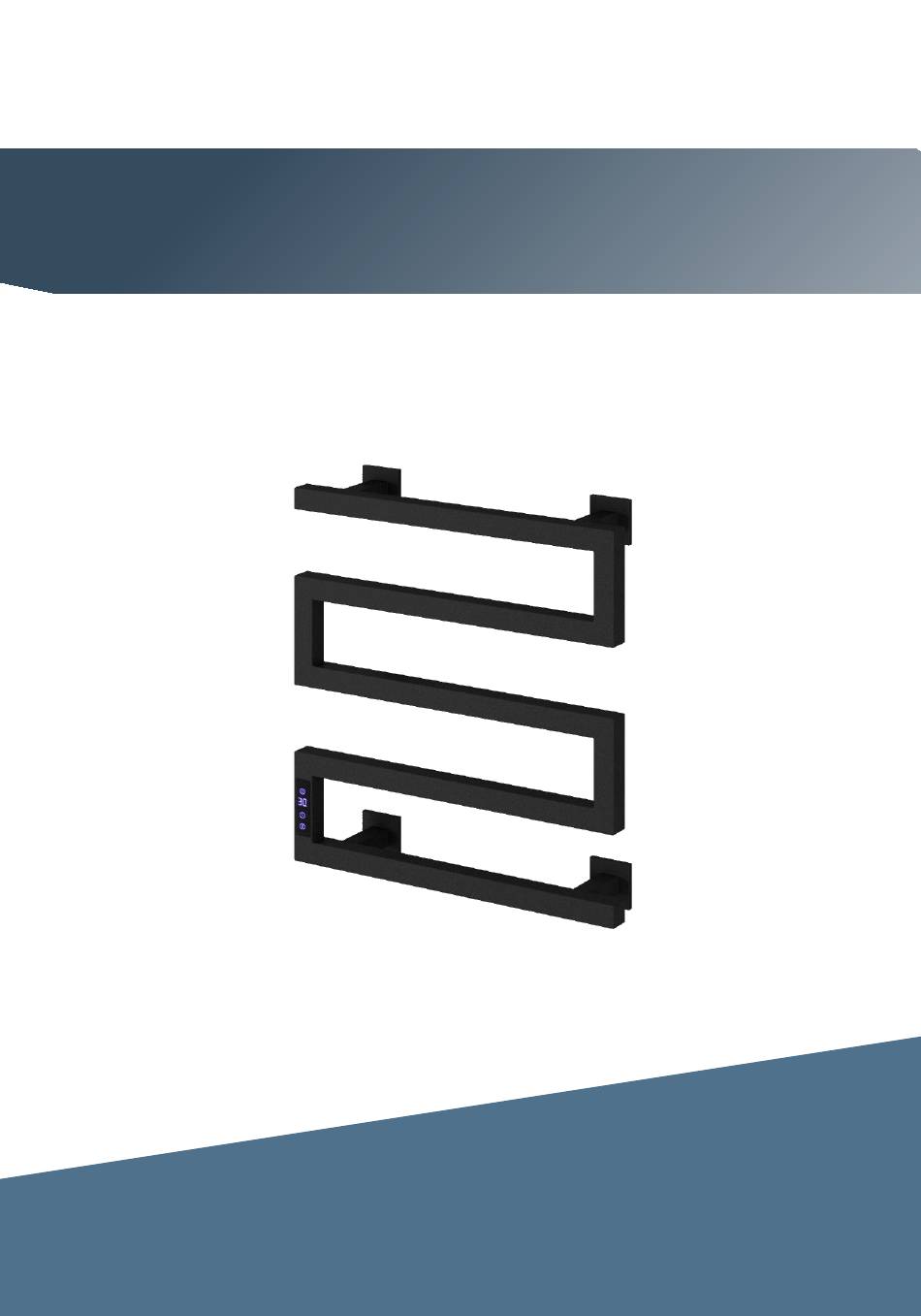

- Page 1 Electric Towel Rail Installation Guide VISPA...
- Page 2 INSTALLATION GUIDE Please read this instruction carefully before installation and operation. Warning: This device must be installed by a licensed electrician. • This Towel Rail is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the Towel Rail by a person responsible for their safety.
-
Page 3: Tools Required
INSTALLATION GUIDE TOOLS REQUIRED • Pencil • Hammer • Measuring Tape • Hex key • Screw driver • Spirit level • Electric drill ACCESSORIES Single Hole Mounting Feet x 3 Wall Anchors x 8 Allen Wrench x 1 Decorative Cap x 4 Concealed Wired Mounting Feet x 1 Long Screw M4*30 x 8 Exposed Wired Mounting Feet x 1... - Page 4 INSTALLATION GUIDE Please follow the below installation steps to complete the towel rail installation. CONCEALED WIRING INSTALLATION STEP 3 STEP 1 STEP 2 STEP 1 : Fix three single-hole mounting feets to the threaded holes on the cross tubes, then use a screwdriver to tighten the M6*20 mounting screws.
- Page 5 INSTALLATION GUIDE CONCEALED WIRING INSTALLATION STEP 6 STEP 6 : Insert the long screws through the mounting seats and then secure them into the plastic wall anchors with a electric drill. Place the decorative caps onto the mounting seats and tighten them. STEP 7 STEP 7 : Connect the core wire from...
- Page 6 INSTALLATION GUIDE EXPOSED WIRING INSTALLATION STEP 3 STEP 1 STEP 2 STEP 1 : Fix three single-hole mounting feets to the threaded holes on the cross tubes, then use a screwdriver to tighten the M6*20 mounting screws. STEP 2: Thread the power cable through the notch under the exposed wired mounting feet and use the M5*30 screw to secure the mounting feet to the cross tube of the towel rail.
- Page 7 INSTALLATION GUIDE EXPOSED WIRING INSTALLATION STEP 6 STEP 6 : Insert the long screws through the mounting seats and then secure them into the plastic wall anchors with a electric drill. Place the decorative caps onto the mounting seats and tighten them. STEP 7 STEP 7 : Lie the towel rail against the mounting seats fixed on the wall.
- Page 8 INSTALLATION GUIDE HOW TO USE THE TIMER ON THE TOWEL RAIL? Image 1 Image 2 Image 3 Image 4 Heating Mode • Connect the device to power. • Press the button to switch on the controller. • Use the button to select the desired temperature within the range of 30-60°C, in 5°C increments. (refer to Image 1).
