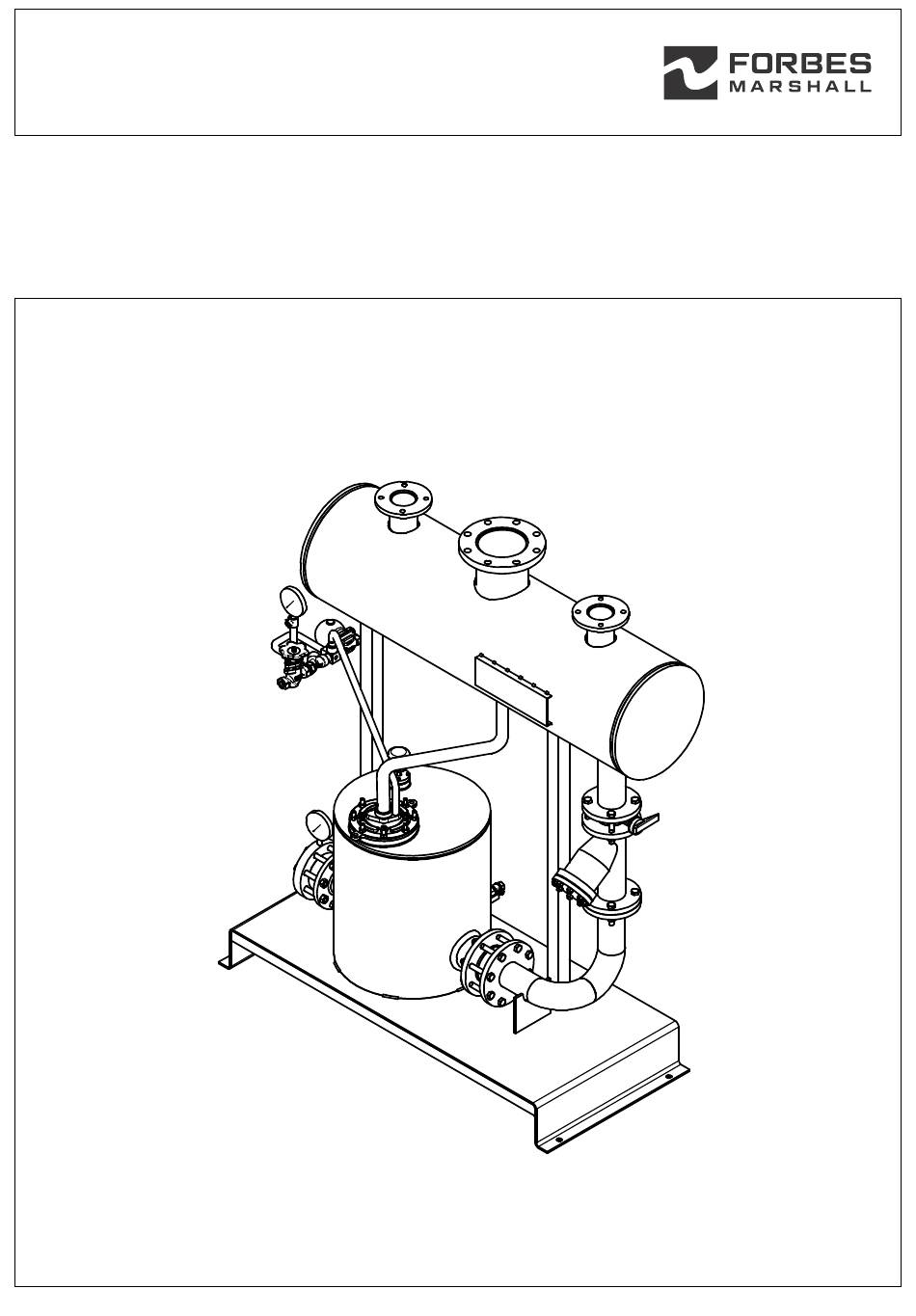

- Page 1 Installation and Maintenance Manual Multi Valve Pressure Powered Pump Package Unit with Insulation Jacket and Condensate Recovery Meter MV55PPPPU Energy Conservation | Environment | Process Efficiency www.forbesmarshall.com...
-
Page 2: Table Of Contents
Table of Contents Preface .................1 Important Safety Notes ............1 Brief Product Information ............3 Product Working Principle ............8 Installation Guidelines ............10 Startup and Commissioning ..........12 Maintenance Guidelines ............14 Troubleshooting ..............18 Available Spares ..............20 Warranty Period ..............21 PLEASE NOTE - Throughout this manual this cautionary symbol is used to describe a potential damage or injury that might occur if the safety considerations are overlooked. -
Page 3: Preface
The product is suitable for use as defined in the technical information sheet. In case the need arises to use the product on any other fluid please contact Forbes Marshall for assistance. Check for the suitability in conformance to the limiting conditions specified in technical information sheet of the product. - Page 4 India & abroad 2.11 Returning products: Customers and Stockist are reminded that, when returning products to Forbes Marshall they must provide information on any hazards and the precautions to be taken due to contamination residues or mechanical damage which may present a health, safety or environmental risk.
-
Page 5: Brief Product Information
Brief Product Information: 3.1 Description: The Forbes Marshall Multi Valve Pressure Powered Pump Package Unit with IJ and CRM485R , MV55, is a positive displacement pump unit operated by steam or compressed air or pressurised gas. The unit is specifically designed to pump hot condensate. - Page 6 3 Kg of steam per 1000 kg condensate pumped Air consumption 22 SCF per 1000 Kg condensate pumped Minimum operating temperature 0°C Note: For lower operating temperatures consult Forbes Marshall 3.4 Operating range: 3.5 Standard Accessories: • Condensate Recovery Meter - 485 (CRM485R) •...
- Page 7 All dimensions are in ‘mm’ Sr.No. Part Material Sr.No. Part Material Receiver Pipe Carbon steel, IS3589 Condensate Recovery …… Meter (CRM) Stem inlet connection Carbon steel DN100 Check valve Stainless steel assembly (1/2" BSPT) Shell pipe Carbon steel, IS3589 Reed sensor flange Carbon steel,IS 2062 Frame assembly Carbon steel,IS 2062...
- Page 8 Multi Valve Pressure Powered Pump Package Unit with IJ and CRM485R...
- Page 9 Materials: Motive Back Pressure Capacity Air Capacity Pressure Motive Fluid - Steam Motive Fluid - Air barg barg kg/hr kg/hr 7.00 1.00 10548 7.00 2.00 7960 7.00 3.00 6119 7.00 4.00 5048 6.00 1.00 8358 10556 6.00 2.00 6870 7896 6.00 3.00 5480...
-
Page 10: Product Working Principle
Product Working Principle : Note: For this section refer to Figure 4 A Multi Valve Pressure Powered Pump Package Unit consists of a receiver (1), Inlet Isolation valve (2), Strainer (3), a body shell (4) containing a float mechanism which operates a set of motive steam / air inlet (5) and exhaust valves (6) and inlet (7) &... - Page 11 Note: For this section refer to Figure 3 In the normal position before startup the float is at the lowest position with the motive steam/air valve (5) closed and, the exhaust valve open (9A). When condensate flows by gravity through inlet check valve in to pump body (15), the float (16) will rise along with the level of condensate.
-
Page 12: Installation Guidelines
Flash Steam Condensate Inlet Condensate Line Fig.5: Installation of Multi Valve Pressure Powered Pump Package Unit with Forbes Marshall Flash Vessel Multi Valve Pressure Powered Pump Package Unit with IJ and CRM485R... - Page 13 5.1 Care to be taken while routing the condensate pump discharge line: (Refer to Fig. 6) The outlet line size should be equal to or more than pump outlet flange size provided with pump. As far as possible, the discharge line should have minimum bends. Ideally the condensate pump discharge line should be lifted immediately after the pump to the maximum elevation in the circuit and then to be connected to feed water tank with a downward slope.
-
Page 14: Startup And Commissioning
6.1 Flushing Procedure in the presence of a Forbes Marsall Flash vessel : (Refer Figure 8) Open the Forbes Marshall Flash vessel drain line and allow the process condensate to flow through the drain till all the foreign particles & contaminated condensate is flushed out and clean condensate can be seen coming out. - Page 15 6.2 Flushing Procedure in the absence of a Forbes Marshall Flash vessel : (Ref. Fig. 9) Wherever process condensate is directly connected to pump receiver & FM Flash vessel module is not part of Multi Valve Pressure Powered Pump Package Unit, open the pump condensate strainer cap (5) &...
-
Page 16: Maintenance Guidelines
PARAMETERS TO BE CHECKED PARAMETERS Multi Valve Pressure Powered Pump Package Unit / Half Daily Weekly Monthly Quarterly Annually. Forbes Marshall Flash vessel Yearly Clean strainer of motive media line Clean condensate inlet strainer Visual inspection and cleaning of complete set of internals... - Page 17 7.2 Tool Kit: To carry out any maintenance of the Multi Valve Pressure Powered Pump Package Unit please use the tools mentioned in the table below. Size Part Component Tool used and Size Mechanism support Allen key 8 mm Motive inlet Valve Allen key 8 mm Float Mechanism Open Spanner 19 mm (A/F)
- Page 18 7.3 Maintenance/Replacement Procedure : (Refer to Figure 3) For a detailed maintenance/replacement procedure of the Multi Valve Pressure Powered Pump Package Unit body internals, please refer to the instructions given in the subsequent sections; 7.3.1 How to Maintain/Replace the whole MV55 internal assembly: 1.
- Page 19 7.3.4 Procedure to Maintain/Replace Inlet valve assembly: 1. Follow steps 1 and 2 of section 7.3.3 2. Unscrew the allen bolts present on the top of the cover. 3. Remove the motive inlet valve manifold. If required, remove the old gasket (2) and the O-rings (3), and clean them before replacing the new one.
-
Page 20: Troubleshooting
Troubleshooting: If the expected performance is unachievable after the installation of the Multi Valve Pressure Powered Pump Package Unit, check the following points for appropriate corrective measures. Failure Mode Possible Cause Remedy a) Open valves to supply motive a) Motive steam supply closed steam pressure to condensate in the pump shell. - Page 21 Failure Mode Possible Cause Remedy a) Pump under sized. a) Verify the rated capacity as per the capacity table. Install additional pump as required. b) Inlet strainer partially choked b) Clean the strainer . Ensure all valves are fully open. c) Motive line strainer partially c) Clean the strainer and ensure choked.
-
Page 22: Available Spares
Available Spares : (Refer to Figure 10 ) Figure 10: Available Spares for Multi Valve Pressure Powered Pump Package Unit SPARE TYPE SPARE CONSIST OF PART NO. SPARE CODE VALVE SEAT FOR INLET AND EXHAUST VALVES, INLET SEAT AND VALVE VALVE HEADS -4 NO., EXHAUST VALVE HEADS -4 NOS. -
Page 23: Warranty Period
Warranty Period: As per the ordering information and agreement in the contract MV55... - Page 24 Forbes Marshall Pvt. Ltd. Forbes Marshall International Pte. Ltd. 16A, Tuas Avenue 1, Opp. 106th Milestone, CTS 2220, #05-21, JTC Space @Tuas Mumbai-Pune Road, Kasarwadi, Singapore - 639533 Pune MH 411034 INDIA www.forbesmarshall.com P: +91(0)20-68138555 P: +65 6219 3890 F: +91(0)20-68138402 Forbes Marshall Arca E: ccmidc@forbesmarshall.com...
