- Page 1 B1 Compass User Manual The information in this manual is subject to change without notice. www.rexingusa.com www.rexingusa.com REV012024...
- Page 2 (877) 740-8004 Our support team will respond to you as soon as possible. Always a surprise with Rexing Check us out here. • https://www.facebook.com/rexingusa/ • https://www.instagram.com/rexingdashcam/ • https://www.rexingusa.com/support/registration/...
- Page 3 Activate Your 18-Month Warranty & Choose Your Free Gift! Activate within 30 days of purchase to claim your free gift and extended limited 12-month warranty to 18 months. SCAN Scan the QR to Activate & Select Your Free Gift https://www.rexingusa.com/productreg/...
-
Page 4: What's In The Box
What’s in the box? B1 Compass User Manual The information in this manual is subject to change without notice. www.rexingusa.com www.rexingusa.com REV012024 B1 Compass Travel Case User Manual... -
Page 5: Product Overview

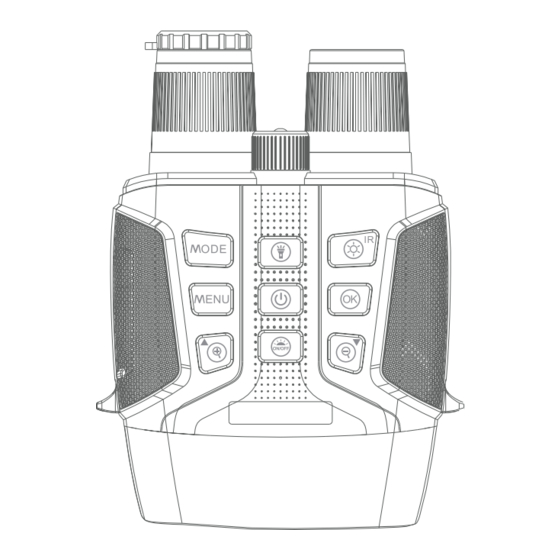

Product Overview... - Page 6 Switch Key: Switch between video Fixed Bracket Hole recording, photo capture, and Display Screen playback Lens Function Setting Key Flashlight Tube Position Up/Zoom In/UP Button Infrared Emitter Flashlight Button: Toggle between strobe light and constant light Charging Card Slot IR Mode TF card slot OK/Shot Button Charging indicator light...
- Page 7 Quick start guide MODE Mode Power on and enter video recording mode. Short press to switch to photo capture or playback mode. MENU Setting/M Short press to adjust settings. Note: Resetting to factory settings will restore firmware version parameters +/- Key Power on and enter video recording mode.
- Page 8 OK button Select parameters to modify, short press OK key to confirm changes. Power button Long press to power on or off. Button light key Tap to turn on/off button lights. Reset Button Hidden hole above the USB and TF interfaces.
-
Page 9: Basic Operation
Basic Operation Photo Capture Mode Default mode is video recording after power on. Short press " " to switch to photo capture mode. Align the lens with the target, adjust the focus by observing the screen, and press “ ” to take a photo. Hold “... -
Page 10: Playback Mode
Note: During recording, when the device enters screen protection mode, press any key to light up the screen. You can set the duration or disable it in the settings. When the memory is full, the device will automatically stop recording. Playback Mode Press the "MODE"... - Page 11 Choose white balance when taking photos. White balance Enter the setting interface, select white balance, short press “ ” to confirm, short press “ ” or “ ” to choose from auto, daylight, cloudy, tungsten, and fluorescent modes. Set the duration of each video segment. Enter the Video Segments setting interface, select video segment, short press “...
- Page 12 Set automatic shutdown time. Default is 3 Auto Shutdown minutes. Choose from 3 minutes, 5 minutes, 10 minutes, and disable options. The machine will automatically shut down after 3 minutes of idle time to save power. Press " " OK button to confirm, or press " "...
- Page 13 Supports 12 language options including Language • Simplified Chinese • French • Traditional Chinese • German • Portuguese • Italian • English • Spanish • Japanese • Russian • Korean • Tha Burst Mode Set the number of continuous shots. Choose from 1 shot, 2 shots, 3 shots, etc.
- Page 14 Recording Default is enabled. When recording video, it will also record surrounding sounds. If you turn off the recording, the surrounding sounds will not be recorded. Button Sound Default is enabled. When pressed, there will be a prompt sound. The sound is turned off when you opt for off.
- Page 15 USB-C wire Turn off the device, insert the TF card into the device, connect the device to the computer via USB, and then turn it on again. Three options will appear on the screen, indicating that the device is connected to the computer. Select the first option, and the device will enter storage mode.
- Page 16 Changes in product performance and functions may occur without prior notice; if there is any inconsistency between the manual and the actual product, rely on the actual product. Do not use the product in areas where the use of electronic devices is prohibited, such as on an airplane.
-
Page 17: Specification
Specification Product name B1 Compass Night Vision Display screen 3.99-inch TFTIPS Full View Angle Lens 25mm, f/1.0 High Definition Camera 3 Levels of Night Vision Infrared Filter Functions Recording, Photo Capture, Album Playback, Flashlight Flashlight function Constant Light at Maximum Power of 1W, Strobe at Maximum Power of 0.5W... - Page 18 Maximum Output DC-5V/2A Operating Buttons 9 function buttons Storage Capacity Built-in 32G/64G/128G optional (please refer to actual purchase, TF card file system FAT32) Charging interface Type-c Power supply Built-in rechargeable polymer lithium battery 3.7V 5000mAh Operating 14° F - 133° F Temperature Dimensions 5.67*8.38*2.75 inch...
-
Page 19: Warranty And Support
12-24 hours. Your opinion matters Rexing is firmly committed to always improving our products, services, and user experience. If you have any thoughts on how we can do even better, we welcome your constructive feedback and suggestions. - Page 20 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
