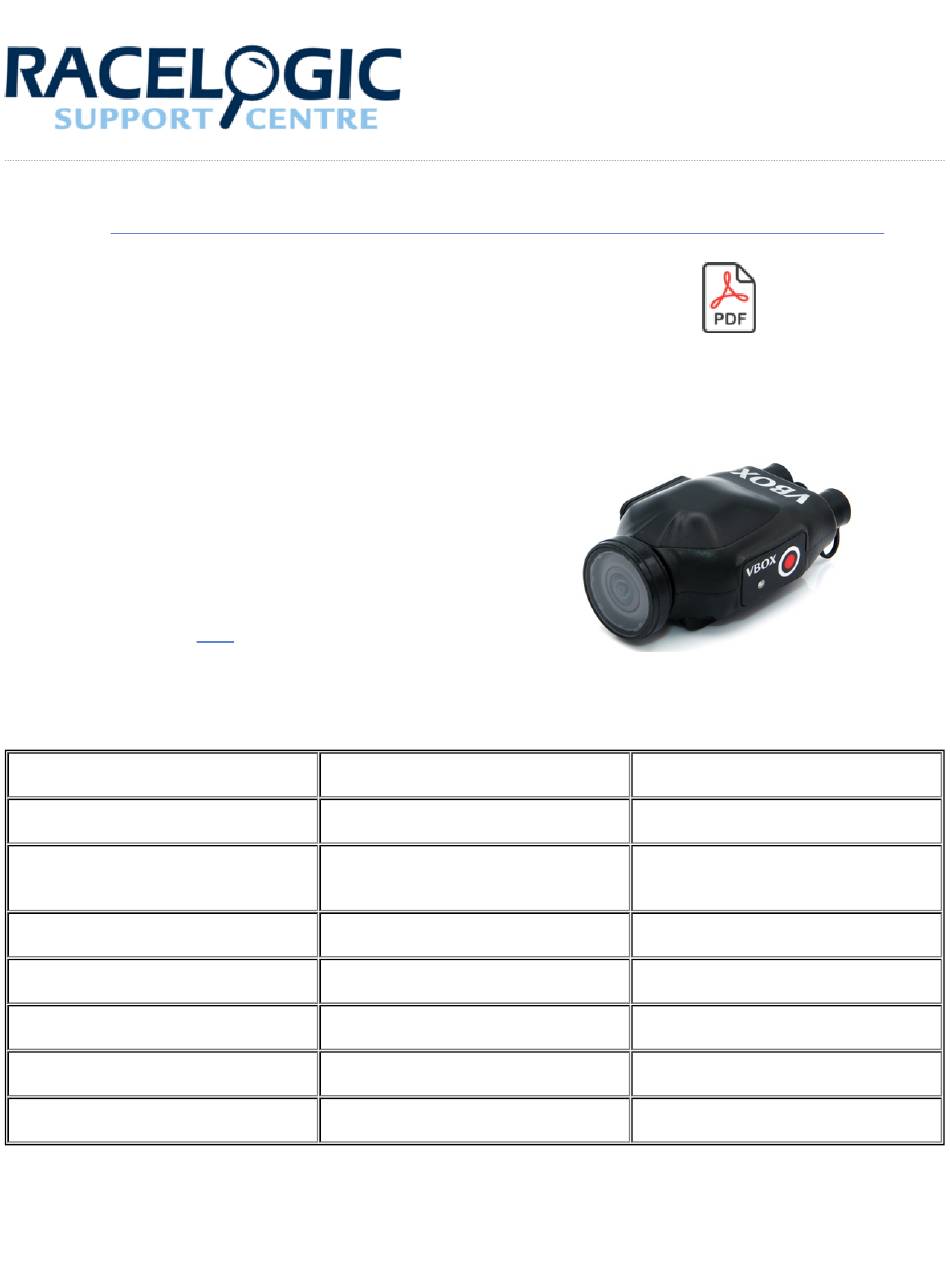

Quick Start Guide
https://en.racelogic.support//Product_Info/Video_Data_Loggers/VBOX_HD_Lite/Quick_Start_Guide
Download a PDF of the Quick Start Guide by clicking on the PDF Icon.
Registration
Please register your VBOX HD Lite unit so that
Racelogic can continue to provide you with notifications
about the latest software releases and firmware
upgrades for your Racelogic product and offer technical
support.
Register your device here.
What is in the box?
Product Code
VBHDL-V1
RLACS287
RLACS297
RLCAB165
RLACS316
RLACS284
RLACS240
Quantity
1
1
1
1
1
1
1
Description
VBOX HD Lite Main Unit
Lightweight Windscreen Suction
Mount
32 GB Class 10 U3 Micro SD Card
Cigar Lighter power supply cable
Wi-Fi Dongle for video preview
GNSS Antenna
Protective Lens Cover
1
Advertisement
Table of Contents
Summary of Contents for VBOX HD Lite
- Page 1 Download a PDF of the Quick Start Guide by clicking on the PDF Icon. Registration Please register your VBOX HD Lite unit so that Racelogic can continue to provide you with notifications about the latest software releases and firmware upgrades for your Racelogic product and offer technical support.
-
Page 2: Compatible Media
• Adjust the CAN settings. Note: The configuration file generated from the VBOX HD Lite Setup Software is the file type .RLC. The .rlc file must be placed in the root directory of the microSD card for the VBOX HD Lite to update its configuration. -
Page 3: Cold Start
16 hours 40 minutes 12 hours *The times listed are approximate for a standard setup. Note: If your microSD card is full, the HD Lite will sound an audible alert (2 double beeps) and the LED will flash orange. Coldstart A GNSS coldstart may be required when: •... - Page 4 Solid Red: VBOX HD Lite has encountered an error. • Solid White: VBOX HD Lite is performing a GNSS coldstart. NOTE: When upgrading the firmware on VBOX HD Lite, the LED may flash red for a short period before changing to...
- Page 5 Setup The VBOX HD Lite setup software will help you configure your VBOX HD Lite for your vehicle and event. When you open the software, it will open the Home tab by default. You will see a toolbar with three menus; General, CAN, and Timing, as well as load and save buttons, a button to clear all configurations and a Help button.
- Page 6 Clicking on the Load button will open a File Explorer pop-up. Navigate to the location of the config file (RLC file) you wish to load and select to open it. The settings in the RLC file will be populated in the VBOX HD Lite setup software.
- Page 7 Save the Configuration to HD Lite Unit When you have finished the configuration of your HD Lite, you must save the config file (.rlc) to the root folder of your microSD card and then insert the microSD card into the HD Lite. When the HD Lite boots up, it will check the microSD card for an .rlc file.
- Page 8 Power VBOX HD Lite is powered by the supplied cigar Lighter power supply cable (RLCAB165). Plug it in the vehicle's 12 V cigar power socket and connect it to either of the Hirose connectors at the rear of the unit. The device will boot up automatically as soon as the power supply is connected.
-
Page 9: Hardware Connections
Obtaining the Best GPS Quality Correct placement of the GNSS antenna is crucial to the quality of the data recorded by your VBOX HD Lite. To get the best possible results, you should place the GNSS antenna in the centre of a metal roof. Do not mount the antenna close to the edges of the roof as reflected signals may interfere with your satellite signal. - Page 10 VBOX HD Lite Connecting VBOX HD Lite to vehicle CAN without an OLED Display Connecting VBOX HD Lite to an OLED Display Note: You cannot load or export reference laps via the OLED Display when it is connected to an HD Lite.
- Page 11 Connecting VBOX HD Lite to vehicle CAN with an OLED Display Note: You cannot load or export reference laps via the OLED Display when it is connected to an HD Lite.
