This quick installation guide is applicable for the installation of CB2-X-HV5. For detailed instructions, refer to the CB2-X-HV5 User Manual.
1. Installation space requirement
⚫

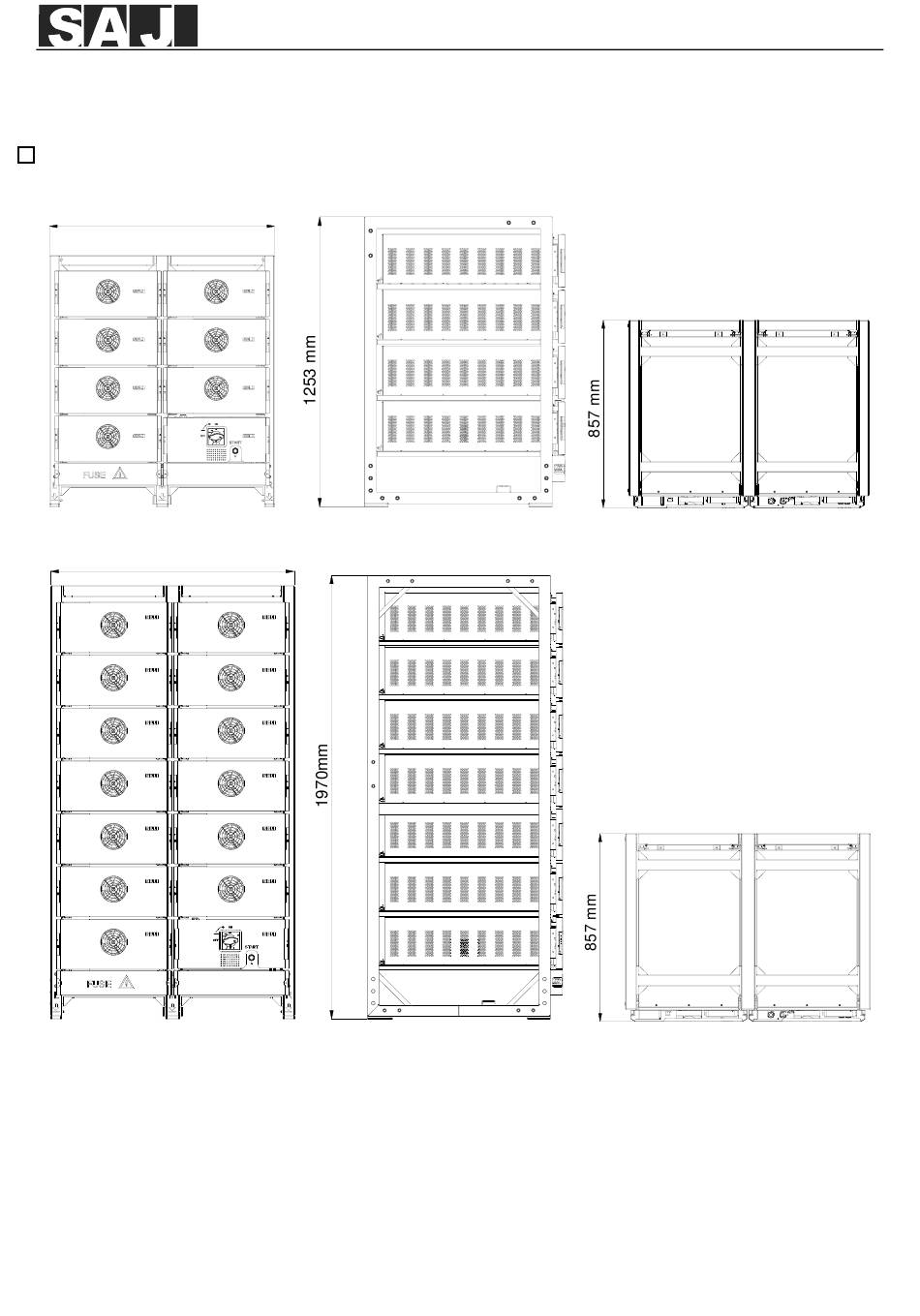

Dimensions of CBT2-100.3-HV5 battery rack:
1106 mm
⚫
Dimensions of CBT2-186.2-HV5 battery rack:
1106 mm
V0.0
CB2-X-HV5 Quick Installation Guide
1
