Summary of Contents for Hyundai SANTA FE 2024

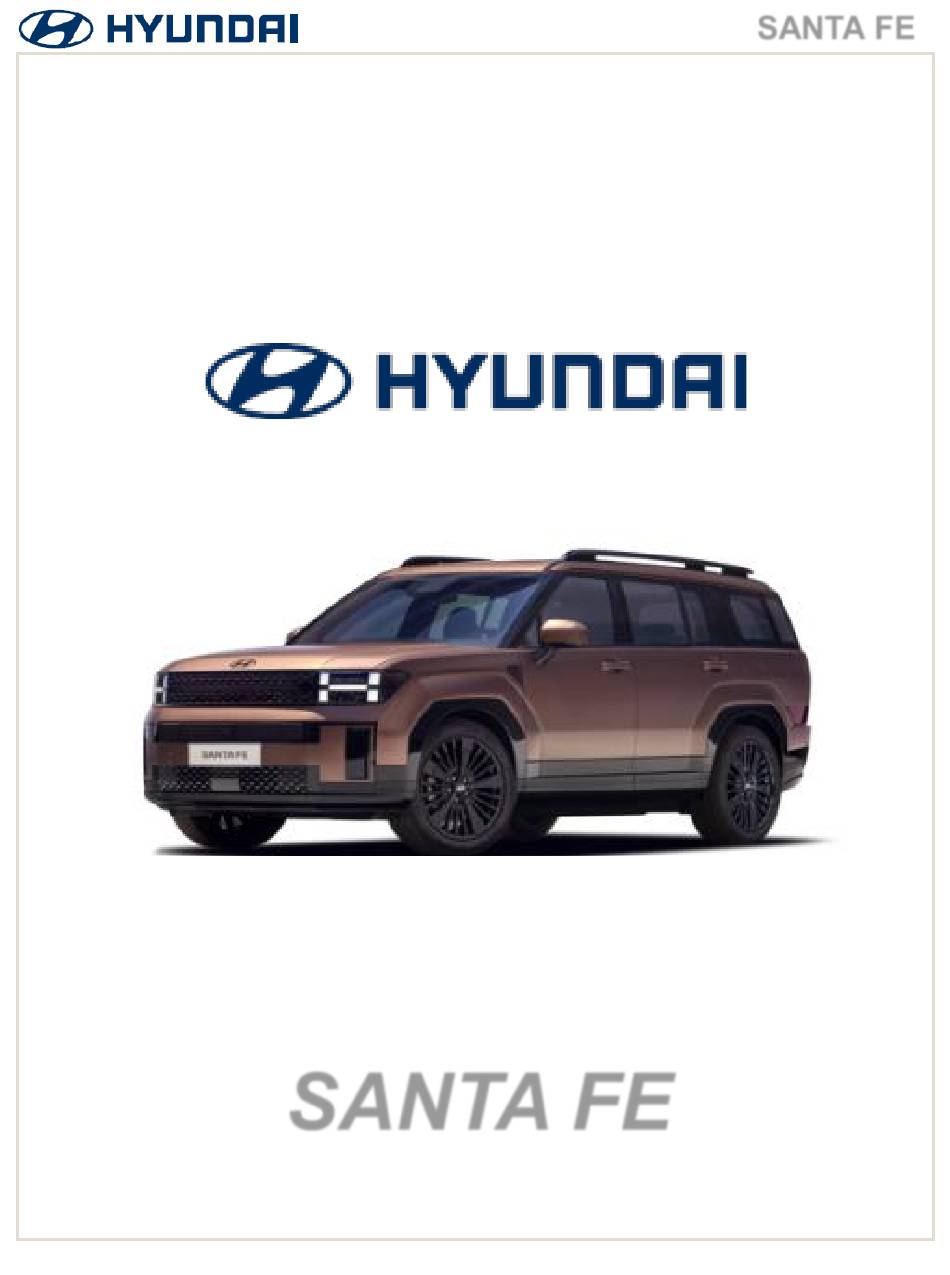

- Page 1 SANTA FE Emergency Response Guide SANTA FE...
- Page 2 SANTA FE...
- Page 3 SANTA FE...
-
Page 4: Table Of Contents
SANTA FE Contents Identification / Recognition Immobilization / Stabilization / Lifting Disable Direct Hazards / Safety Regulations Access to the Occupants Stored Energy / Liquid / Gases / Solids In Case of Fire In Case of Submersion Towing / Transportation / Storage Important Additional Information Explanation of pictograms used Warning... -
Page 5: Identification / Recognition
SANTA FE 1. Identification / Recognition Initial Response: Identify, Immobilize and Disable The following procedures should be used whenever you are dealing with a SANTA FE at an emergency scene. However, all operations should be consistent with your department's standard operating procedures, guidelines, and any applicable laws. - Page 6 SANTA FE 1. Identification / Recognition Identifying a Hyundai SANTA FE Front and rear view of Hyundai SANTA FE The Brand Logo placed on the hood and on the tailgate Model name on Tailgate “SANTA FE” The model name “SANTA FE” is placed in the middle of the tailgate.
- Page 7 SANTA FE 1. Identification / Recognition Engine room In both variants of Hyundai SANTA FE the „HYBRID“ Logo [red] is placed on the engine block. Additional you will find the Hybrid Power Control Unit HPCU [orange] on the left side of the engine compartment.
-
Page 8: State Of Charge)
SANTA FE 1. Identification / Recognition Instrument Cluster The instrument cluster of SANTA FE display some specific features for using high voltage battery. The cluster in the vehicle can be change individual and may be differ from the illustration. ④ ①... -
Page 9: Immobilization / Stabilization / Lifting
SANTA FE 2. Immobilization / Stabilization / Lifting Immobilization The next step is to immobilize the vehicle to prevent any accidental movement that can endanger response personnel or civilians. Responders should approach the vehicle from the sides and stay away from the front or rear as they are potential paths for vehicle movement. -
Page 10: Disable Direct Hazards / Safety Regulations
SANTA FE 3. Disable Direct Hazards / Safety Regulations The final step in the initial response process, conducted after immobilizing the vehicle, is to disable the vehicle, its SRS components and the high voltage electrical system. To prevent current flow through the system, use one of the following procedures to disable the vehicle. - Page 11 SANTA FE 3. Disable Direct Hazards / Safety Regulations Name Warning for high voltage Warning/ Caution symbol Rated voltage and maximum charging current Disconnecting the charging connector in an emergency If the charging connector does not disconnect from the charging inlet due to battery being fully discharged or a wiring failure, open the tailgate and pull the emergency cable following the instructions: Description Picture...
- Page 12 SANTA FE 3. Disable Direct Hazards / Safety Regulations Disabling of high voltage electrical system Via Service Interlock To disable the HV-system use the service interlock device located in the fuse box in the engine compartment. The “Service Interlock” is not completely removable take care not to reconnect the HV- System.
- Page 13 SANTA FE 3. Disable Direct Hazards / Safety Regulations Disabling the 12V battery system Via „Engine Start/Stop“ Button It is possible to disable the 12V battery system from SANTA FE by using the „Engine Start/ Stop“ button. The different modi with and without depressing the brake pedal are explained below.
- Page 14 SANTA FE 3. Disable Direct Hazards / Safety Regulations Via IG (Ignition) Fuse Removal To disable the 12V battery system it has to be sure that the vehicle engine is off. Is the “READY” light, on the instrument panel, illuminated, the vehicle is “ON”. In this case turn “OFF” the system by press the “P” button on the shifter and press the “Engine Start/Stop”...
-
Page 15: Access To The Occupants
SANTA FE 4. Access to the Occupants Extraction Operations The SANTA FE is a hybrid electric vehicle. Because of the high voltage components contained therein, first responders should pay special attention when they extract occupants in the car. Before performing any extraction operations, the first responders should "Identify, Immobilize and Disable"... - Page 16 SANTA FE 4. Access to the Occupants Steering wheel adjustment The Hyundai SANTA FE is equipped with manual or automatic steering wheel adjustment. For better access to the occupant after acident, the steering wheel can be moved as follow. Manual adjustment Automatic adjustment Pull down the lock-release lever (1).
-
Page 17: Seat Adjustment
SANTA FE 4. Access to the Occupants Windows and Glass The SANTA FE is equipped with power windows. Each door has his own switch to control the door’s window. The driver door has central power window lock button which can block and unblock all operation of the rear passenger windows. -
Page 18: Stored Energy / Liquid / Gases / Solids
SANTA FE 5. Stored Energy / Liquid / Gases / Solids Both Hybrid versions of SANTA FE are equipped with electric and combust engine. Therefore additional to the HV-battery normal gasonline tank is installed in the rear of the SANTA FE. Type Advisory pictogram Gasoline... - Page 19 SANTA FE 5. Stored Energy / Liquid / Gases / Solids High Voltage System HPCU HPCU (Hybrid Power Control Unit) is a device that combines Inverter, LDC, and HCU in one package. Inverter converts the High Voltage DC power of the battery into AC power to control the speed of the motor.
-
Page 20: In Case Of Fire
SANTA FE 6. In case of Fire Firefighting Operations Strict precautions must be taken while conducting firefighting operations due to following reasons: • Lithium-ion batteries contain gel electrolyte that can vent, ignite, and produce sparks when subjected to temperatures above 149°C. •... - Page 21 SANTA FE 6. In case of Fire Vehicle Fire • Use a large volume of water (max. 10,000 liter). Water must cool down the battery. • If water is applied directly onto the high/low voltage battery module inside the casing, it will better cool the battery.
-
Page 22: In Case Of Submersion
SANTA FE 7. In Case of Submersion Submerged or Partially Submerged Vehicles Some emergency responses can involve a submerged vehicle. The SANTA FE does not have high voltage components on the vehicle’s body or framework. It is safe to touch the vehicle’s body or framework if there is no severe damage to the vehicle, whether it is in water or on land. -
Page 23: Towing / Transportation / Storage
8. Towing / Transportation / Storage Towing service If towing the SANTA FE is necessary, it is recommend to having it done by an authorized HYUNDAI dealer or a commercial tow-truck service. To prevent damage to the vehicle, proper lifting and towing procedures are necessary. - Page 24 SANTA FE 8. Towing / Transportation / Storage Storage of damaged vehicle with the damaged battery • Drain fluids and water, then disconnect the negative (-) terminal of the 12 V battery before storing a damaged vehicle. • In addition, remove the water inside the battery or vehicle, then remove the service plug from the high voltage battery before storing a damaged vehicle.
-
Page 25: Important Additional Information
SANTA FE 9. Important Additional Information The SANTA FE comes standard with airbags, seatbelt pre-tensioners and gas struts, see picture below. Some of teh futures are explain in this chapter. Safety Equippment Airbags ② Gas Inflator ⑤ ③ ④ ⑦ Pre-tensioner ①... - Page 26 SANTA FE 9. Important Additional Information Airbag system (SRS: Supplemental Restraint System) Airbag 10 airbags are installed in the SANTA FE, located in the areas shown in the image below. Before performing any emergency procedure, make sure the vehicle ignition switch is turned off and disconnect the negative connector from the 12V auxiliary battery (located in the left side motor compartment) to prevent accidental deployment of undeployed airbags.
-
Page 27: Explanation Of Pictograms Used
SANTA FE 10. Explanation of pictograms used Tabel of used pictograms in this document. Fuel tank content Gasoline vehicle Bonnet gasoline/ ethanol Air-conditioning General warning sign Boot component Hazardous to the Corrosives Flammable human health Explosives Acute toxicity Environmental hazard Use water to extinguish Infrared Camera Warning, Electricity...
