Summary of Contents for Rently Smart Bolt Elite Flex

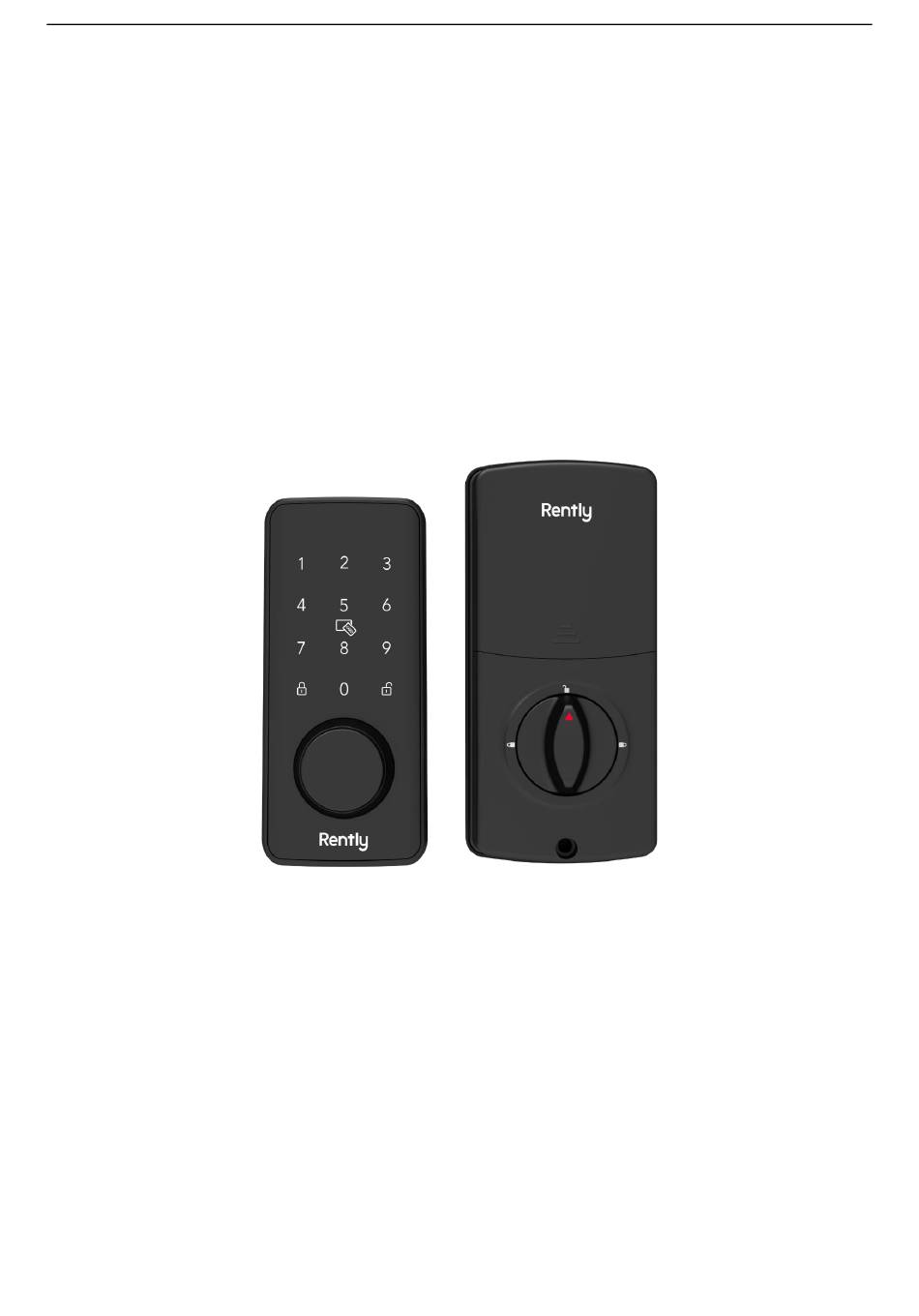

- Page 1 Rently Z-Wave® Doorlock Engineering Specification Rently Smart Bolt Elite Flex Advanced Information Product Manual...
-
Page 2: Table Of Contents
Rently Z-Wave® Doorlock Engineering Specification Table of Content OVERVIEW ............................... 1 INTERFACES ..............................2 SPECIFICATIONS ............................3 Structural Characteristics ........................ 3 Hardware Characteristics ........................3 Software Characteristics ........................3 PRODUCT QUICK START ..........................5 Z-Wave DSK Location ..........................5 How to add the product into Z-Wave network ................. 5 How to remove the product from Z-Wave network ................ - Page 3 Rently Z-Wave® Doorlock Engineering Specification 5.16 Configuration ............................14...
-
Page 4: Overview
Please read this Engineering Specification carefully for correct and effective use. Failure to follow the recommendations set forth by Rently Limited may be dangerous or cause a violation of the law. The manufacturer, importer, distributor, and/or reseller will not be held responsible for any loss or damage resulting from not following any instruction in this guide or in other materials. -
Page 5: Interfaces
Rently Z-Wave® Doorlock Engineering Specification 2 INTERFACES Terminology Description Used to operate various functions of the door lock Keypad For manual lock / unlock operation Thumbturn 2D barcode format that can contain large amounts of information in a small square of encoded blocks resembling a random checkerboard pattern. In Z-... -
Page 6: Specifications
Rently Z-Wave® Doorlock Engineering Specification 3 SPECIFICATIONS 3.1 Structural Characteristics Parameter Value Product Identifier LOCK420-4Z Color Black Usage For indoor use. Operating Temperature -35-66℃ Relative Humidity 20-85% 3.2 Hardware Characteristics Parameter Value Z-Wave Module EFR32ZG23A010F512GM40 Z-Wave TX Power Max: 14dBm... - Page 7 Rently Z-Wave® Doorlock Engineering Specification Z-Wave network. Over The Air （OTA） Support. Firmware can be updated via RF. Multichannel Device Association Support. Refer to Section 5.6 Association Group Info. Factory Reset Support. Refer to Section 4.4 How to factory reset.
-
Page 8: Product Quick Start
Log in RentlyApp*, select the appropriate lock, click to enter the lock menu, select "Configure Zwave Mode" --> PAIRING Note: Search for "Rently Samrthome" in one of the Google Play Store or Apple App Store， you can download the RentyApp. Yor can also visit: rently.com. - Page 9 Rently Z-Wave® Doorlock Engineering Specification In the scanning process when using US_LR frequency, the end device will switch between 2 PHY setups, the classic US PHY and the LR PHY with both LR channels active. When the inclusion of end device starts, it will settle on using the PHY that was used by the controller for inclusion.
-
Page 10: Software Function Definition
Rently Z-Wave® Doorlock Engineering Specification 5 SOFTWARE FUNCTION DEFINITION 5.1 Supported Command Classes Securely 0 added Securely 2 added Non- Command Class Version secure added Non- Non- added Secure CC Secure CC secure CC secure CC ZWAVEPLUS_INFO Support Support Support... -
Page 11: Basic Command Class Mapping
Rently Z-Wave® Doorlock Engineering Specification 5.2 Basic Command Class mapping Basic Command maps to Door Lock Command Class, as shown below. Command Value Mapped Value Function 0x00 Door Unsecured Open the door Basic Set Door Lock Operation Set 0xFF Door Secured... -
Page 12: Association Group Info
Rently Z-Wave® Doorlock Engineering Specification Parameter Value Z-Wave Protocol Library Type 0x03 Z-Wave Protocol Version 0x07 Z-Wave Protocol Sub Version 0x12 Firmware 0 Version Z-Wave Chip Firmware Version Major Firmware 0 Sub Version Z-Wave Chip Firmware Version Minor Hardware Version... -
Page 13: Notification
Rently Z-Wave® Doorlock Engineering Specification 5.7 Notification The Command is used to advertise events or states, such. Notification Type = Access Control (0x06)，according to Table 4-7-1 Notification Type = Power Management (0x08)，according to Table 4-7-2 Notification Type = System (0x09)，according to Table 4-7-3... -
Page 14: Door Lock
Rently Z-Wave® Doorlock Engineering Specification (add and modify) User Id User Code Report New user code not added due to 0x0F 0x71 duplicate code 0xFE IC Card Report New program code entered : unique 0x12 0x70 0x00 Master Code Report... -
Page 15: Door Lock Logging
Rently Z-Wave® Doorlock Engineering Specification Outside Door Handles Mode = 0 (Disabled), Inside Door Handles Mode = 0 (Disabled) Door Condition = 0x00 Lock Timeout minutes = 0xFE (No unlocked period) Lock Timeout Seconds = 0xFE (No unlocked period) Target Door Lock Mode = 0x00 (Door Unsecured) -
Page 16: Schedule
Rently Z-Wave® Doorlock Engineering Specification 3. Supported User ID Status: available(0x00), grant access (0x01) 4. Supported Keypad Modes: Normal mode 5. User Code Capabilities Report Command: 1) Supported Users = 250 2) AC (Admin Code) Support = 1 3) ACD (Admin Code Deactivation) Support = 0... -
Page 17: Battery
Rently Z-Wave® Doorlock Engineering Specification 5.12 Battery The Command is used to request and report battery levels for a given device. 1. If send Battery Get to the device, it will issue Battery Report with current battery level to the requester. - Page 18 Rently Z-Wave® Doorlock Engineering Specification Size Min Value Format Enumerated Max Value Properties Read-only False Default Value Altering False Advanced False capabilities Enable or disable voice Value Function Description Disable Enable Parameter 0x02 (2) Name Timed battery report Info Configure timed battery report...
- Page 19 Rently Z-Wave® Doorlock Engineering Specification Disable completely. Unlocked Status sends Basic SET 0xFF, Locked Status sends Basic SET 0x00. Unlocked Status sends Basic SET 0x00, Locked Status sends Basic Set 0xFF. Sends only Basic SET 0xFF when Unlocked Status happens.
