Summary of Contents for Vela PIANO II 600/3

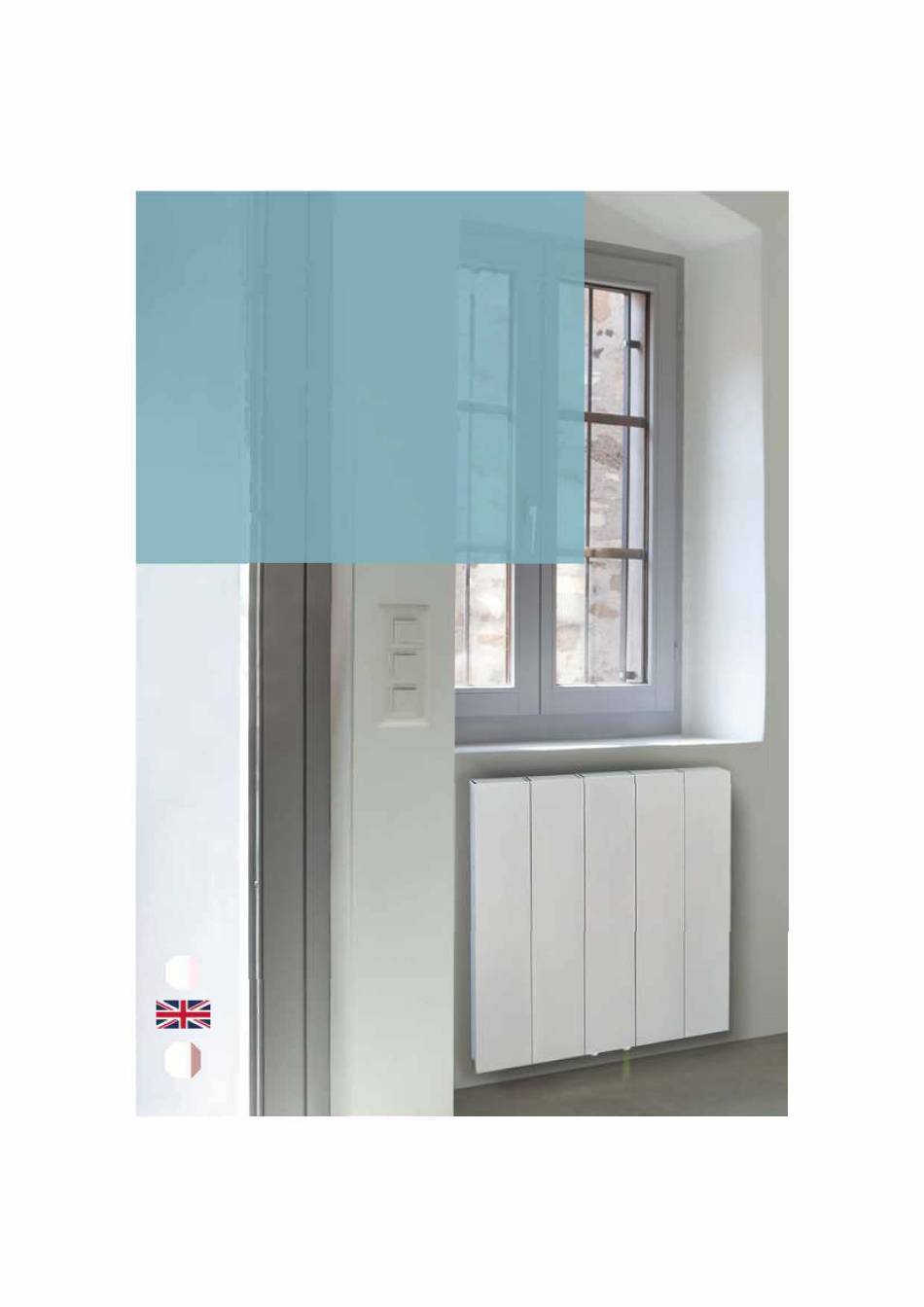

- Page 1 New Vela Electric - Wi-Fi & Bluetooth Rad iatore elettrico Electric radiator Rad iateur electrique 600mm 1800mm...
- Page 3 1034...
- Page 5 Fig. 4 - Fori di fissaggio/ Fig. 4a - Fori di fissaggio Fixing holes/ (verso di montaggio delle staffe)/ Trous de fixation Fixing holes (direction of the brackets)/ Trous de fixation (directions des supports) G in. 20 cm L'immagine e le proporzioni del radiatore sono indicative/ The image and proportions of the radiator are indicative/...
- Page 6 Fig. 6 -Termostato SMART / SMART thermostat Fig. 7 -Aggiungere ii radiatore / Add the radiator / Ajouter le radiateur Fig. 9 -Mode FIL PILOT Fig. 10 -Mode COMFORT F�.8-ModeSTANDBY Fig. 11 -Mode NIGHT Fig. 12 -Antifreeze Fig. 13 -Mode Programme (I.,,...
- Page 7 Fig. 14 - Boost 2H Fig. 15 - Rilevatore di finestre aperte/ Open window detection/Detecteur de fenetres ouvertes Fig. 16 - Wi-Fi llllllig- ·- -· � Fig. 17- Telecomando remoto/ Fig. 18 - Smaltimento/ Remote control/Telecommande Disposal/Disposition...
-
Page 8: Warnings And Precautions
WARNINGS AND PRECAUTIONS Read all of the warnings and precautions carefully. • The radiator works at 230V. Make sure that the system voltage matches. • The radiator belongs to Class I and electrical IP rating IPX4; do not fit any electrical connection ignoring these safety rules. - Page 9 SAFEUSE • The radiator can be used by children under 8 years old or by people with reduced physical, sensory or mental abilities, or without the necessary experience or knowledge, provided that they are supervised or after having received the instruc tions for use of the appliance and after having understood the dangers linked to it.
- Page 10 • This radiator's protection system is designed to prevent direct access to the electric heating elements and must be kept in its position during use. • The electric radiator must be installed away from possible contact with water and the electrical command and control devices must not be within reach of people having a bath, shower or in a situation in contact with water.
-
Page 11: Tools Required For Installation
TECHNICAL SHEET - Vela Electric 600 mm [Fig. 3J MODEL Electric power Power supply 230V 10% 50Hz CLASSEI Insulation class IPX4 Protection degree 363x600x70 mm 606x600x70 mm 849x600x70 mm 1092x600x70 mm Dimensions L x H x P Fixing holes 194x1034 mm... - Page 12 TECHNICAL SHEET - Vela Electric1800 mm [Fig. 3aJ MODEL Electric power 230V +/- 10% 50Hz Power supply CLASSEI Insulation class IPX4 Protection degree 363xl800x70 mm 485x1800x70 mm Dimensions L x H x P Fixing holes 305xl390 mm 426xl390 mm LfxHf [Lenght x Height]...
-
Page 13: Wall Mounting Instructions
WALL MOUNTING INSTRUCTIONS • Drill the wall considering Lf [hole length] and Hf [hole height] [Fig. 4 and 4a]. • Screw in the 4 rails. • Fix the two top wall brackets facing upwards (the screws must be inserted in the bracket, but not fully screwed). - Page 14 HOW TO USE THE THERMOSTAT [Fig. 6] The thermostat has two buttons: 1) CONNECTION: to connect a smartphone or a remote control; [Fig. 7a] 2) STAND-BY (Stand by or comfort 20 ° C). [Fig. 7b] OPERATING MODES: Stand-by, Fil Pilot, Comfort, Night, Antifreeze, Programmable Thermostat, BOOST 2H, ECO, detection of open windows, ASC.
- Page 15 FUNCTIONS The following functions can only be managed via an application or the remote control. 1. STAND-BY [Fig. 8] In STAND-BY mode, the radiator does not heat up. [Fig. 9] 2. MODE FIL PILOTE FIL PILOT is a special communication protocol that allows the radiator to be managed by a special control unit.
- Page 16 7. BOOST 2H [Fig. 14] This mode can be used to heat the environment quickly. The device is delivered on full power for 2 hours with a temperature set at 30 ° C. BOOST 2H mode it is configured to stop automatically after a period of 2 hours and return to operating mode previously defined.
-
Page 17: Remote Control
WI-Fl MODULE To activate the Wi-Fi module and control the domestic radiators remotely, proceed as following: 1) Go to the Wi-Fi area of the application [Fig. 16a]; 2) Select ADD WI-Fl [Fig. 16b]; 3) Select ADD THERMOSTAT NOT YET CONNECTED TO THE HOME NETWORK [Fig. 16c]; 4) Activate the Wi-Fi of the smartphone / tablet;... -
Page 18: International Standards
The manufacturer, Via E. Ferrari, 1 62017 Porto Recanati (MC) Italy electric panel heater models: , declares that the Vela 600 mm Vela 1800 mm are manufactured in compliance with European Directives: Directive 2014 / 35 / EU and 2014 / 30 / EU. - Page 19 eo•• RECYCLABLE ENERGY LOW-ENERGY UNIFORM SAVING PROCESS HEATING MADE IN ITALY REV. 3 - 11/2020...
